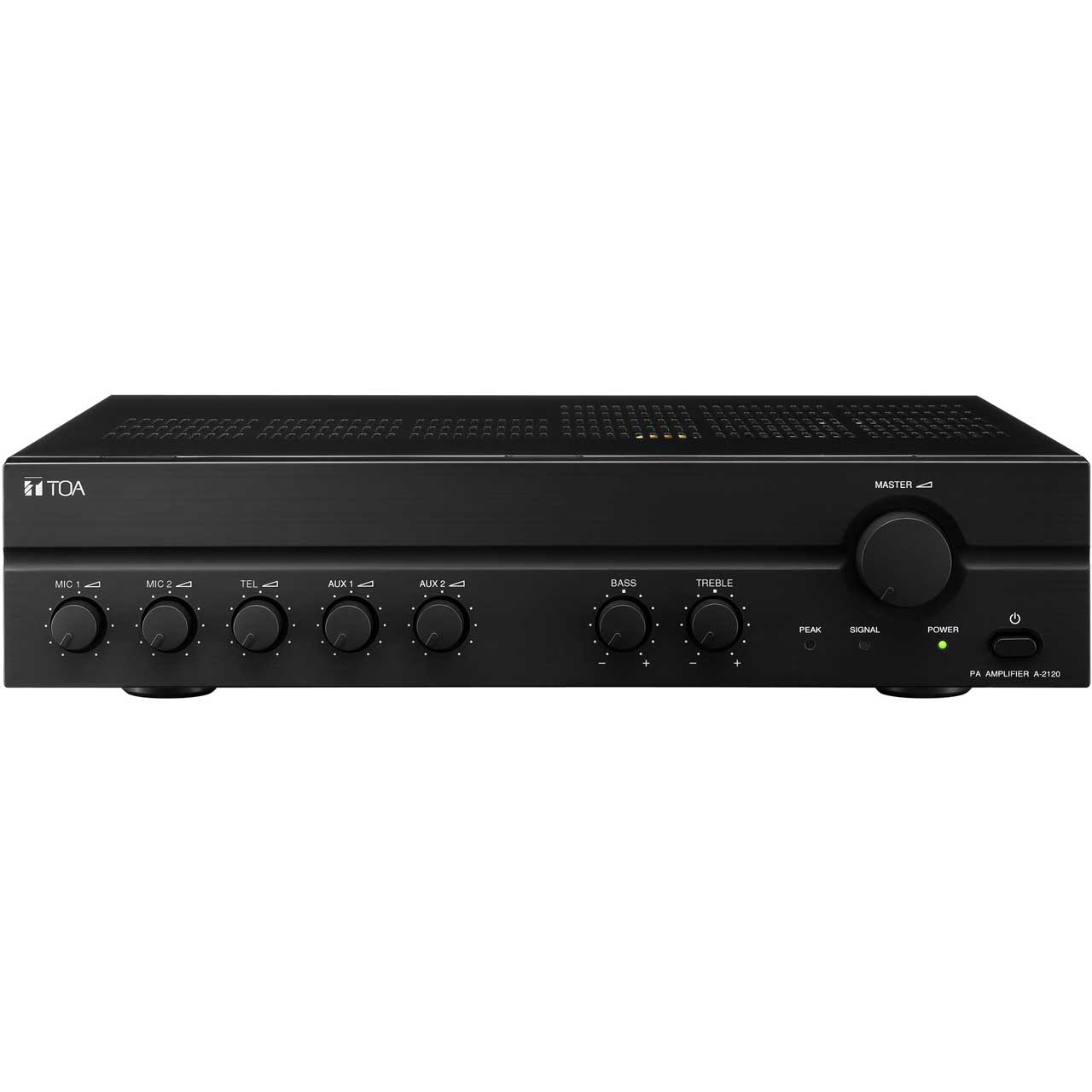

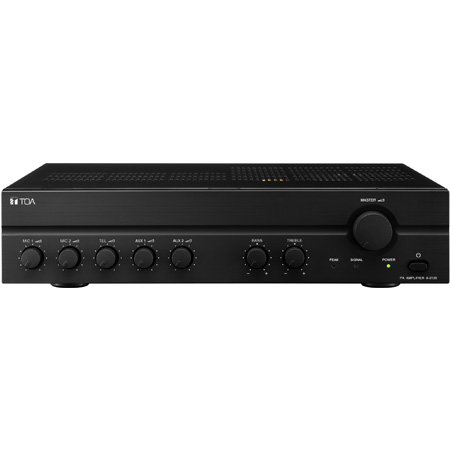

TOA A-2240 Integrated Mixer / Power Amplifier

ITEM #: TOA-A-2240 MFG #: A-2240

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$831.00

Our Price:

$672.00

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


A-2240 - Overview

TOA A-2240 MIXER/POWER AMPLIFIER offers versatile features and outstanding value for installed sound applications such as schools, offices, restaurants, shops, factories, houses of worship and large meeting rooms. The A-2240 (240 W) is manufactured with proven TOA quality and reliability.

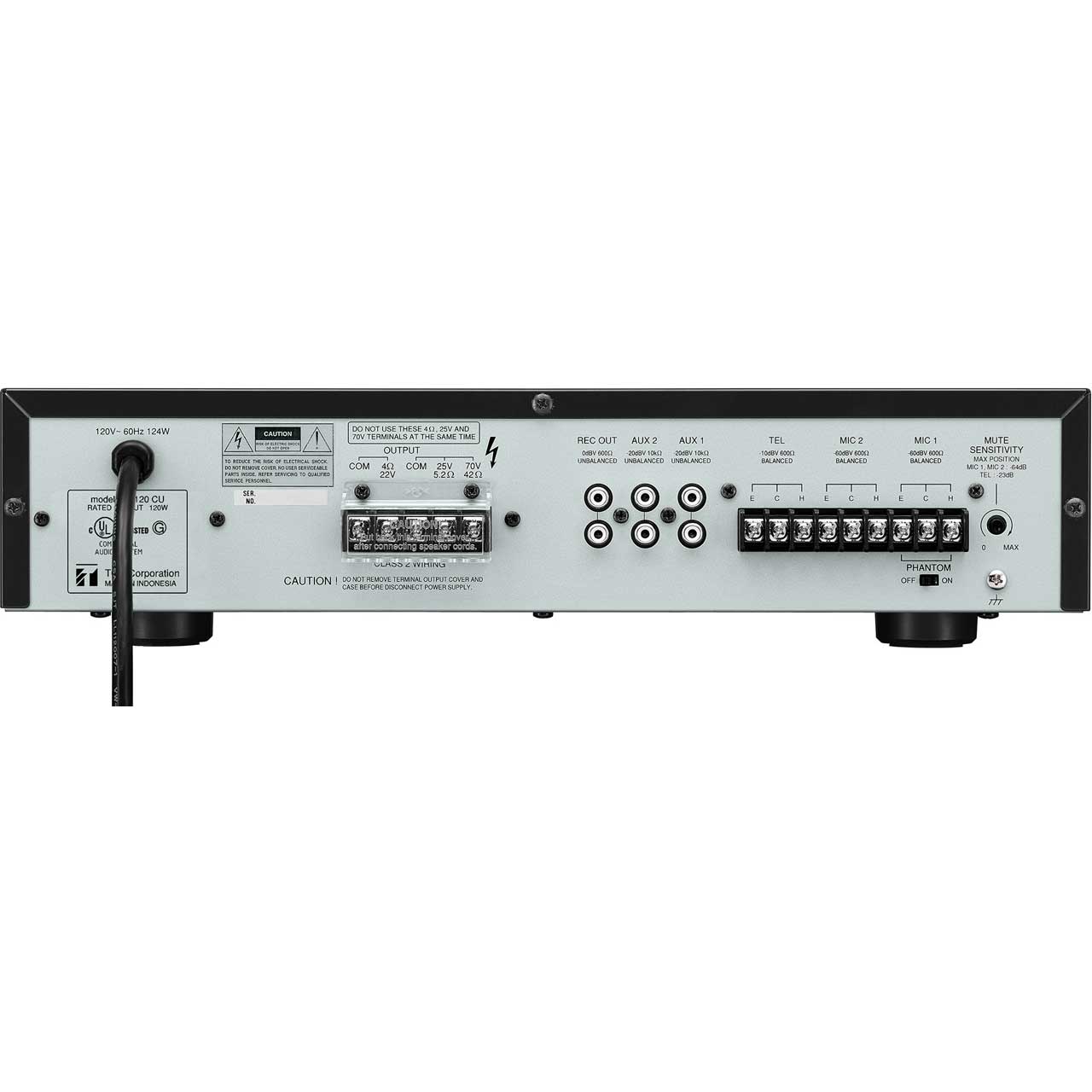

Features include five inputs, two auxiliary (stereo summing) line inputs. two balanced microphone inputs and one telephone input. Mic 1 input provides 21V DC phantom power (switchable ON/OFF). Speaker outputs consist of 70.7 V, 25 V and 4 ohm. An auxiliary line output can be used for recording or connection to an external power amplifier.

An Auto-Mute function provides voice-activated priority override for the Microphone and Telephone inputs which override the Auxiliary inputs. Auto-Mute sensitivity is adjustable for the Microphone and Telephone inputs. Other features include channel level, master volume controls and bass/treble controls.

  • Features:

    • Amplifier Guide
    • Five Channel Integrated Mixer/Amplifiers for paging and background music distribution.
    • Proven TOA Quality and Reliability with wide frequency response, very low noise and distortion, and excellent output regulation.
    • Two Mic Inputs, balanced mic, inputs, 23 VDC phantom power switchable ON/OFF.
    • Two Auxiliary Inputs, unbalanced, stereo summing with dual-RCA jacks for convenient connection of stereo sources.
    • Transformer-Isolation for Telephone Paging Applications (Telephone Input)
    • 25 V, 70.7 V and 4 Ohm Speaker Outputs with screw type barrier terminal strip.
    • Auto-Mute Priority Function
    • Inputs: Mic 1, Mic 2 and Telephone take priority.
    • Inputs Aux 1 and Aux 2 function as background inputs that mute -30dB during paging operation.
    • Auto-Mute Sensitivity Control for adjusting mute activation threshold.
    • Individual Channel and Master Volume Controls
    • Bass/Treble Tone Controls
    • Recording Output for connecting an external amplifier or recording device
    • Over-current and Thermal Protection Circuitry prevents potential damage from overloads, short-circuit and overheating
    • UL / cUL Listed
    • Five Year Warranty
