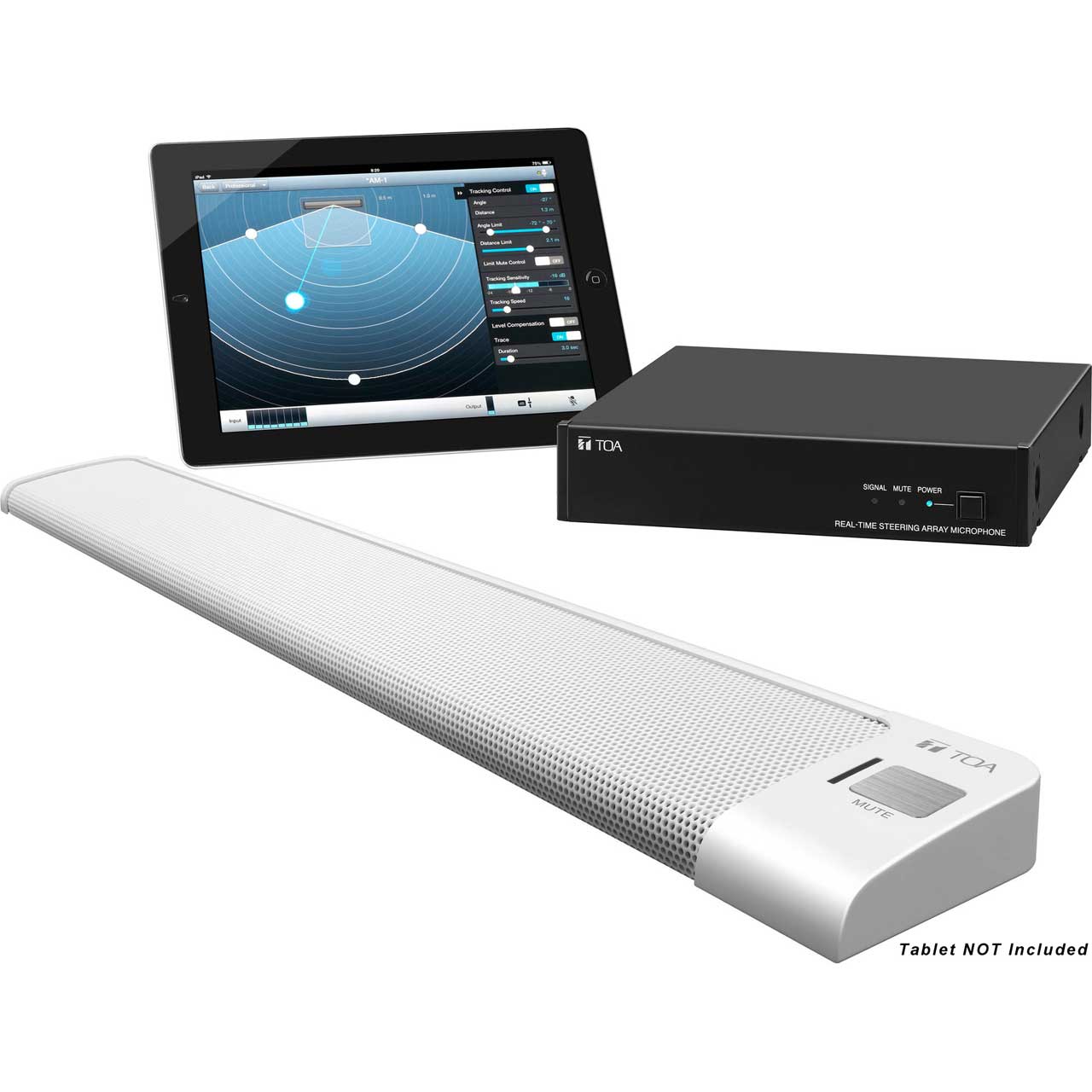

TOA AM-1WMK2 Steerable Array Microphone with DSP Network Control Interface - White

AM-1WMK2 - Overview

• Features:

  • Removal of barrier between speaker and audience
  • Freedom to adopt a comfortable speaking posture
  • Ability to move and gesture natural
  • Built-in voice detection/tracking sensor
  • Voice capture from up to 3 meters and to tracking range angles up to 180 degrees
  • Level compensation for reduced volume variations
  • Narrow (50-degree) directivity assuring minimal acoustic feedback


• Specifications:

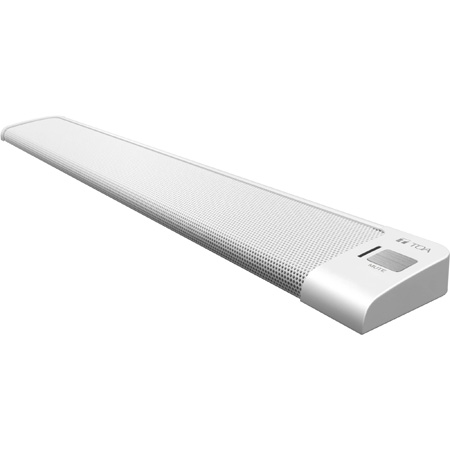

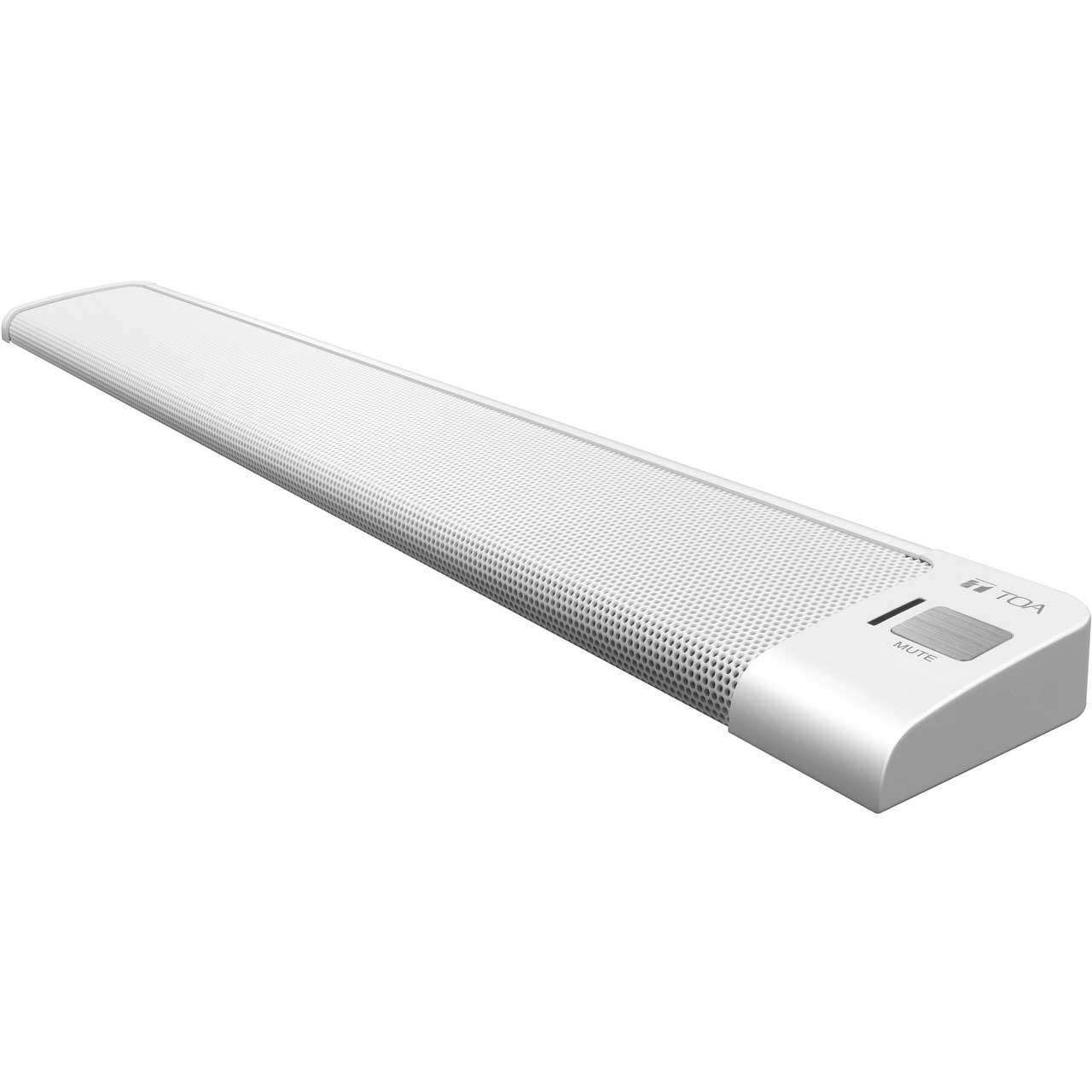

  • Array Microphone
  • Power Source: 24 V DC (supplied from the Control unit)
  • Microphone: Unidirectional electret condenser microphone
  • Directivity Angle: Horizontal: 50° (800 Hz - 18 kHz, Array mode), 180° (Cardioid mode), Vertical: 90°
  • Frequency Response: 150 Hz - 18 kHz
  • Maximum Input Sound Pressure: 100 dB SPL
  • Operation: Mute switch
  • Indicator: Microphone status indicator (output: green, mute: red)
  • Microphone Cable: Shielded twisted pair cable 10 m (32.81 ft) with connector equivalent to TA-3
  • Maximum Cable Distance: 70 m (229.66 ft) (use of the AES/EBU cable)
  • Finish: Body, Punched net: Surface-treated steel plate, white (RAL 9016 equivalent), 30% gloss
  • Side cover: ABS resin, white (RAL 9016 equivalent)
  • Dimensions: 483.9 (W) x 22.1 (H) x 64.9 (D) mm (19.05" x 0.87" x 2.56") (excluding Cable)
  • Weight: 1.2 kg (2.65 lb)

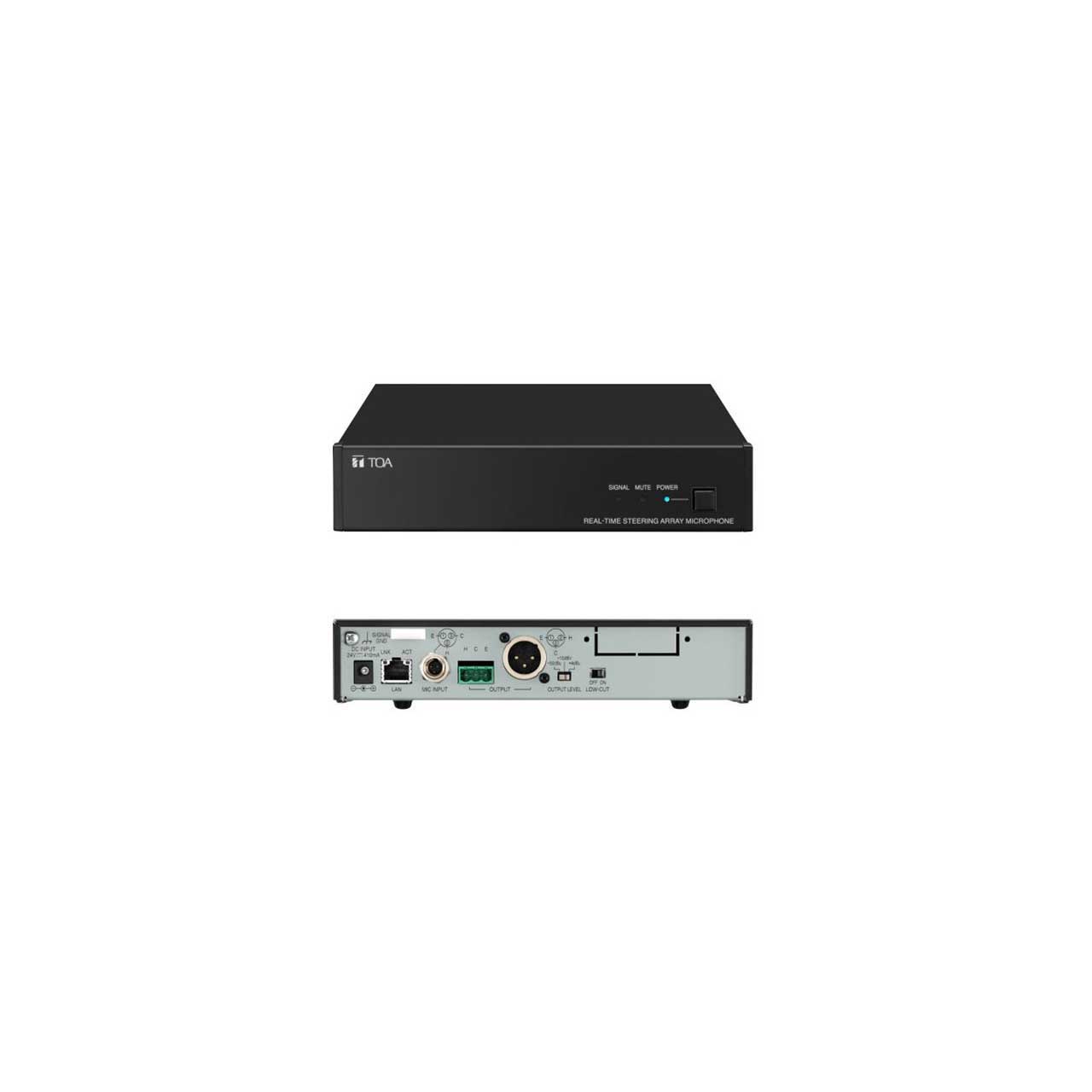

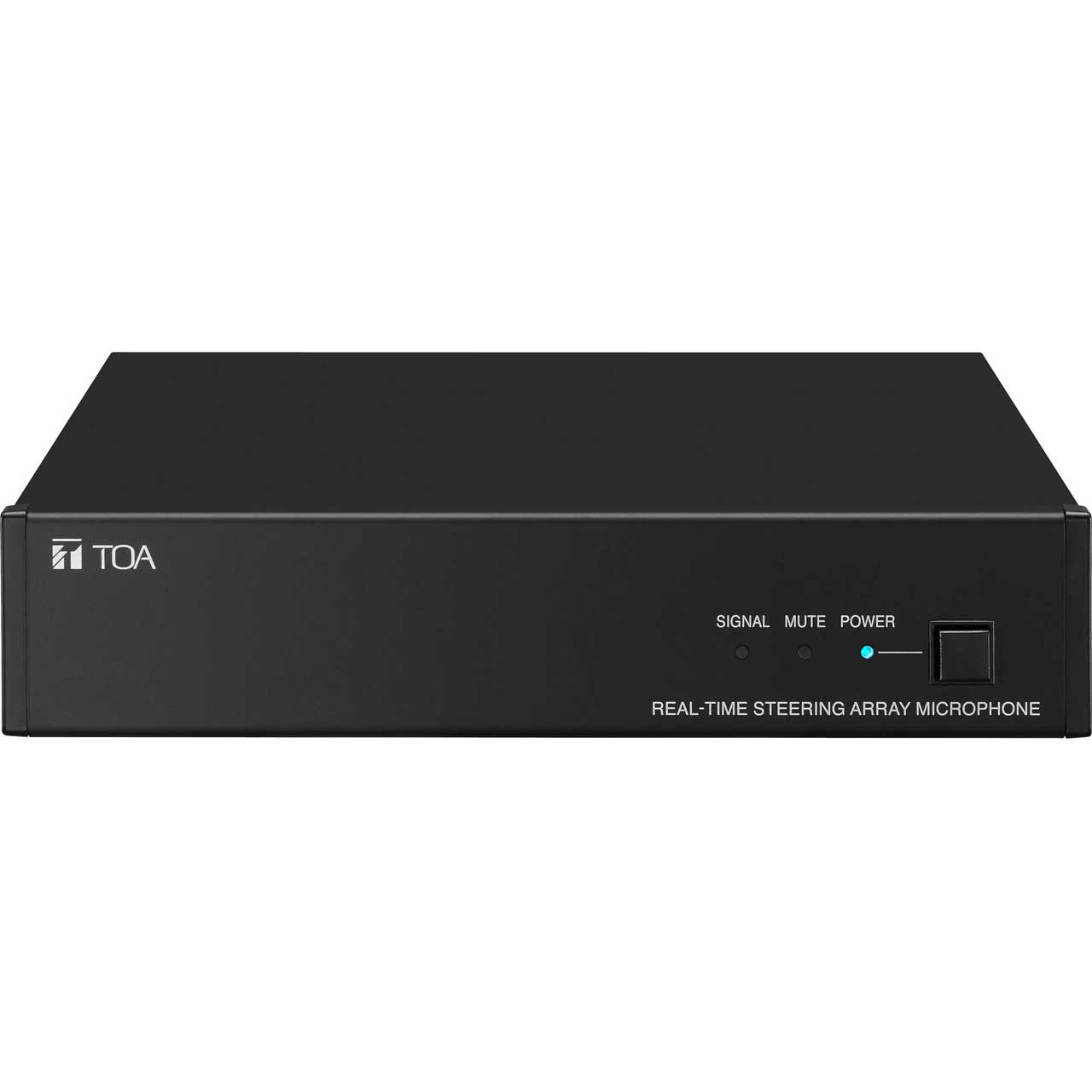

    Control Unit
  • Power Source: 24 V DC (supplied from the AC adapter (option))
  • "Usable DC power supply plug: 5.5 mm (0.22) outer diameter
  • Current Consumption: 410 mA or less
  • Signal to Noise Ratio: 90 dB or more
  • Input: Combined type of TA-3 (dedicated to the array microphone)
  • Output: Combined type of XLR-3-32, Removable terminal block (3 pins)
  • Network: Network I/F: 10BASE-T/100BASE-TX, RJ45 connector
  • Network protocol: TCP/IP, HTTP
  • Level Control: Output level selection (+4 dB (*1), -10 dB (*2), -50 dB (*1)) LOW CUT ON/OFF"
  • Operation: Power switch
  • Indicators: Power indicator (blue), Mute indicator (red), Signal indicator (green)
  • Finish: Pre-coated steel plate, black, 30 % gloss
  • Dimensions: 210 (W) x 45.7 (H) x 271.5 (D) mm (8.27" x 1.8" x 10.69")
  • Weight: 1.5 kg (3.31 lb)
  • Dedicated Software: iPad app, PC browser software (for setting of tracking distance/range, sensitivity/speed, mute ON/OFF)
  • Operating Temperature: 0 °C to +40 °C (32 °F to 104 °F)
  • Operating Humidity: 90 %RH (no condensation)
