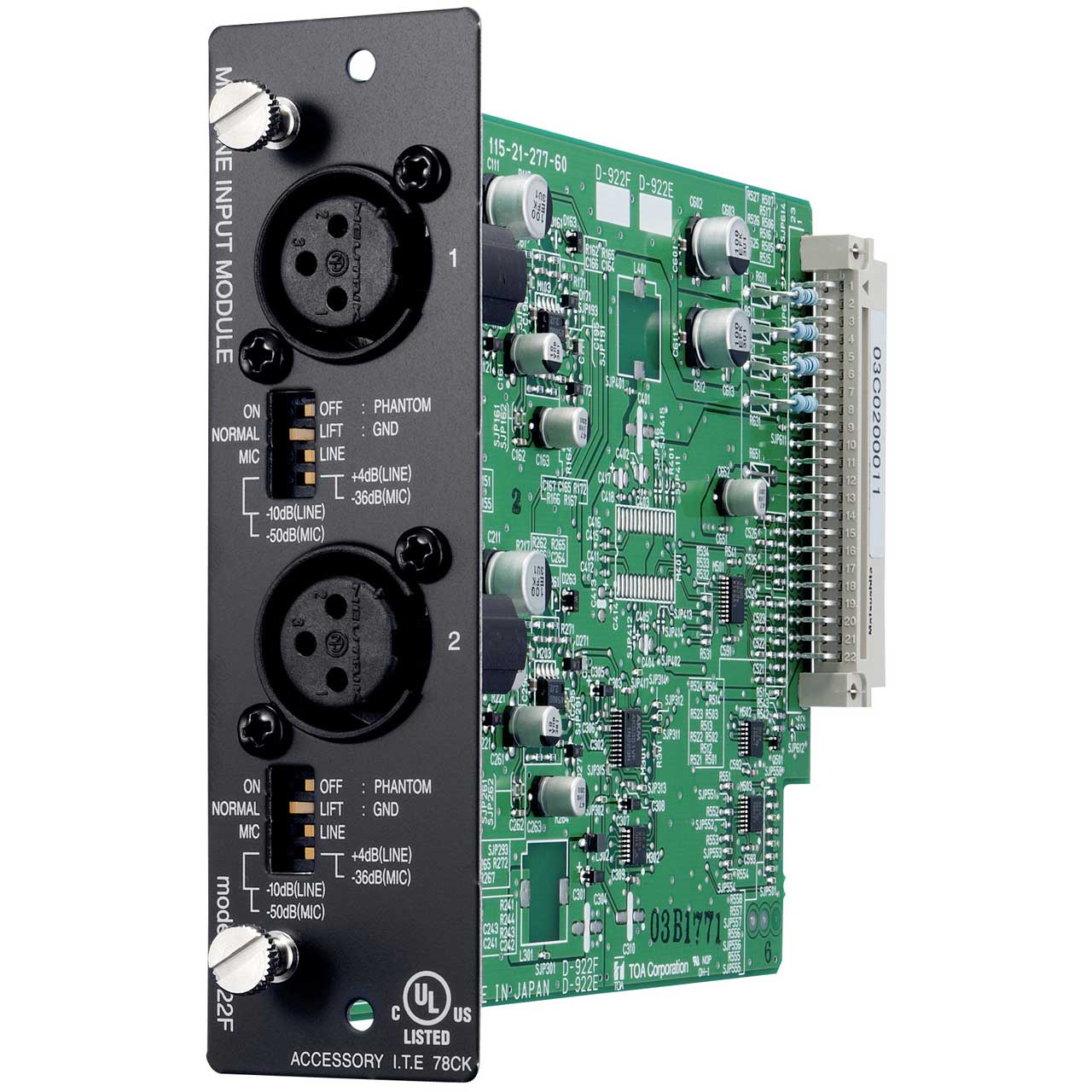

TOA D-922F Input Module - Two Mic/Line Inputs - Balanced - 20-Bit A/D - XLR-F Connectors

ITEM #: TOA-D-922F MFG #: D-922F

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$219.00

Our Price:

$177.00

Availability: In Stock
iAvailability Description Popup


    D-922F - Overview

    The TOA D-922F is a 2-channel microphone/line input module designed for use with the D-901 Digital Mixer, etc. It is equipped with XLR connectors. The D-901's 4-pole DIP switch is used to set the input sensitivity, phantom power supply, and ground lifting.

    • Specifications:

      • Input:
        2 channels, -50/-36/-10/+4 dB* (Selectable with the DIP switch.),
        4.7 kΩ, electronically-balanced, equivalent to XLR-3-31 type
        Phantom power supply (can be set with the DIP switch)
        15 V: D-901 (option), DP-K1 (option), D-2008SP (option)
        12 V: SX-2100AI (option)
        Ground lift switch (can be set with the DIP switch)
      • A/D Converter: 20 bit
      • Sampling Frequency: 48 kHz
      • Frequency Response: 20 Hz - 20 kHz, ±1 dB (+4 dB* input)
      • Dynamic Range: 85 dB (IHF-A weighted) or more (+4 dB* input)
      • Total Harmonic Distortion: 0.2 % or less (+4 dB* input)
      • Finish: Panel: Pre-coated steel plate, black, 30 % gloss
      • Dimensions: 35 (W) x 119.5 (H) x 178.4 (D) mm
      • Weight: 135 g

    • Item Includes:

      • 1x TOA D-922F Input Module - Two Mic/Line Inputs - Balanced - 20-Bit A/D - XLR-F Connectors
