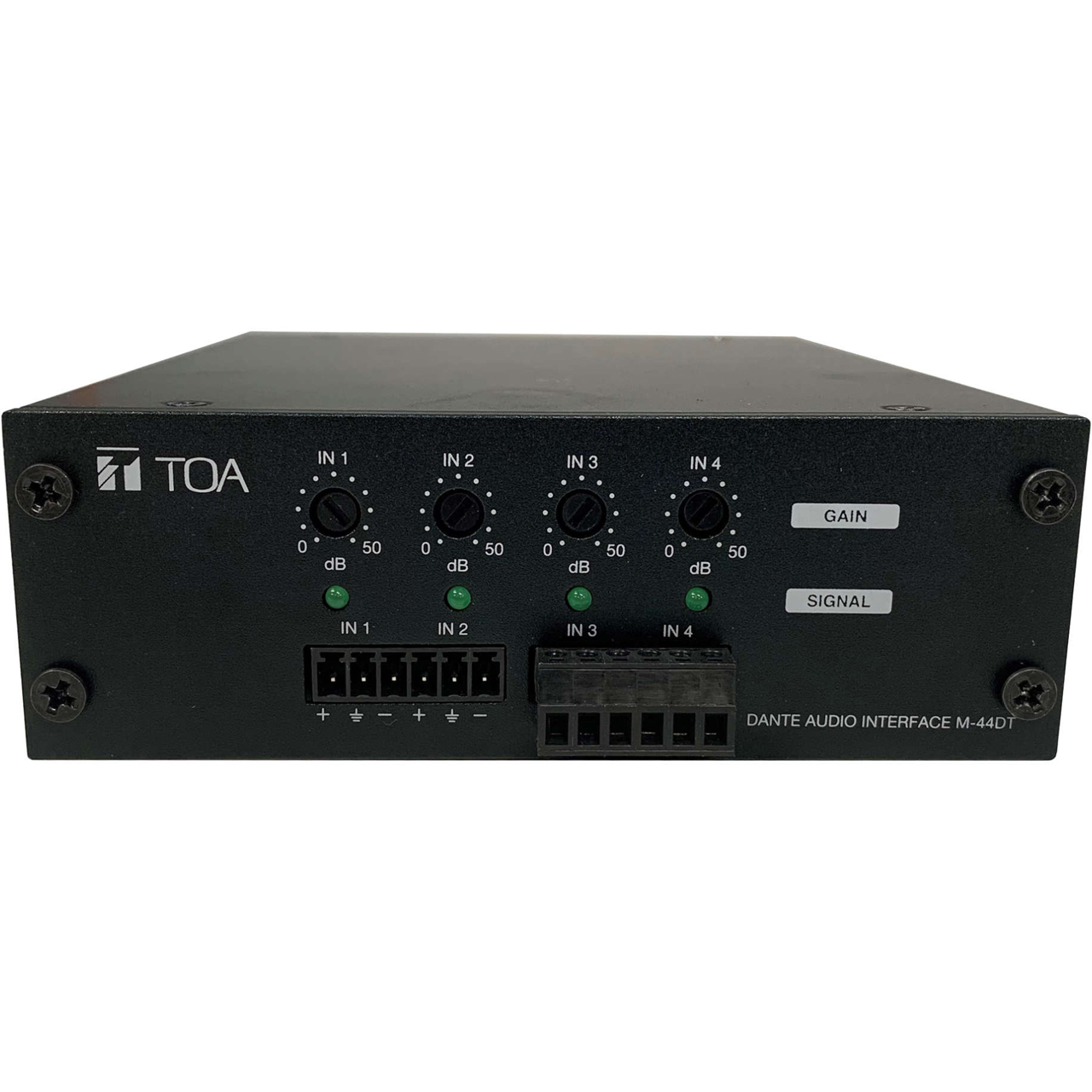

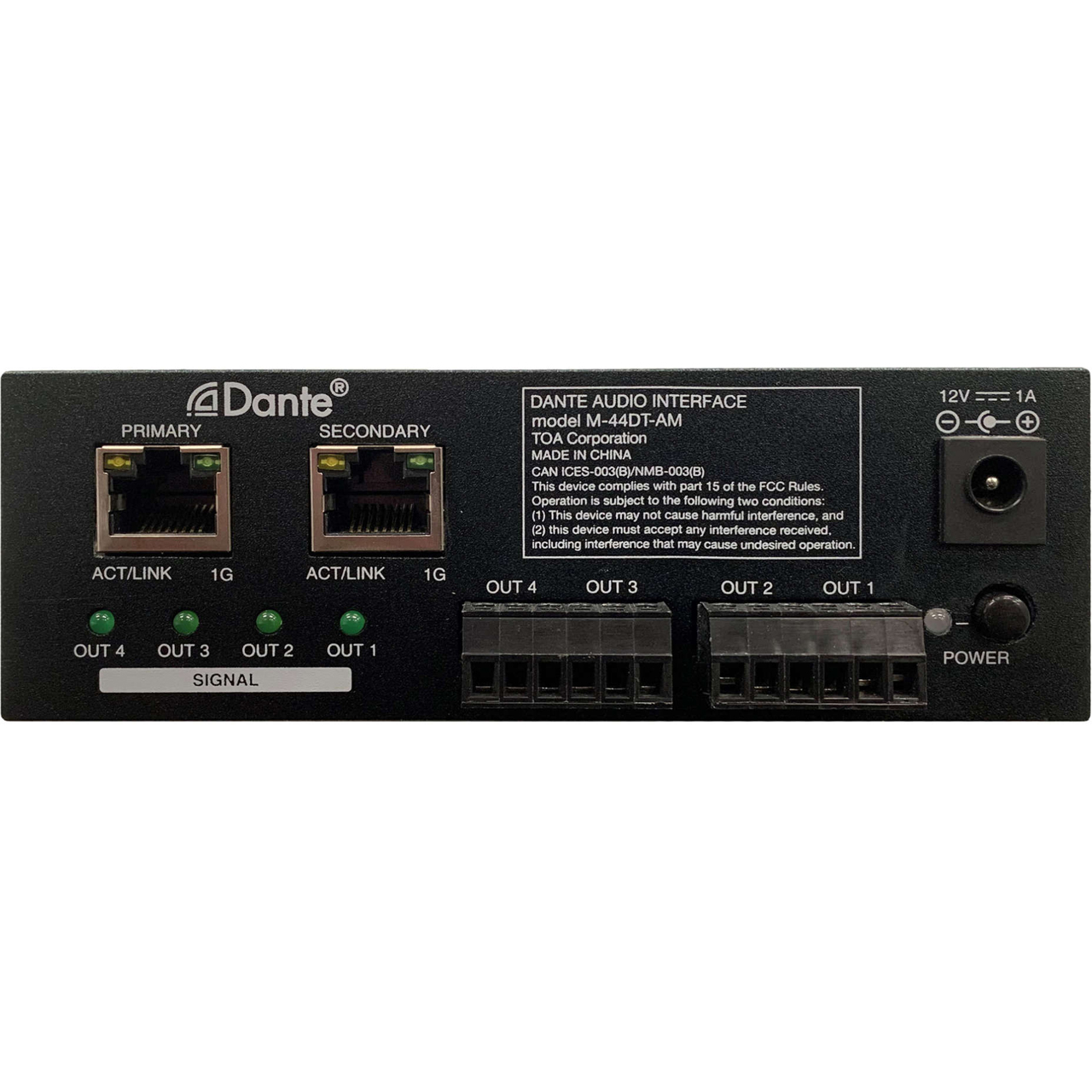

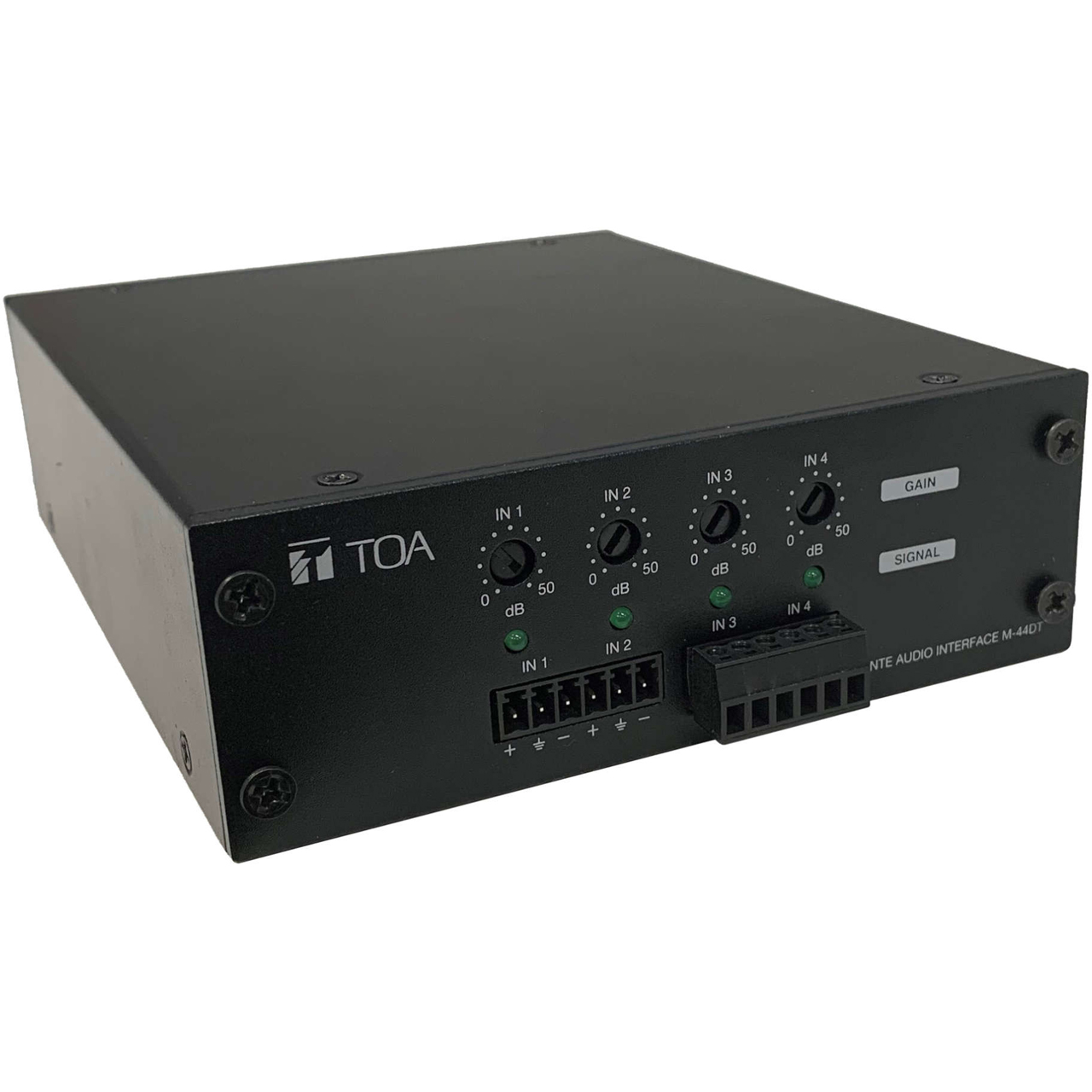

TOA M-44DT-AM Dante Audio Interface with 4 Inputs and 4 Outputs

ITEM #: TOA-M-44DT-AM MFG #: M-44DT-AM

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,108.00

Our Price:

$895.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


M-44DT-AM - Overview

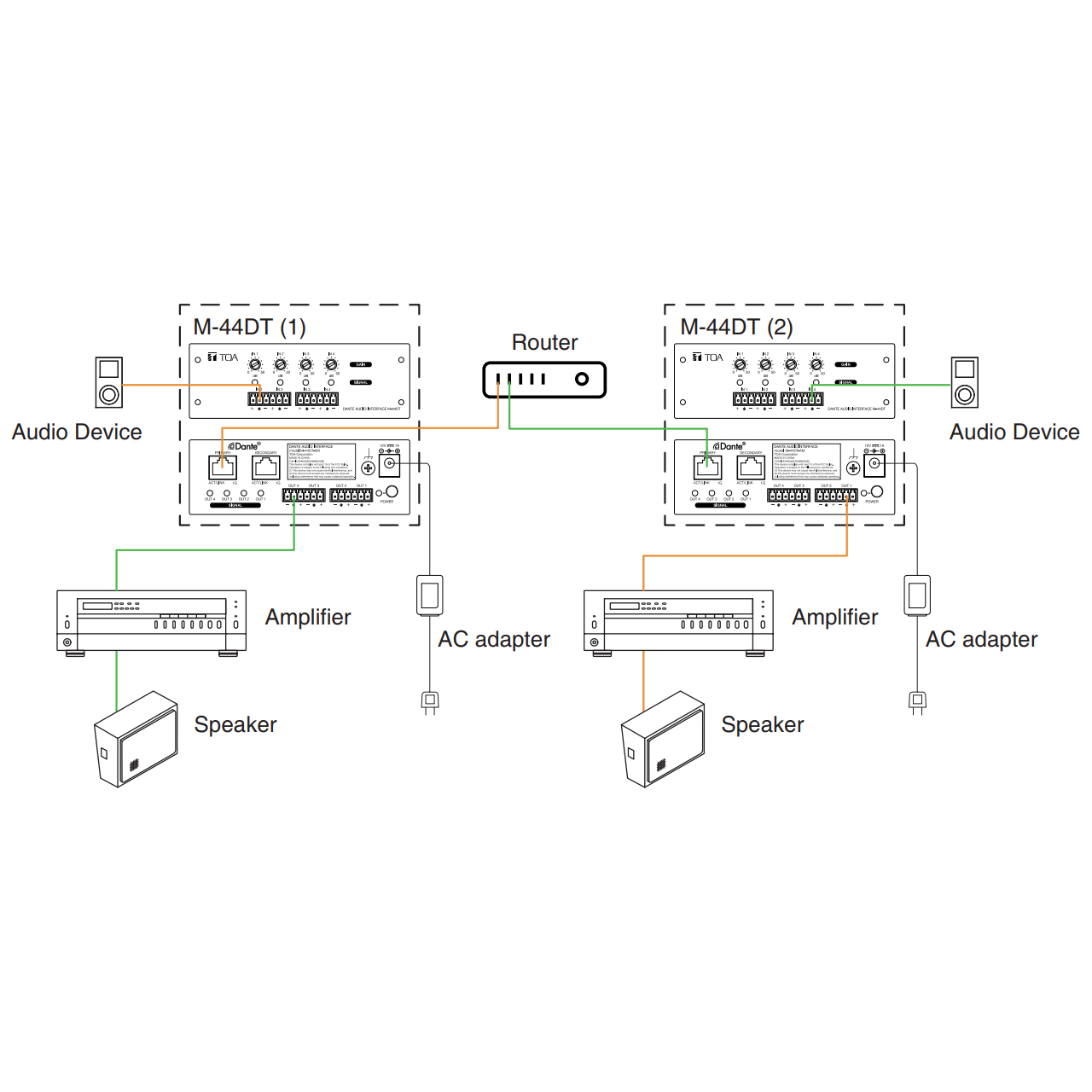

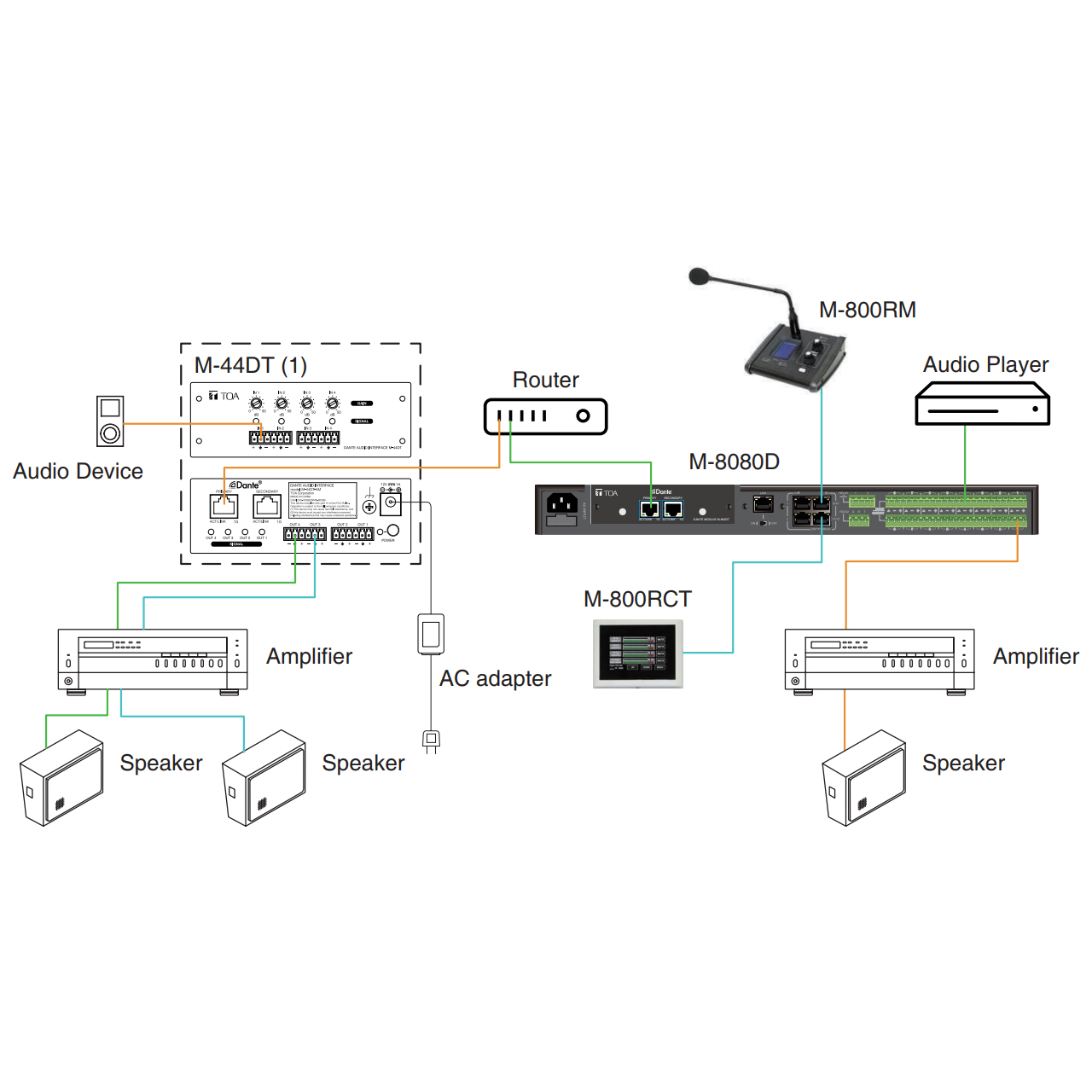

The TOA M-44DT-AM is a Dante audio interface with 4 inputs and 4 outputs that seamlessly connects amplifiers, mixers, digital microphones, and other devices on a Dante network. It can be mounted in an EIA standard equipment rack with the rack mounting panel MB-M44DT (optional).

  • Features:

    • 4 Inputs
    • 4 Outputs
    • Individual Gain Controls
    • Rack Mountable

  • Specifications:

    • Dimensions (WxHxD): 5.12" X 1.73" X 6.34" (130mm x 44mm x 161mm)
    • Weight: 1.79lbs (0.81kg)
    • Power Source: 100V - 240V AC, 50/60Hz (use of the supplied AC adapter)
    • Current Consumption: 10W
    • Input 1-4: -50dBV - 0dBV, 4.4kΩ, electronic balanced, removable terminal block
    • Output 1-4: 0dBV, 10kΩ, electronic balanced, removable terminal block
    • Frequency Response: 20Hz - 20kHz, ±3dB
    • Total Harmonic Distortion: 0.01% (LPF 20kHz)
    • Network Protocol: 100Mbps, RM II
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Operating Humidity: 90% RH or less (no condensation)
    • Finish:
      - Panel: Aluminum, black, alumite
      - Case: Surface-treated steel plate, black, paint

  • Item Includes:

    • 1x TOA M-44DT-AM Dante Audio Interface
    • 1x AC Power Cord
    • 4x Removable Terminal Plug (6 Pins)

  • Warranty:

    • 5 Year Limited Warranty


M-44DT-AM - Required Accessories
