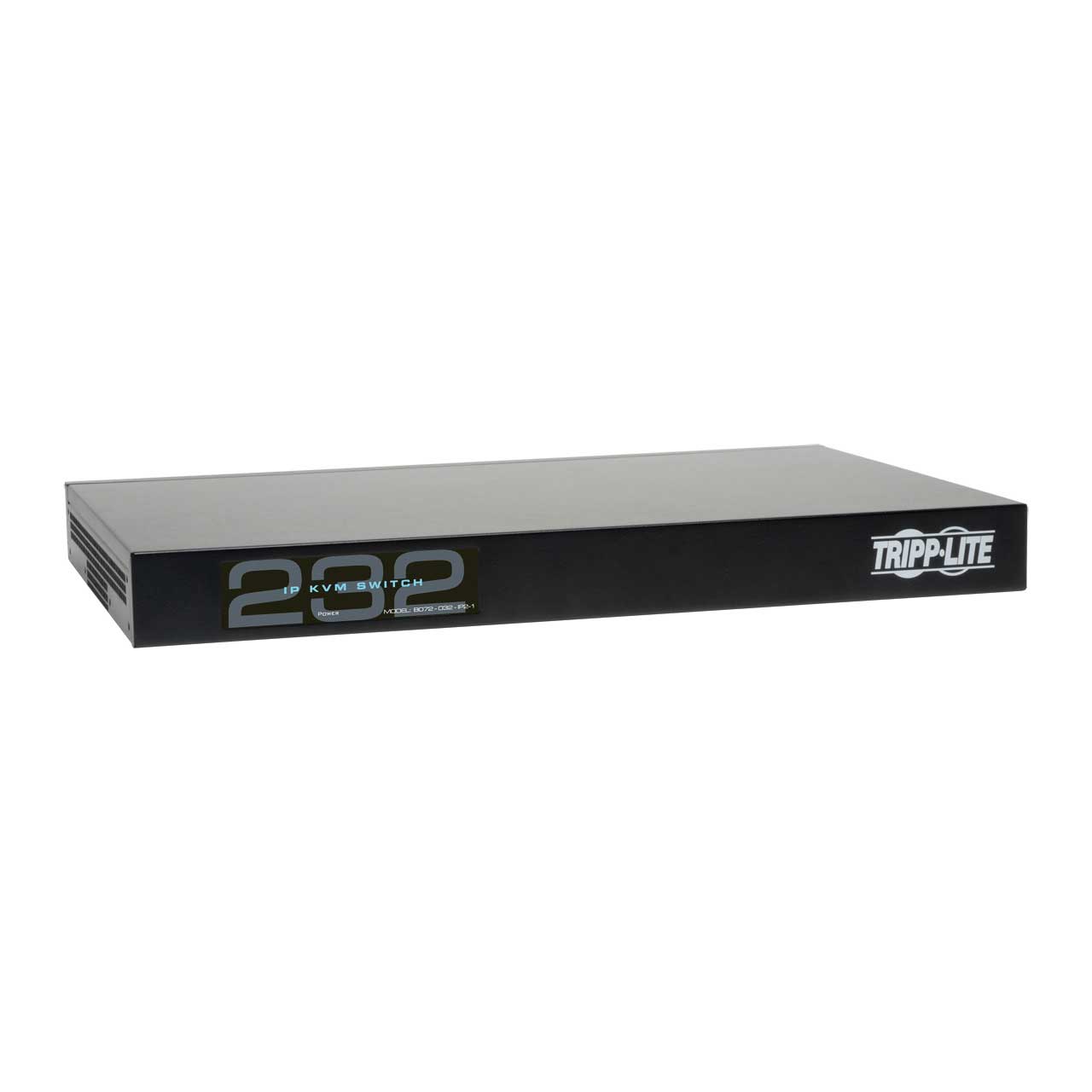

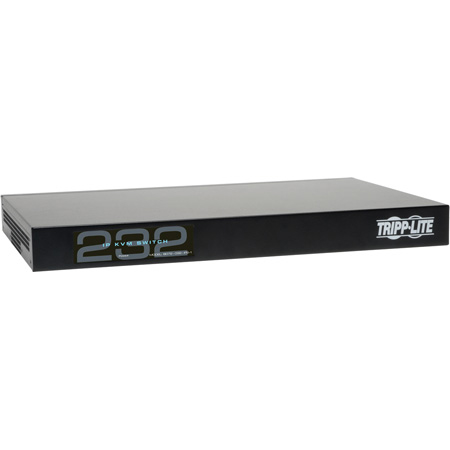

Tripp Lite B072-032-IP2 32-Port Cat5 KVM Over IP Switch 1 Local 2 Remote User 1URM

ITEM #: TRL-B072-032-IP2 MFG #: B072-032-IP2

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$3,888.00

Our Price:

$2,432.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    B072-032-IP2 - Overview

    Tripp Lite's B072-032-IP2 KVM Switch is the optimal solution for controlling up to 32 computers/servers locally, from across the room, down the street or around the globe on a network or the Internet.

    This KVM switch can be accessed and controlled remotely, so there's no need to travel to the server room or network closet. A Java-based application allows access via web browser from any secure IP connection; a non-browser client that can bypass browser-related Java Security prompts is available.

    The B072-032-IP2 uses inexpensive, user-supplied Cat5e/6/6a cabling with Server Interface Units (sold separately) so you can connect computers/servers located up to 100 ft. away from the switch. This switch features dual Ethernet ports and dual power supplies; if one fails, the other takes over, keeping access uninterrupted. Switch easily between the 32 ports using an on-screen display (OSD), hotkey commands or a remote toolbar. Multi-level password protection prohibits unauthorized users from accessing connected computers, and a local user and up to two remote users can each log on and access different ports simultaneously.

    Two serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; individual ports can be assigned to an IP PDU port to power on/off the server connected to that port. This KVM switch is compatible with Windows and Linux operating systems, and provides remote access using a Windows computer. It supports VGA video resolutions up to 1920 x 1080 @ 60 Hz. Heavy-duty steel housing stands up to frequent use.

    Virtual Media allows an .iso file to be mounted to a target server and accessed as if it were stored directly on it. Virtual Media data transfer rates up to 12Mbps are supported when using a B078-101-USB2 Server Interface Unit. Other features include RADIUS and LDAP/S authentication, system-sent SNMP messaging and an event log that tracks logins, reboots and network setting changes.

    Free NetCommander-AXS Management Software is available to access and control all of your Tripp Lite NetCommander IP KVM switches (B070 and B072 series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDUs and manage KVM settings. This software can be downloaded free of charge from the model support page for the B072-032-IP2. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

    Please Note:
    Free NetCommander-AXS Management Software is available for access and control of all of your Tripp Lite NetCommander IP KVM switches (B070 and B072 series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDU's, and manage KVM settings. This software can be found on the model support page of the B072-032-IP2, or via searching NetCommander-AXS on Tripp Lite's website.

    • Features:

      • 32 ports provide control of computers/servers locally or via your network or the Internet
      • Occupies just 1U of rack space
      • Low-cost Cat5 cabling allows longer distances, reduces cable clutter
      • Simultaneous support for 3 users - 1 local, 2 remote
      • Dual Ethernet ports and power supplies assure uninterrupted remote access
      • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

    • Specifications:

      • Input
      • Voltage Compatibility (VAC): 100; 110; 120; 127; 200; 208; 220; 230; 240
      • Input Frequency: 50/60HZ
      • Input Current: 120V (0.7A) / 230V (0.3A)
      • Power Input Receptacle: IEC-320-C14
      • Redundancy - Dual Power Inputs: Yes

        User Interface, Alerts & Controls
      • LED Indicators: Blue (Power)

        Physical
      • Shipping Dimensions (hwd / in.): 4.30 x 14.40 x 23.00
      • Shipping Weight (lbs.): 10.10
      • Unit Packaging Type: Box
      • Unit Dimensions (hwd / in.): 1.7 x 17.3 x 11
      • Unit Weight (lbs.): 7.70
      • Material of Construction: SECC (Steel, Electrogalvanized, Cold rolled, Coil)
      • Color: Black
      • Rackmountable: Yes

        Environmental
      • Operating Temperature Range: 32 to 104 F (0 to 40 C)
      • Storage Temperature Range: -40 to 158 F (-40 to 70 C)
      • Relative Humidity: 0% to 80% RH, Non-Condensing
      • BTUs: 171 BTU/Hr
      • Power Consumption (Watts): 50

        Communications
      • IP Remote Access: Yes
      • Network Speed: 10/100 Mbps

        Connections
      • Ports: 32
      • PC/Server Connections: PS/2; USB; VGA

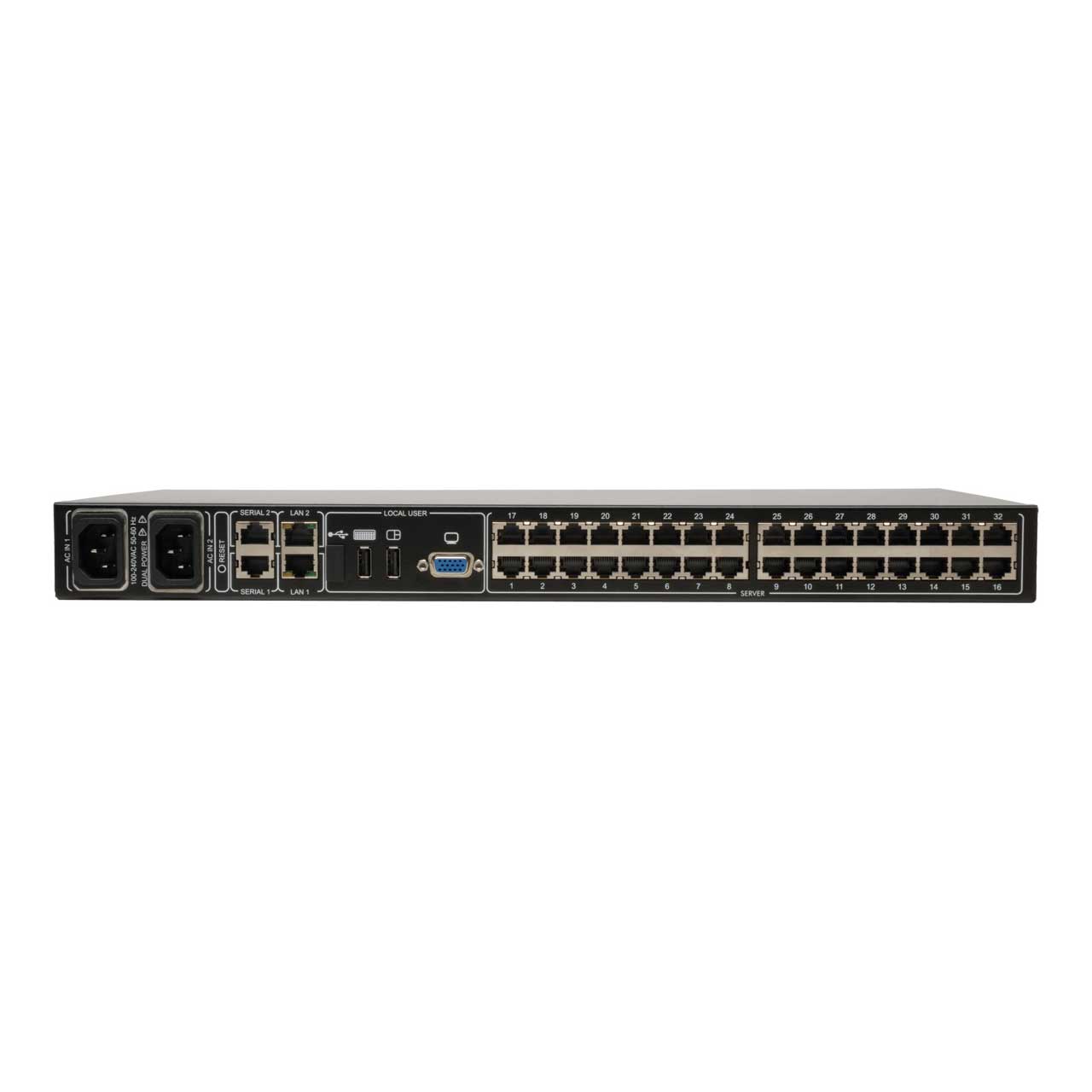

      • Side A - Connector 1: (3) USB A (FEMALE)
      • Side A - Connector 2: HD15 (FEMALE)
      • Side A - Connector 3: (4) RJ45 (FEMALE)
      • Side B - Connector 1: (32) RJ45 (FEMALE)
      • Computer Keyboard and Mouse Interface: PS/2; USB
      • Computer Monitor Interface: VGA
      • Console Keyboard and Mouse Interface: USB
      • Console Monitor Interface: VGA

        Port Expansion
      • Max Number of Ports (Entire Chain): 32

        Features & Specifications
      • Number of Users: 3
      • NIAP-Certified Secure: No
      • On-Screen Display (OSD): Yes
      • Port Selection: Hotkey; OSD
      • Max Supported Video Resolution: Local : 1920 x 1200 @ 60 Hz ; Remote : 1920 x 1080 @ 60 Hz
      • USB Specification: USB 2.0 (up to 480 Mbps)
      • Driver Required: No
      • Authentication Supported: RADIUS; LDAPS
      • Cat5 KVM Switch: Yes
      • Recommended Category Cable: Cat5e/6 Cables
      • Technology: Cat5/5e; PS/2; Serial (RS232); USB; VGA/SVGA

        Certifications
      • Certifications: Tested to UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1, RoHS, REACH

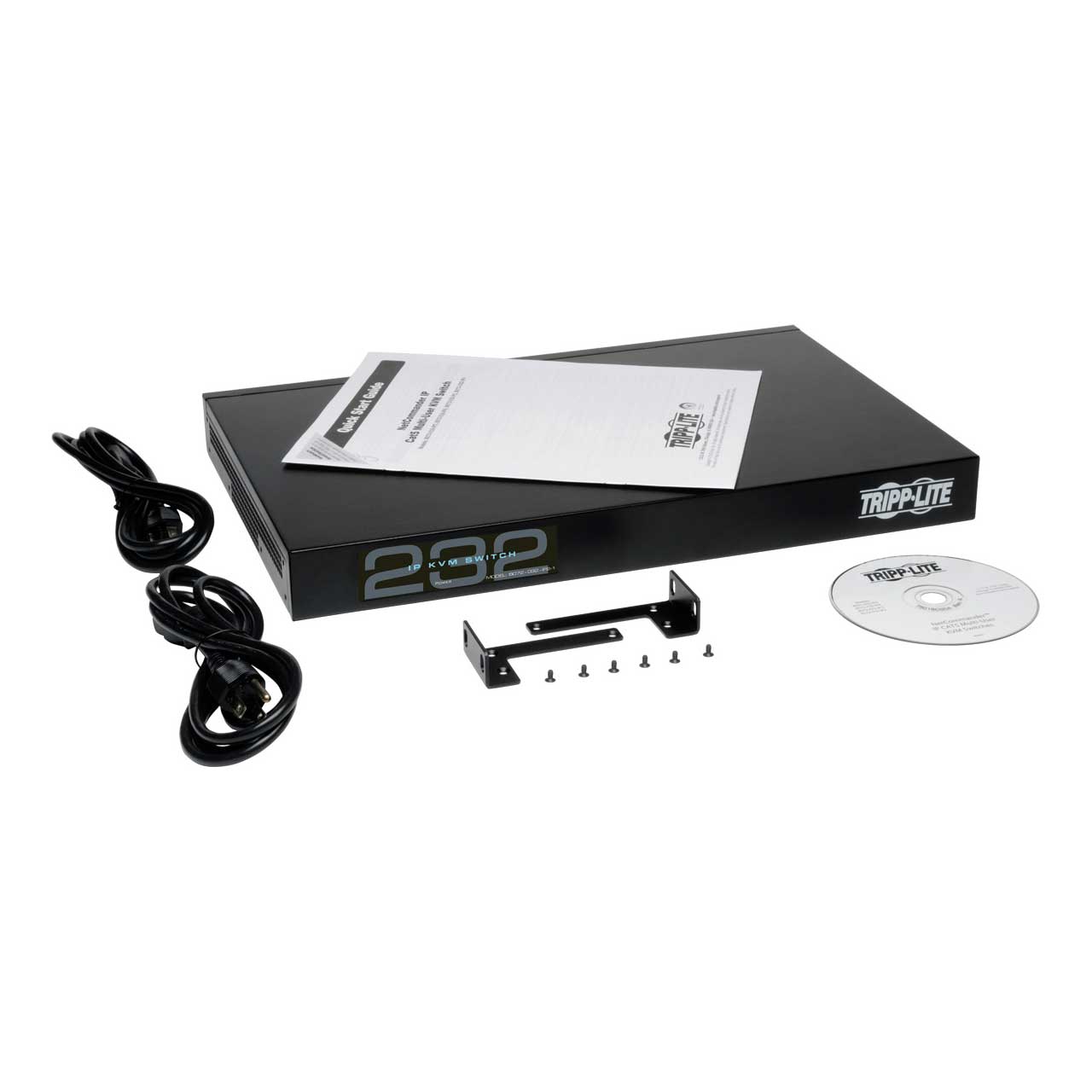

    • Item Includes:

      • B072-032-IP2 32-Port Cat5 2+1 User 1U Rack-Mount KVM Switch with Remote IP Access
      • C13 to 5-15P Power Cords (x2)
      • Rack-Mount Hardware
      • CD with Owner's Manual
      • Quick Start Guide

    • Warranty:

      • 3-year

    • GTIN:

      0037332177261
