StarTech SV231USB 2 Port Professional USB KVM Switch Kit with Cables

ITEM #: ST-SV231USB MFG #: SV231USB

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$84.99

Our Price:

$79.27

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    SV231USB - Overview

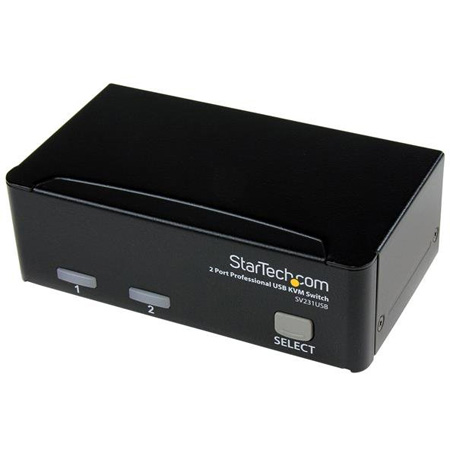

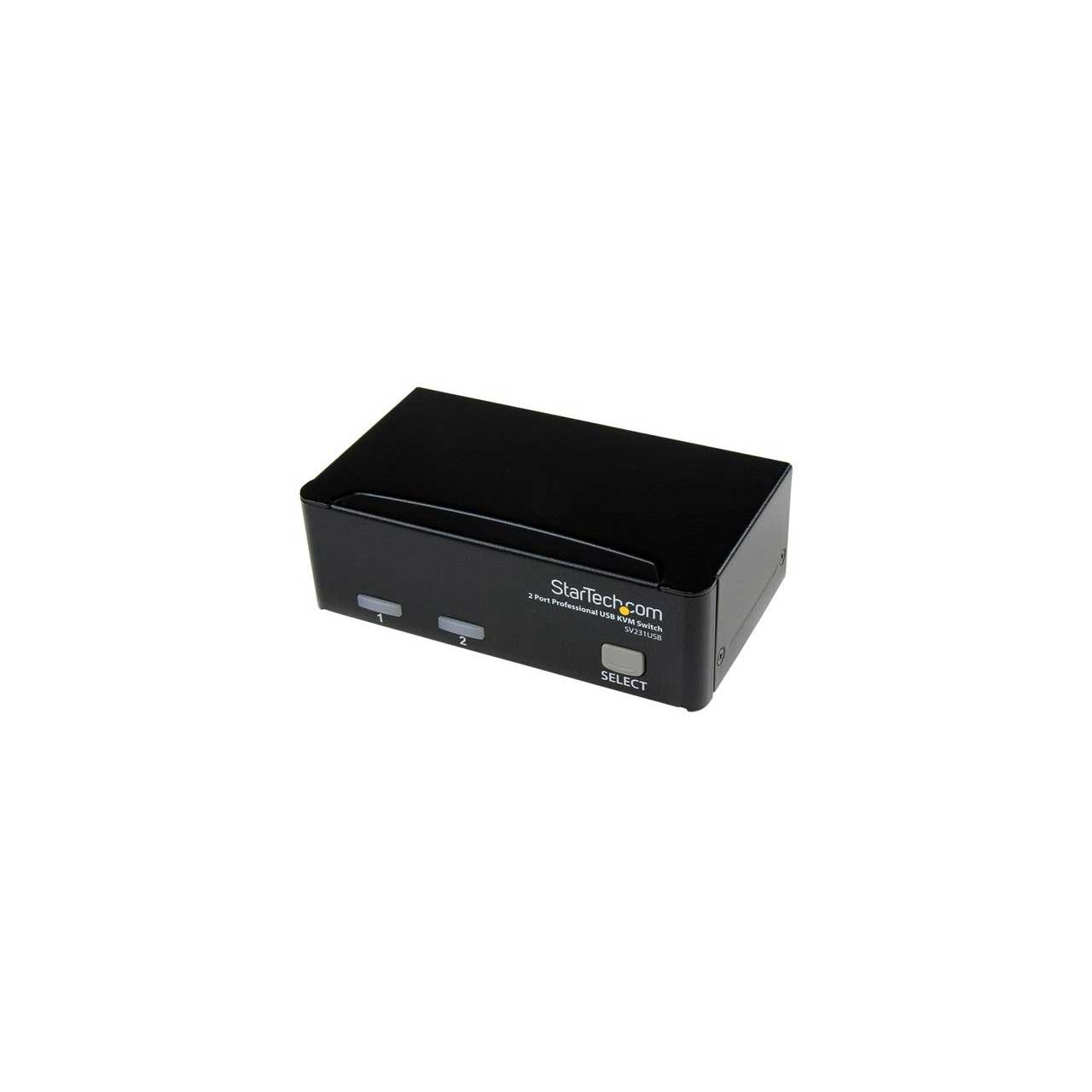

    StarTech SV231USB 2 Port Professional USB KVM Switch Kit with Cables offers simple control of two Mac or PC computers from a single monitor/display and USB peripheral set (keyboard, mouse).

    The 2 Port KVM switch includes 2 USB KVM cables, providing a complete out-of-the-box KVM solution saving you time and money. An integrated 3 port USB hub allows you to share connected USB peripherals between connected computers as though they were connected directly. A compact form factor design and rear-port connections to master and slave computers minimizes disruption to your workspace.

    A cross-platform solution, this OS independent KVM switch supports high resolution applications up to 1920x1440, and provides a smooth operating experience when controlling mixed (Windows/Mac/Linux) environments.

    Applications
    Dual system control for a single workstations increasing user productivity in the officeProvide centralized control for multiple high-res Digital Signage server controlGreat for manufacturing line computer control, simplifying access to multiple systems

    • Features:

      • Control 2 computers from one USB keyboard/mouse/monitor
      • Share 3 different USB peripherals using the integrated hub
      • High 1920x1440 resolution capability

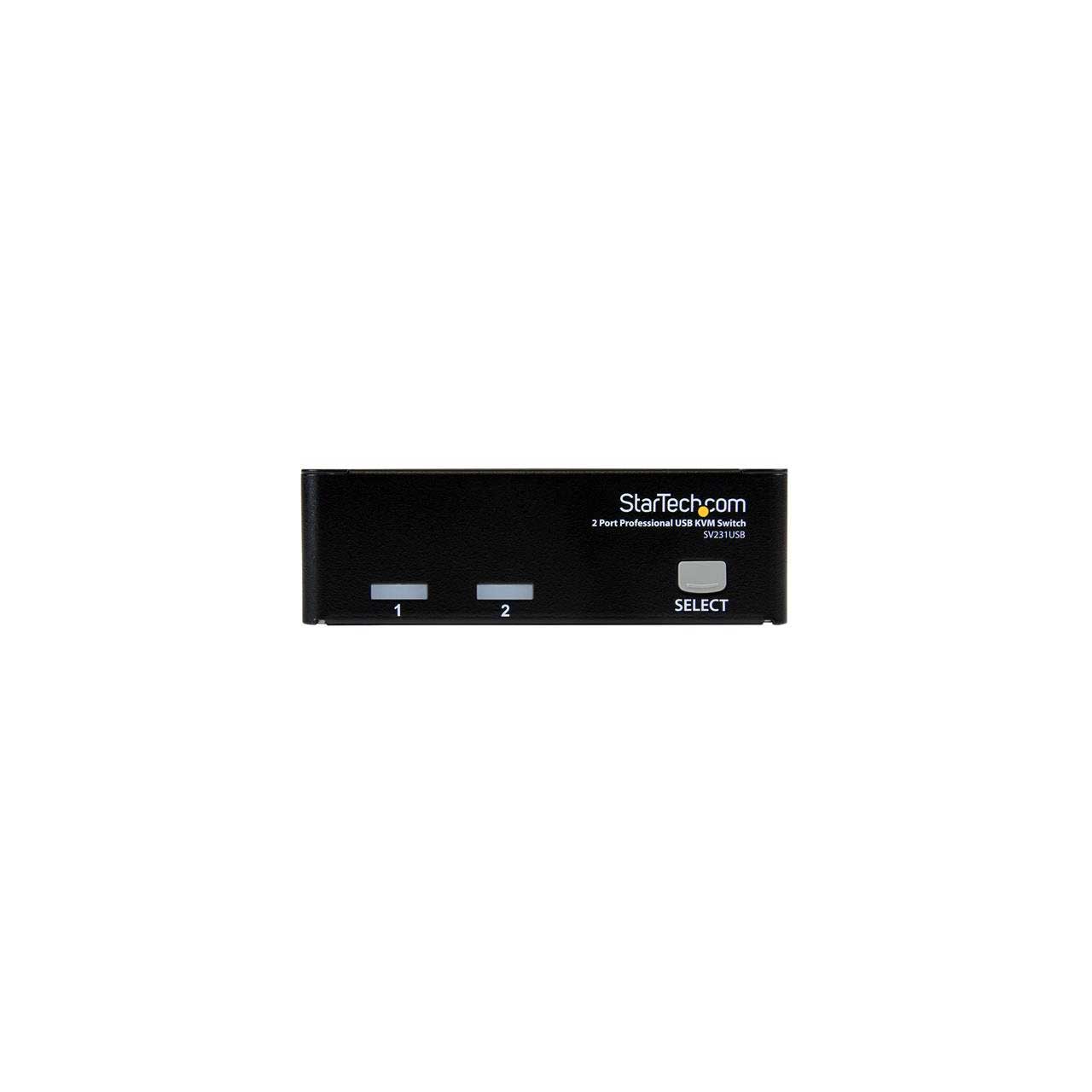

      • Front panel push buttons for easy computer selection
      • OS independent - no software or drivers required
      • Supports keyboard and mouse plug and play
      • Selectable auto scan time interval
      • Supports DDC2B VGA monitors
      • USB self-power operation

    • Specifications:

      • Hardware
      • Audio: No
      • Cables Included: Yes
      • Daisy-Chain: No
      • KVM Ports: 2
      • Number of Monitors Supported: 1
      • PC Interface: USB
      • PC Video Type: VGA
      • Rack-Mountable: No
      • U Height: 1U

        Performance
      • Auto Scan: 3, 8, 15 & 30 seconds
      • DVI Support: No
      • Hot-Key Selection: No
      • IP Control: No
      • Maximum Analog Resolutions: 1920 x 1440
      • Maximum Cable Length: 15 ft [4.6 m]
      • Maximum Number of Users: 1
      • MTBF: 111,000 Hours
      • On-Screen Display: No
      • Port Selection Support: Push Button

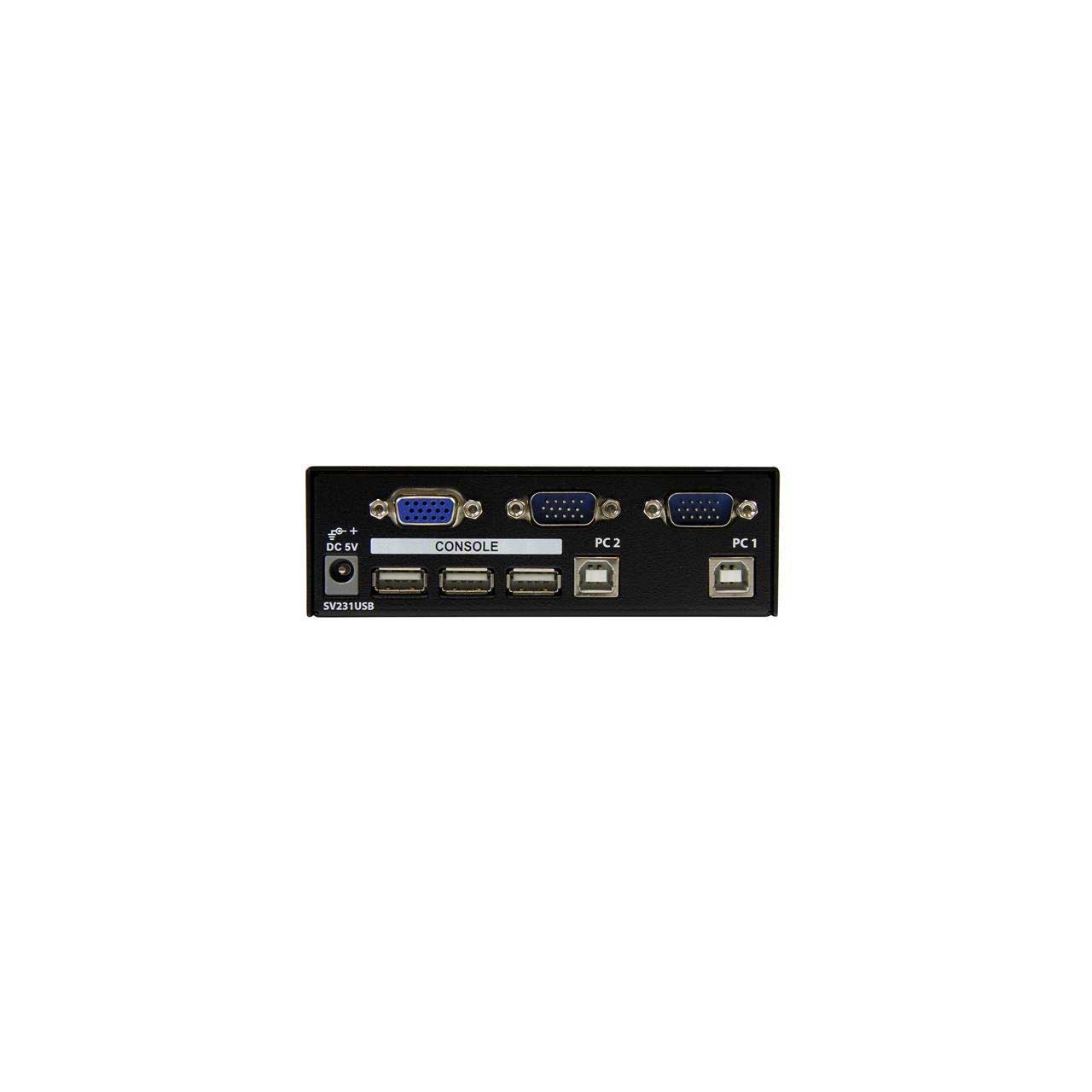

        Console Interface Connectors
      • 1 - VGA (15 pin, High Density D-Sub) Female
      • 3 - USB Type-A (4 pin) USB 2.0 Female

        Host Connectors
      • 2 - USB B (4 pin) Female
      • 2 - VGA (15 pin, High Density D-Sub) Male

        Software
      • OS Compatibility: OS independent; No software or drivers required

        Special Notes / Requirements
      • Note: This KVM supports the use of VGA cables up to 100ft in length - active extension required for USB to achieve that distance

        Power
      • Center Tip Polarity: Positive
      • Input Current: 0.4A
      • Input Voltage: 100 - 240 AC
      • Output Current: 2A
      • Output Voltage: 5 DC
      • Plug Type: N
      • Power Consumption (In Watts): 10
      • Power Source: AC Adapter Included

        Physical Characteristics
      • Cable Length: 6 ft [1.8 m]
      • Color: Black
      • Material: Steel
      • Product Height: 1.6 in [4 cm]
      • Product Length: 4.9 in [12.4 cm]
      • Product Width: 2.8 in [70 mm]
      • Weight of Product: 14.9 oz [421 g]

        Packaging Information
      • Package Height: 3.6 in [92 mm]
      • Package Length: 9.4 in [23.8 cm]
      • Package Width: 7.4 in [18.7 cm]
      • Shipping (Package) Weight: 2.5 lb [1.1 kg]

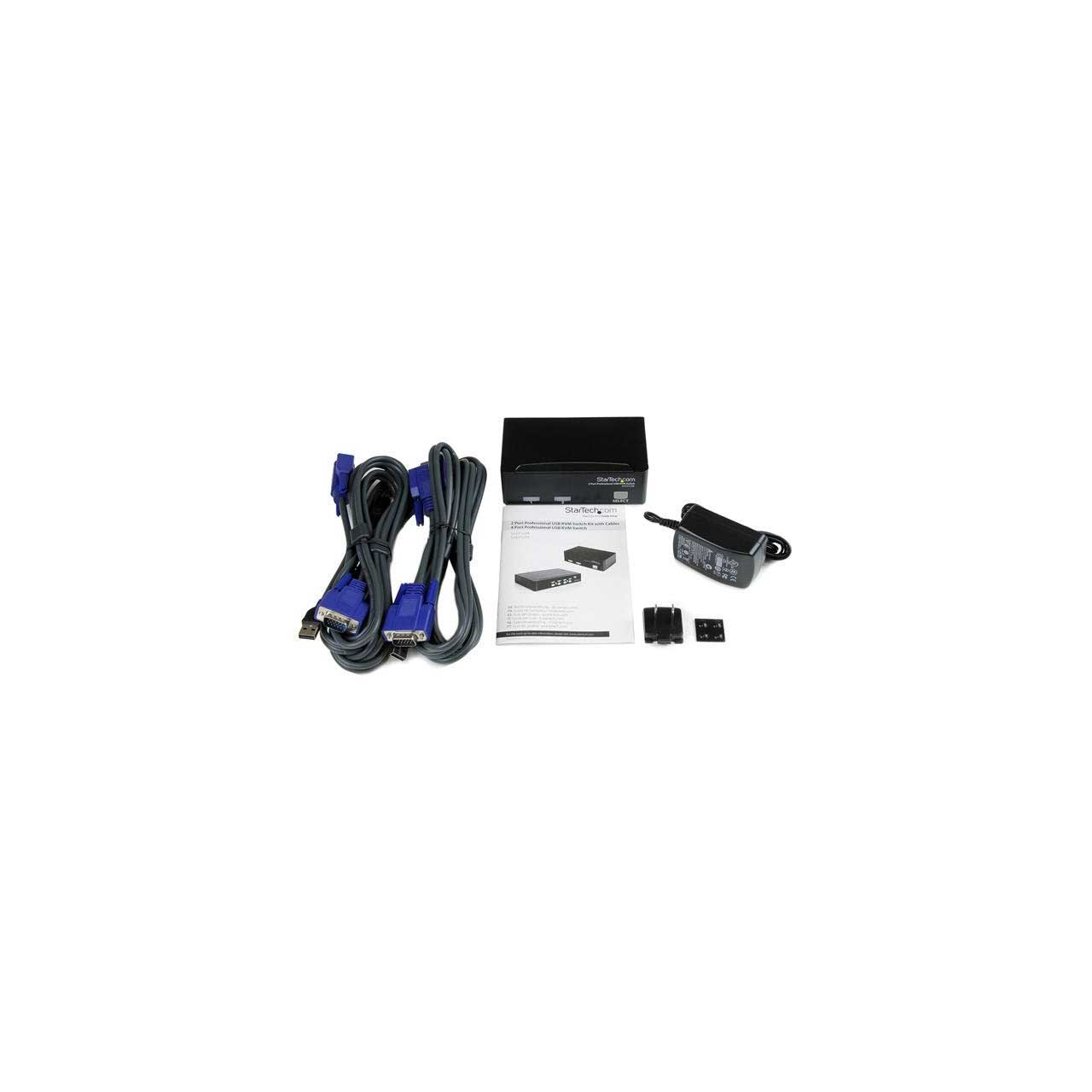

    • Item Includes:

      • 1x 2 Port USB KVM Switch
      • 2x 2 IN 1 USB/VGA Cables
      • 1x Power Adapter
      • 1x Manual

    • Warranty:

      • 3-year

    • GTIN:

      0065030789196
