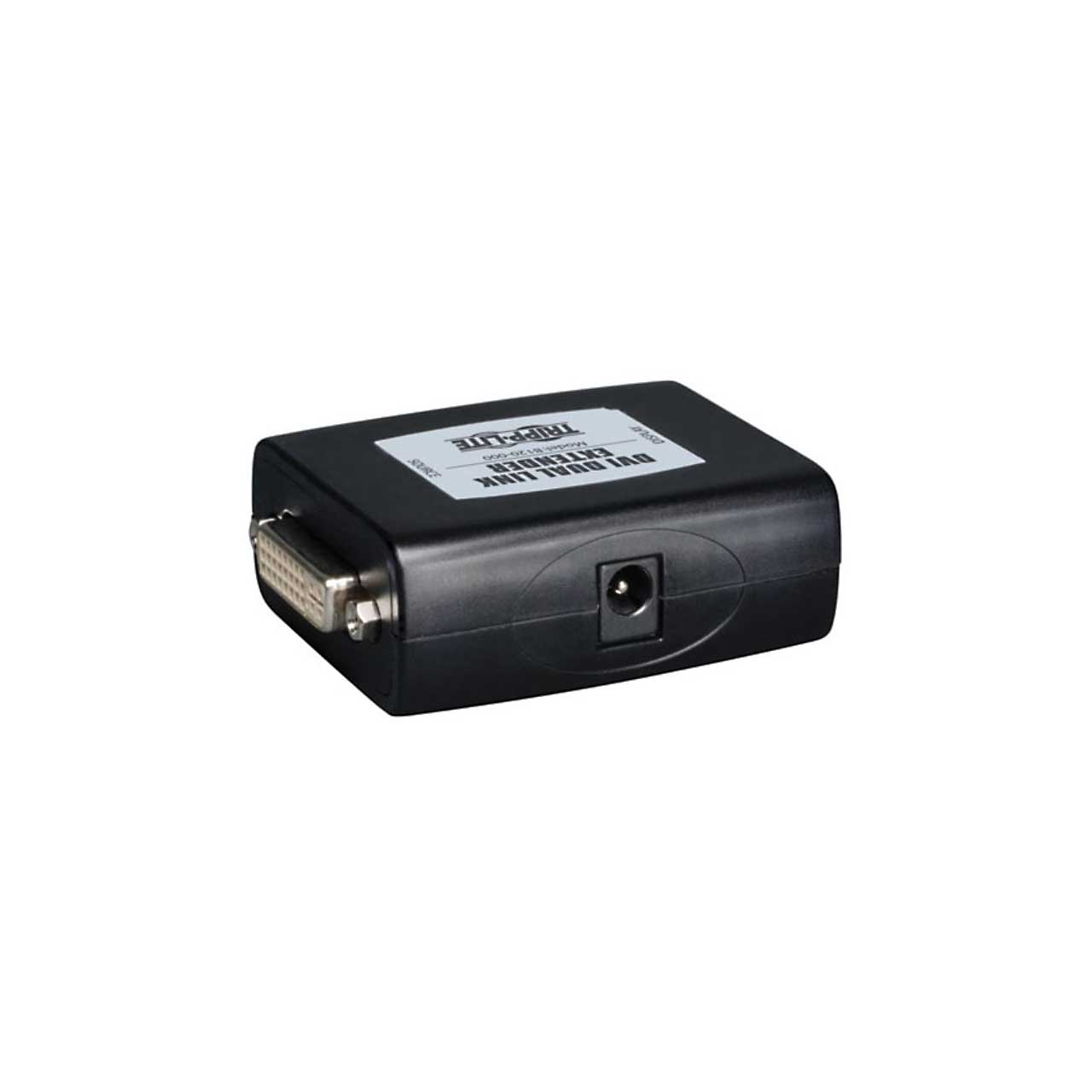

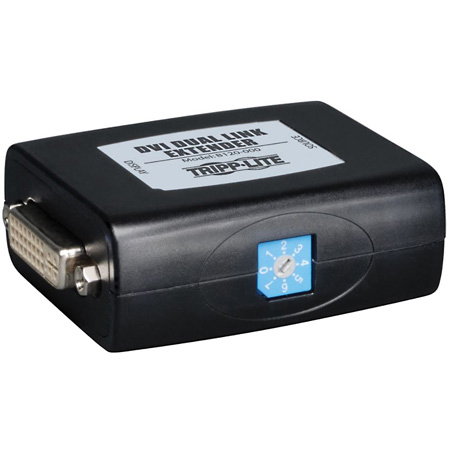

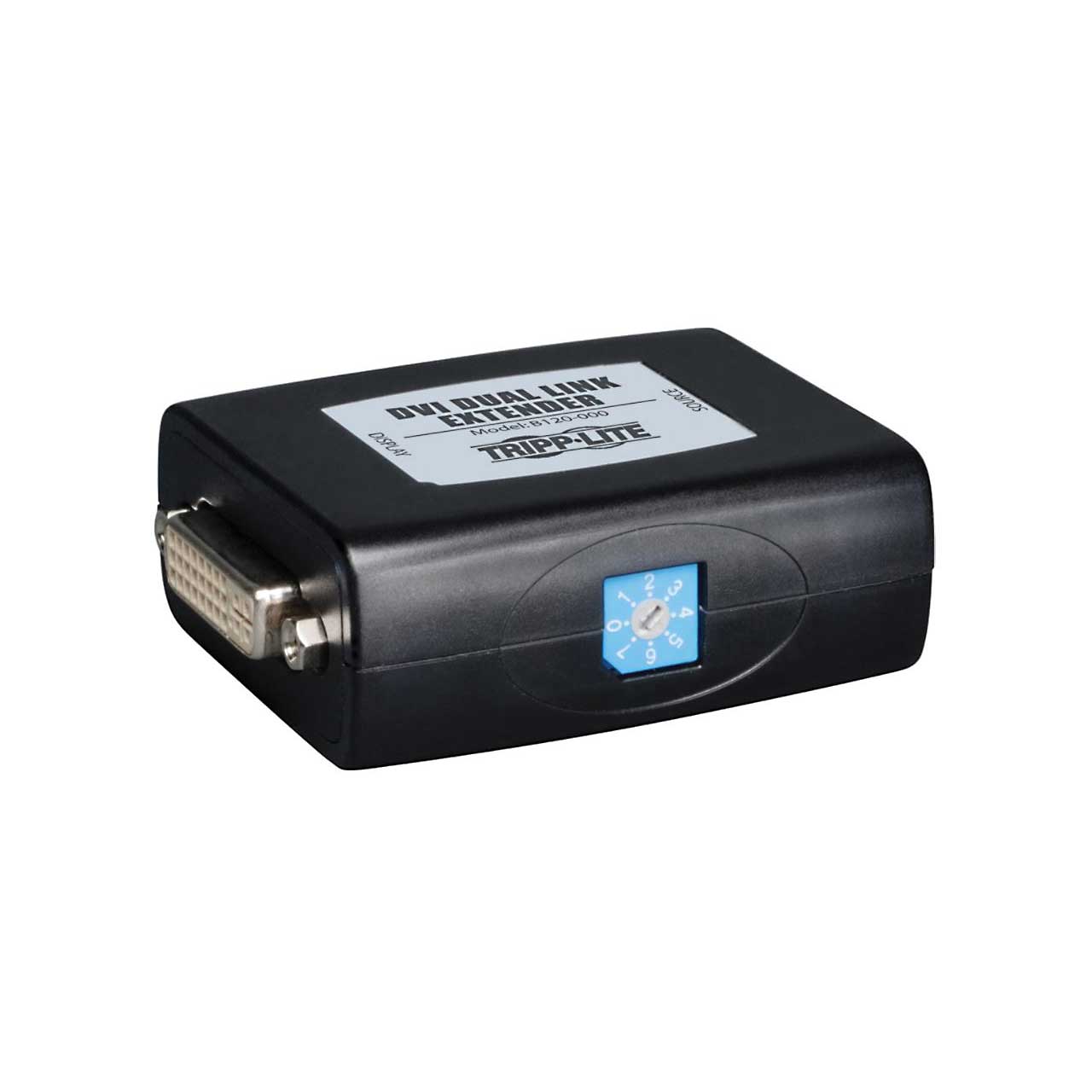

Tripp Lite B120-000 DVI Dual Link Video Signal Extender Equalizer 2560x1600 at 60Hz (DVI F/F)

B120-000 - Overview

• Features:

  • Extend a DVI-D Dual Link signal up to 150 ft. from the source
  • Supports a maximum video resolution of 2560 x 1600 @ 60Hz
  • Use P560-Series DVI Dual-Link cables in most applications
  • When extending a 2560 x 1600 video signal more than 75 ft., use a cable made with 24Awg wiring (Available from Tripp Lite as a custom order)
  • Built-in Equalization control to adjust the video image
  • HDCP and DDC compatible
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
  • Extend a DVI-D Dual Link signal up to 150 ft. from the source
  • Use P560-Series DVI Dual-Link cables in most applications.
  • When extending a 2560 x 1600 video signal more than 75 ft., use cable made with 24Awg wiring
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule


• Specifications:

  • AC Adapter: Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A
  • Color: Black
  • Max 1024 x 768 Range (ft): 150
  • Max 480P Range (ft): 150
  • Max 1440 x 900 Range (ft): 150
  • Max 1080i Range (ft): 150
  • Max 1080P Range (ft): 150
  • Max 1920 x 1440 Range (ft): 150
  • Max 2560 x 1600 Range (ft): 150
  • Max 480i Range (ft): 150
  • Max 640 x 480 Range (ft): 150
  • Max 800 x 600 Range (ft): 150
  • Max 1600 x 1200 Range (ft): 150
  • Max 1920 x 1200 Range (ft): 150
  • Max 2048 x 1536 Range (ft): 150
  • Max 720P Range (ft): 150
  • Connection Ports: 2
  • Connector Side A: DVI-I (FEMALE)
  • Connector Side B: DVI-I (FEMALE)
  • Product Warranty Period (Worldwide): 3-year limited warranty

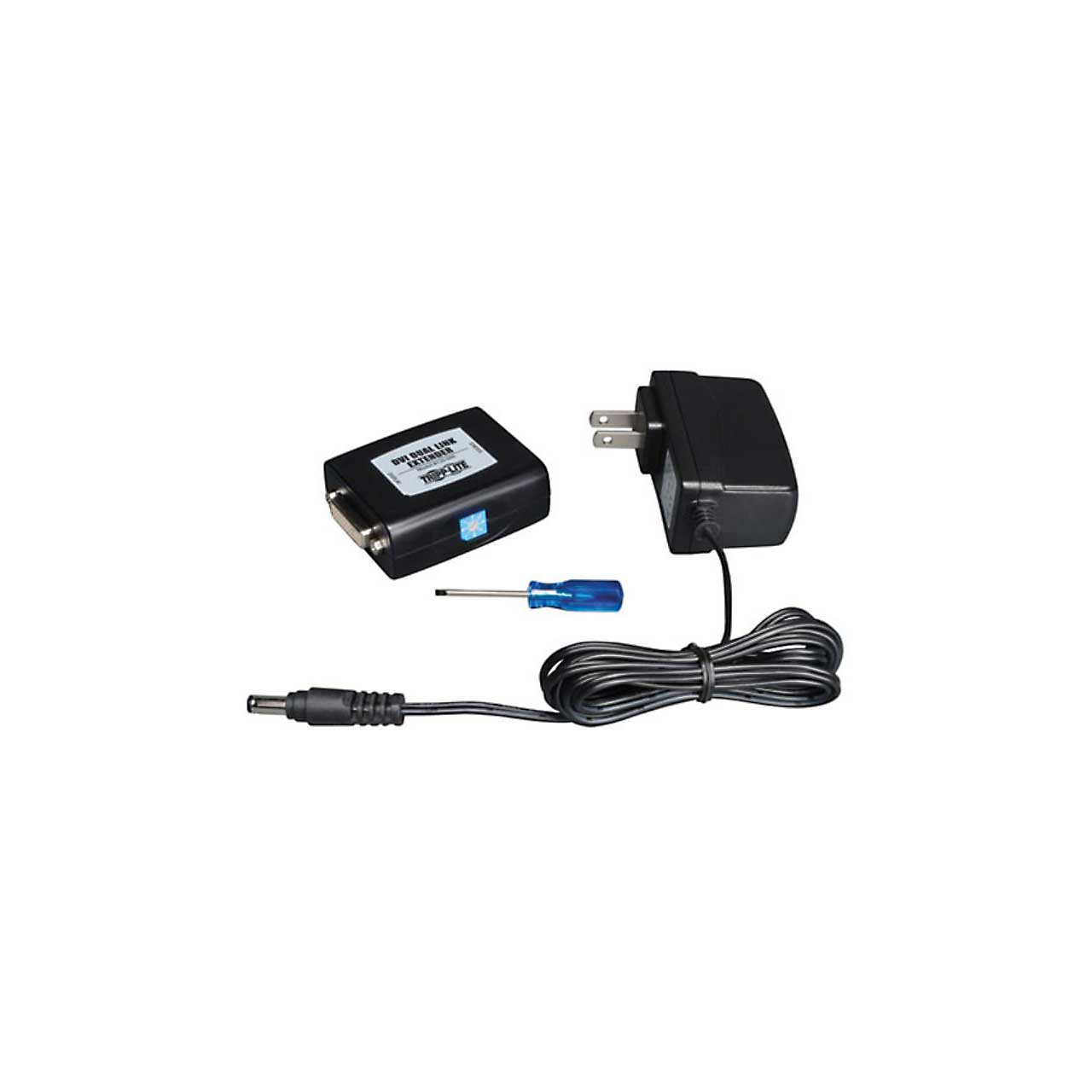

• Item Includes:

  • B120-000 DVI Dual Link Signal Extender
  • External Power Supply with NEMA 1-15P Plug ( Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A)
  • Screwdriver for Equalization adjustment
  • Owner's Manual


• Warranty:

  • 3 Year


• GTIN:

  0037332130297
