Tripp Lite B155-003-DP-V2 3-Port Mini DisplayPort 1.2 to DisplayPort Multi-Stream Transport (MST) Hub (4K x 2K) UHD

ITEM #: TRL-B155-003DPV2 MFG #: B155-003-DP-V2

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:

$139.20

Our Price:

$112.93

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    B155-003-DP-V2 - Overview

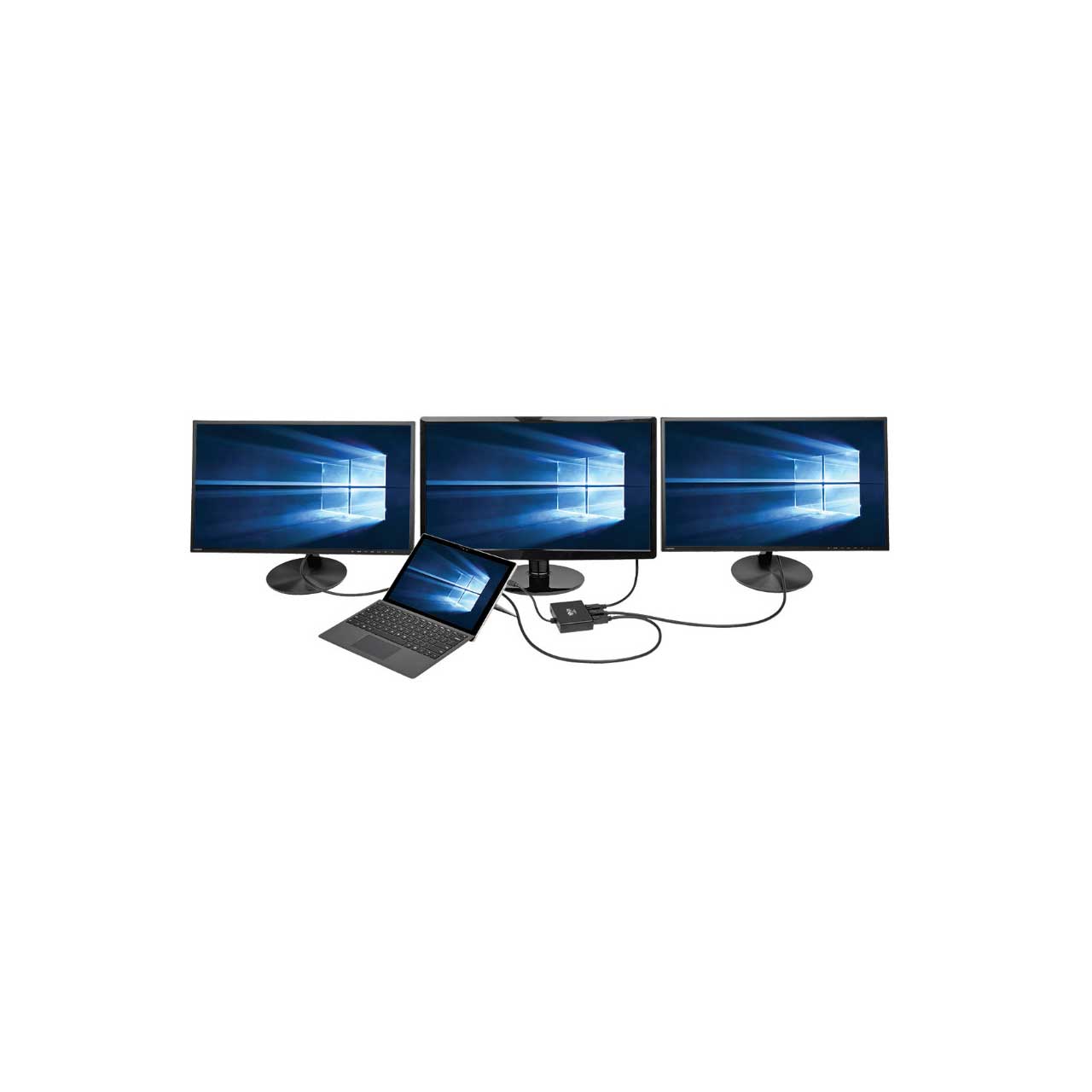

    The B155-003-DP-V2 3-Port Mini DisplayPort 1.2 to DisplayPort MST Hub connects up to three DisplayPort monitors to the Mini DisplayPort output on your computer. Ideal for digital signage in schools, churches, conference rooms, trade shows, hotels and retail outlets, this hub allows you to display the same image on all three monitors, extend the desktop across them, or combine all three as one large monitor in video wall mode.

    The B155-003-DP-V2 is compliant with DisplayPort 1.2 and backward compatible with versions 1.1 and 1.1a with the feature set being limited to that of your equipment. It supports Ultra High Definition (UHD) video resolutions up to 3840 x 2160 (4K x 2K) at 24/30 Hz. In video wall mode, it supports expanded resolutions, such as 5760 x 1080 in a horizontal 1 x 3 monitor configuration or 1920 x 3240 in a vertical 3 x 1 configuration.

    This MST hub also supports HDCP, EDID, DDC and 48-bit Deep Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio. It works with all operating systems. Plug-and-play convenience means no software or drivers are needed. A built-in six-inch cable connects directly to a Mini DisplayPort source. LEDs indicate when the monitors are receiving a signal. The B155-003-DP-V2 complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

    • Features:

      • Connects Up to 3 DisplayPort Monitors to Your Computer’s Mini DisplayPort (MDP)
      • Ideal for digital signs in schools, churches, conference rooms, trade shows and retail settings
      • Displays same image on 3 monitors simultaneously in mirror mode
      • Extends desktop across 3 monitors in extended mode
      • Combines 3 monitors into one large monitor in video wall mode

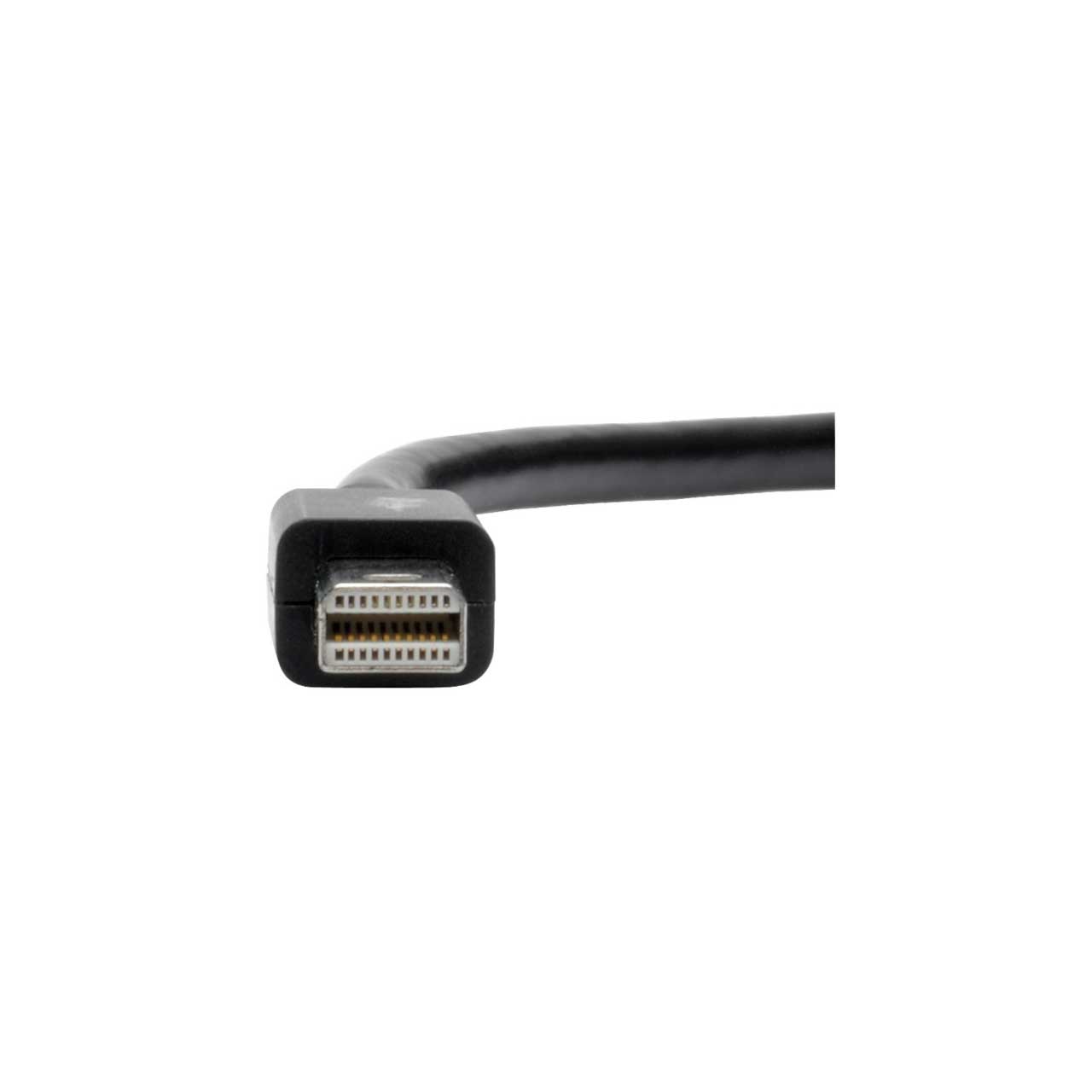

      • Built-in 6 in. cable connects directly to Mini DisplayPort source

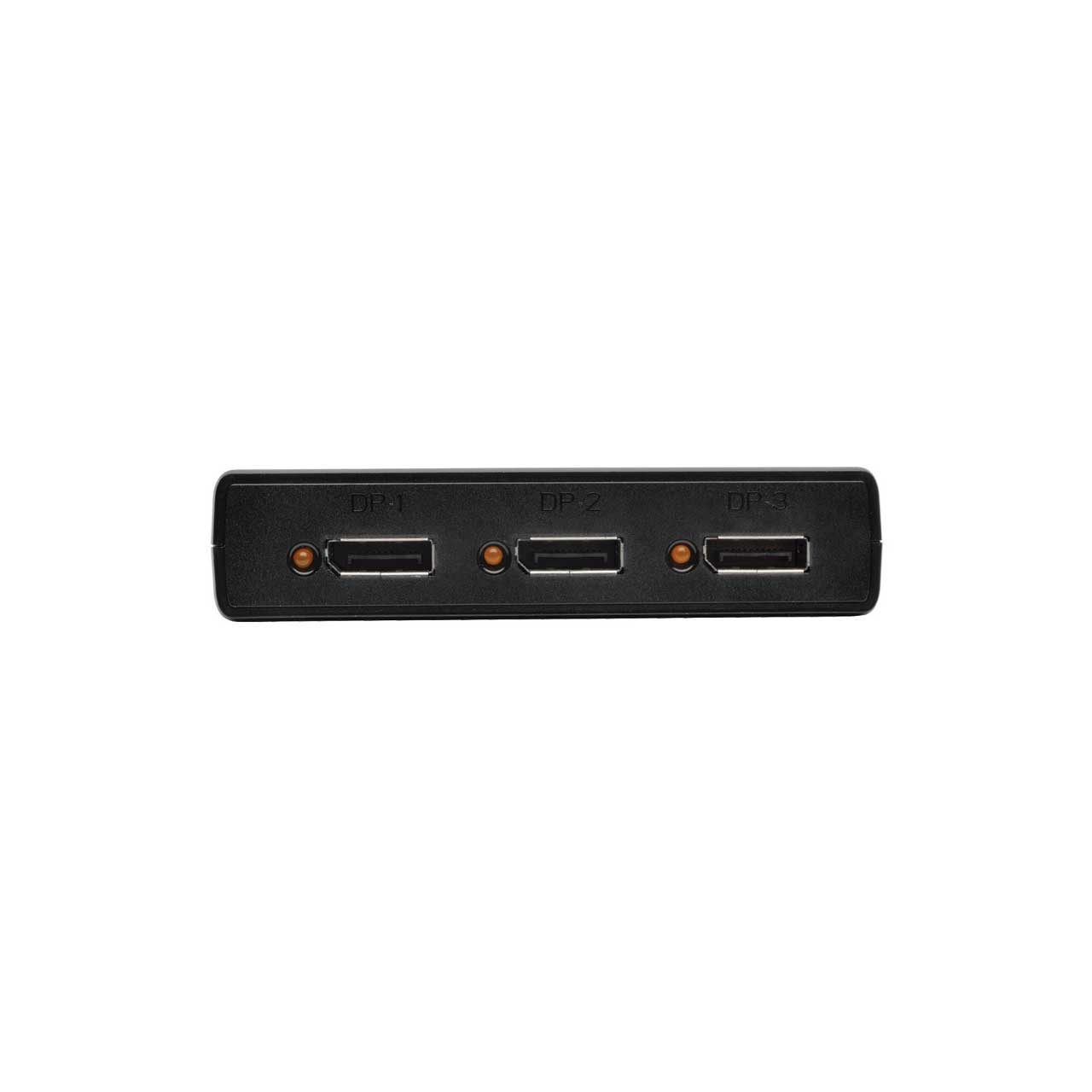

      • LEDs indicate when monitors are receiving a signal Meets the Latest Performance Standards
      • Supports UHD video resolutions up to 3840 x 2160 (4K x 2K) @ 24/30 Hz
      • Supports expanded resolutions in video wall mode, such as 5760 x 1080 in horizontal 1 x 3 configuration
      • Supports HDCP, EDID and DDC
      • Supports 48-bit Deep Color (16 bits per channel)
      • Supports DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio Easy to Use Almost Anywhere
      • Works with all operating systems
      • Plug and play—no software or drivers required TAA Compliant
      • Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases

    • Specifications:

      • AC Adapter: Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft.
      • Unit Dimensions (hwd / in.): 0.94 x 4.3 x 3
      • Unit Dimensions (hwd / cm): 2.4 x 10.9 x 7.62
      • Unit Weight (lbs.): 0.25
      • Unit Weight (kg): 0.11
      • Color: Black
      • Ports: 3
      • Side A - Connector 1: MINI DISPLAYPORT (MALE)
      • Side B - Connector 1: (3) DISPLAYPORT (FEMALE)
      • Approvals: CE, FCC, RoHS, and REACH
      • Product Warranty Period (Worldwide): 1-year limited warranty

    • Item Includes:

      • B155-003-DP-V2 3-Port Mini DisplayPort 1.2 to DisplayPort MST Hub

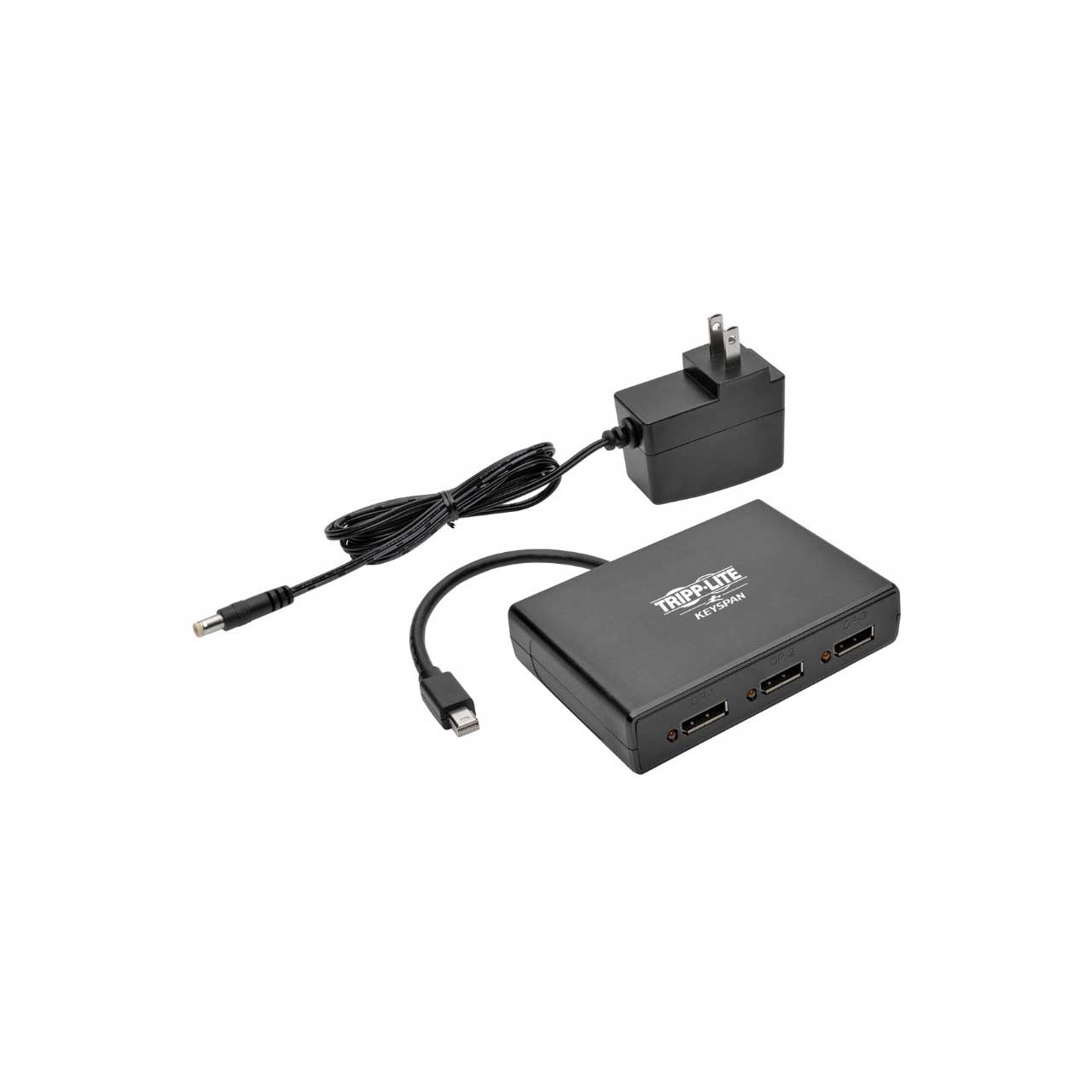

      • External power supply with NEMA 1-15P plug and 5 ft. cord (Input: 100–240V, 50/60 Hz, 0.5A; Output: 5V, 2A)
      • Owner’s manual

    • Warranty:

      • 1 Year

    • GTIN:

      0037332192981
