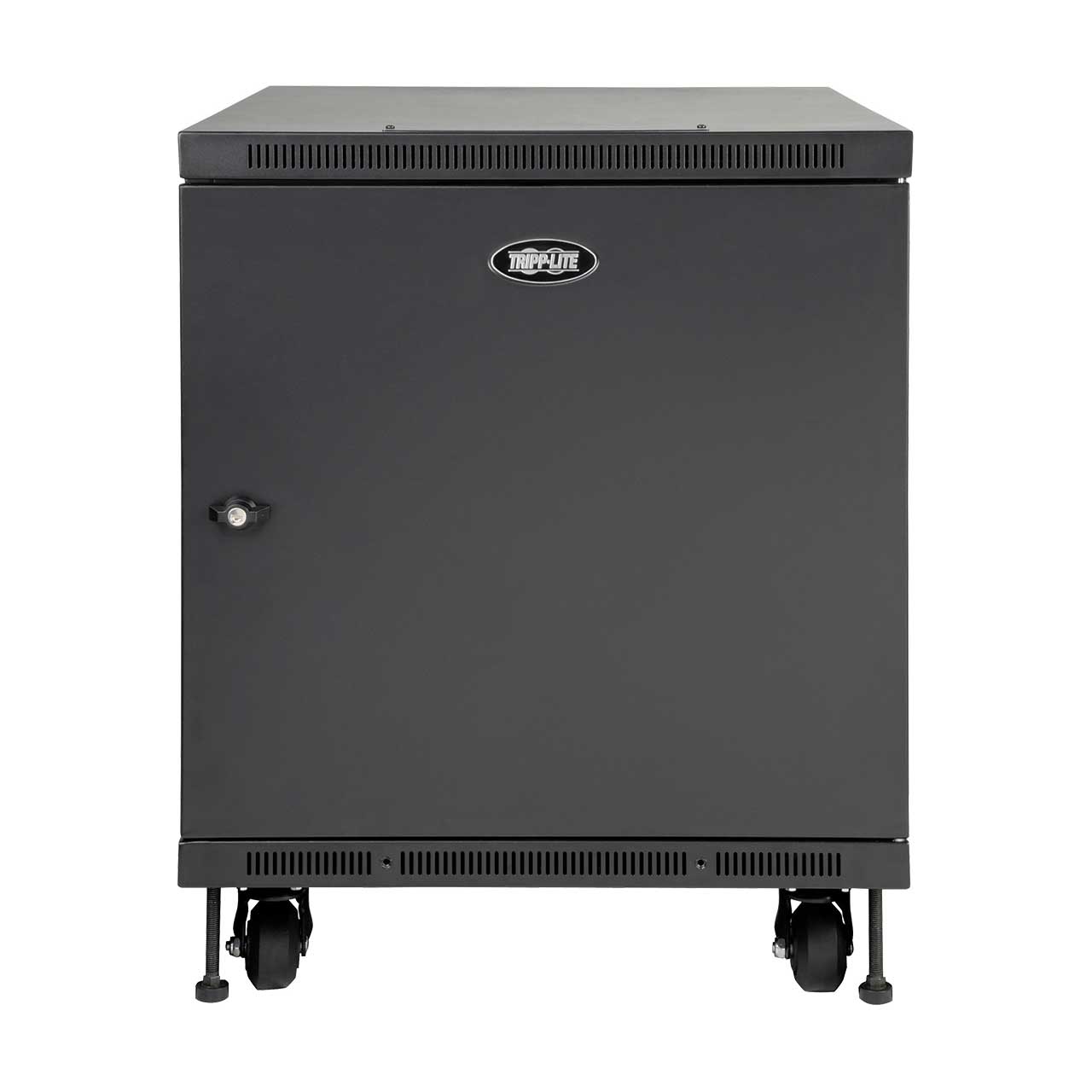

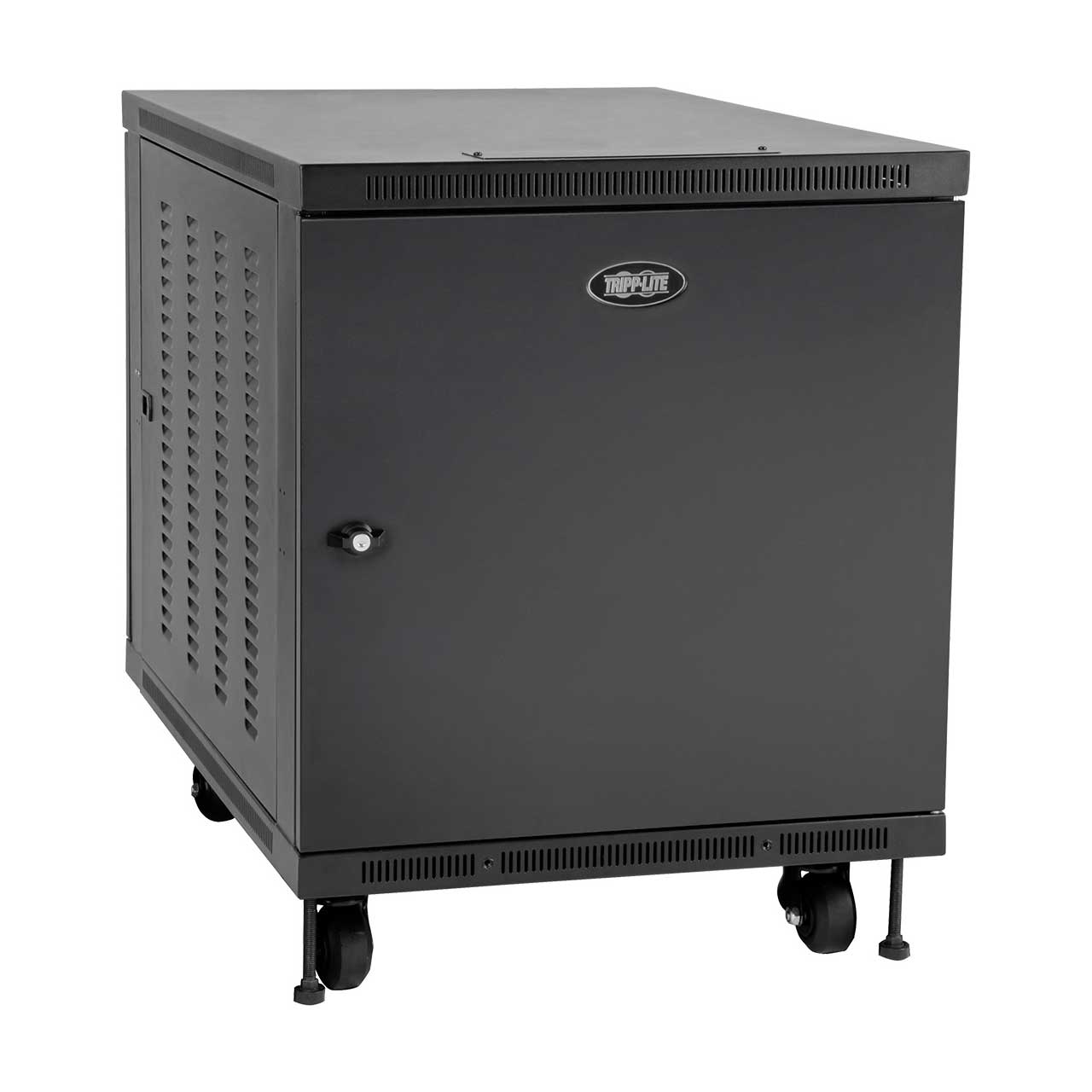

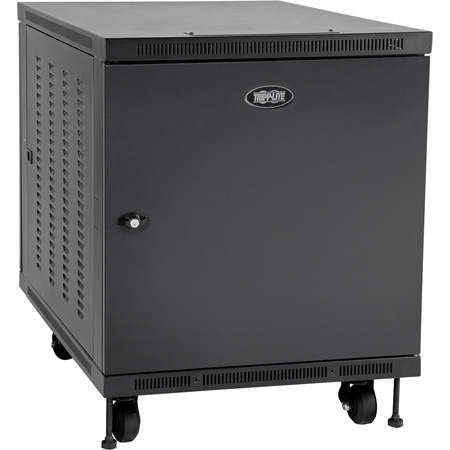

Tripp Lite BP288VEBP 144VDC External Battery Pack for Tripp Lite 208V SUT-Series UPS

BP288VEBP - Overview

• Features:

  • Connects to expandable 208V Tripp Lite SUT-Series UPS systems for extended runtime
  • Supports daisy-chaining to additional battery packs for even longer runtime

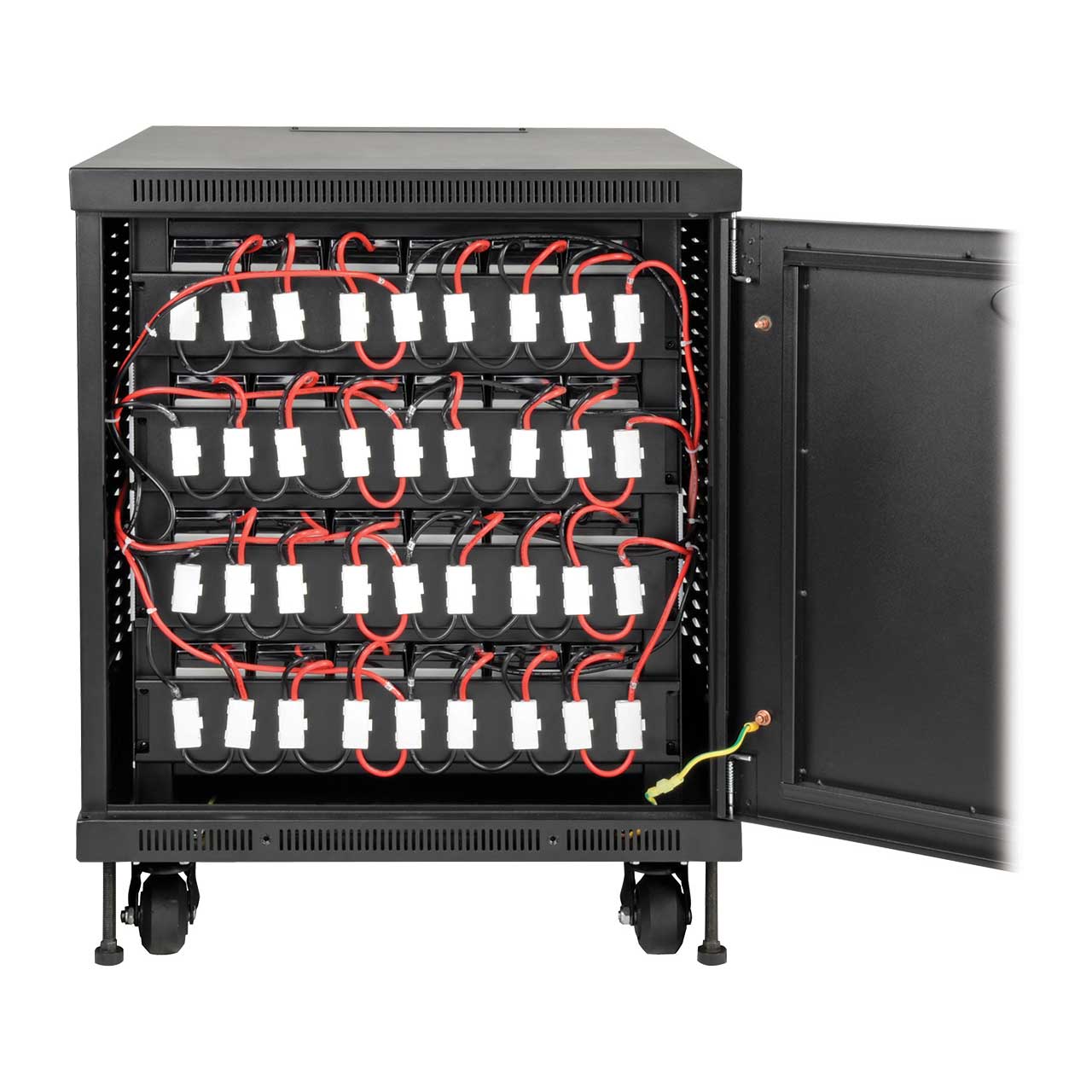

  • Steel cabinet has front/rear doors for easy access to recyclable internal batteries

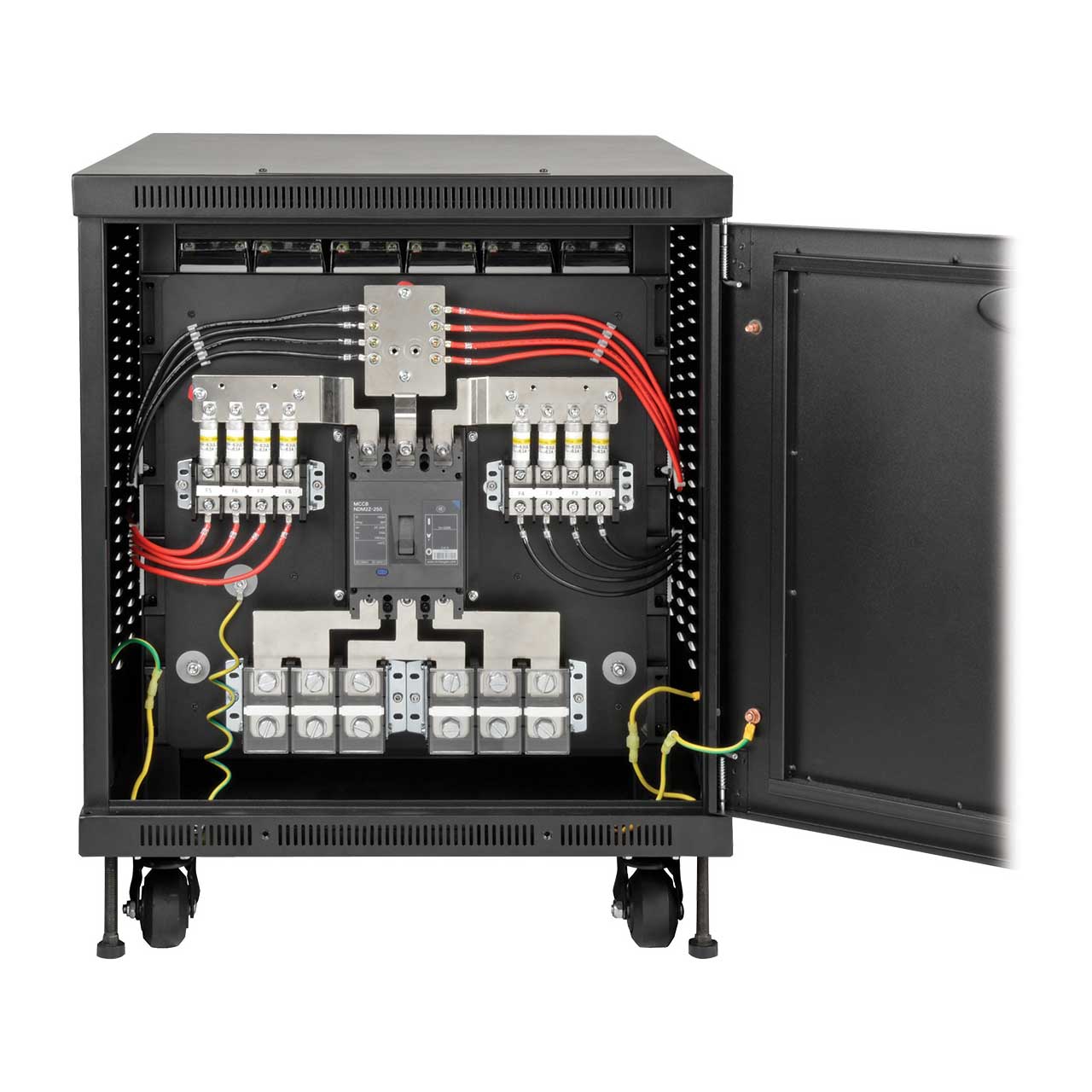

  • 250A DC breaker protects equipment from potentially hazardous overcurrent
  • Pre-installed metal casters allow you to smoothly roll the unit to its destination


• Specifications:

  • Batter
  • Expandable Battery Runtime: Multiple battery packs can be daisy-chained to the UPS for extended runtime
  • DC System Voltage (VDC): +/- 144VDC
  • UPS Connection: Hardwire (contractor supplies wiring - see Owner's Manual for gauge recommendations and complete installation instructions)

    Physical
  • Shipping Dimensions (H x W x D / in.): 30.120 x 26.770 x 37.400
  • Shipping Weight (lbs.): 793.6600
  • Unit Dimensions (H x W x D / in.): 23.5 x 30.08 x 33.58
  • Unit Weight (lbs.): 771.62
  • Material of Construction: Steel
  • External Battery Pack Form Factor: Tower


• Item Includes:

  • BP288VEBP +/-144VDC External Battery Pack for Tripp Lite 208V SUT-Series UPS
  • Owner's manual


• Warranty:

  • 1 Year


• GTIN:

  0037332204110
