Tripp Lite DRS-1215 14-Outlet Economy Network Server Surge Protector 1U Rackmount 15 Feet Cord 3000 Joules

ITEM #: TRL-DRS-1215 MFG #: DRS-1215

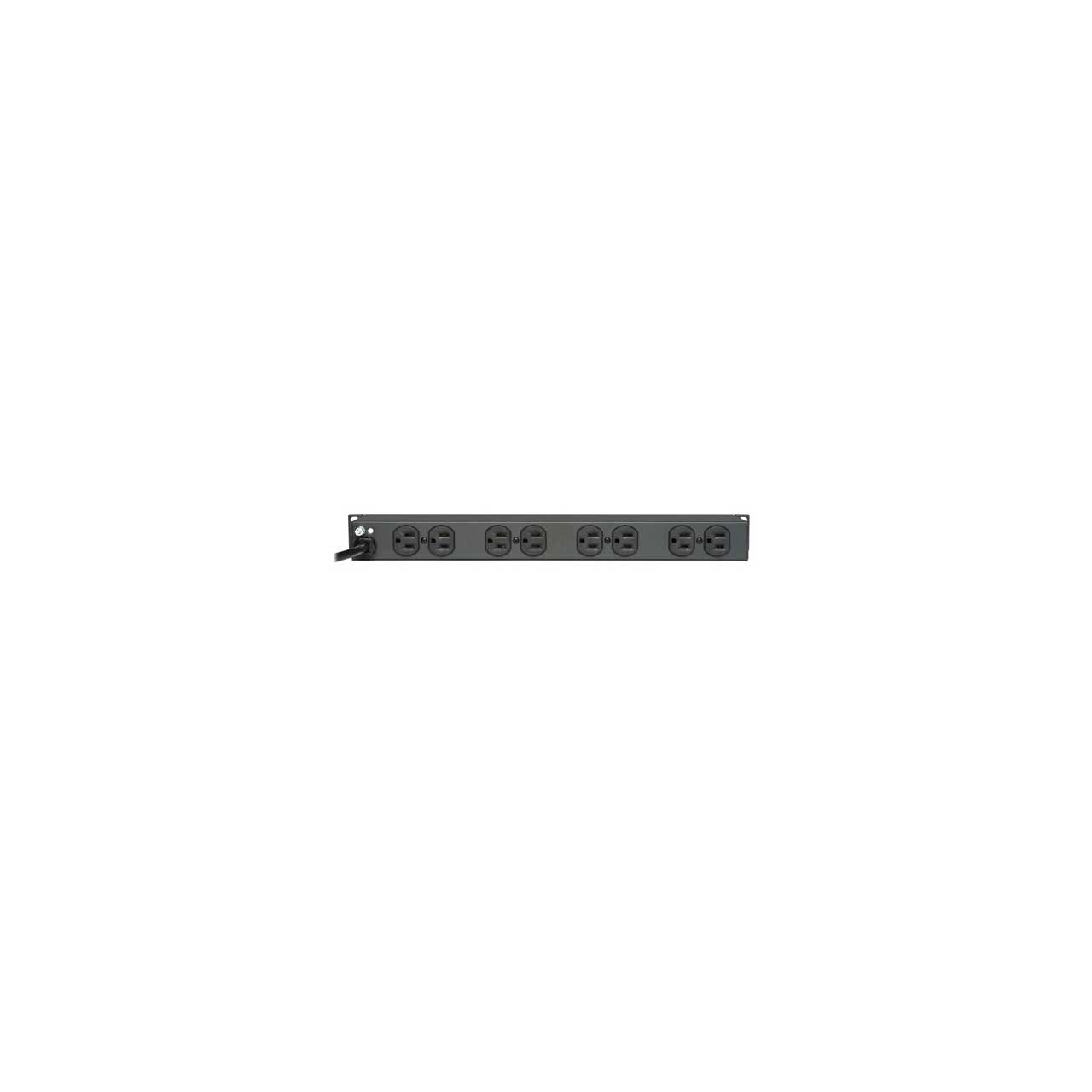

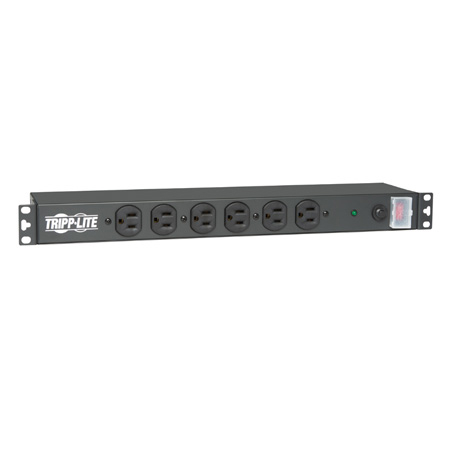

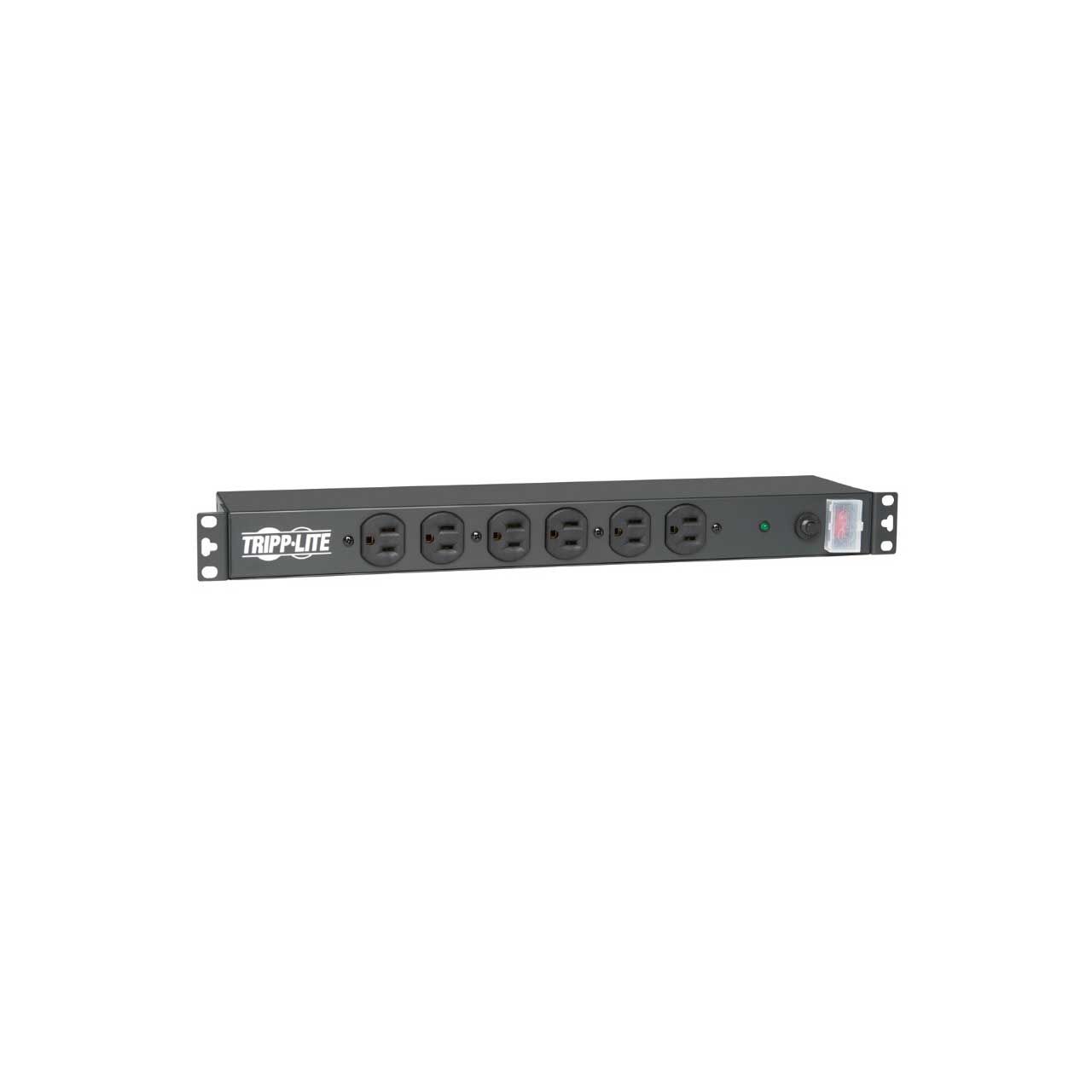

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$156.24

Our Price:

$109.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    DRS-1215 - Overview

    Tripp Lite's DRS-1215 offers surge and noise suppression in a versatile all-metal multi-mount cabinet. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Includes 14 outlets (6 front/8 rear), 15 foot AC power cord and guarded power switch to reduce the risk of accidental shutoff. Diagnostic LED indicates surge protection status.

    • Features:

      • Versatile all-metal cabinet with detachable mounting flanges allows rackmount, wallmount, undercounter and other creative mounting options
      • Uses one rack space (1U) in standard 19 inch rack ("zero U" mounting possible in many racks)
      • 3000 joules AC surge suppression with EMI/RFI filtering
      • 14 NEMA 5-15R output receptacles (6 front/8 rear)
      • 15 foot AC cord with NEMA 5-15P straight-in plug connection
      • Diagnostic LED confirms suppressor operation
      • Lighted power switch confirms power on/off status
      • Snap-in switch guard prevents accidental turn off
      • 15 amp capacity with circuit breaker
      • 120V AC, 50/60Hz electrical compatibility

    • Specifications:

      • Frequency Compatibility: 50 / 60 Hz
      • Output Receptacles: (14) 5-15R
      • Output (Watts): 1800
      • Circuit Breaker (amps): 15
      • Nominal Input Voltage(s) Supported: 120V AC
      • Recommended Electrical Service: 120V (110-125V)
      • Input Connection Type: NEMA 5-15P input plug
      • Input Cord Length (ft.): 15
      • Input Cord Length (m): 4.57
      • Voltage Compatibility (VAC): 120
      • Maximum Surge Amps: 120000
      • Right-Angle Plug: No
      • Switches: Power switch controls power to all outlets
      • Diagnostic LED Details: Green - Protection Present
      • Locking Switch Cover: Transparent locking switch cover prevents accidental shutoff
      • AC Suppression Joule Rating: 3000
      • AC Suppression Response Time: < 1 ns
      • Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
      • Clamping Voltage (RMS): 140
      • Safe Thermal Fusing: Prevents unsafe conditions during extreme extended over-voltages and catastrophic occurrences
      • UL1449 Let Through Rating: 330V
      • EMI / RFI Filtering: 40-80 dB
      • Immunity: Conforms to IEE 587 / ANSI C62.41
      • Telephone/DSL Protection: No
      • Cable (Coax) Protection: No
      • Network (Ethernet) Protection: No
      • Shipping Dimensions (hwd / in.): 2.25 x 20.5 x 9.25
      • Shipping Dimensions (hwd / cm): 5.72 x 52.07 x 23.50
      • Shipping Weight (lbs.): 5.5
      • Shipping Weight (kg): 2.49
      • Unit Dimensions (hwd / in.): 1.75 x 17.5 x 4
      • Unit Dimensions (hwd / cm): 4.45 x 44.45 x 10.16
      • Unit Weight (lbs.): 4.6
      • Unit Weight (kg): 2.09
      • Material of Construction: Metal
      • Included Mounting Accessories: Included mounting flanges are pre-installed for 1U rackmount installation and can be re-configured to support a variety of mounting options
      • Housing Color: Black
      • Receptacle Color: Black
      • Color (AC Line Cord): Black
      • Form Factors Supported: 1U rackmount, 0U vertical rackmount, wallmount and under-counter mounting supported - detachable flanges can be re-configured to support a variety of additional mounting options
      • Outlets Measurement (Center to Center): Distance between front outlets = 38.9mm; Distance between rear outlets = 38.9mm
      • UL1449 3rd Edition (AC Suppression): Tested to UL1449 3rd Edition by ETL
      • cUL / CSA (Canada): Approved for Canada by ETL
      • Approvals: Exceeds IEEE 587 category A&B specifications
      • Product Warranty Period (Worldwide): Lifetime limited warranty

    • Item Includes:

      • DRS-1215 Surge Suppressor
      • Warranty information
      • Instruction manual

    • Warranty:

      • Lifetime

    • GTIN:

      0037332100245
