Tripp Lite ECO750UPSTAA TAA-Compliant ECO Series 120V 750VA 450W Energy-Saving Standby UPS with USB port and 12 Outlets

ITEM #: TRL-ECO750UPSTAA MFG #: ECO750UPSTAA

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$208.40

Our Price:

$157.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    ECO750UPSTAA - Overview

    The ECO750UPSTAA is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. This standby green UPS offers complete protection from blackouts, brownouts and transient surges. Supports green energy savings via built-in Eco outlets that automatically power off unused computer accessories like printers or multi-media speakers when the computer is not in use. Full load efficiency rating of 99% also offers energy-savings and cooler operation by limiting UPS power consumption to less than 5 watts! Eco-friendly design meets strict RoHS environmental standards. Provides uninterrupted transition to battery-derived AC output during brownouts and power failures with enough runtime to save and shutdown connected equipment without data loss. Offers complete protection in an ultra-compact desktop or wall-mountable housing. Includes 6 battery supported outlets for computer, monitor and four vital system peripherals, plus 6 additional surge suppression-only outlets for accessories not requiring battery support.

    Four of the surge-only outlets are designated Eco outlets that can be configured to automatically power-off when the computer enters standby mode or is shutdown. USB port enables UPS configuration options and unattended system shutdown without data loss in the case of extended power failure. PowerAlert software is available via free download from www.tripplite.com. USB cable included. Built-in single line RJ11 phone suppression protects modem, fax machine, cordless phone or other accessories with a dialup/DSL phone connection. Built-in audible alarm and front panel LEDs offer continuous status information regarding line and battery power operation. 750VA/450 watt UPS output capacity with up to 34 minutes runtime for an entry-level PC with small LCD monitor consuming 80 watts continuous.

    • Features:

      • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
      • ECO750UPSTAA standby green UPS offers complete protection from blackouts, brownouts and transient surges
      • Built-in Eco outlets automatically power off unnecessary computer accessories like printers, scanners and speakers when computer is not in use
      • Full load efficiency rating of 99% saves energy and heat output by limiting UPS power consumption to less than 5 watts with only 4 BTU/hr. of heat output
      • Eco-friendly design meets strict RoHS (Restriction of Hazardous Substances) environmental standards
      • 750VA / 450 watt UPS provides battery-derived AC output during brownouts and power failures
      • 9.4 minutes runtime at 50% load (225 watts)
      • Up to 34 minutes runtime for an entry-level PC with small LCD monitor (80 watts)
      • Ultra compact UPS supports a variety of placement options for desktop or wallmount use
      • Includes 6 UPS supported outlets for computer, monitor and four vital system peripherals requiring uninterrupted power
      • Includes 6 Surge-only outlets for accessories not requiring battery support
      • Four of the Surge-only outlets are designated Eco outlets that can be configured to automatically power-off when the computer is not in use
      • USB port enables UPS configuration options and unattended system shutdown without data loss in the case of extended power failure
      • HID-compliant USB port also enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
      • Single line RJ11 phone suppression jacks protect modem, fax machine, cordless phone or other accessories from surges on dial-up/DSL phone connections
      • Space-saving right angle input plug

    • Specifications:

      • Output Volt Amp Capacity (VA): 750
      • Output Watt Capacity (Watts): 450
      • Nominal Output Voltage(s) Supported: 110V; 115V; 120V
      • Frequency Compatibility: 60 Hz
      • Output Voltage Regulation (Battery Mode): +/- 5%
      • Output Receptacles: (12) 5-15R
      • UPS Output Receptacles (Surge Suppression Only): 6 UPS outlets, 6 surge-only outlets
      • Output AC Waveform (AC Mode): Sine wave
      • Output AC Waveform (Battery Mode): PWM sine wave
      • Rated input current (Maximum Load): 10A
      • Nominal Input Voltage(s) Supported: 120V AC
      • UPS Input Connection Type: 5-15P; Right-Angled
      • UPS Input Cord Length (ft.): 6
      • Recommended Electrical Service: 15A 120V
      • Input Phase: Single-Phase
      • Half Load Runtime (min.): 9.4 min. (225w)
      • DC System Voltage (VDC): 12
      • Battery Recharge Rate (Included Batteries): Less than 16 hours from 10% to 90%
      • Expandable Runtime: No
      • Switches: Combination switch controls on/off power status and self-test operation; second recessed push-button switch enables ECO outlet switching
      • Audible Alarm: Audible alarm indicates power-failure and overload status
      • LED Indicators: 3 LEDs indicate power status, overload/check battery and ECO-mode status
      • UPS AC Suppression Joule Rating: 420
      • UPS AC Suppression Response Time: Instantaneous
      • UPS Dataline Suppression: 1 line TEL/DSL (1 in / 1 out)
      • EMI / RFI AC Noise Suppression: Yes
      • Installation Form Factors Supported with Included Accessories: Tower; Ultra-compact desktop
      • Primary Form Factor: Desktop
      • UPS Power Module Dimensions (hwd, in.): 3.1 x 12.2 x 6.9
      • UPS Power Module Weight (lbs.): 7.22
      • UPS Shipping Dimensions (hwd / in.): 4.6 x 15 x 9.8
      • Shipping Weight (lbs.): 8.07
      • UPS Housing Material: Plastic
      • Operating Temperature Range: +32 to +104 degrees Fahrenheit
      • Storage Temperature Range: +5 to +122 degrees Fahrenheit
      • Relative Humidity: 0 to 95%, non-condensing
      • AC Mode BTU / Hr. (Full Load): 3
      • Battery Mode BTU / Hr. (Full Load): 360
      • AC Mode Efficiency Rating (100% Load): 0.99
      • Communications Interface: USB (HID enabled)
      • Communications Cable: USB interface cable included
      • WatchDog Compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications
      • Transfer Time: AC to battery mode: 4 milliseconds / Battery to AC mode: 1 milliseconds
      • Low Voltage Transfer to Battery Power (Setpoint): 99
      • High Voltage Transfer to Battery Power (Setpoint): 139
      • Cold Start (Startup in Battery Mode During a Power Failure): Cold-start operation supported
      • Green Energy-Saving Features: Greater than 95% efficiency - GREEN UPS; Power saving auto-shutoff ECO outlets
      • UPS Certifications: Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI); TAA Compliant
      • Product Warranty Period (U.S. & Canada): 3-year limited warranty
      • Product Warranty Period (Latin America): 3-year limited warranty
      • Product Warranty Period (International): 2-year limited warranty
      • Product Warranty Period (Mexico): 3-year limited warranty
      • Connected Equipment Insurance (U.S., Canada & Puerto Rico): $100,000 Ultimate Lifetime Insurance

    • Item Includes:

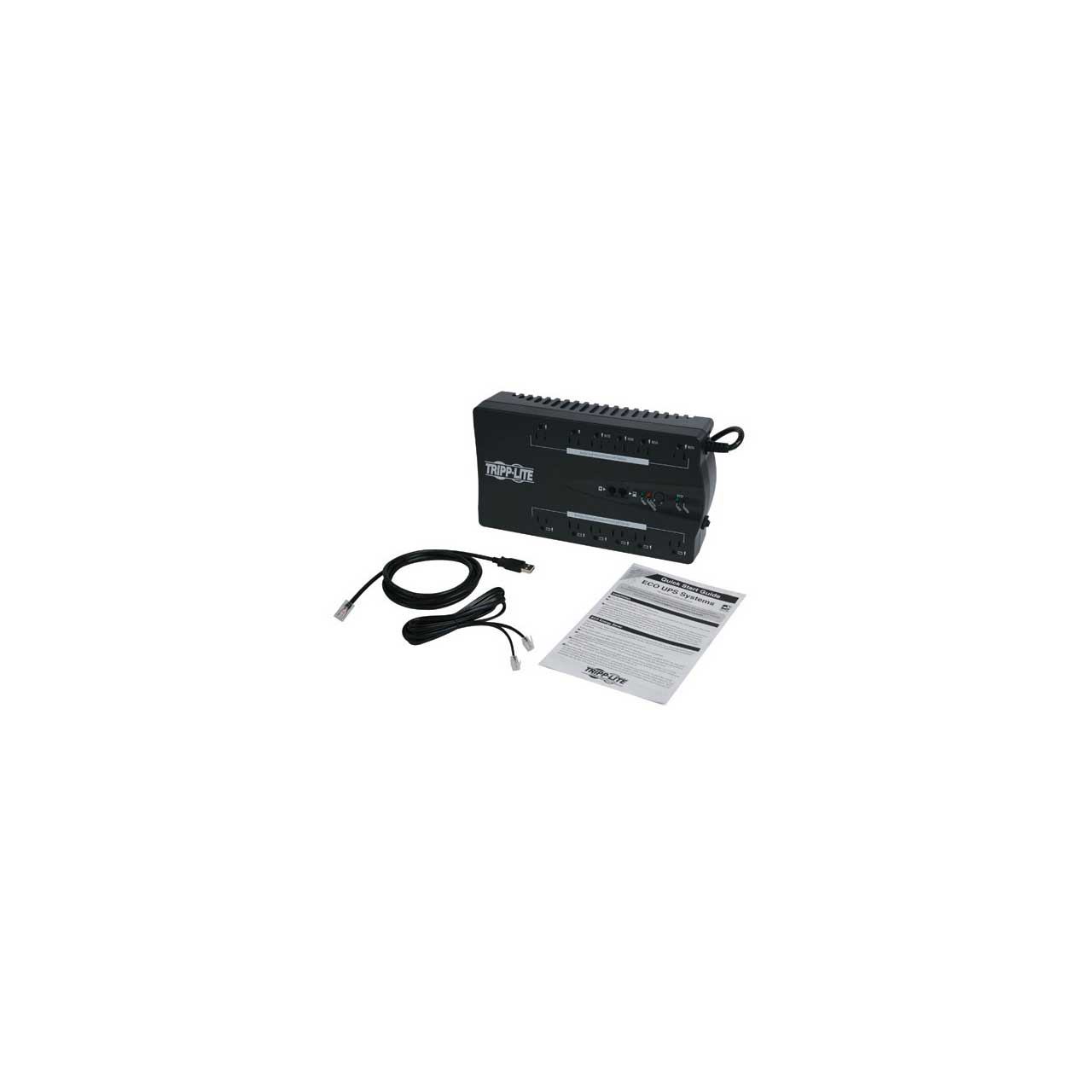

      • ECO750UPSTAA TAA Compliant UPS System
      • USB cable
      • Instruction manual

    • Warranty:

      • 3 Year

    • GTIN:

      0037332152749
