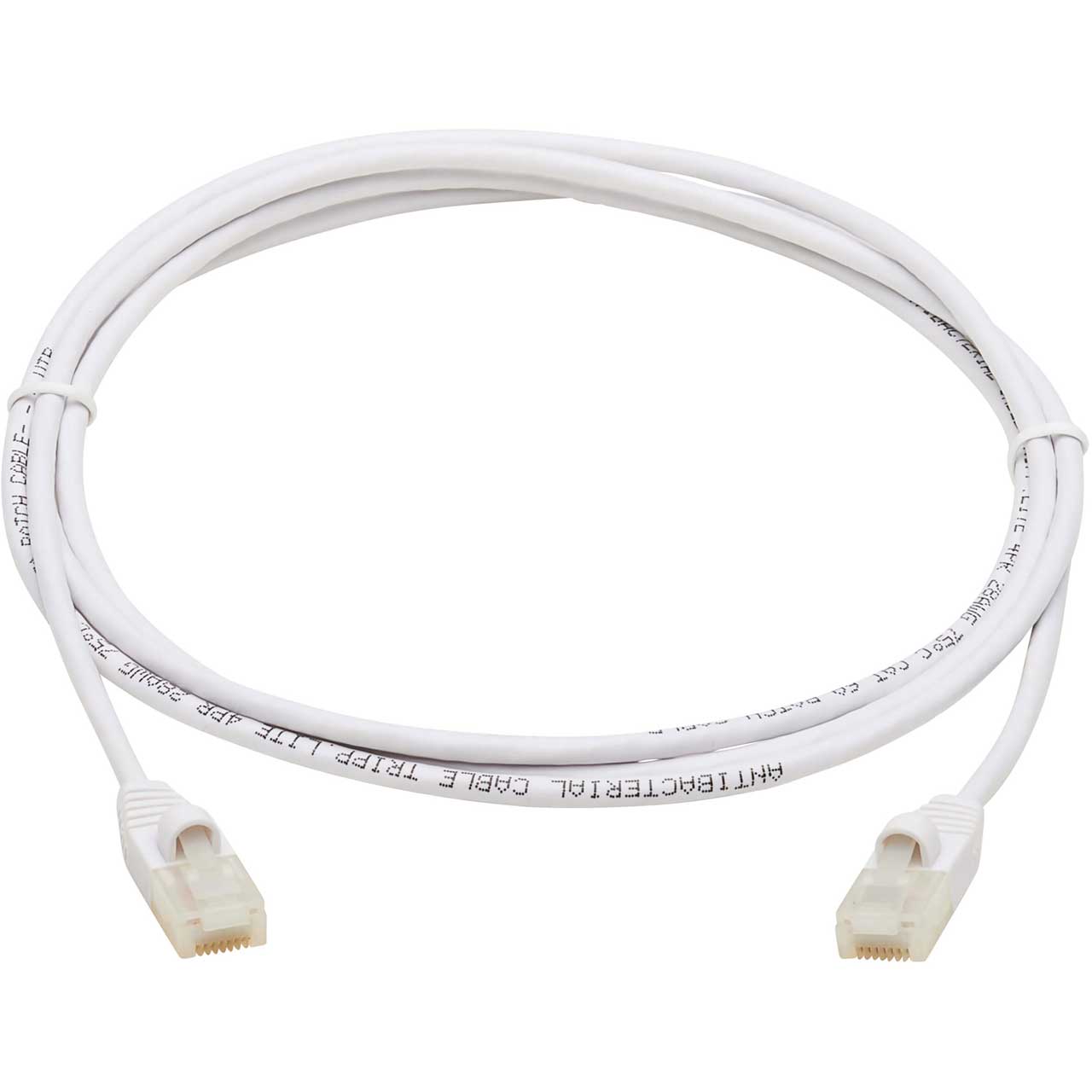

Tripp Lite N261AB-S06-WH Safe-IT Cat6a Ethernet Cable - Antibacterial / Snagless - Slim - Male/Male - 6 Foot

ITEM #: TRL-N261ABS06-WH MFG #: N261AB-S06-WH

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$15.00

Our Price:

$7.12

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    N261AB-S06-WH - Overview

    Cat6a Cable Ideal for Connecting Equipment in Your 10G Ethernet Network

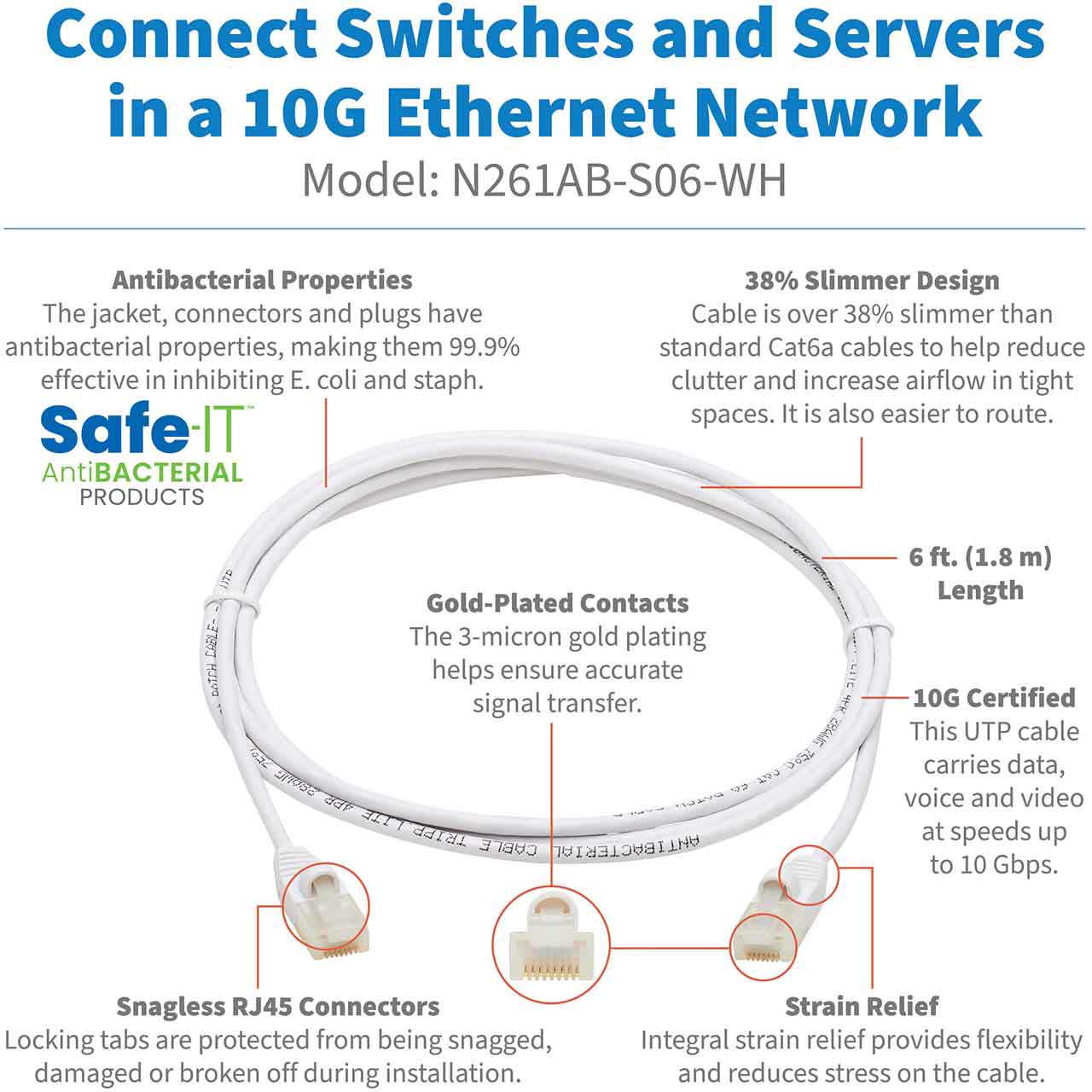

    The Tripp Lite N261AB is a Cat6a Ethernet cable (M/M) with RJ45 connectors transmits 10 Gbps data, voice and video through high-speed 10G equipment, including network switches, modems, servers, routers, adapters, hubs and patch panels, in high-density data centers. Designed for fast transmission and excellent signal quality, this Cat6a cable ensures peak performance throughout your local area network (LAN).

    Provides Extra Protection Against Certain Bacteria
    The connectors and PVC jacket are constructed using an antibacterial material that is 99.9% effective in inhibiting Escherichia coli (E. coli) and Staphylococcus aureus (staph). This added protection makes this cable an ideal solution for medical facilities, schools, businesses, restaurants/kitchens and anywhere else that needs extra protection against bacteria.

    Special Slim Design for Better Airflow and Easier Installation
    This 10G cable is more than 38% smaller in diameter than standard Cat6a cable. This increases airflow in tight spaces, which helps keep your equipment cool and properly functioning. It also cuts down on clutter in crowded racks and patch panels, and makes the cable easier to install around corners and through cable management panels.

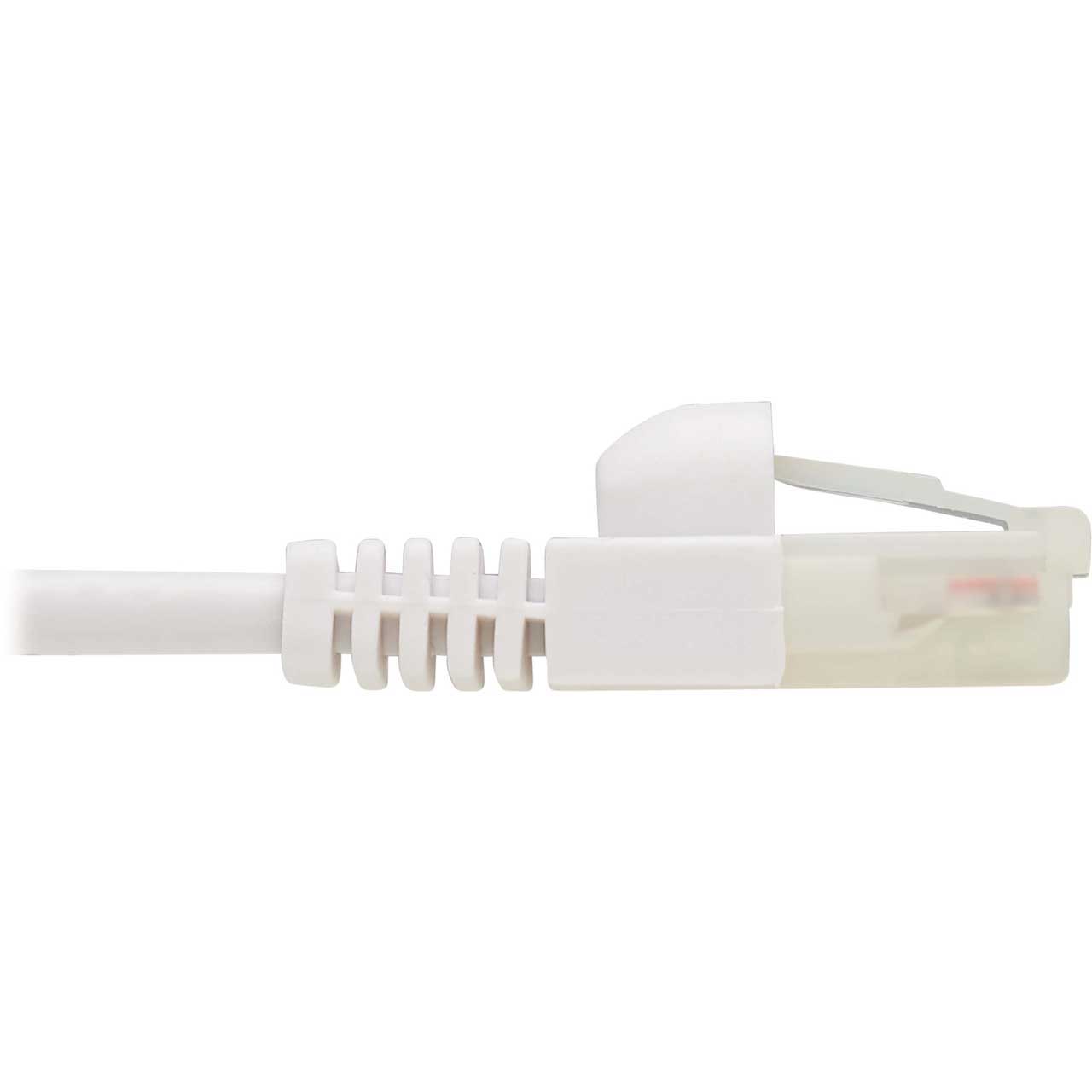

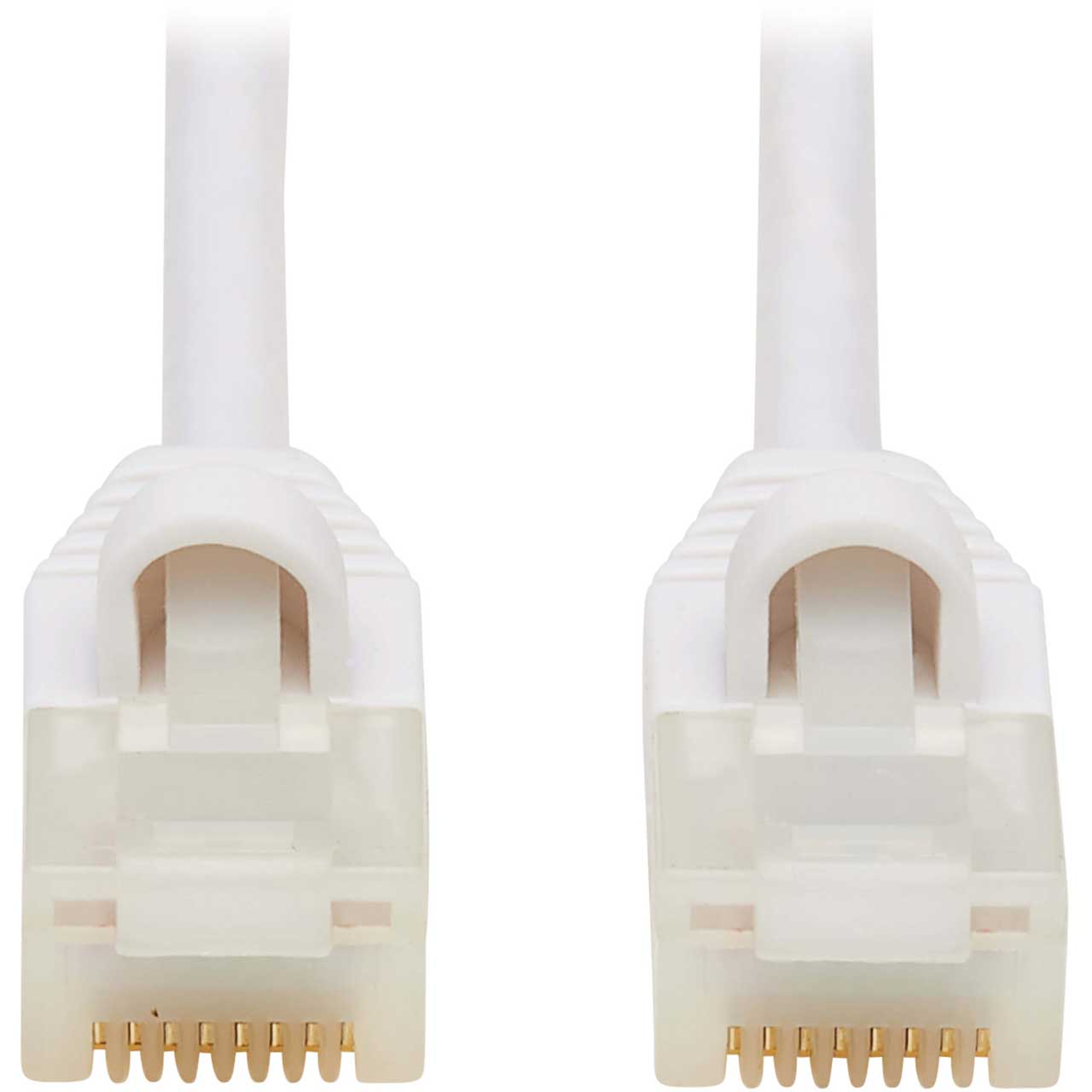

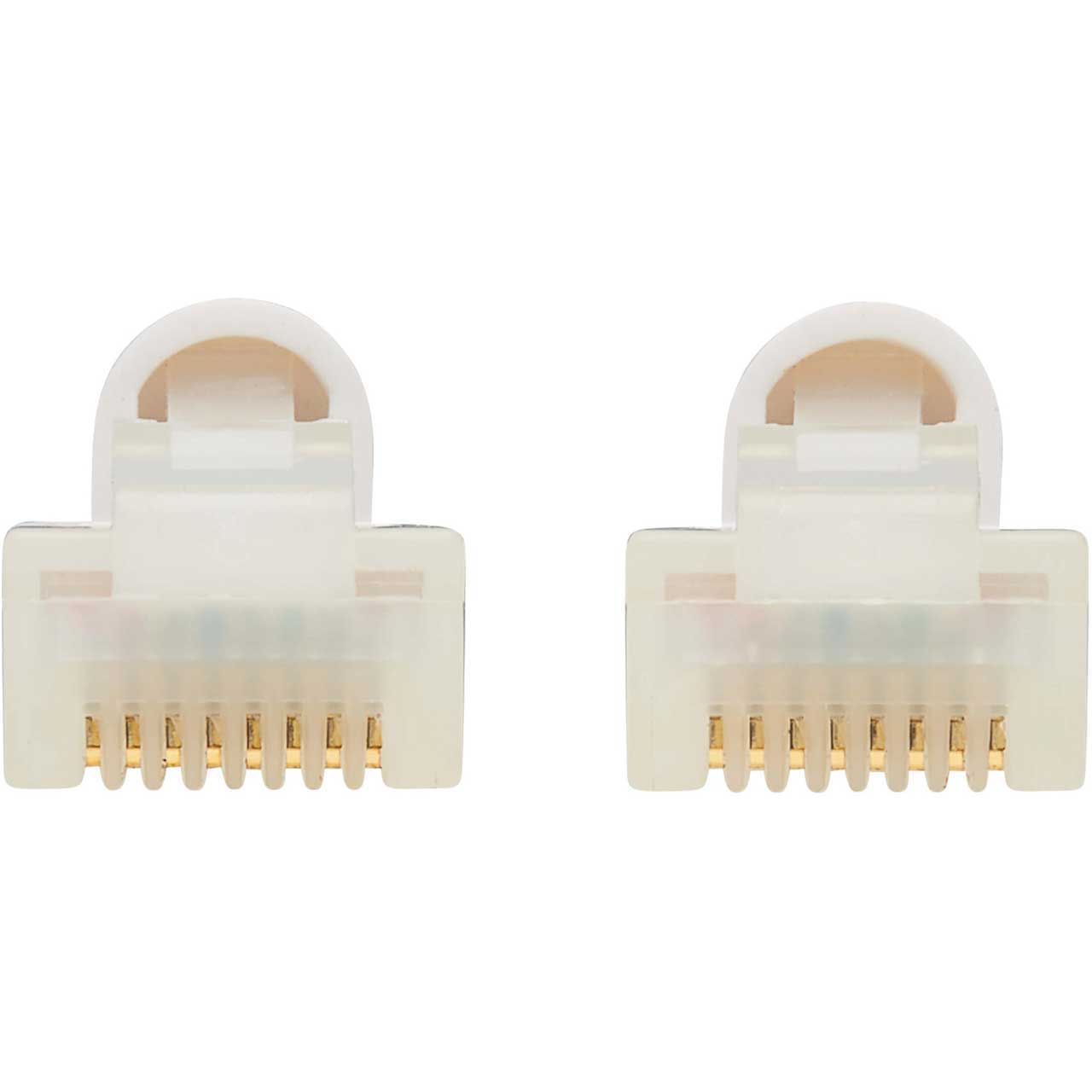

    Snagless RJ45 Male Connectors Keep Tabs Intact During Installation
    The RJ45 connectors' snagless design protects the locking tabs from being damaged or broken off during installation. Integral strain relief gives the cable extra flexibility, reduces stress and helps the cable move freely without cracking or breaking loose from the connector.

    Premium Construction for Superior Performance
    Manufactured from 28 AWG copper wire, the four-pair stranded cable is rated for speeds up to 10 Gbps. The RJ45 connectors improve near-end crosstalk (NEXT) performance to 500 MHz and feature 3-micron gold plating to help ensure the most accurate signal transfer possible.

    White Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
    The cable has a white PVC jacket, which is easy to identify quickly in a crowded patch panel or switch and helps prevent the cable from becoming accidentally disconnected.

    Typical Applications
    Connect a computer and its peripherals to a home or office 10G Ethernet network
    Connect switches, modems and servers in a high-density data center
    Provide extra protection against bacteria to give cable installers and IT personnel peace of mind during installation
    Replace standard-diameter cables in crowded racks and patch panel installations to improve airflow

    • Features:

      • Premium Cat6a cable rated for high-speed 10 Gbps home/office communications
      • Made with antibacterial material proven 99.9% effective in inhibiting E. coli and staph
      • Over 38% slimmer than standard Cat6a cables to increase airflow in full racks
      • Easy to route around corners and through crowded cable management panels
      • White jacket permits fast, easy identification in a crowded switch or patch panel
      • This product is covered by a Lifetime Limited Warranty

    • Specifications:

      • Performance
      • Bandwidth per TIA Standard: 500MHZ
      • Maximum Bandwidth as Tested: 600 MHz
      • Maximum Data Rate: 10Gbps

        Input
      • Cable Length (ft.): 6

        Physical
      • Cable Outer Diameter (OD): 3.8mm
      • Cable Shielding: UTP
      • Cable Jacket Material: PVC
      • Wire Type: Stranded
      • Wire Gauge (AWG): 28
      • Color: White
      • Crossover Wiring: No
      • Material of Construction: PVC
      • Number of Conductors: 4 Pair
      • Snagless Connector: Yes
      • Conductor Material: Stranded Copper
      • Conductor Gauge: 28 AWG

        Environmental
      • Operating Temperature Range: 14 to 122 F (-10 to 50 C)
      • Storage Temperature Range: 5 to 140 F (-15 to 60 C)
      • Operating Humidity Range: 0% TO 90% RH, NON-CONDENSING
      • Storage Humidity Range: 0% TO 90% RH, NON-CONDENSING

        Communications
      • Network Speed: 10Gbps

        Connections
      • Side A - Connector 1: RJ45 (MALE)
      • Side A - Connector 2: RJ45 (MALE)
      • Side B - Connector 1: RJ45 (MALE)
      • Contact Plating: Gold
      • Connector Type: Molded

        Features & Specifications
      • Wiring Configuration: EIA/TIA 568B

        Special Features
      • IP68 Rated: No
      • Antibacterial: Yes

        Standards & Compliance
      • Certifications: RoHS, REACH

    • Item Includes:

      • 1x Tripp Lite N261AB-S06-WH Safe-IT Cat6a Ethernet Cable - Antibacterial Snagless - Slim - Male/Male - 6 Foot

    • Warranty:

      • Lifetime Limited Warranty

    • GTIN:

      0037332260468
