Tripp Lite N484-12RJ Cat5e/6 Pass-Through Cassette - (x12) RJ45

ITEM #: TRL-N484-12RJ MFG #: N484-12RJ

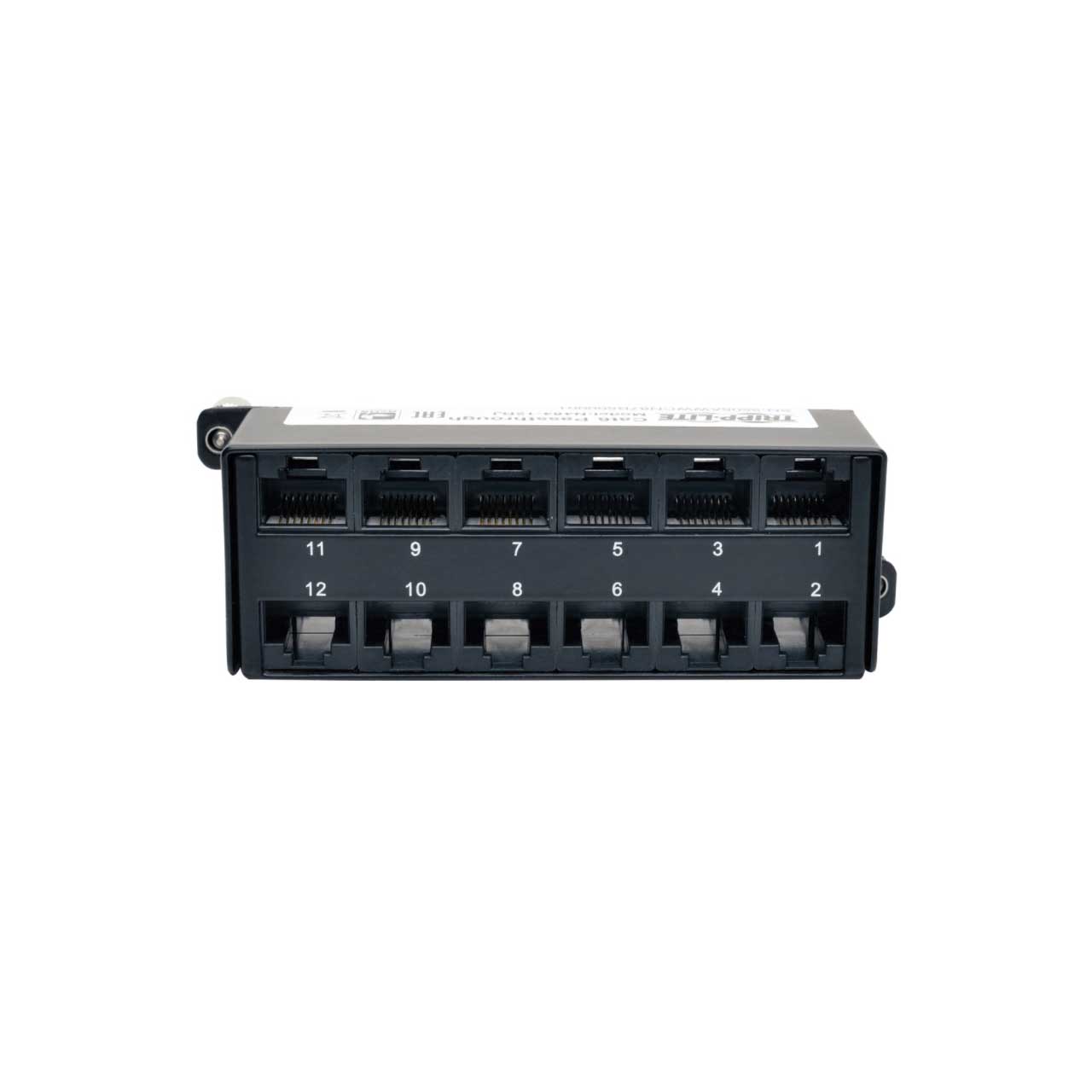

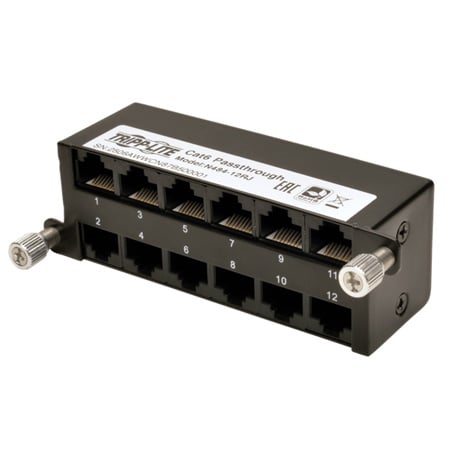

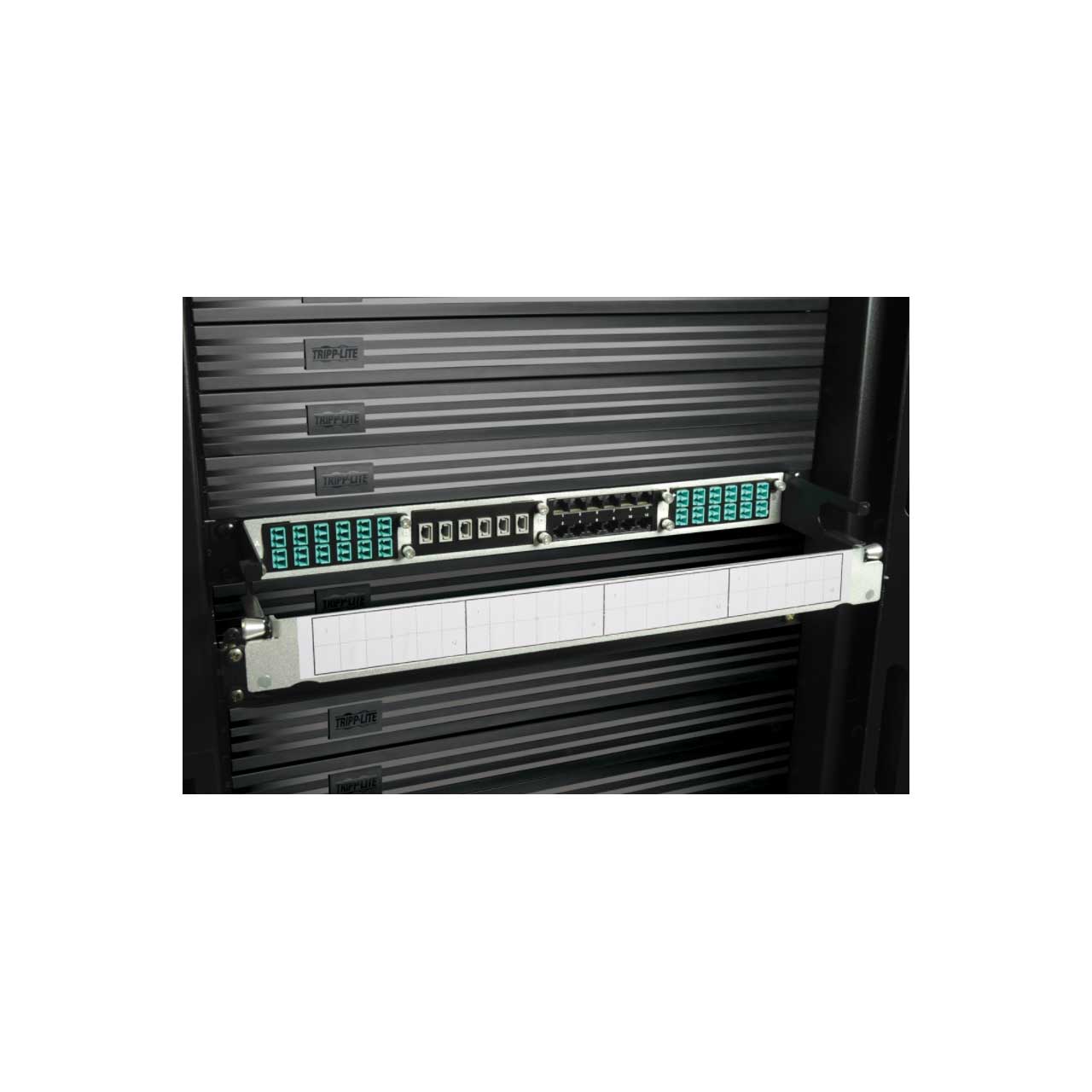

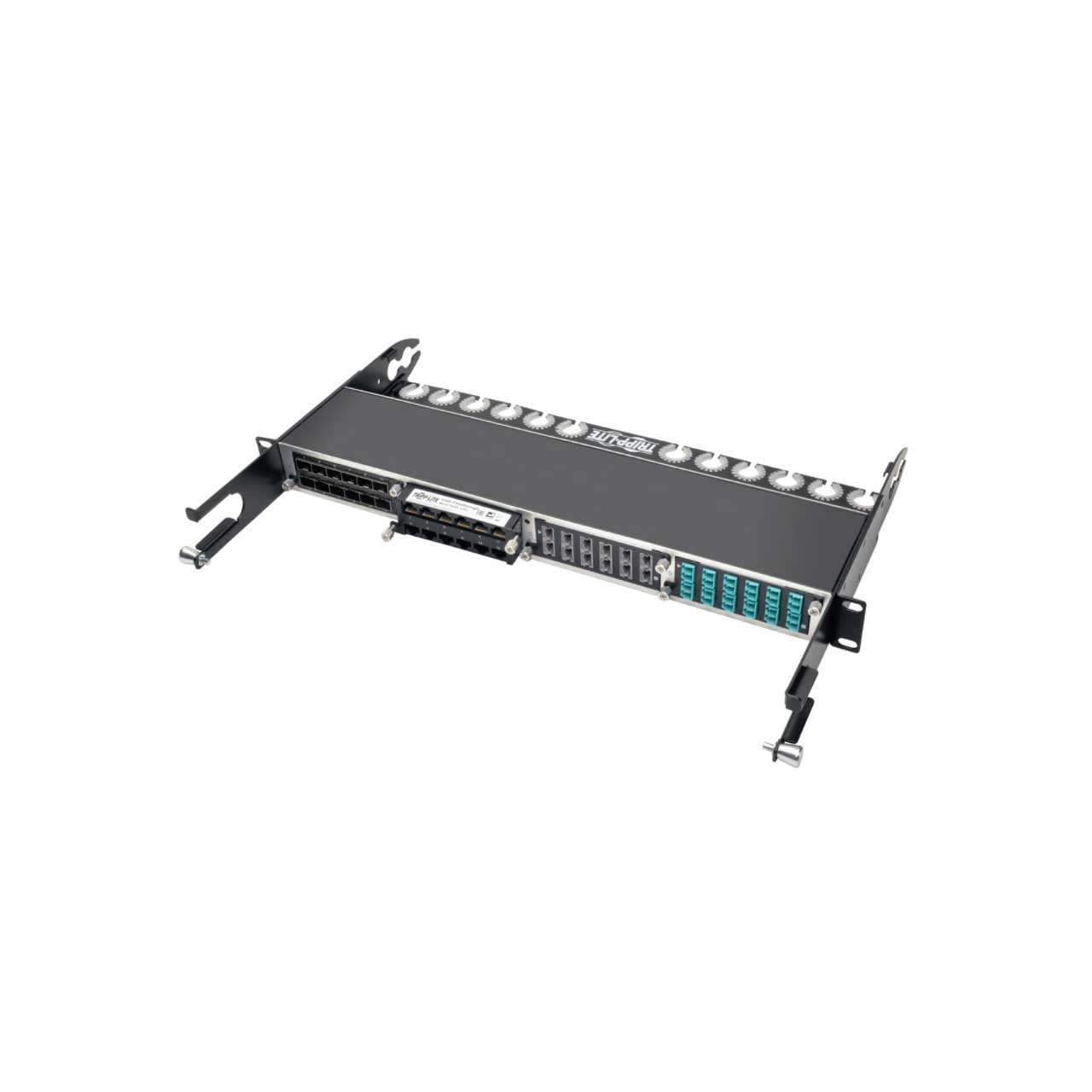

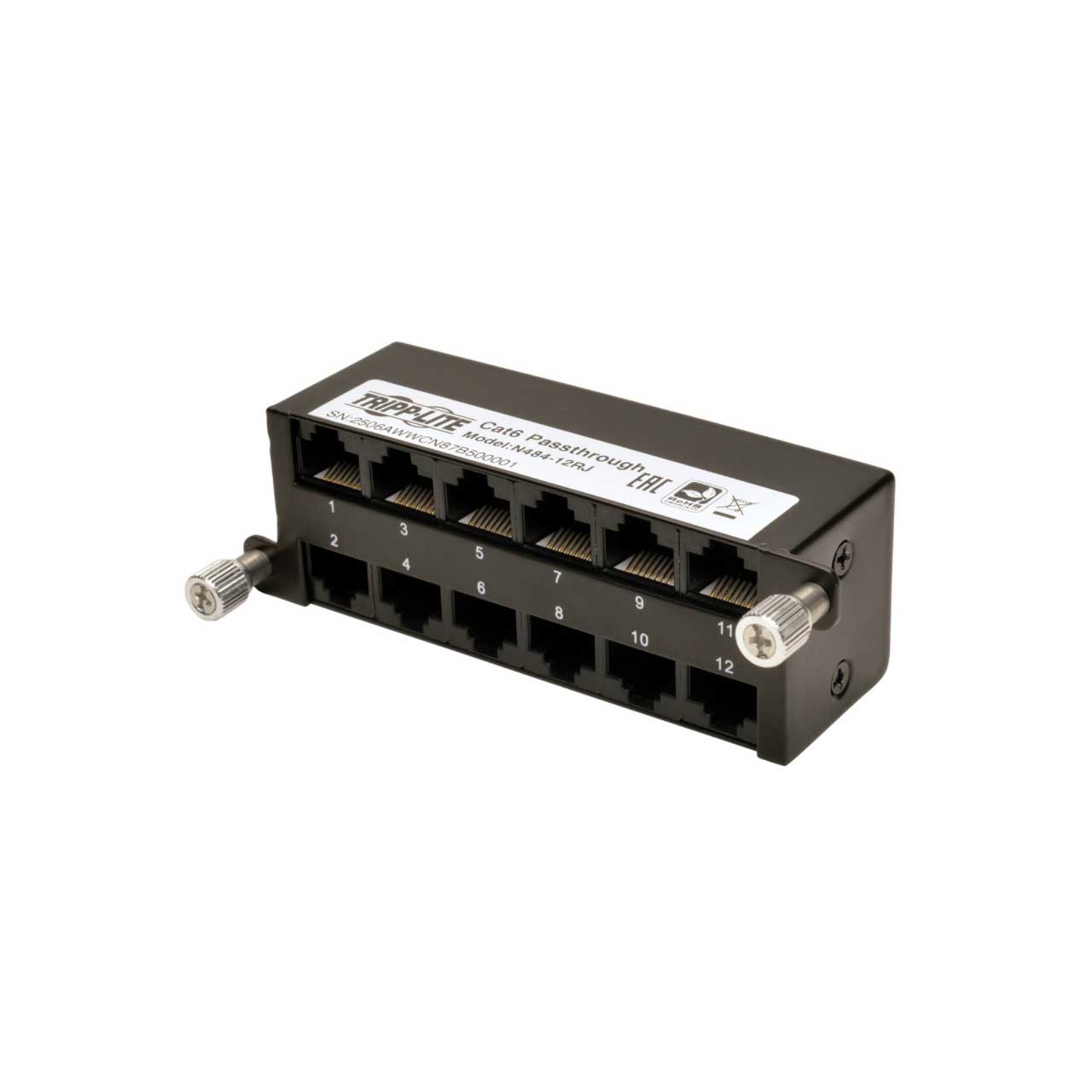

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$235.20

Our Price:

$170.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    N484-12RJ - Overview

    Tripp Lite's N484-12RJ is a High Density Cat5e/6 Pass-through Cassette with (x12) RJ45 connections. Designed specifically for use with Tripp Lite's N484-00U and N484-01U chassis'; up to 4 cassettes per N484-01U, or 1 per N484-00U. Each RJ45 connection is rated for 1GbE, and supports older Cat5e 100mb.

    Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory terminated connectors that reduce the time and labor required of field connector terminations. Cassette housing is manufactured with heavy duty, 1.0mm Cold Rolled Steel.

    • Features:

      • High Density Copper Cassette for use with the N484-00U and N484-01U chassis'
      • Cat5e/6 Pass-through Cassette, with (x12) RJ45 connections
      • Gigabit Rated Couplers
      • Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required
      • Each cassette features factory terminated connectors that reduce the time and labor required of field connector terminations.
      • Housing made of heavy duty, 1.0mm Cold Rolled Steel

    • Specifications:

      • Operating Temperature Range: -4 to 122 F (-20 to 50 C)
      • Ports: 12
      • Side A - Connector 1: (12) RJ45 (FEMALE)
      • Side B - Connector 1: (12) RJ45 (FEMALE)
      • Approvals: RoHS, REACH
      • Product Warranty Period (Worldwide): Lifetime limited warranty

    • Item Includes:

      • N484-12RJ Cat5e/6 Pass-Through Cassette - (x12) RJ45
      • Quick Start Guide

    • Warranty:

      • Lifetime

    • GTIN:

      0037332187222
