Tripp Lite PDU1220T PDU Basic 120V 20A 5-15/20R 13 Outlet L5-20P Horizontal 1URM

ITEM #: TRL-PDU1220T MFG #: PDU1220T

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

List Price:


Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup

    PDU1220T - Overview

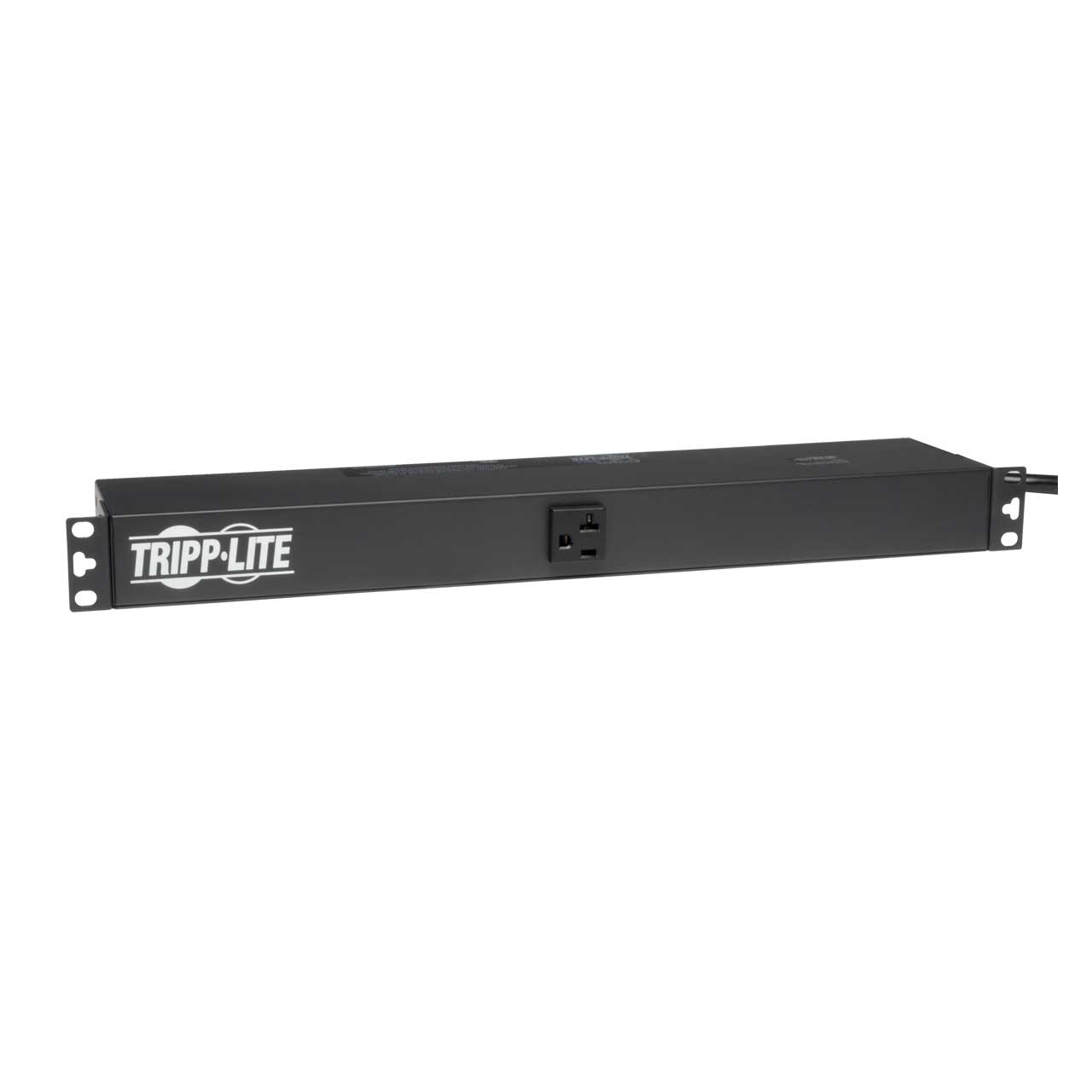

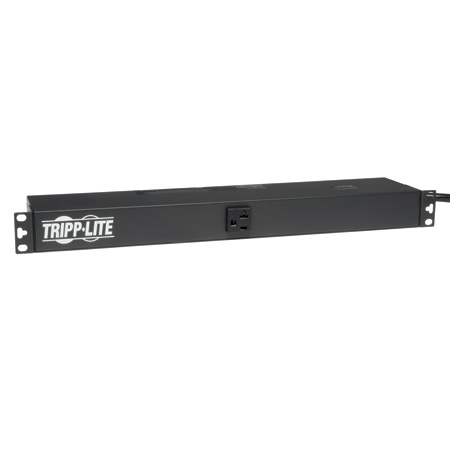

    The Tripp Lite PDU1220T 2.4kW Single-Phase 120V Basic PDU is the perfect no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Perfectly suited for high-density IT environments, the PDU1220T features a single breakered load bank with 13 NEMA 5-15/20R outlets-12 in the rear and one in front. The NEMA L5-20P input plug with long 15-foot (4.5 m) cord connects to your facility's compatible AC power source, generator or protected UPS to distribute power to connected equipment.

    The switchless design prevents an accidental shutdown, which could lead to costly downtime. A 20A circuit breaker protects connected equipment from dangerous overloads. The reversible all-metal housing mounts in 1U of space in EIA-standard 19-inch racks, as well as on a wall or workbench or under a counter. With a compatible rack and Tripp Lite's PDUSIDEBRKT accessory (sold separately), you can adapt the PDU1220T for vertical 0U rack-mounting.

    • Features:

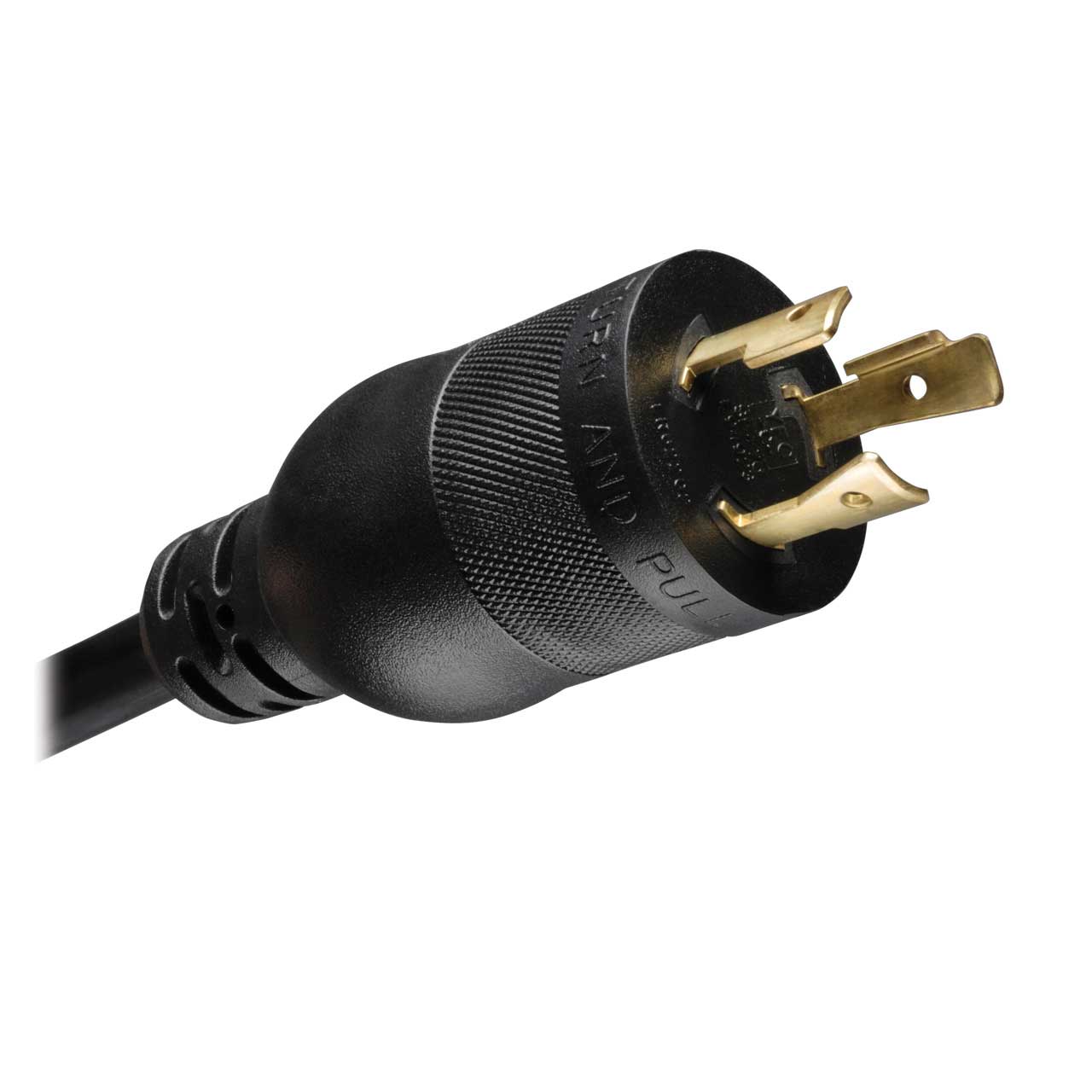

      • NEMA L5-20P input with 15 ft. (4.5 m) cord
      • 13 NEMA 5-15/20R outlets - 12 rear and 1 front
      • Switchless design prevents accidental shutdown
      • Reversible all-metal housing
      • Installs in rack, on wall or under counter
      • 5-year limited warranty
      • deal no-frills PDU for networking, telecom, security, audio/video and sound reinforcement applications
      • 13 NEMA 5-15/20R outlets in one breakered load bank
      • 20A circuit breaker protects outlets against overloads
      • NEMA L5-20P input plug with 15 ft. cord
      • Rear-panel grounding lug
      • Prevents accidental shutdowns and costly downtime
    • Specifications:

      • EnvironmentalInput
      • PDU Input Voltage: 100; 120; 127
      • Recommended Electrical Service: 20A 120V
      • Maximum Input Amps: 20
      • PDU Plug Type: NEMA L5-20P
      • Input Phase: Single-Phase
      • Input Cord Length (ft.): 15

      • Output Capacity Details: 2.5kW (127V), 2.4kW (120V), 2.0kW (100V) / 20A total capacity; 16A max per 5-15/20R outlet
      • Frequency Compatibility: 50 / 60 Hz
      • Output Receptacles: (13) 5-15/20R
      • Output Nominal Voltage: 100; 120; 127
      • Overload Protection: 20A circuit breaker

        EnvironmentalUser Interface, Alerts & Controls
      • Switches: No power switch

      • Form Factors Supported: 1U rackmount, 0U vertical rackmount, wall-mount and undercounter installation supported
      • Material of Construction: Metal
      • Minimum Required Rack Depth (inches): 9.5
      • Outlets Measurement (Center to Center): 30.2mm
      • PDU Form Factor: Horizontal (1U)
      • Shipping Dimensions (hwd / in.): 9.30 x 2.25 x 20.40
      • Shipping Weight (lbs.): 5.70
      • Unit Dimensions (hwd / in.): 1.75 x 17.5 x 4.5
      • Unit Weight (lbs.): 5.2

      • Storage Temperature Range: -30°C to +50°C (-22°F to +122°F)
      • Relative Humidity: 5 to 95% non-condensing
      • Operating Elevation (ft.): 0-10,000
      • Operating Elevation (m): 0-3000
    • Item Includes:

      • PDU1220T 2.4kW Single-Phase 120V Basic PDU
      • Mounting hardware
      • Owner's manual
    • GTIN:
