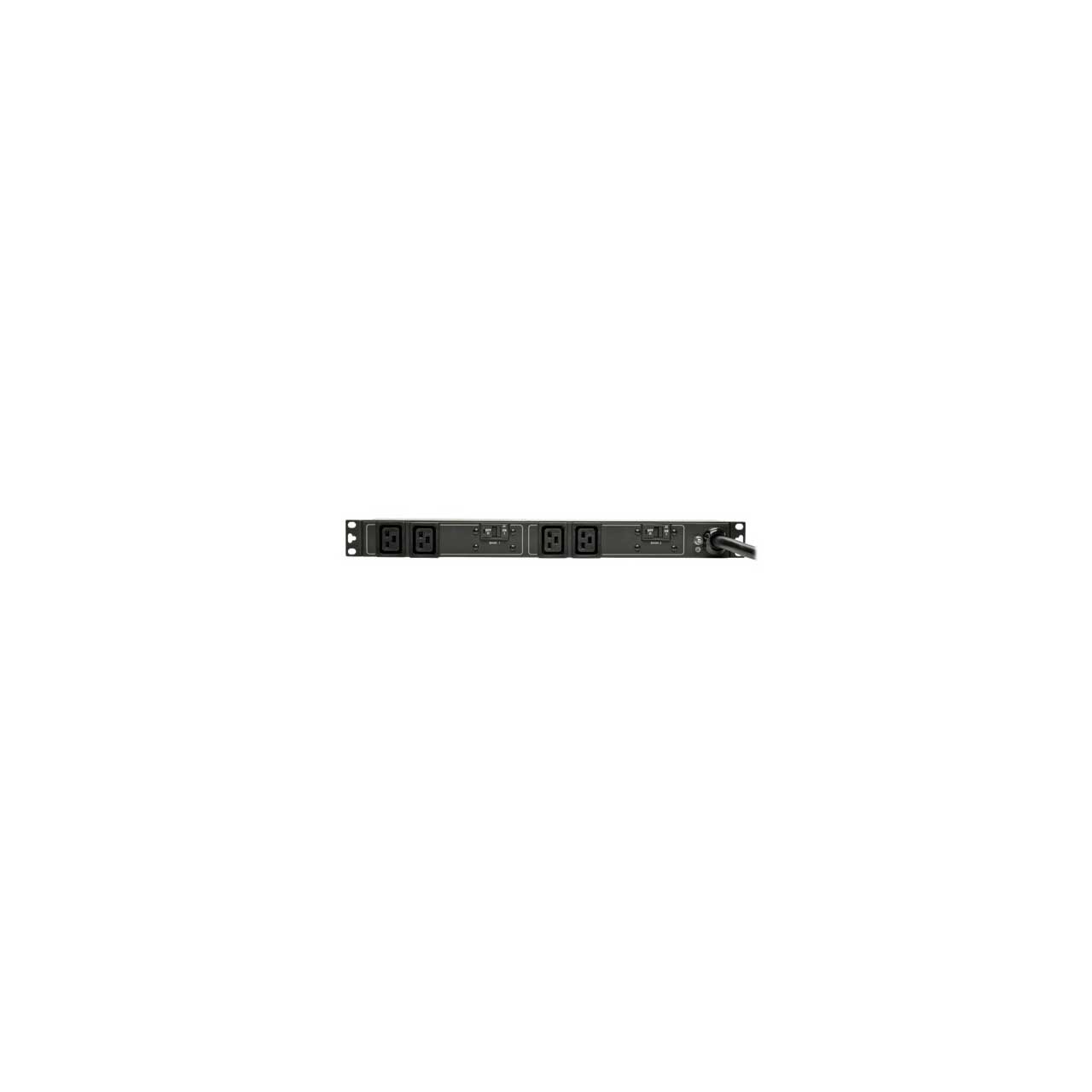

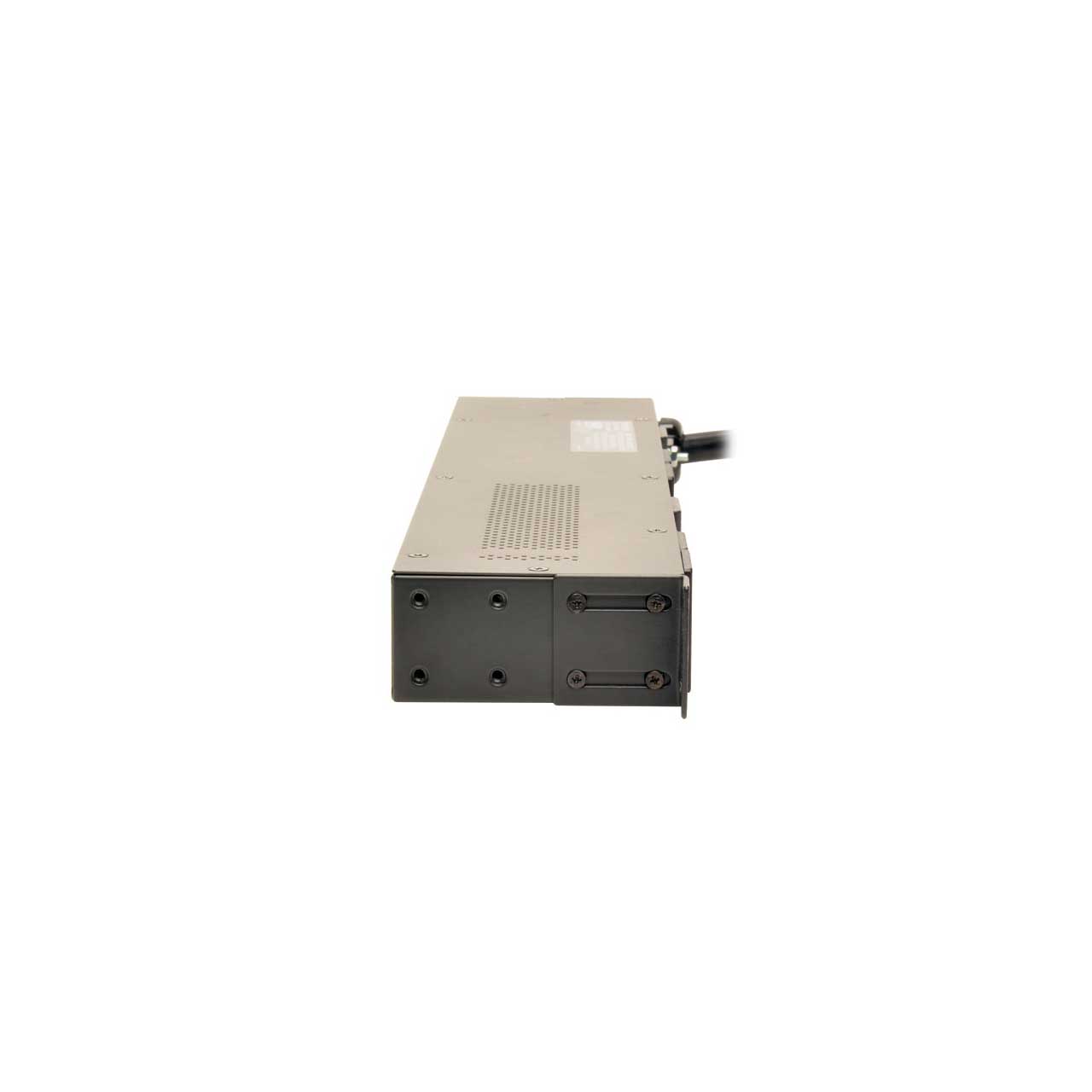

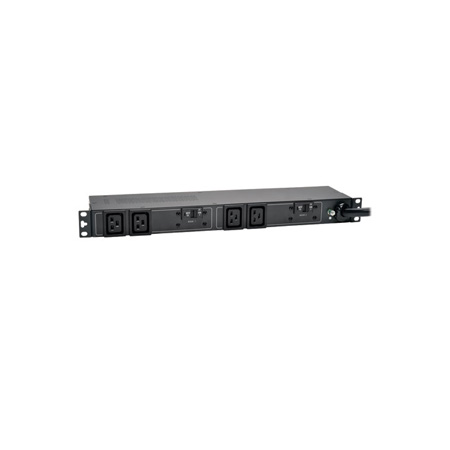

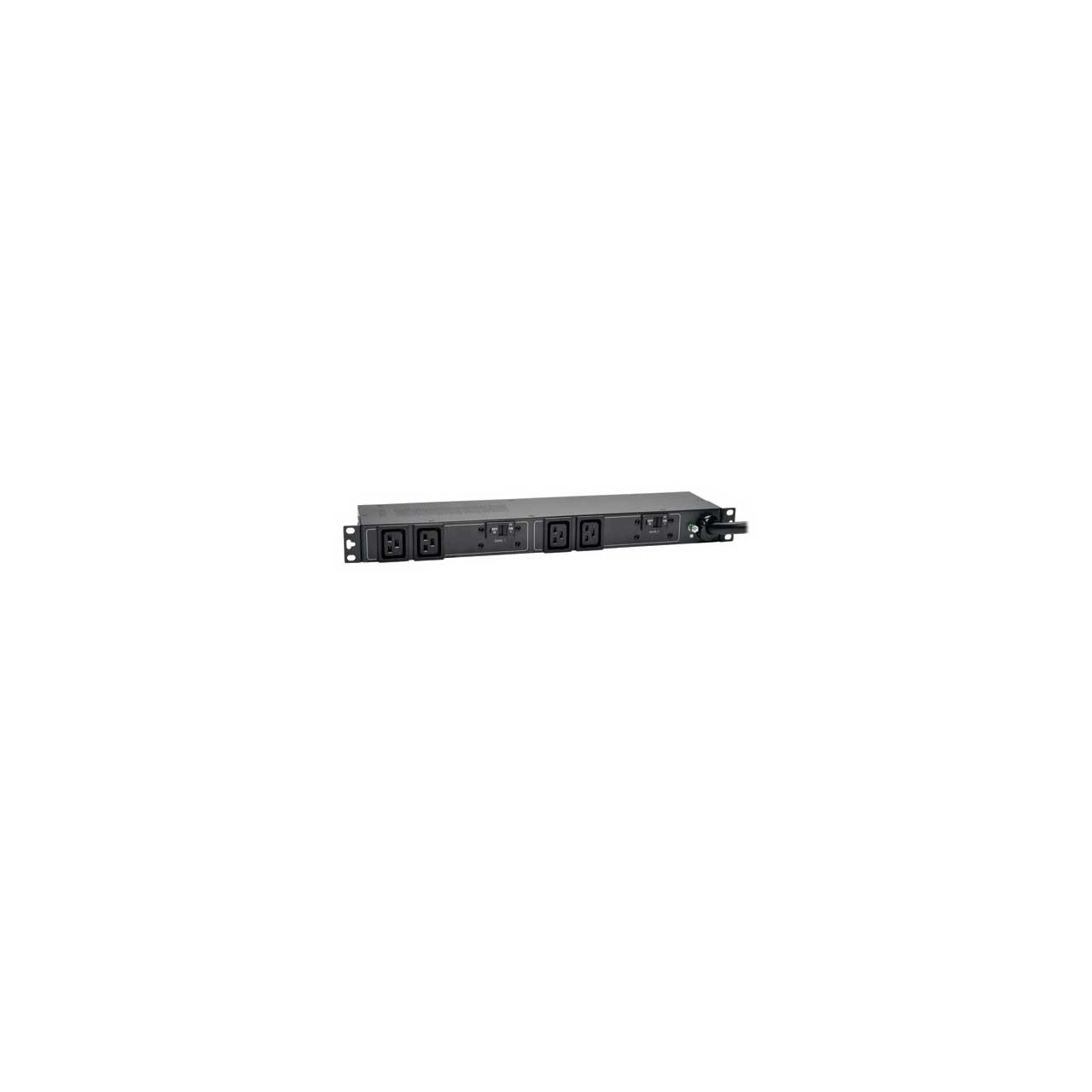

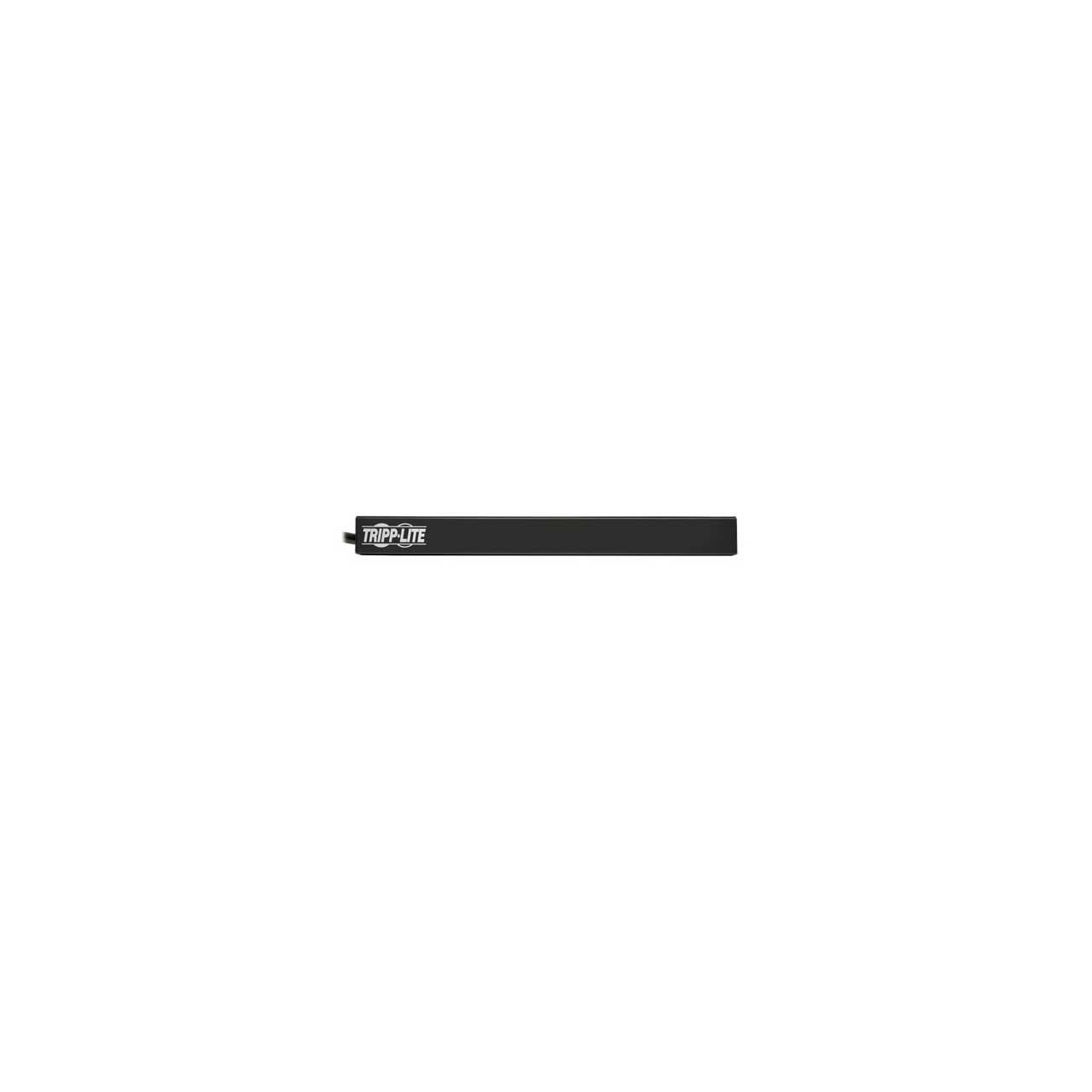

Tripp Lite PDUH30HV19 5/5.8kW Single-Phase Basic PDU 208/240V Outlets (4 C19) L6-30P 12 Foot Cord 1U Rackmount

Manufacturer: Tripp Lite

Item #: TRL-PDUH30HV19   •   MFG #: PDUH30HV19



List Price:$379.98
Our Price:$261.57

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    Tripp Lite Basic Power Distribution Units / PDU systems offer reliable rackmount power distribution. Supplies equipment with continuous power from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.


    • Features

      • Reversible housing; 3.75 in. / 9.5 cm depth
      • 30A single phase 208/240V Basic Power Distribution Unit / PDU (agency de-rated to 24A continuous)

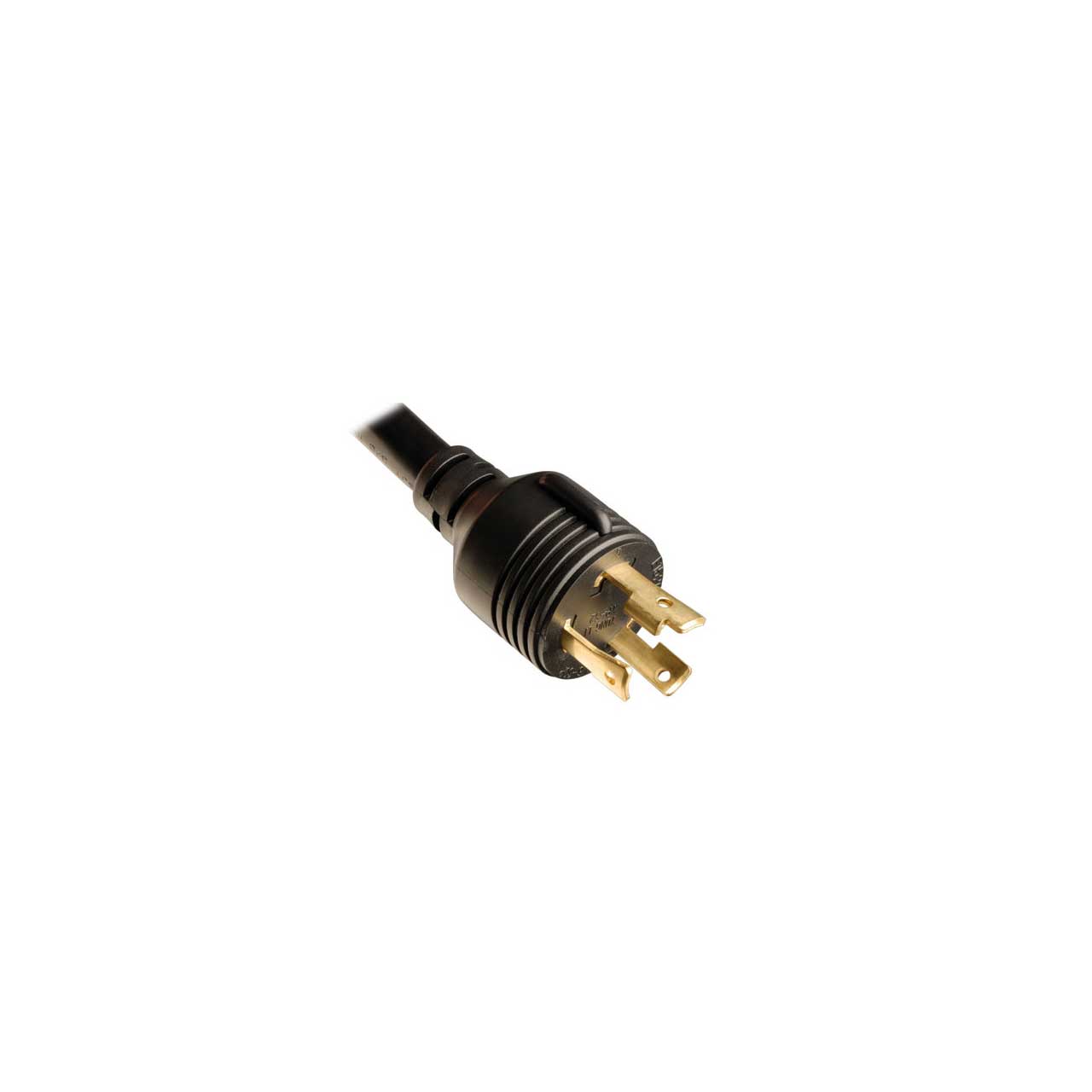

      • Attached NEMA L6-30P 30A 208/240V input plug with 12 ft. / 3.6m line cord
      • 1U horizontal rackmount format installs in one rack space
      • 4 C19 outlets
      • Mounting flanges are reversible front or rear facing installation
      • Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats

    • Specifications

      • PDU Type: Basic
      • Output Capacity Details: 5.8kW (240V), 5kW (208V), 4.8kW (200V) total capacity / 30A max (Agency de-rated to 24A), 20A max per breakered outlet bank; 16A max per C19 outlet
      • Frequency Compatibility: 50 / 60 Hz
      • Output Receptacles: (4) C19
      • Output Nominal Voltage: 200; 208; 240
      • Overload Protection: 2 20A breakers protect 2 C19 outlets each
      • PDU Input Voltage: 200; 208; 240
      • Recommended Electrical Service: 30A 208/240V
      • Maximum Input Amps: 30
      • Maximum Input Amps Details: 30A maximum (agency de-rated to 24A continuous)
      • PDU Plug Type: NEMA L6-30P
      • Input Cord Length (ft.): 12
      • Input Cord Length (m): 3.66
      • Input Phase: Single-Phase
      • Minimum Required Rack Depth (inches): 6.8
      • Shipping Dimensions (hwd / in.): 3 x 20.25 x 11.25
      • Shipping Weight (lbs.): 8.49
      • Unit Dimensions (hwd / in.): 1.75 x 17.5 x 3.75
      • Unit Weight (lbs.): 7.74
      • Material of Construction: Metal
      • Form Factors Supported: 1U rackmount, 0U vertical mount, wallmount and under-counter
      • PDU Form Factor: Horizontal (1U, 2U, etc)
      • Minimum Required Rack Depth (mm): 173
      • Storage Temperature Range: 5 to 122°F
      • Relative Humidity: 5-95% non-condensing
      • Operating Elevation (ft.): 0-10,000
      • TVSS Grounding: Rear grounding lug
      • Certifications: Tested to UL60950-1 (USA), CSA-C22.2 (Canada), RoHS
      • Product Warranty Period (Worldwide): 2-year limited warranty

    • Item Includes

      • PDUH30HV19 PDU
      • Warranty information
      • Instruction manual

    • Warranty

      • 2 Year
