Tripp Lite PDUMH20-6 1.9kW Single-Phase Metered PDU 120V Outlets (12 5-15/20R) L5-20P/5-20P input 6 Foot Cord Rackmount
  • Tripp Lite PDUMH20-6 1.9kW Single-Phase Metered PDU 120V Outlets (12 5-15/20R) L5-20P/5-20P input 6 Foot Cord Rackmount
  • Tripp Lite PDUMH20-6 1.9kW Single-Phase Metered PDU 120V Outlets (12 5-15/20R) L5-20P/5-20P input 6 Foot Cord Rackmount
  • Tripp Lite PDUMH20-6 1.9kW Single-Phase Metered PDU 120V Outlets (12 5-15/20R) L5-20P/5-20P input 6 Foot Cord Rackmount

Questions? Ask a Markertek Expert:
800-522-2025 Email

Tripp Lite PDUMH20-6 1.9kW Single-Phase Metered PDU 120V Outlets (12 5-15/20R) L5-20P/5-20P input 6 Foot Cord Rackmount

Manufacturer: Tripp Lite

Item #: TRL-PDUMH20-6   •   MFG #: PDUMH20-6



List Price:$218.90
Our Price:$156.42

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    Tripp Lite Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital meter. Enables visual current monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.


    • Features

      • Reversible housing; 4.5 in. / 11.4 cm depth
      • 20A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 16A continuous)

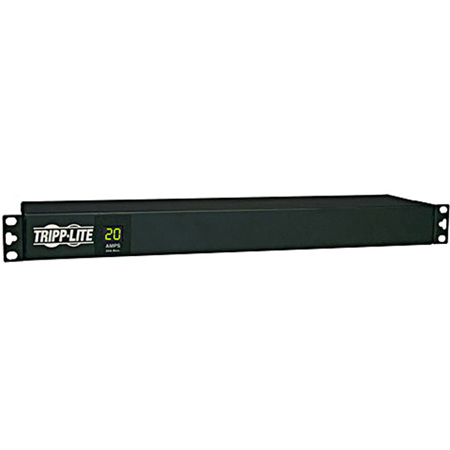

      • Built-in 2 digit visual meter continuously reports PDU load level in amps

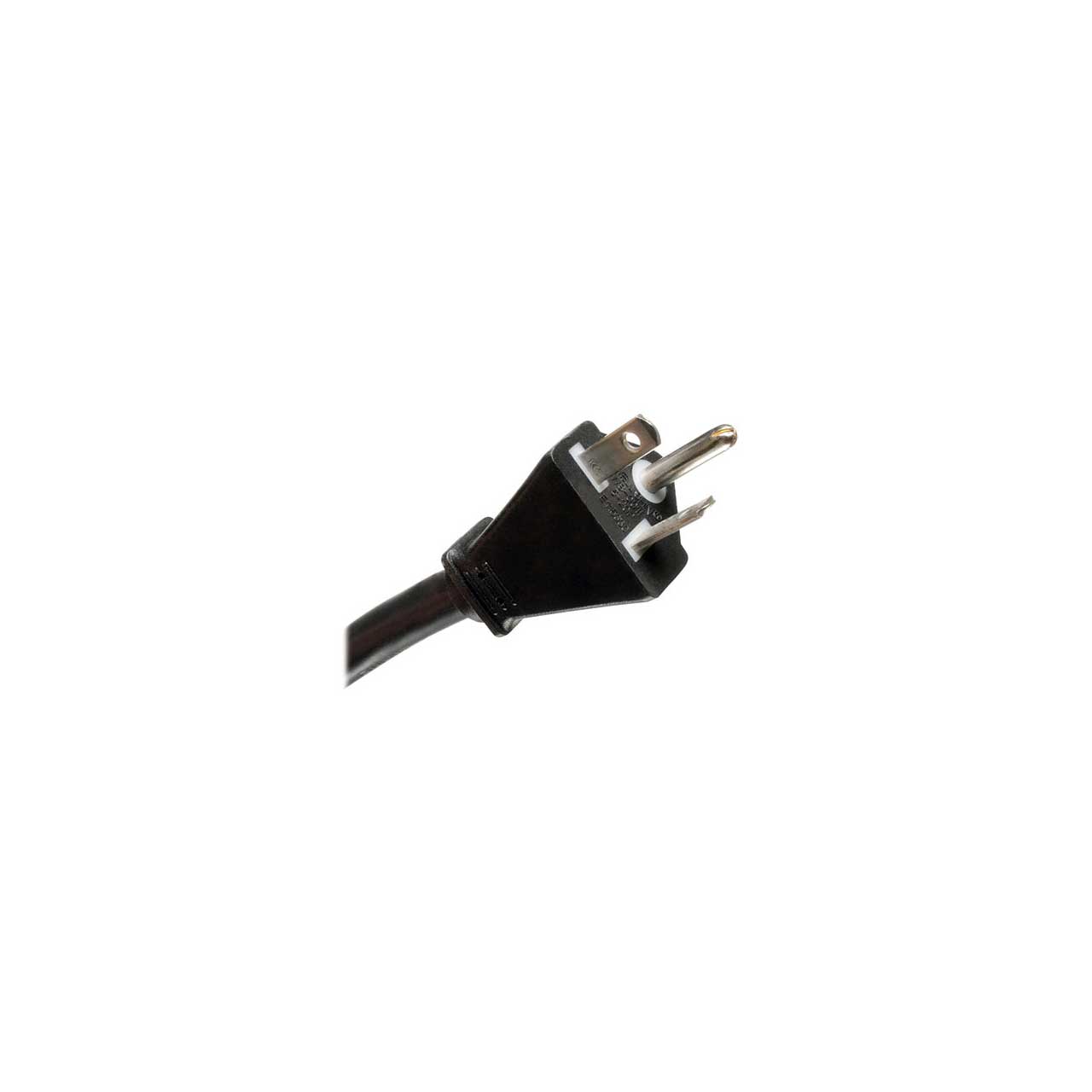

      • Attached NEMA L5-20P 20A 120V input plug with 6 ft. / 1.8m line cord
      • Includes 5-20P 20A 120V plug adapter
      • 1U horizontal rackmount format installs in one rack space

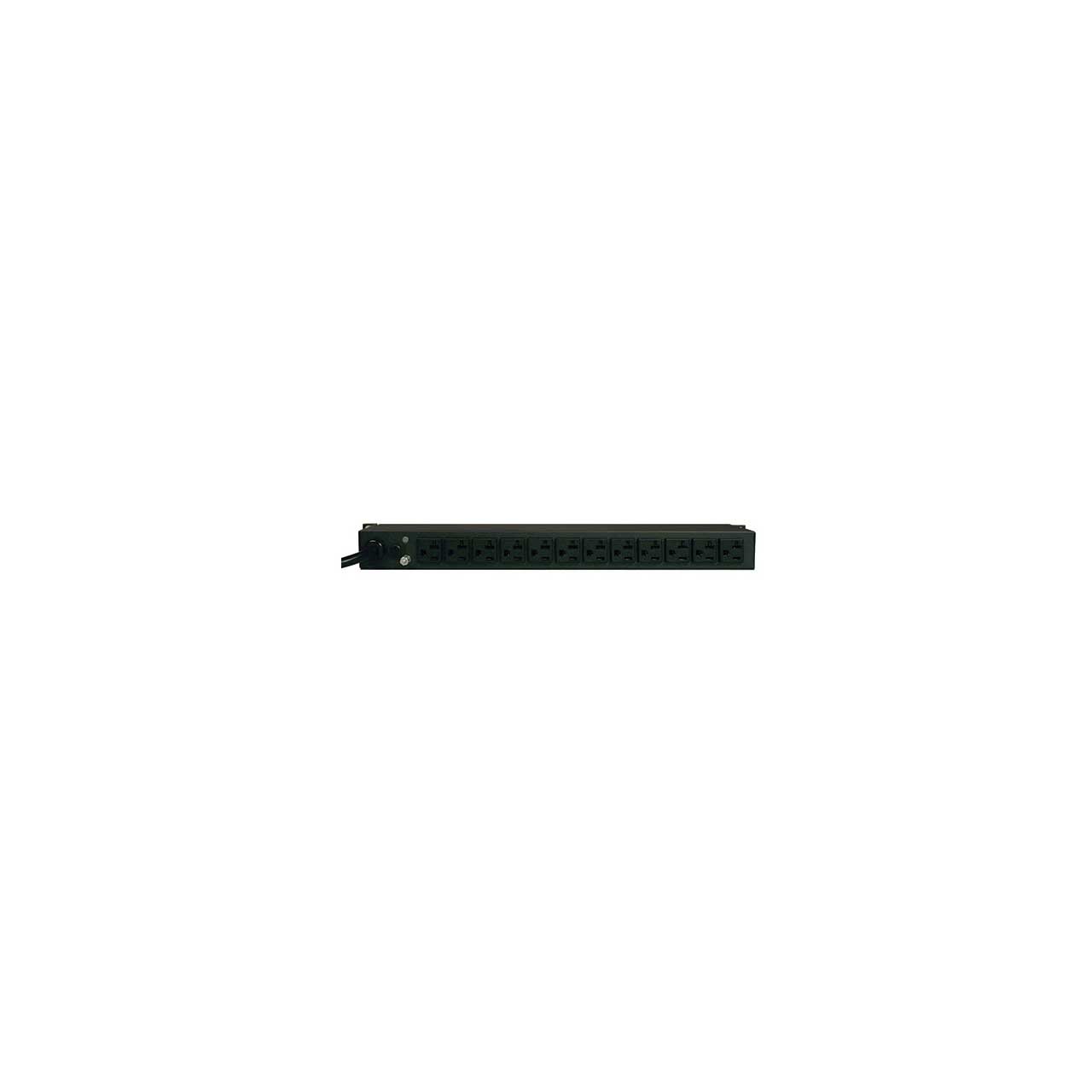

      • 12 NEMA 5-15/20R outlets
      • Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
      • Mounting ears are reversible for front or rear facing rackmount installation
      • Optional PDUSIDEBRKT enables 0U vertical rackmount in compatible racks
      • Back panel grounding lug

    • Specifications

      • PDU Type: Metered
      • Output Capacity Details: 2.03kW (127V), 1.92kW (120V), 1.6kW (100V) / 20A total capacity (Agency de-rated to 16A); 16A max per outlet
      • Frequency Compatibility: 50 / 60 Hz
      • Output Receptacles: (12) 5-15/20R
      • Output Nominal Voltage: 100; 120; 127
      • Overload Protection: 20A circuit breaker
      • PDU Input Voltage: 100; 120; 127
      • Recommended Electrical Service: 20A 120V
      • Maximum Input Amps: 20
      • Maximum Input Amps Details: Agency de-rated to 16A continuous
      • PDU Plug Type: NEMA 5-20P; NEMA L5-20P
      • Input Cord Length (ft.): 6
      • Input Cord Length (m): 1.8
      • Input Phase: Single-Phase
      • Front Panel LCD Display: Digital display reports total PDU output current in amps
      • Minimum Required Rack Depth (inches): 8.8
      • Shipping Dimensions (hwd / in.): 2.25 x 20.5 x 10
      • Shipping Weight (lbs.): 5.9
      • Unit Dimensions (hwd / in.): 1.75 x 17.5 x 3.75
      • Unit Weight (lbs.): 4.6
      • Material of Construction: Metal
      • Form Factors Supported: 1U rackmount, 0U vertical rackmount, wall-mount, and under-counter installation
      • PDU Form Factor: Horizontal (1U, 2U, etc)
      • Outlets Measurement (Center to Center): 30.20mm
      • Storage Temperature Range: 5 to 122°F
      • Relative Humidity: 5 to 95% non-condensing
      • Operating Elevation (ft.): 0-10,000
      • TVSS Grounding: Back panel grounding lug
      • Certifications: Tested to UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada), RoHS Compliant
      • Product Warranty Period (Worldwide): 2-year limited warranty

    • Item Includes

      • PDUMH20 Metered rackmount PDU
      • L5-20R to 5-20P plug adapter
      • Owner's manual with warranty information

    • Warranty

      • 2 Year
