Tripplite PDUMV30HV PDU Metered 208V / 240V 30A 6 C19 24 C13 L6-30P Vertical 0URM

ITEM #: TRL-PDUMV30HV MFG #: PDUMV30HV

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:

$529.78

Our Price:

$346.93

Availability: In Stock
iAvailability Description Popup
  • Shipment of this item is subject to a separate oversized-package carrier surcharge.


PDUMV30HV - Overview

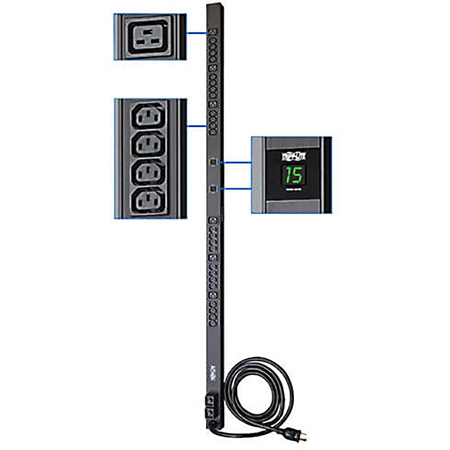

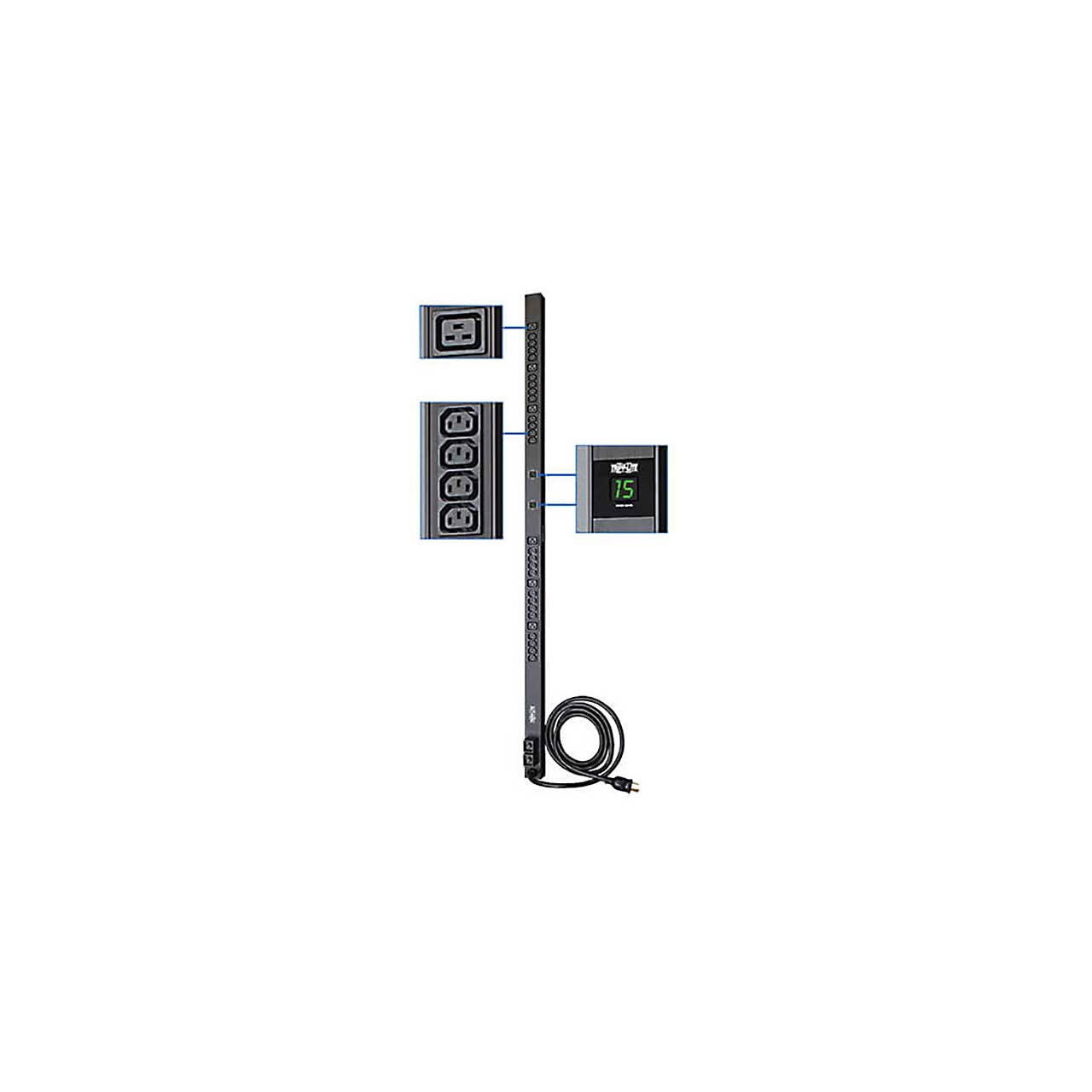

Tripp Lite PDUMV30HV single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories. Included C20 and C14 plug-lock inserts connect to your components’ plugs to ensure they remain connected and continuously powered.

  • Features:

    • 30A single phase 208/240V Metered Power Distribution Unit / PDU (Agency derated to 24A continuous)
    • Set of two lighted meters report PDU output current in amps for each output load bank
    • Attached NEMA L6-30P 30A 208/240V input plug and 10ft / 3m cord

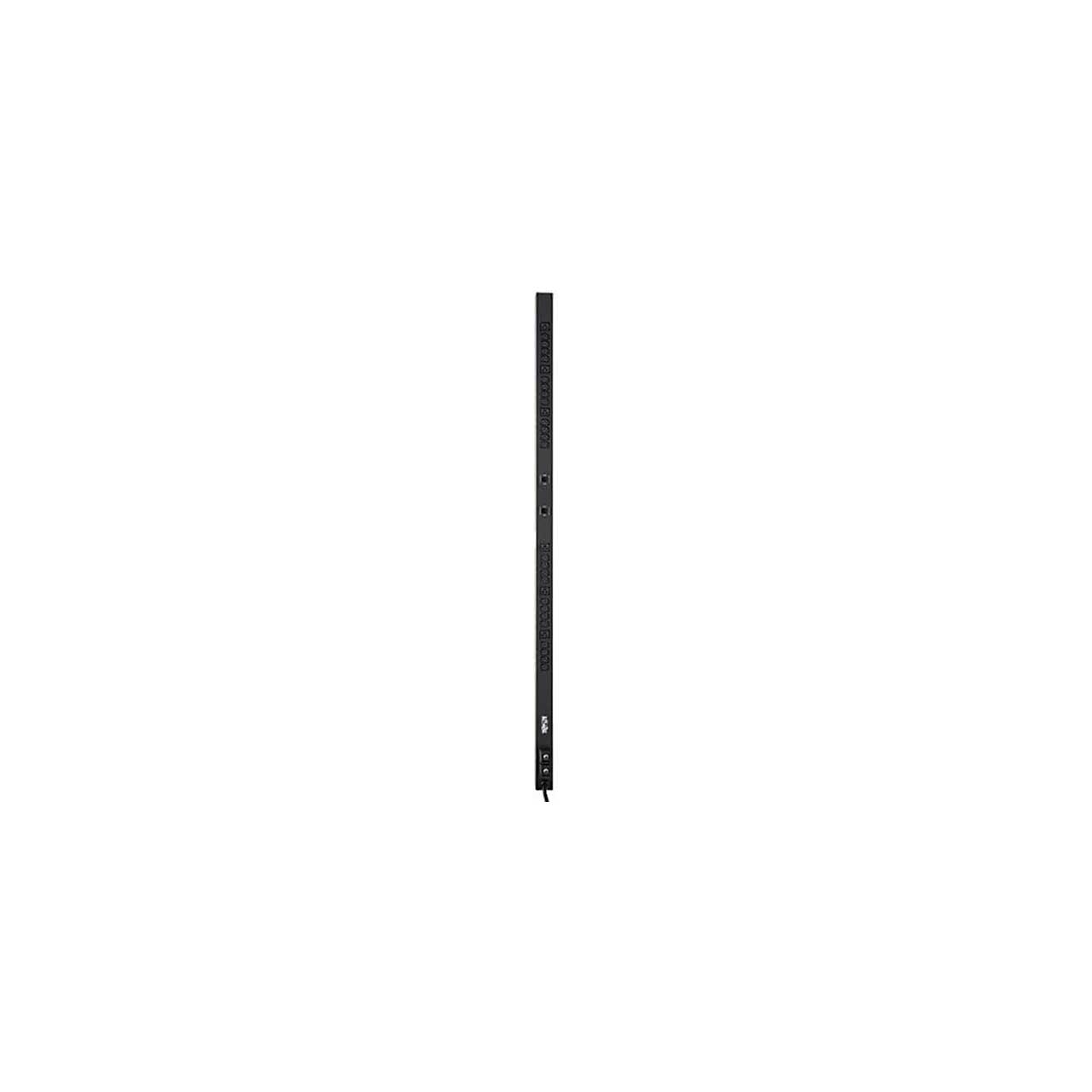

    • 0U 63.75in / 162cm vertical rackmount format installs using no rack spaces
    • 30 output receptacles (6 C19, 24 C13)
    • Outlets are arranged in two 15 outlet load banks, each with separate 15A breaker and current metering
    • Toolless installation in button-mount compatible equipment racks
    • Included plug-lock inserts ensure components remain connected and powered

  • Specifications:

    • Output
    • Output Capacity Details: 5.8kW (240V), 5kW (208V), 4.8kW (200V) total capacity / 30A max (Agency de-rated to 24A), 15A max per breakered outlet bank; 12A max per C13 outlet
    • Frequency Compatibility: 50 / 60 Hz
    • Output Receptacles: (24) C13; (6) C19
    • Output Nominal Voltage: 200; 208; 240
    • Overload Protection: Two 15A breakers protect 15 outlets each

      Input
    • PDU Input Voltage: 200; 208; 240
    • Recommended Electrical Service: 30A 208/240V
    • Maximum Input Amps: 30.0
    • Maximum Input Amps Details: Agency de-rated to 24A continuous
    • PDU Plug Type: NEMA L6-30P
    • Input Cord Length (ft.): 10
    • Input Phase: Single-Phase

      Physical Characteristics
    • Shipping Dimensions (H x W x D / in.): 5 x 3 x 6
    • Shipping Weight (lbs.): 11.4
    • Unit Dimensions (H x W x D / in.): 63.75 x 2.25 x 3.75
    • Unit Weight: 8 lbs
    • Material of Construction: Aluminum
    • Form Factors Supported: 0u vertical installation in equipment racks, plus under-counter and wallmount
    • PDU Form Factor: Vertical (0U)
    • Relative Humidity: 0-95% non-condensing
    • Front Panel LCD Display: Set of 2 digital current meters continuously report PDU output current in amps for Bank 1 (15A max) and Bank 2 (15A max) outlets
    • Front Panel LEDs: Includes 2 built-in 2-character LED meters to display power consumption of items plugged into each separately breakered 15A loading bank

  • Item Includes:

    • PDUMV30HV 63.75 inch Metered PDU
    • Plug-lock inserts (6 C20, 24 C14)
    • Spare installation buttons, 2.9 mm/4.6 mm
    • Set of mounting brackets and installation hardware
    • Owner's Manual

  • GTIN:

    0037332139351
