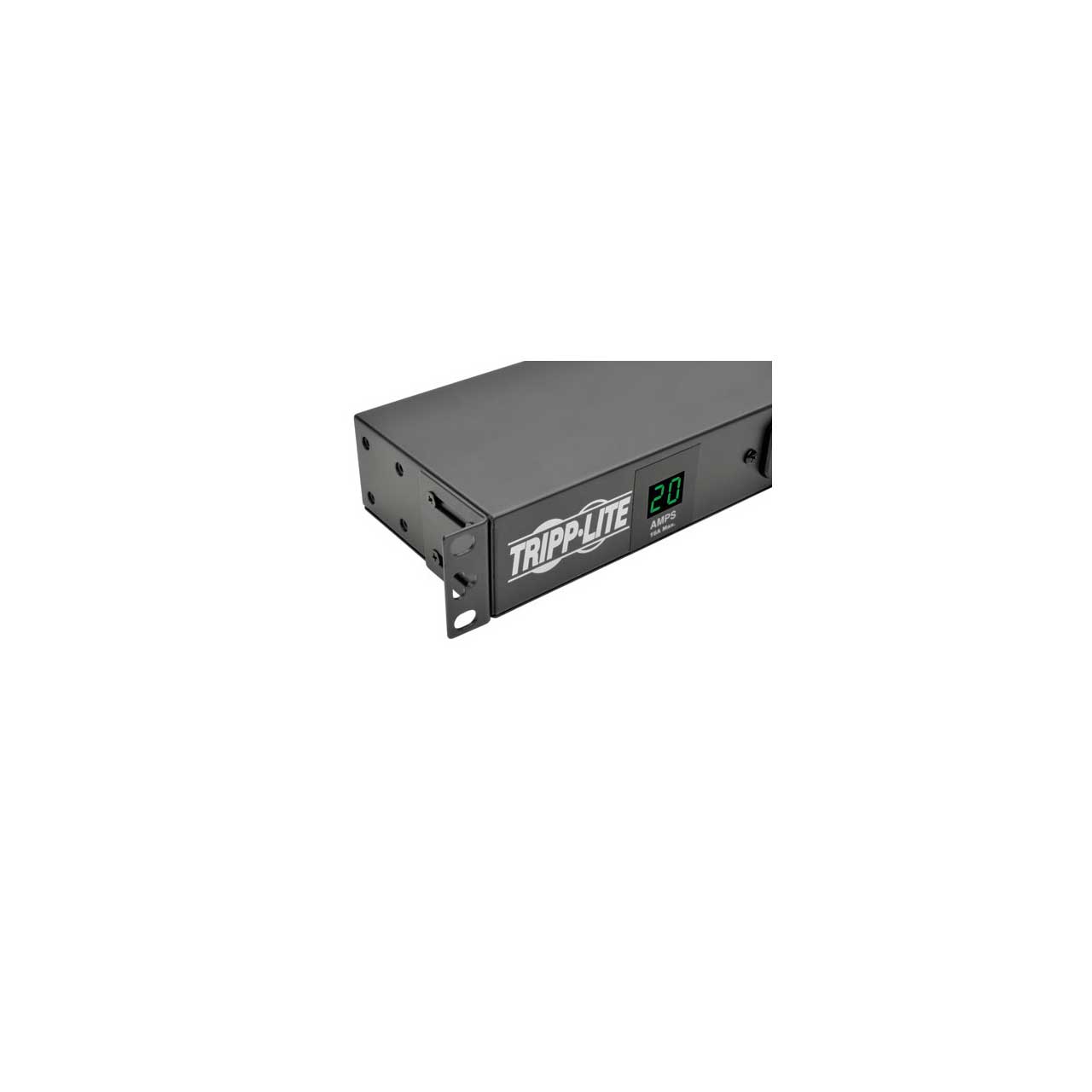

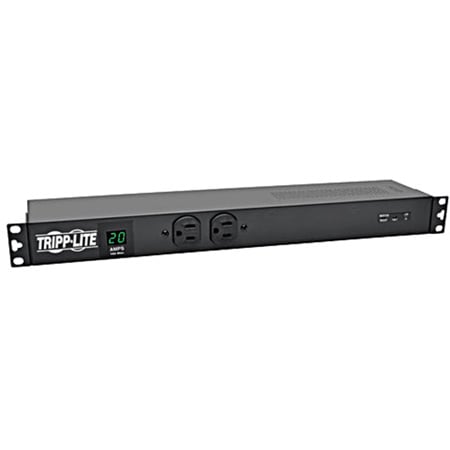

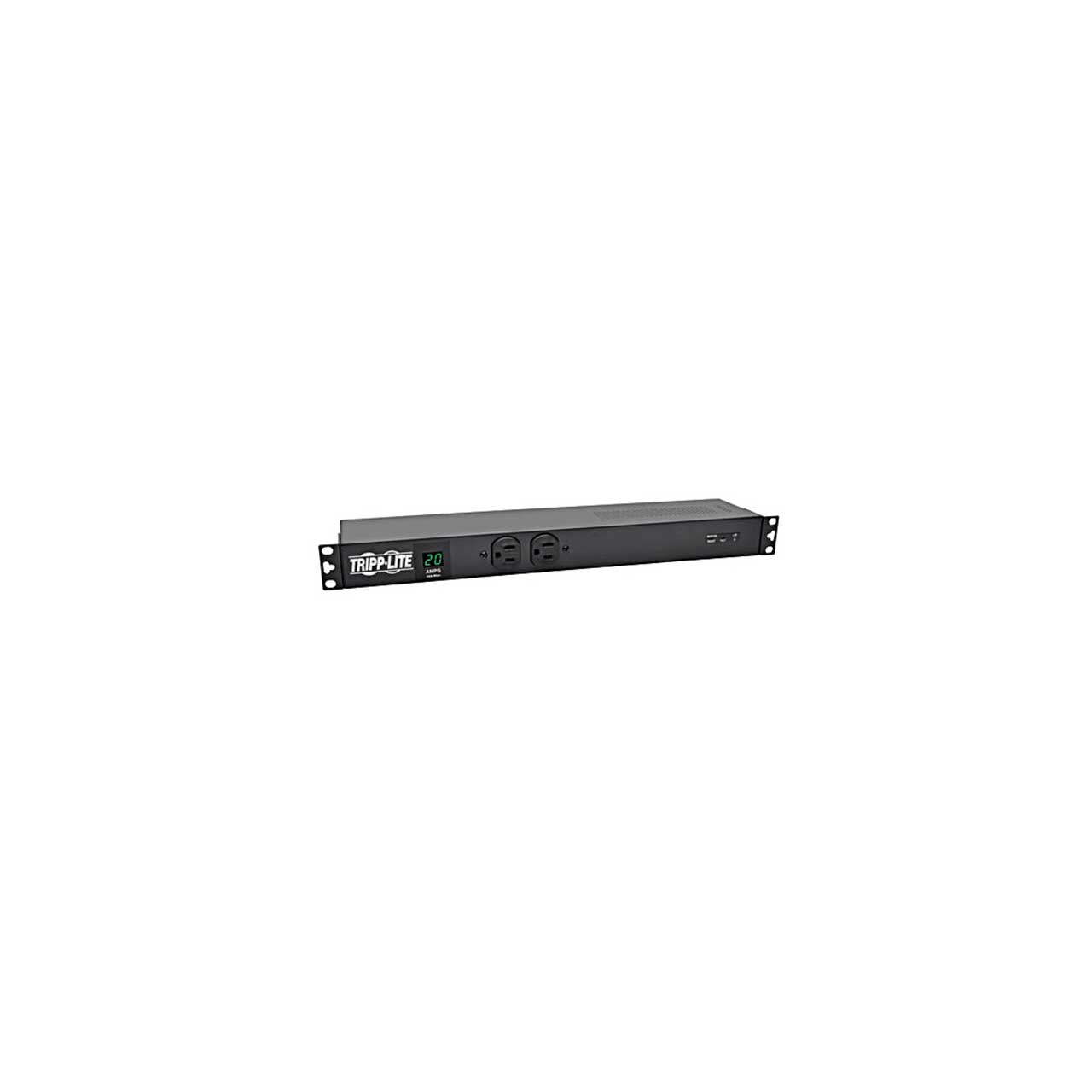

Tripp Lite PDUMH20-ISO 1.92kW Single-Phase Metered PDU Surge Suppression 120V Outlets L5-20P/5-20P 15-Ft. Cord Rackmount

Manufacturer: Tripp Lite

Item #: TRL-PDUMH20-ISO   •   MFG #: PDUMH20-ISO



List Price:$279.00
Our Price:$199.64

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!





    Tripp Lite Metered PDU / Power Distribution Unit with Isobar Surge Suppression offers real-time local reporting of load level in amps, plus premium ISOBAR network-grade AC surge and noise suppression. Digital display continuously reports PDU output current to prevent circuit overloads as additional equipment is added. Set of 3 front-panel LEDs provide notification of wiring fault, protection present and line OK status. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.


    • Features

      • 20A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 16A continuous)
      • Built-in 2 digit visual meter continuously reports PDU load level in amps
      • ISOBAR Network-grade AC surge and noise suppression with 3840 Joules AC suppression rating and EMI/RFI filtering
      • Set of 3 diagnostic LEDs report LINE OK (green), suppressor or wiring FAULT (red) and PROTECTION PRESENT (green) status
      • Compatible with 120V AC sine wave input; For best results, connect the PDU only to true sine wave mains, generator or UPS power source (avoid connecting this surge suppressor to UPS systems producing modified sine wave, PWM sine wave and other non-sinusoidal output waveforms)

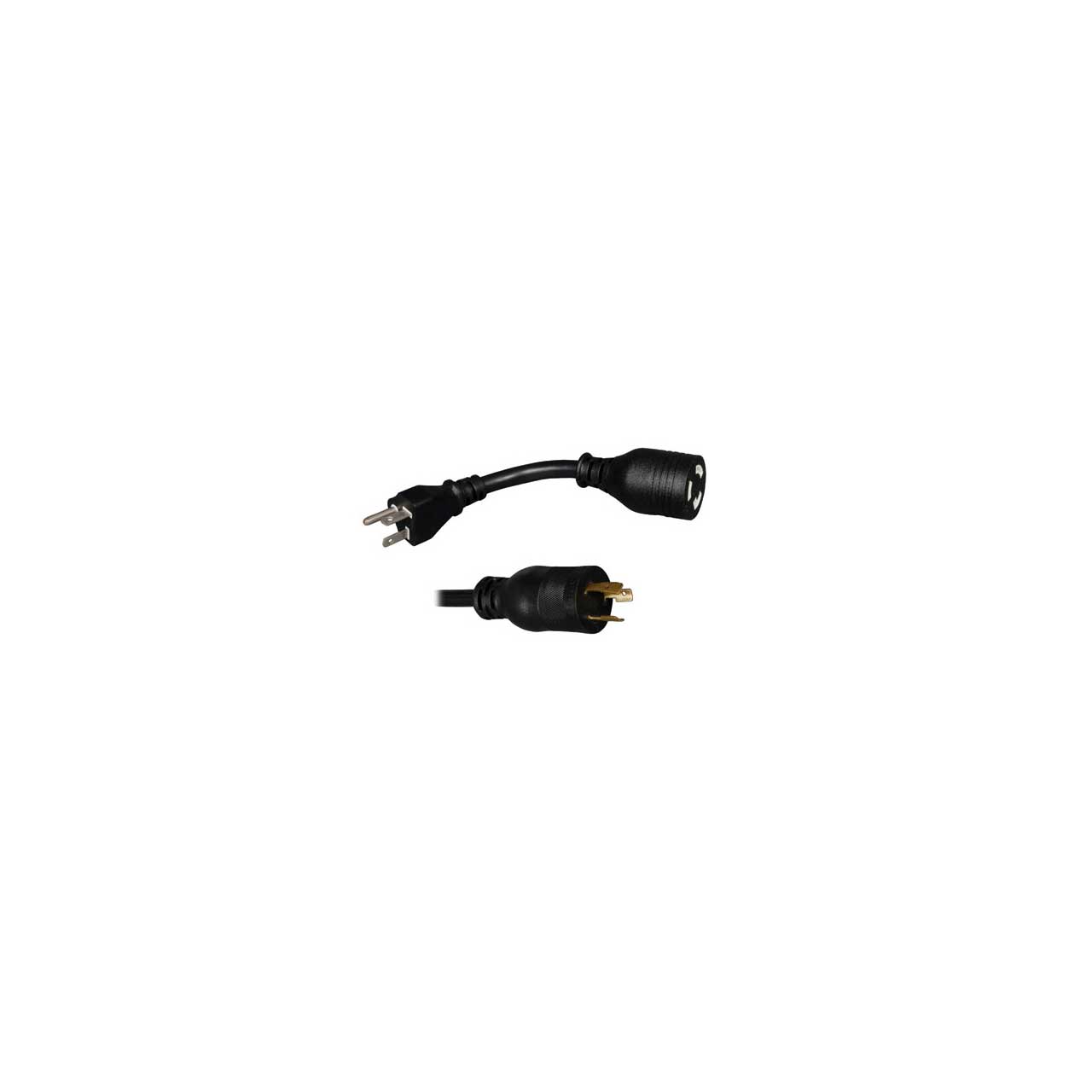

      • Attached NEMA L5-20P 20A 120V input plug with 15ft / 4.5m cord (NEMA 5-20P plug adapter included)
      • 1U Horizontal rackmount format installs in one rack space
      • Switchless design prevents accidental shut-off
      • 12 NEMA 5-20R outlets (rear), 2 NEMA 5-15R outlets (front)
      • Included mounting accessories support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
      • Back panel grounding lug

    • Specifications

      • PDU Type: Metered
      • Output Capacity Details: 2.03kW (127V), 1.92kW (120V), 1.6kW (100V) / 20A total capacity (Agency de-rated to 16A); 16A max per 5-15/20R outlet; 12A max per 5-15R outlet
      • Frequency Compatibility: 50 / 60 Hz
      • Output Receptacles: (2) 5-15R; (12) 5-15/20R
      • Output Nominal Voltage: 100; 120; 127
      • Overload Protection: 20A circuit breaker
      • PDU Input Voltage: 100; 120; 127
      • Recommended Electrical Service: 20A 120V; For best results, connect the PDU only to true sine wave mains, generator or UPS power source (avoid connecting to UPS systems producing modified sine wave, PWM sine wave and other non-sinusoidal waveforms)
      • Maximum Input Amps: 20
      • Maximum Input Amps Details: Agency de-rated to 16A continuous
      • PDU Plug Type: NEMA 5-20P; NEMA L5-20P
      • Input Cord Length (ft.): 15
      • Input Cord Length (m): 4.57
      • Input Phase: Single-Phase
      • Front Panel LCD Display: Two digit current meter reports PDU output load in amps
      • Front Panel LEDs: Set of 3 diagnostic LEDs continuously report status for LINE OK (green), suppressor or wiring FAULT (red) and PROTECTION PRESENT (green)
      • Switches: No power switch
      • AC Suppression Joule Rating: 3840
      • AC Suppression Response Time: NM = 0 ns. CM = <1 ns
      • Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
      • Clamping Voltage (RMS): 140
      • AC Suppression Surge Current Rating: 60,000 amps
      • EMI / RFI Filtering: 40-80 dB
      • Immunity: Conforms to IEEE 587 / ANSI C62.41
      • Minimum Required Rack Depth (inches): 9.5
      • Shipping Dimensions (hwd / in.): 2.25 x 20.5 x 10
      • Shipping Weight (lbs.): 5.2
      • Unit Dimensions (hwd / in.): 1.75 x 17.5 x 4.5
      • Unit Weight (lbs.): 4.6
      • Material of Construction: Metal
      • Form Factors Supported: 1U rackmount, 0U vertical rackmount, wall-mount, and under-counter installation
      • PDU Form Factor: Horizontal (1U, 2U, etc)
      • Storage Temperature Range: +5 to +122°F
      • Relative Humidity: 5 to 95% non-condensing
      • Operating Elevation (ft.): 0-10,000
      • TVSS Grounding: Rear grounding lug
      • Certifications: Tested to UL1449 3rd Edition (USA) and CSA (Canada), RoHS Compliant
      • Product Warranty Period (Worldwide): 2-year limited warranty

    • Item Includes

      • PDUMH20-ISO Metered PDU with Surge Suppression
      • Owner's manual with warranty information

    • Warranty

      • 2 Year
