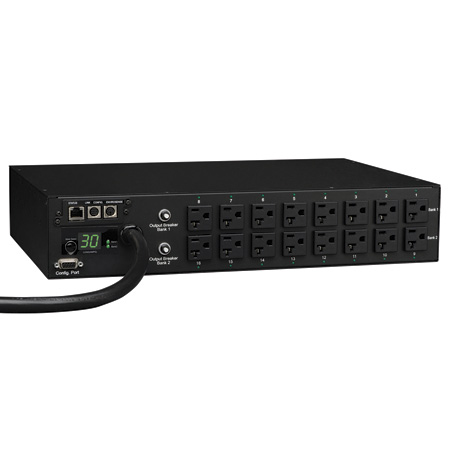

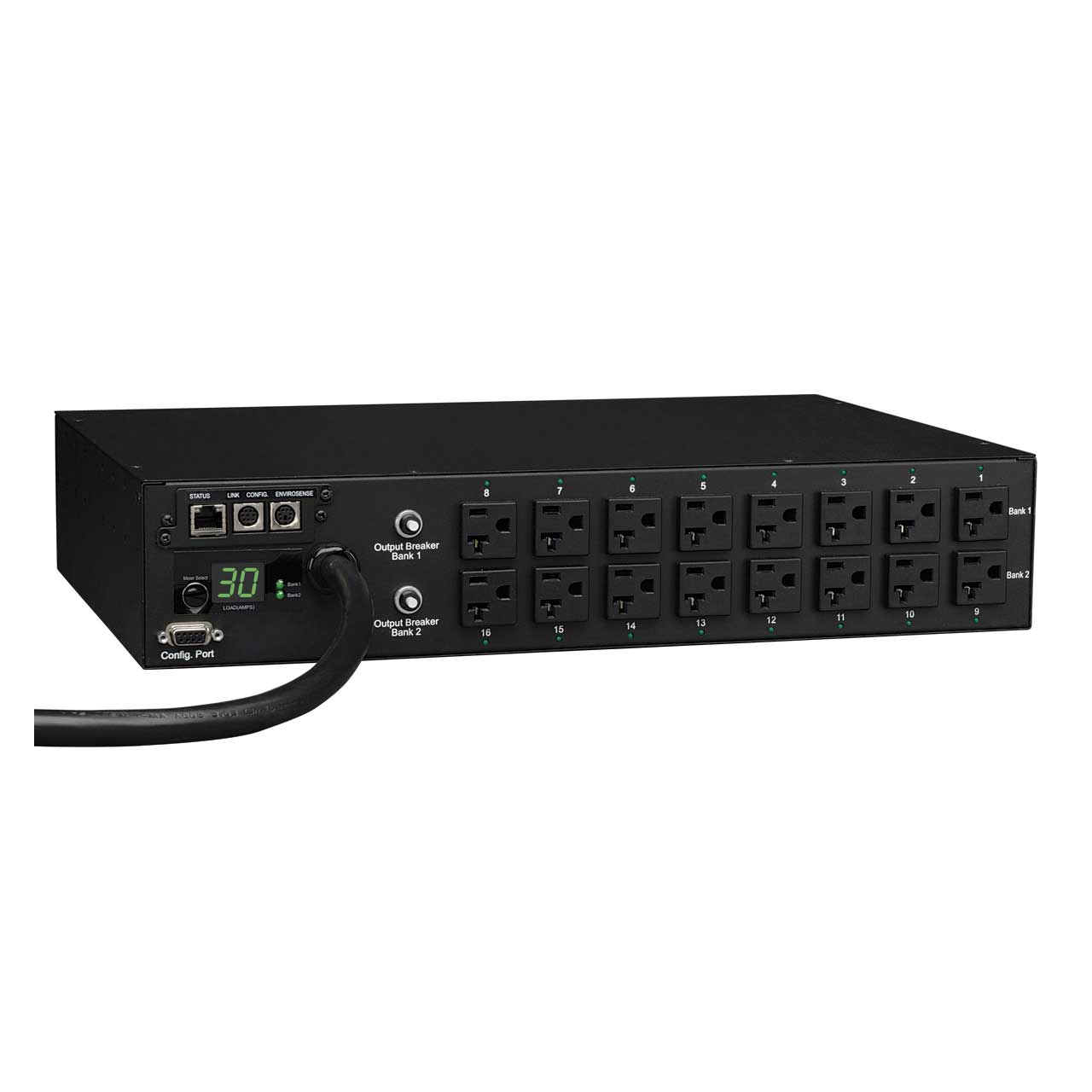

Tripp Lite PDUMH30NET PDU Switched 120V 30A 5-15/20R 16 Outlet L5-30P Horizontal 2URM
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Tripp Lite PDUMH30NET PDU Switched 120V 30A 5-15/20R 16 Outlet L5-30P Horizontal 2URM

    Manufacturer: Tripp Lite

    Item #: TRL-PDUMH30NET   •   MFG #: PDUMH30NET


    List Price:$963.00
    Our Price:$664.47

    free ship
    Availability: Usually ships in 3-10 business days
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.


      California Residents:
      Cancer and Reproductive Harm -


      Tripp Lite single phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption. PowerAlert interface supports remote control and custom notification of user-specified conditions via email, secure web, SNMP, Telnet or SSH interface. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is continuously displayed locally via visual meter and remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip.

      >Power distribution units, or PDUs, are essential devices for computers and networking equipment. Through these units, power supply is effectively shared among all pieces of computer equipment within the network, ensuring that the network is always up and running. PDUs are either floor-mounted or rack-based. Also called power strips, rack-based PDUs are more commonly used for office computer networks today. These devices are equipped with a range of functionalities; some PDUs are simply equipped with multiple outlets, while other units provide additional functionalities of switching and metering. Switched-and-metered PDUs have outlets that can be individually switched on and off as well as a display for current loads.

      • Features

        • 30A 120V Switched Power Distribution Unit / PDU with built-in web/network interface (Agency derated to 24A continuous)
        • Attached L5-30P 120V single phase input, 10 ft. / 3m input cord
        • 2U horizontal rackmount form factor
        • 16 NEMA 5-15/20R switched outlets
        • Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis
        • Enables reboot of locked equipment, custom power-on/power-off sequences, load-shedding of optional loads and disabling unused outlets
        • Network interface provides PDU control and data regarding input voltage and total output load level in amps
        • Digital display continuously reports output load in amps in 3 segments (load bank 1, load bank 2, total)
        • Supports user-specified alarm notification thresholds
        • In-rack environmental reporting with optional ENVIROSENSE temperature / humidity sensor and rack access notification with up to 4 optional SRSWITCH door sensors
        • DHCP/Manual configuration support
        • 10/100 Mbps auto-sensing
        • Real-time clock backup maintains the time of day and date even if the PDU is unpowered
        • Tiered access privileges allow an administrator and a guest to login via web browser
        • Alert notifications via email or SNMP traps offer immediate event notification
        • Firmware upgrade ability supports future product enhancements
        • Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols
        • Fully compatible with FREE PowerAlert Network Management System / NMS Software
        • Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
        • Mounting ears are reversible for front or rear facing rackmount installation
        • Included cord retention brackets
        • TAA Compliant Version Available - Order Tripp Lite PDUMH30NETAA
      • Specifications

        • Product Group: PDUS
        • Digital Load Meter: Yes
        • Redundant Power Cords: No
        • SNMP Compatible: Yes
        • TAA Compliant: No
        • Style: Rackmount
        • PDU Type: Switched
        • Output Capacity Details: 2.9kW (120V input), 3.0kW (127V input), 2.4kW (100V input); 30A maximum (agency de-rated to 24A continuous)
        • Frequency Compatibility: 50 / 60 Hz
        • Output Nominal Voltage: 100-127V nominal, single phase
        • Overload Protection: Outlets are arranged in two banks of 8. Each bank is protected by a separate 20A circuit breaker
        • Outlet Quantity / Type: 16 5-20R outlets
        • Number of Outlets: 16
        • Outlet Type: NEMA 5-20R
        • Customized Load Management Receptacles: Each outlet is individually controllable via remote interface
        • Individual Outlet Switching: Yes
        • PDU Input Voltage: 100; 120; 127
        • Maximum Input Amps: 30
        • Maximum Input Amps Details: Agency de-rated to 24A continuous
        • PDU Plug Type: NEMA L5-30P
        • Input Cord Length (ft.): 10
        • Input Cord Length (m): 3
        • Input Phase: Single-Phase
        • Switches: n/a
        • Front Panel LEDs: 16 power availability LEDs confirm power off/on status for each built-in outlet. Two additional LEDs with toggle button identify which bank the visual current meter is reporting (bank 1, bank 2 or bank 1&2 combined)
        • Shipping Dimensions (hwd / in.): 8 x 20.5 x 17
        • Shipping Dimensions (hwd / cm): 20.3 x 113 x 80.6
        • Shipping Weight (lbs.): 17.1
        • Shipping Weight (kg): 7.8
        • Unit Dimensions (hwd / in.): 3.5 x 17.5 x 12.5
        • Unit Dimensions (hwd / cm): 8.9 x 44.5 x 31.75
        • Unit Weight (lbs.): 13.8
        • Unit Weight (kg): 6.3
        • Material of Construction: Steel
        • Form Factors Supported: 2U rackmount. Includes mounting accessories for 4 post installation, requires optional 2POSTRMKITWM for 2 post rackmount installation)
        • PDU Form Factor: Horizontal (1U, 2U, etc)
        • Relative Humidity: 0-95% non-condensing
        • SNMP Compatibility: Yes, pre-installed SNMPWEBCARD provides remote monitoring via web, telnet, and SNMP management systems. Remote management gives user ability to turn connected loads on or off individually
        • TAA Compliant Option: TAA Compliant Version Available - Order Tripp Lite PDUMH30NETAA
        • Certifications: Tested to UL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), RoHS compliant
        • Product Warranty Period (Worldwide): 2-year limited warranty
      • Item Includes

        • Rackmount PDU
        • Installable 2U mounting brackets
