Tripp Lite PDUMH32HVATNET TAA-Compliant 7.4kW Single-Phase ATS/Switch PDU 230V Outlets 2 IEC309 32A Blue Cord Rackmount
  • Tripp Lite PDUMH32HVATNET TAA-Compliant 7.4kW Single-Phase ATS/Switch PDU 230V Outlets 2 IEC309 32A Blue Cord Rackmount
  • Tripp Lite PDUMH32HVATNET TAA-Compliant 7.4kW Single-Phase ATS/Switch PDU 230V Outlets 2 IEC309 32A Blue Cord Rackmount
  • Tripp Lite PDUMH32HVATNET TAA-Compliant 7.4kW Single-Phase ATS/Switch PDU 230V Outlets 2 IEC309 32A Blue Cord Rackmount
  • Tripp Lite PDUMH32HVATNET TAA-Compliant 7.4kW Single-Phase ATS/Switch PDU 230V Outlets 2 IEC309 32A Blue Cord Rackmount
  • Tripp Lite PDUMH32HVATNET TAA-Compliant 7.4kW Single-Phase ATS/Switch PDU 230V Outlets 2 IEC309 32A Blue Cord Rackmount

Questions? Ask a Markertek Expert:
800-522-2025 Email

Tripp Lite PDUMH32HVATNET TAA-Compliant 7.4kW Single-Phase ATS/Switch PDU 230V Outlets 2 IEC309 32A Blue Cord Rackmount

Manufacturer: Tripp Lite

Item #: TRL-PDUMH32HVATN   •   MFG #: PDUMH32HVATNET



List Price:$1,521.00
Our Price:$971.75

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

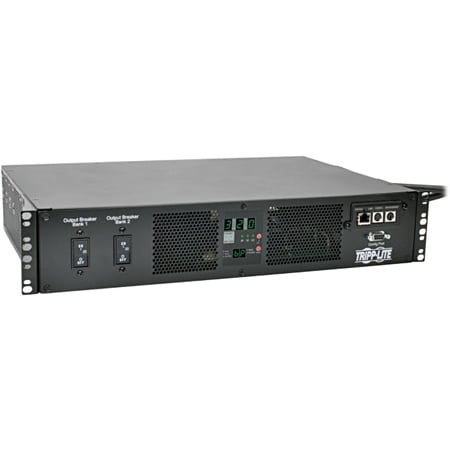

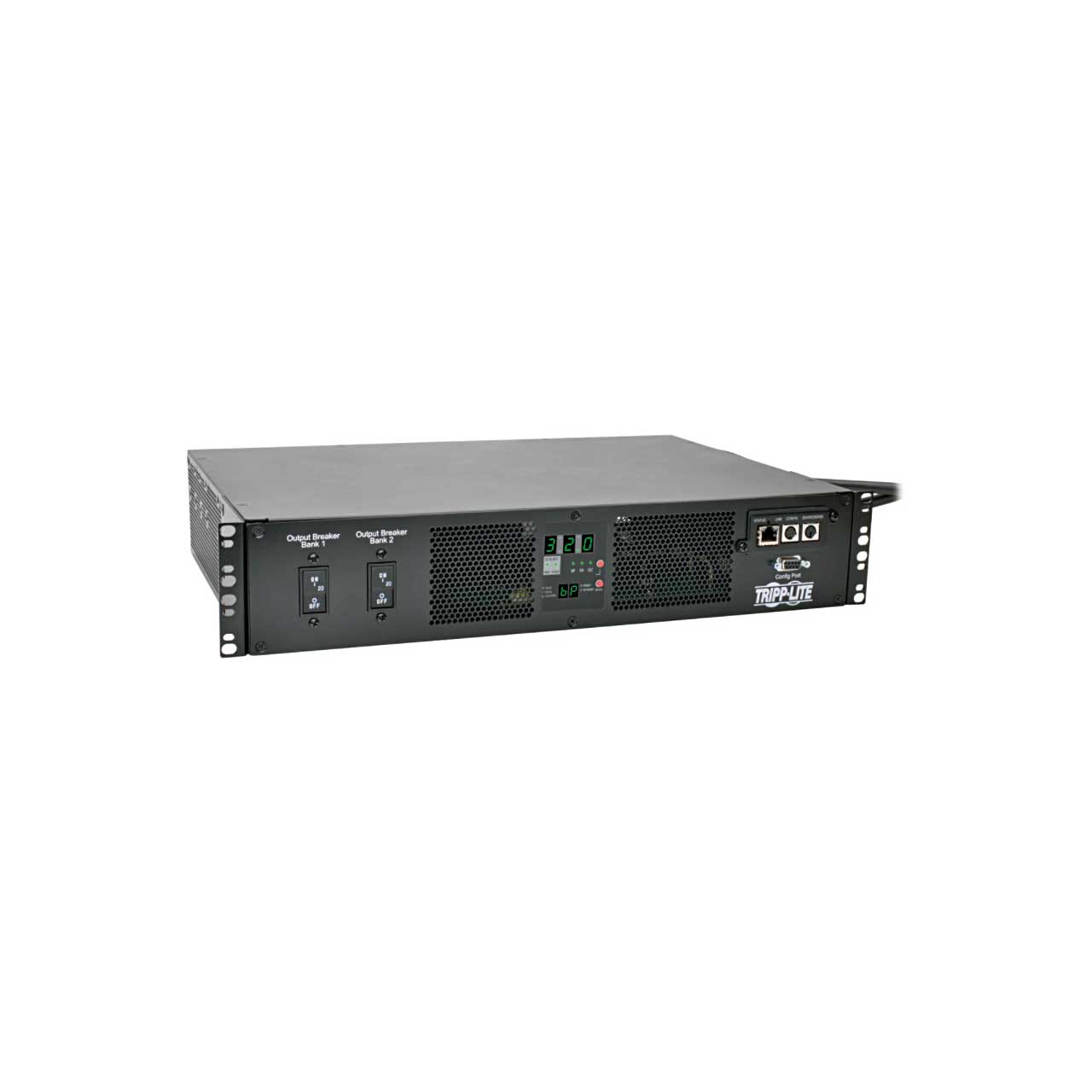

    The PDUMH32HVATNET 7.4kW Single-Phase 230V ATS/Switched PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 2U of space in EIA-standard racks and features 18 switched outlets (16 C13 and two C19) in two load banks, each bank protected by a 20A circuit breaker.

    Dual 3-meter input cords with IEC309 32A Blue (2P+E) plugs connect to separate primary and secondary single-phase 230V power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1–5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.

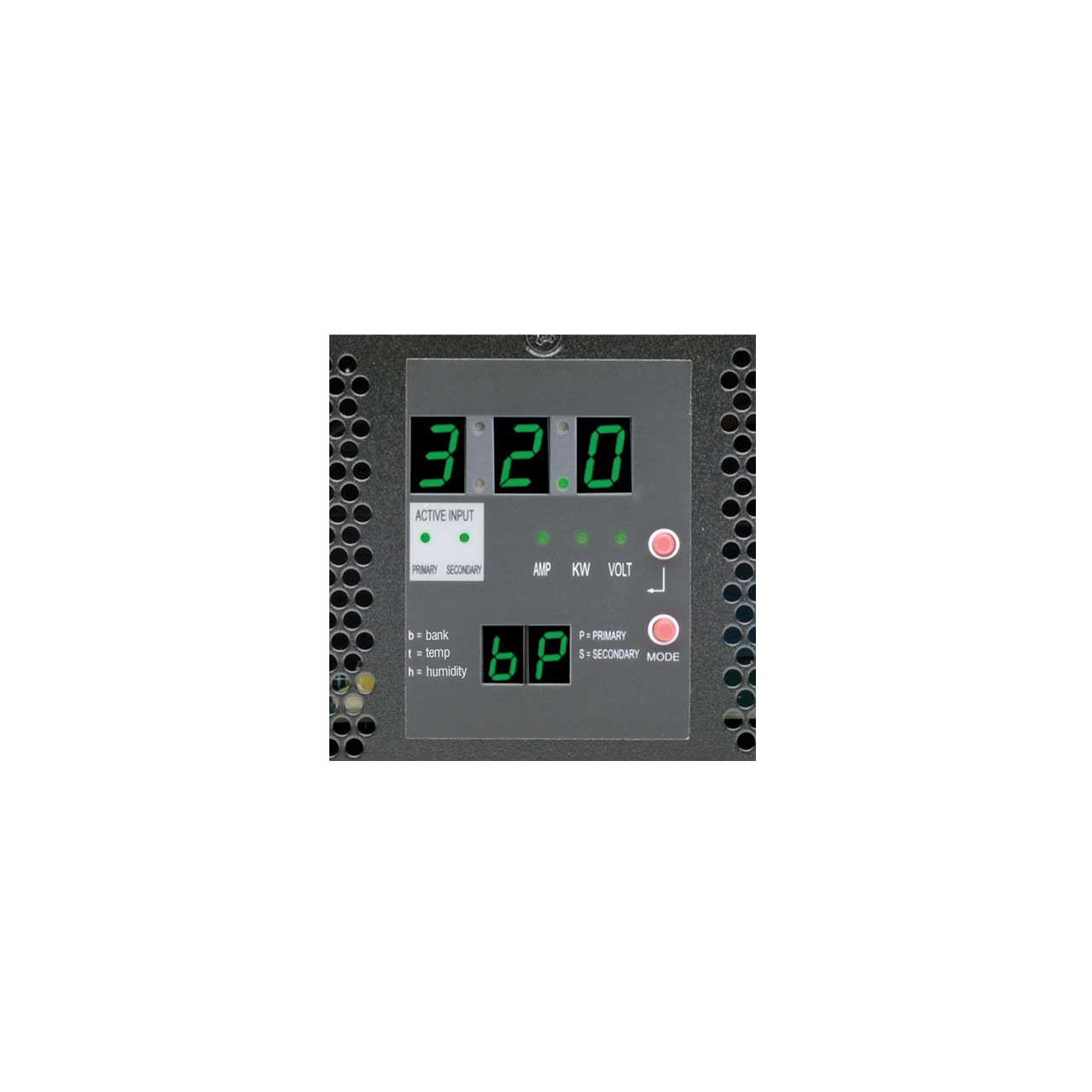

    Built-in Ethernet network interface allows remote access to the PDU for power monitoring, configuration, control and notifications via web browser, SSH, telnet or SNMP. Provides real-time load/current data with billing-grade accuracy (+/- 1 percent). Supports user-programmable startup of outlets in any order or interval to ensure network items are turned on in the proper sequence and reliably discovered. Digital LED display indicates power availability, voltage, source A/B input status, output load and power factor, as well as temperature and humidity with the optional ENVIROSENSE module (sold separately).


    • Features

      • Primary and Secondary Inputs for Power Redundancy
      • Provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations
      • Dual 3m input cords with IEC309 32A Blue (2P+E) plugs connect to separate primary and secondary single-phase power sources Automatic Transfer Switching
      • Dynamic solid-state (TRIAC) automatic transfer switching
      • Switches to secondary power source if primary source fails or becomes unstable
      • 1–5 ms transfer time ensures uninterrupted operation of connected equipment
      • Built-in processor monitors both sources and prevents switching if secondary source is unavailable or of lower quality than primary source Multifunction Digital LED Display
      • Reports source A and source B input power status and other information, including power availability, line voltage, frequency, amps, kilowatts and power factor Advanced Network Monitoring
      • Built-in Ethernet network interface allows remote access for power monitoring, configuration, control and notification via web browser, SSH, telnet or SNMP
      • Real-time load/current data with billing-grade accuracy (+/- 1 percent)
      • Automated alerts help prevent accidental overloads, power loss and downtime
      • Optional ENVIROSENSE module (sold separately) monitors temperature and humidity Broad Communications Compatibility
      • Supports HTTP, HTTPS, PowerAlert, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP and NTP 20A Circuit Breakers
      • Protect each of 2 single-phase output banks
      • Front-panel LED indicates when breaker has tripped Cord Retention Brackets
      • Secures equipment power cords to reduce cable clutter and increase accessibility to connected components Mounts Horizontally in 2U of Rack Space
      • Compatible with EIA-standard 19 in. 4-post racks and rack enclosures TAA-Compliant
      • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

    • Specifications

      • PDU Type: Switched; Auto-Transfer Switch
      • Output Capacity Details: 7.7kW (240V), 7.4kW (230V), 7.0kW (220V), 6.7kW (208V), 6.4kW (200V); 32A maximum
      • Frequency Compatibility: 50 / 60 Hz

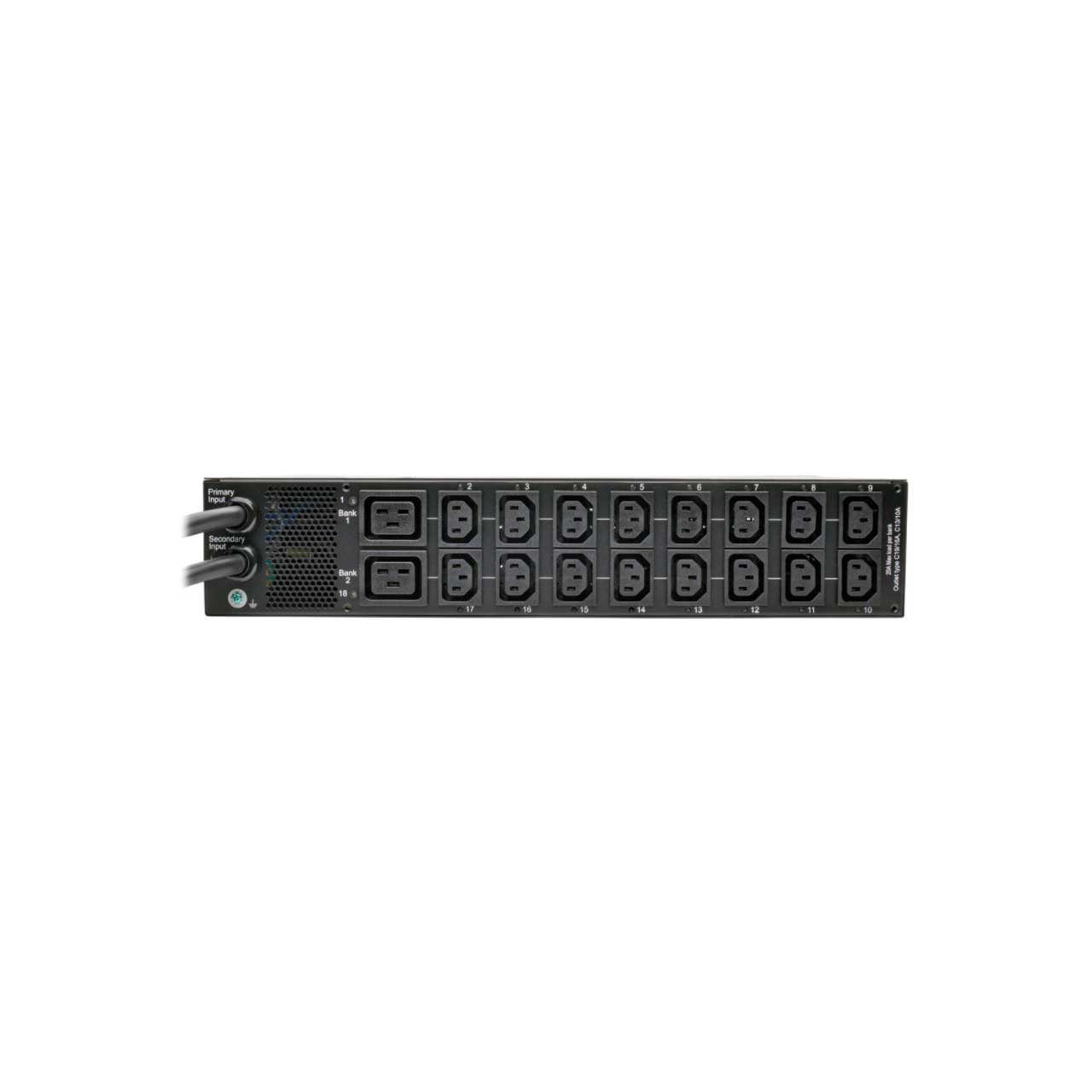

      • Output Receptacles: (16) C13; (2) C19
      • Output Nominal Voltage: 200, 208, 220, 230, 240V nominal, single phase
      • Overload Protection: Includes two 20A output circuit breakers; Breaker 1 controls the upper row of 9 outlets (8 C13, 1 C19); Breaker 2 controls the lower row of outlets (8 C13, 1 C19)
      • PDU Input Voltage: 200; 208; 220; 230; 240
      • Recommended Electrical Service: 32A 230V
      • Maximum Input Amps: 32
      • Input Connection Type: Two labelled IEC309 32A Blue cables support Primary and Secondary input connections

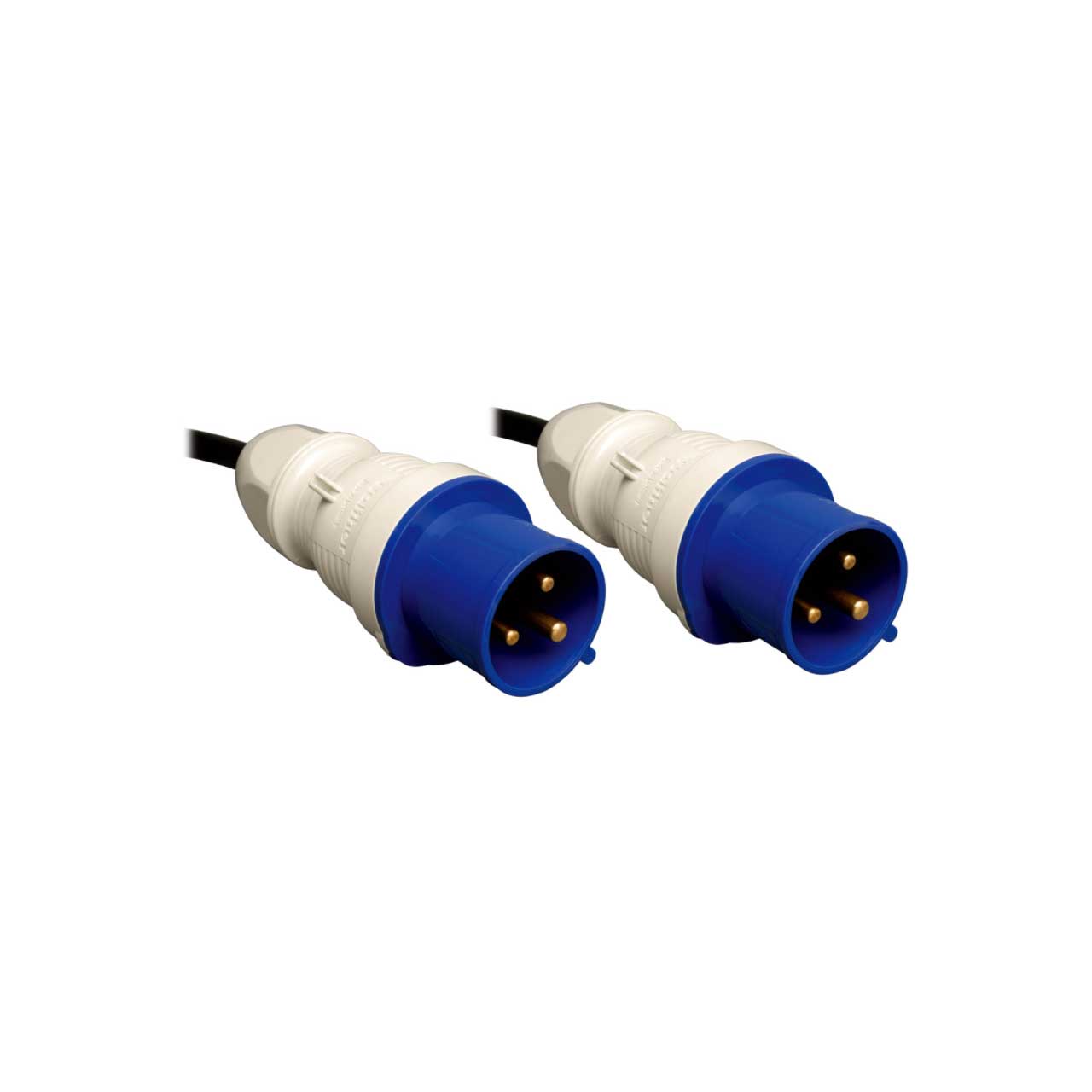

      • PDU Plug Type: (2) IEC-309 32A BLUE (2P+E)
      • Input Cord Length (ft.): 10
      • Input Cord Length (m): 3.05
      • Input Phase: Single-Phase
      • Front Panel LCD Display: Digital display reports output amps in 4 separately metered loading segments (BANK 1: Outlets #1-9; BANK 2: Outlets #10-18), whole-PDU output kW load level and input voltage on primary and secondary input lines
      • Front Panel LEDs: Front panel LEDs confirm amp / kilowatt / voltage reporting information
      • Switches: ENTER and MODE switches toggle the digital display to show output amps (Banks 1-4), total kW output and input voltage (primary, secondary)
      • Minimum Required Rack Depth (inches): 16
      • Shipping Dimensions (hwd / in.): 7.8 x 16.7 x 19.9
      • Shipping Weight (lbs.): 20.3
      • Unit Dimensions (hwd / in.): 3.5 x 17.5 x 12.5
      • Unit Weight (lbs.): 13.7
      • Material of Construction: Metal
      • Form Factors Supported: 2U rackmount
      • PDU Form Factor: Horizontal (1U, 2U, etc)
      • Minimum Required Rack Depth (mm): 406
      • Storage Temperature Range: 5 to 122°F
      • Relative Humidity: 5 to 95% (non-condensing)
      • Operating Elevation (ft.): 0-10,000
      • Certifications: Tested to CE / IEC 60950-1, EN CLASS A (Emissions), NOM (Mexico), RoHS Complaint, TAA Compliant
      • Product Warranty Period (Worldwide): 2-year limited warranty

    • Item Includes

      • PDUMH32HVATNET 7.4kW Single-Phase 230V ATS/Switched PDU
      • Rack-mounting brackets
      • Cord retention brackets
      • Cable ties
      • Owner’s manual

    • Warranty

      • 2 Year
