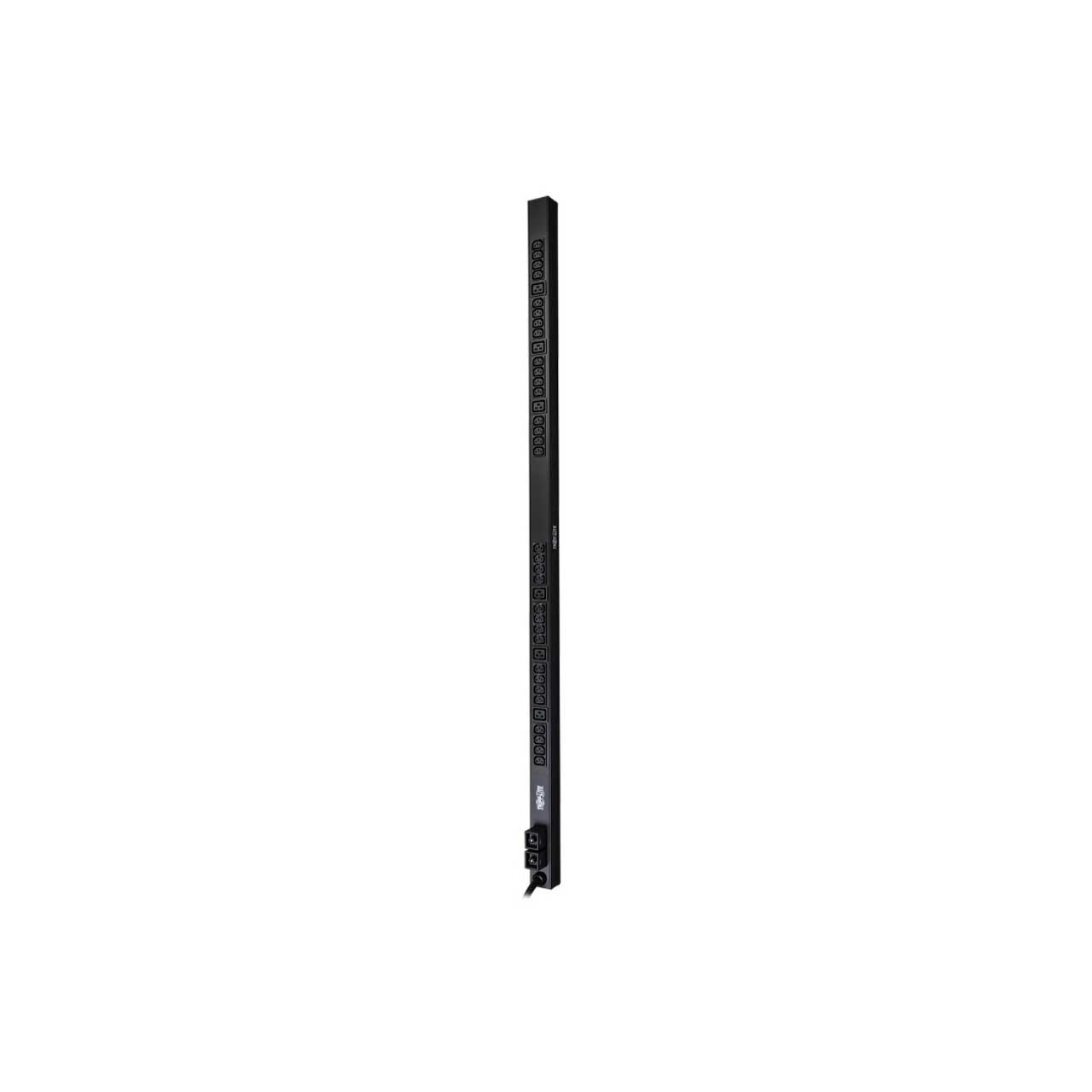

Tripp Lite PDUV30HV 5/5.8kW Single-Phase Basic PDU 208/240V Outlets (6 C19 and 32 C13) L6-30P 10ft Cord 0U Vertical

PDUV30HV - Overview

• Features:

  • 208/240V 30A Basic Power Distribution Unit / PDU
  • 30A maximum capacity (Agency derated to 24A continuous)
  • Attached L6-30P input plug with 10 ft. / 3m input cable
  • 0U, 63.75 in. / 162cm vertical form factor supports installation in 2 or 4 post equipment racks

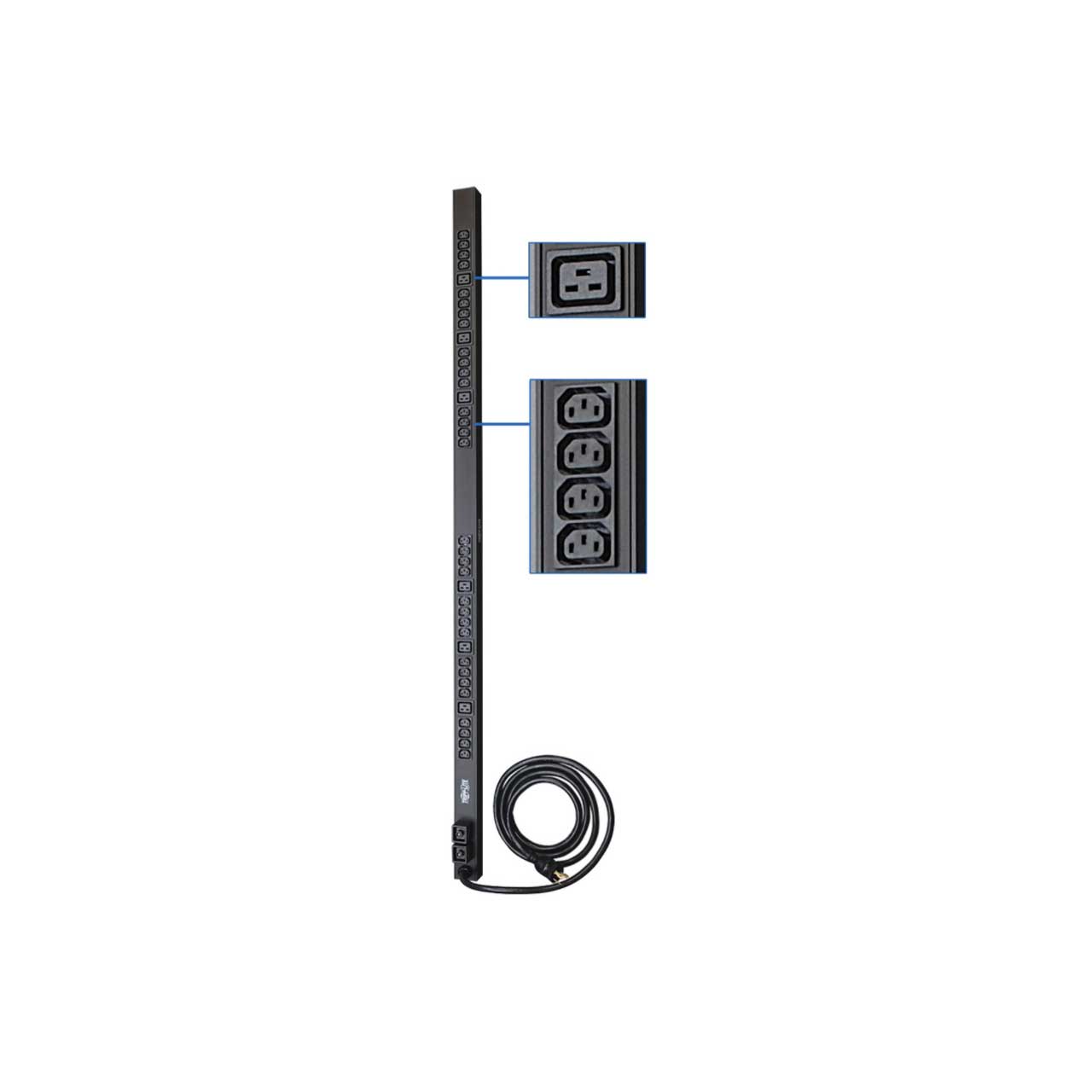

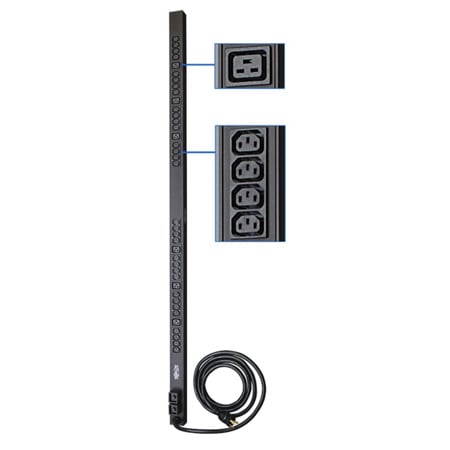

  • 38 total 208V outlets (6 C19, 32 C13) are split equally into two separately breakered 15A loading segments
  • Sleeved circuit breaker assembly prevents accidental shutoff and requires no tools to reset if tripped
  • Switch-free unfiltered electrical pass-through reliably distributes UPS or generator power to critical networking equipment
  • Included plug-lock inserts ensure components remain connected and powered
  • Toolless mounting supported in button-mount compatible racks
  • Included nut and bolt mounting brackets support installation in non button-mount compatible racks and other flat surfaces


• Specifications:

  • PDU Type: Basic
  • Output Capacity Details: 5.8kW (240V), 5kW (208V), 4.8kW (200V) total capacity / 30A max (Agency de-rated to 24A), 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet
  • Frequency Compatibility: 50 / 60 Hz
  • Output Receptacles: (32) C13; (6) C19
  • Output Nominal Voltage: 200; 208; 240
  • Overload Protection: Two 15A breakers protect 19 outlets each
  • PDU Input Voltage: 200; 208; 240
  • Recommended Electrical Service: 30A 208/240V
  • Maximum Input Amps: 30
  • Maximum Input Amps Details: Agency de-rated to 24A
  • PDU Plug Type: NEMA L6-30P
  • Input Cord Length (ft.): 10
  • Input Cord Length (m): 3.05
  • Input Phase: Single-Phase
  • Shipping Dimensions (hwd / in.): 64.5 x 3.5 x 4.75
  • Shipping Weight (lbs.): 13
  • Unit Dimensions (hwd / in.): 63.75 x 2.25 x 3.75
  • Unit Weight (lbs.): 8
  • Material of Construction: Metal
  • Form Factors Supported: 0u vertical installation in equipment racks, plus under-counter and wallmount
  • PDU Form Factor: Vertical (0U)
  • Storage Temperature Range: 5 to 122°F
  • Relative Humidity: 5-95% non-condensing
  • Operating Elevation (ft.): 0-10,000
  • Certifications: Tested to UL60950-1 (USA, Canada), NOM (Mexico)
  • Product Warranty Period (Worldwide): 5-year limited warranty


• Item Includes:

  • PDUV30HV 63.75 inch basic PDU
  • Plug-lock inserts (6 C20, 32 C13)
  • Spare installation buttons, 2.9 mm/4.6 mm
  • Mounting hardware
  • Owner’s Manual


• Warranty:

  • 5 Year


• GTIN:

  0037332138910
