Tripp Lite SMART2200VS 2200VA 1600W UPS Smart Tower AVR 120V USB DB9 SNMP for Servers

ITEM #: TRL-SMART2200VS MFG #: SMART2200VS

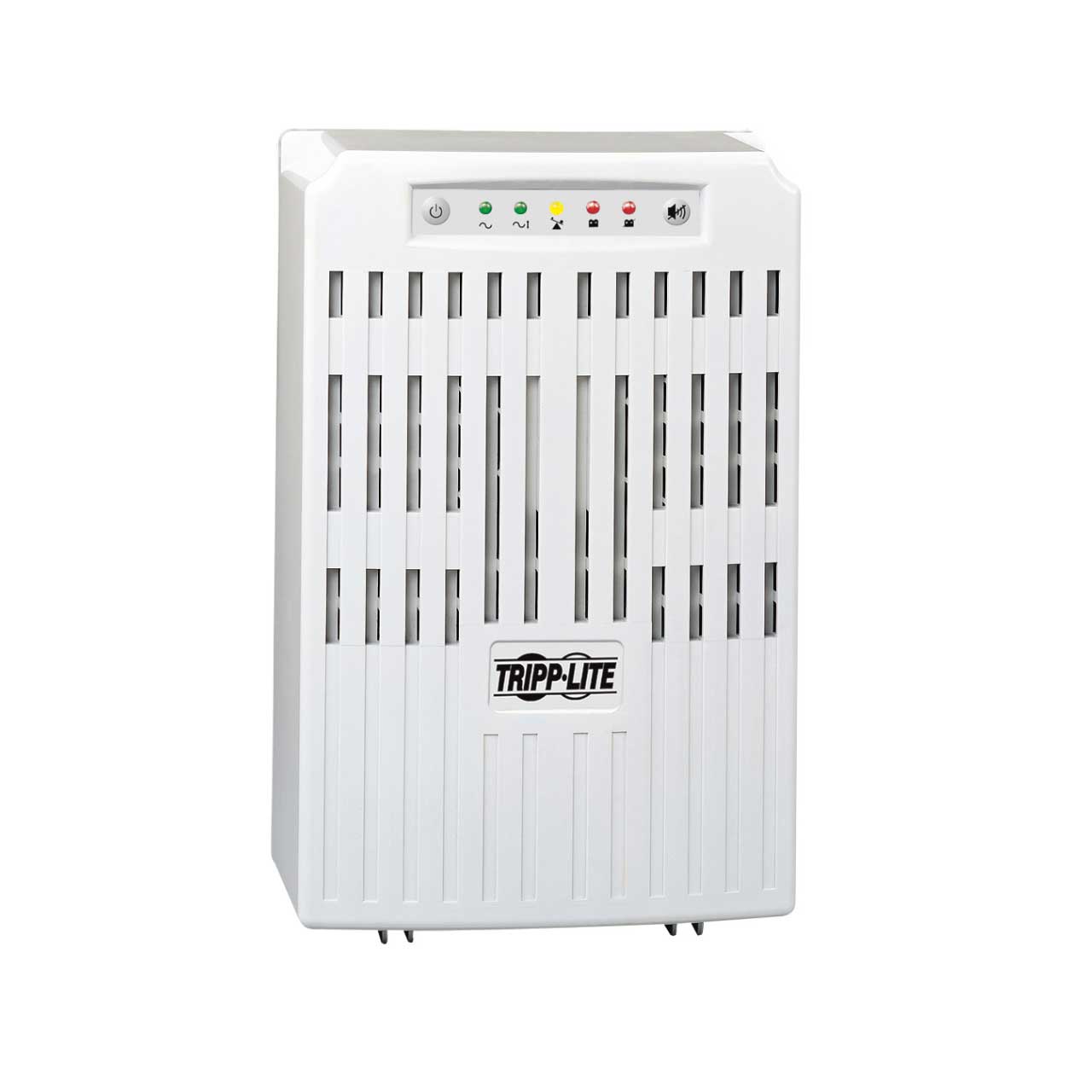

Primary Image

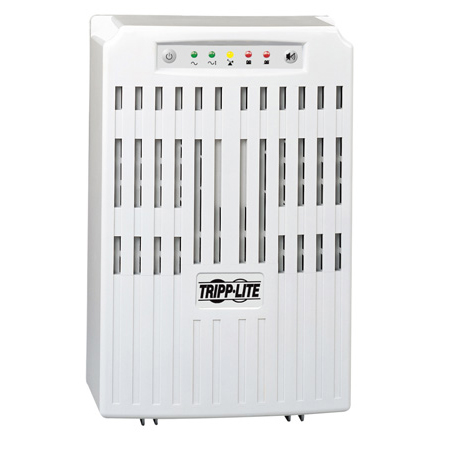

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$1,606.18

Our Price:

$1,008.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    SMART2200VS - Overview

    Tripp Lite's SMART 2200VS intelligent, line interactive UPS protects server, networking and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Small footprint, tower UPS system occupies only 106 square inches of floor space with a height of only 14.25 inches. Large capacity 2200 VA/ 1600 watt rated UPS system offers 7 minutes runtime at full load and 19 minutes at half load during power failures. Line interactive voltage regulation corrects brownouts as low as 79V and overvoltages as high as 147V to fully regulated 120V nominal output for smooth continuous operation of connected equipment. Includes a total of 9 outlets, 3 pairs of which can be individually powered off and back on via software interface to selectively reboot remote equipment or shed less critical loads to extend battery runtime for more critical loads. Includes slot for internal SNMPWEBCARD, plus 2 DB9 and 2 USB enhanced monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. Ships in attractive gray color scheme. Compatible with Tripp Lite's PowerAlert and Watchdog service software.

    • Features:

      • 2200VA/1600 watt output capacity accommodates a variety of server, networking and telecom devices
      • High power density 2.2kVA UPS system occupies only 106 square inches of floor space with a height of only 14.25 inches
      • Compatible with North American 120V/60 Hz power as found in the USA, Canada and Mexico
      • Offers 7 minutes runtime with a full load of 2200VA and 19 minutes with a half load of 1100VA

    • Specifications:

      • Output Volt Amp Capacity (VA) 2200
      • Output kVA Capacity (kVA) 2.2
      • Output Watt Capacity (Watts) 1600
      • Output kW Capacity (kW) 1.6
      • Power Factor 0.7
      • Nominal Output Voltage(s) Supported 120V
      • Frequency Compatibility 60 Hz
      • Output Voltage Regulation (Line Mode) -2.25
      • Output Voltage Regulation (Battery Mode) +/- 5%

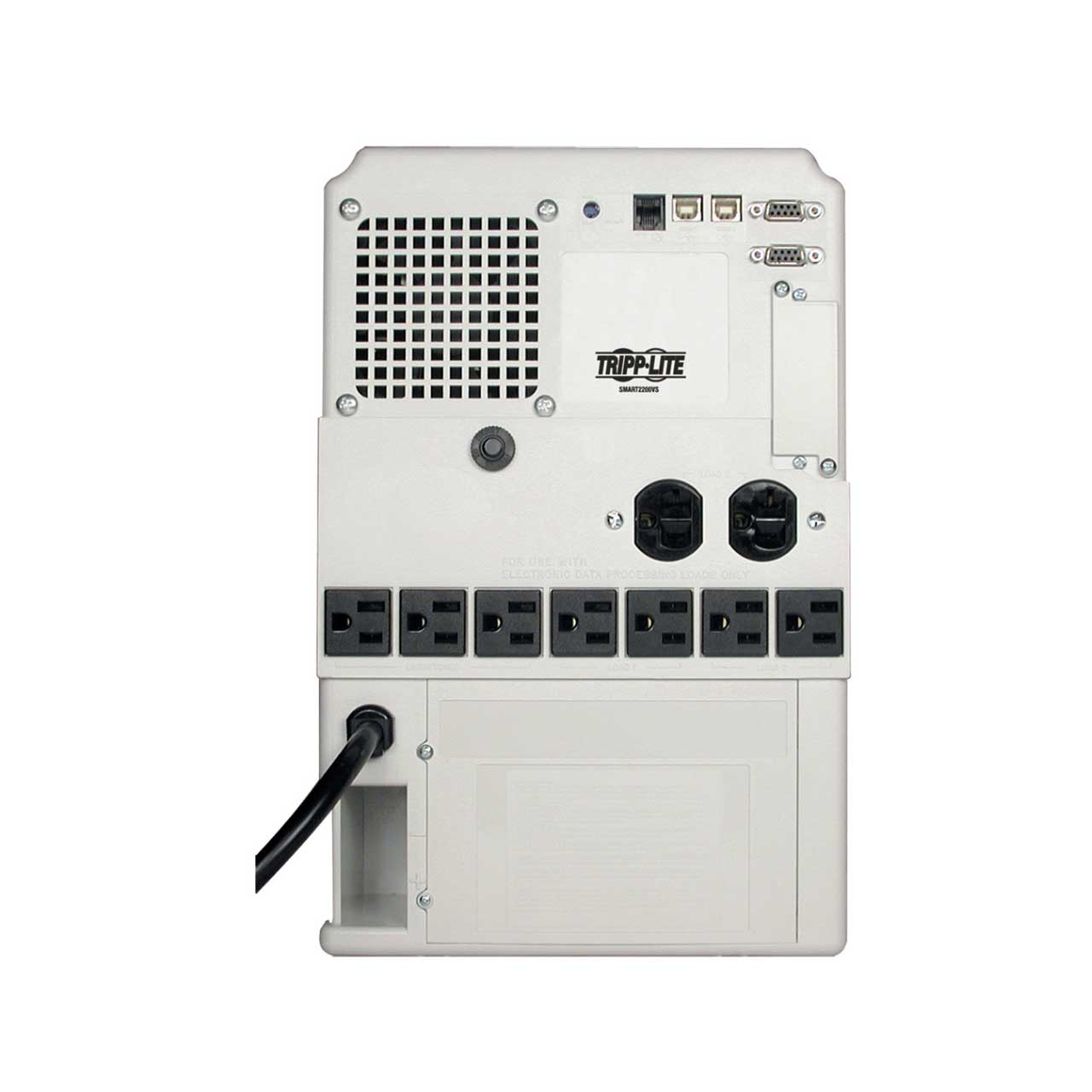

      • Output Receptacles (7) 5-15R; (2) 5-15/20R
      • Load Management Receptacles Three switchable two-outlet 5-15R load banks
      • Output AC Waveform (AC Mode) Sine wave
      • Output AC Waveform (Battery Mode) PWM sine wave
      • Rated input current (Maximum Load) 16A
      • Nominal Input Voltage(s) Supported 120V AC
      • UPS Input Connection Type 5-20P
      • Input Circuit Breakers 20A
      • UPS Input Cord Length (ft.) 8
      • UPS Input Cord Length (m) 2.4
      • Recommended Electrical Service 20A 120V
      • Input Phase Single-Phase
      • Full Load Runtime (min.) 7 min. (1600w)
      • Half Load Runtime (min.) 19 min. (800w)
      • DC System Voltage (VDC) 48
      • Battery Recharge Rate (Included Batteries) Less than 4 hours from 10% to 90% (typical, full load discharge)
      • Internal UPS Replacement Battery Cartridge RBC54
      • Battery Access Battery access door
      • Battery Replacement Description Hot-swappable, user replaceable batteries
      • Voltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 79V to 147V
      • Overvoltage Correction Input voltages between 128 and 147 are reduced by 12%
      • Undervoltage Correction Input voltages between 95 and 104 are boosted by 12%
      • Severe Undervoltage Correction Input voltages between 79 and 94 are boosted by 24%
      • Switches 2 Switches control off/on power status and alarm-cancel/self-test operation
      • Alarm Cancel Operation Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
      • Audible Alarm Audible alarm indicates power-failure, overload and low-battery conditions
      • LED Indicators 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
      • UPS AC Suppression Joule Rating 480
      • UPS AC Suppression Response Time Instantaneous
      • EMI / RFI AC Noise Suppression Yes
      • Primary Form Factor Tower
      • Cooling Method Fan
      • UPS Housing Material Polycarbonate
      • Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
      • Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
      • Relative Humidity 0 to 95%, non-condensing
      • AC Mode BTU / Hr. (Full Load) 347.2
      • Battery Mode BTU / Hr. (Full Load) 812.9
      • AC Mode Efficiency Rating (100% Load) 0.94
      • Audible Noise Audible Noise < 47dBA At Front Side 1 Meter
      • Communications Interface USB; DB9 Serial; Contact closure
      • Network Monitoring Port Description Supports detailed monitoring of UPS and site power conditions; 2 USB ports, 1 DB9 serial and 1 DB9 contact closure port (4 total)
      • PowerAlert Software Included
      • Communications Cable 2 USB and 2 DB9 cables included
      • WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
      • Transfer Time 2-4 milliseconds
      • Low Voltage Transfer to Battery Power (Setpoint) 79
      • High Voltage Transfer to Battery Power (Setpoint) 147
      • Cold Start (Startup in Battery Mode During a Power Failure) Cold-start operation supported
      • High Availability UPS Features Hot swappable batteries
      • Green Energy-Saving Features Individually controllable load banks
      • UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)

    • Item Includes:

      • SMART 2200VS UPS System,
      • USB and DB9 Serial cabling
      • User manual

    • GTIN:

      0037332115874
