Tripp Lite 18U Wall-Mount Rack Enclosure Cabinet with Clear Acrylic Window Double Hinge Removable Side Panels 36x24x26
  • Tripp Lite 18U Wall-Mount Rack Enclosure Cabinet with Clear Acrylic Window Double Hinge Removable Side Panels 36x24x26
  • Tripp Lite 18U Wall-Mount Rack Enclosure Cabinet with Clear Acrylic Window Double Hinge Removable Side Panels 36x24x26
  • Tripp Lite 18U Wall-Mount Rack Enclosure Cabinet with Clear Acrylic Window Double Hinge Removable Side Panels 36x24x26
  • Tripp Lite 18U Wall-Mount Rack Enclosure Cabinet with Clear Acrylic Window Double Hinge Removable Side Panels 36x24x26
  • Tripp Lite 18U Wall-Mount Rack Enclosure Cabinet with Clear Acrylic Window Double Hinge Removable Side Panels 36x24x26

Questions? Ask a Markertek Expert:
800-522-2025 Email

Tripp Lite 18U Wall-Mount Rack Enclosure Cabinet with Clear Acrylic Window Double Hinge Removable Side Panels 36x24x26

Manufacturer: Tripp Lite

Item #: TRL-SRW18USDPG   •   MFG #: SRW18USDPG



List Price:$1,020.60
Our Price:$695.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.


  • Shipped truck freight.


Share!

California Residents:
8pt-triangleWARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

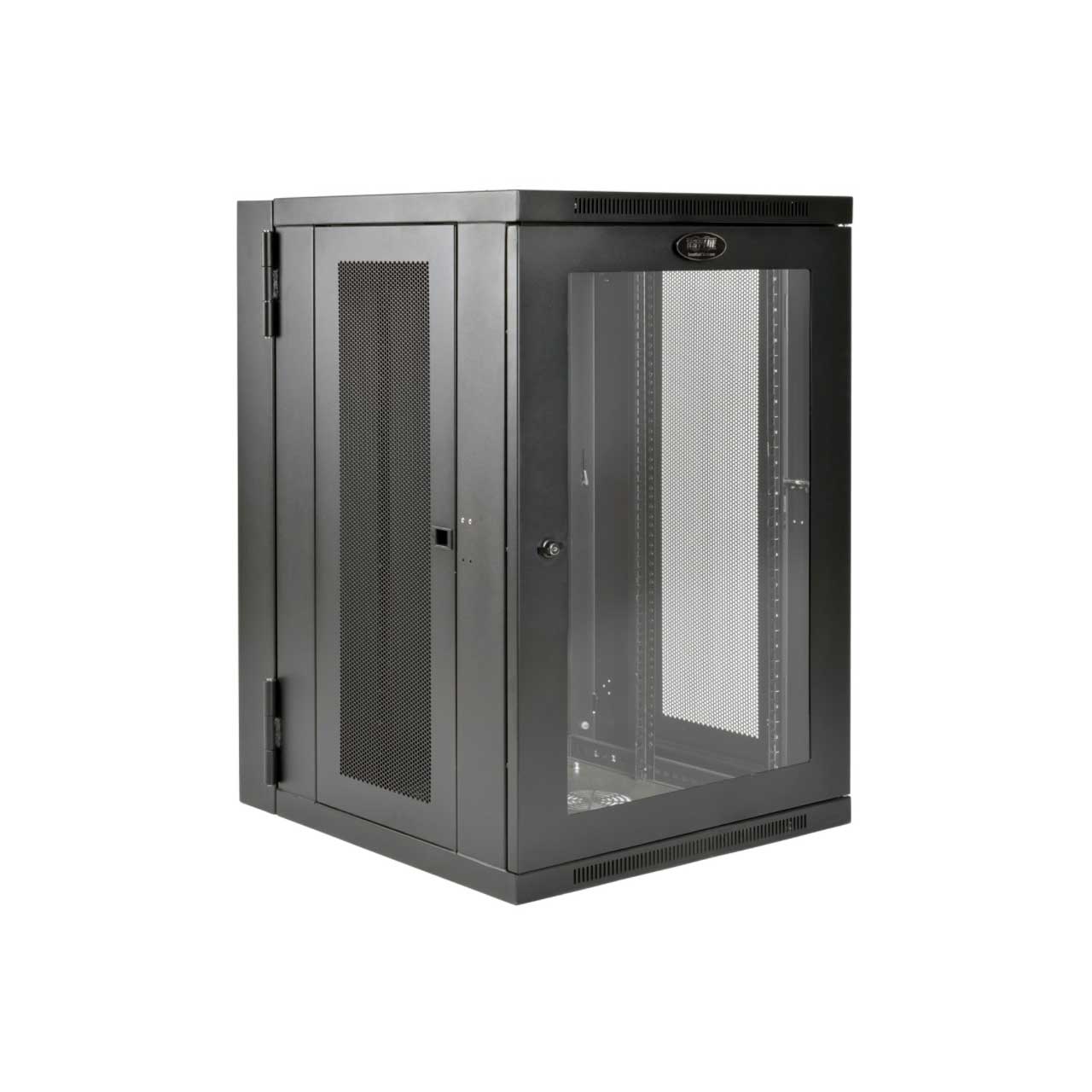

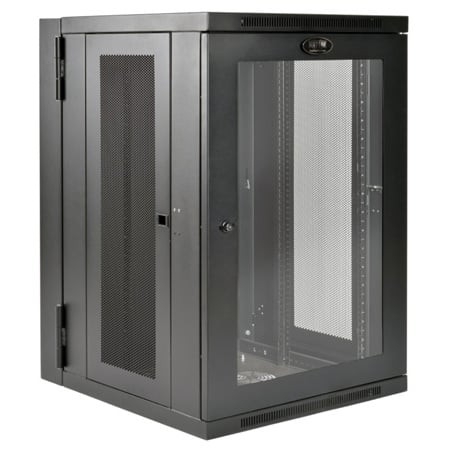

The SRW18USDPG SmartRack 18U UPS-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 pounds.

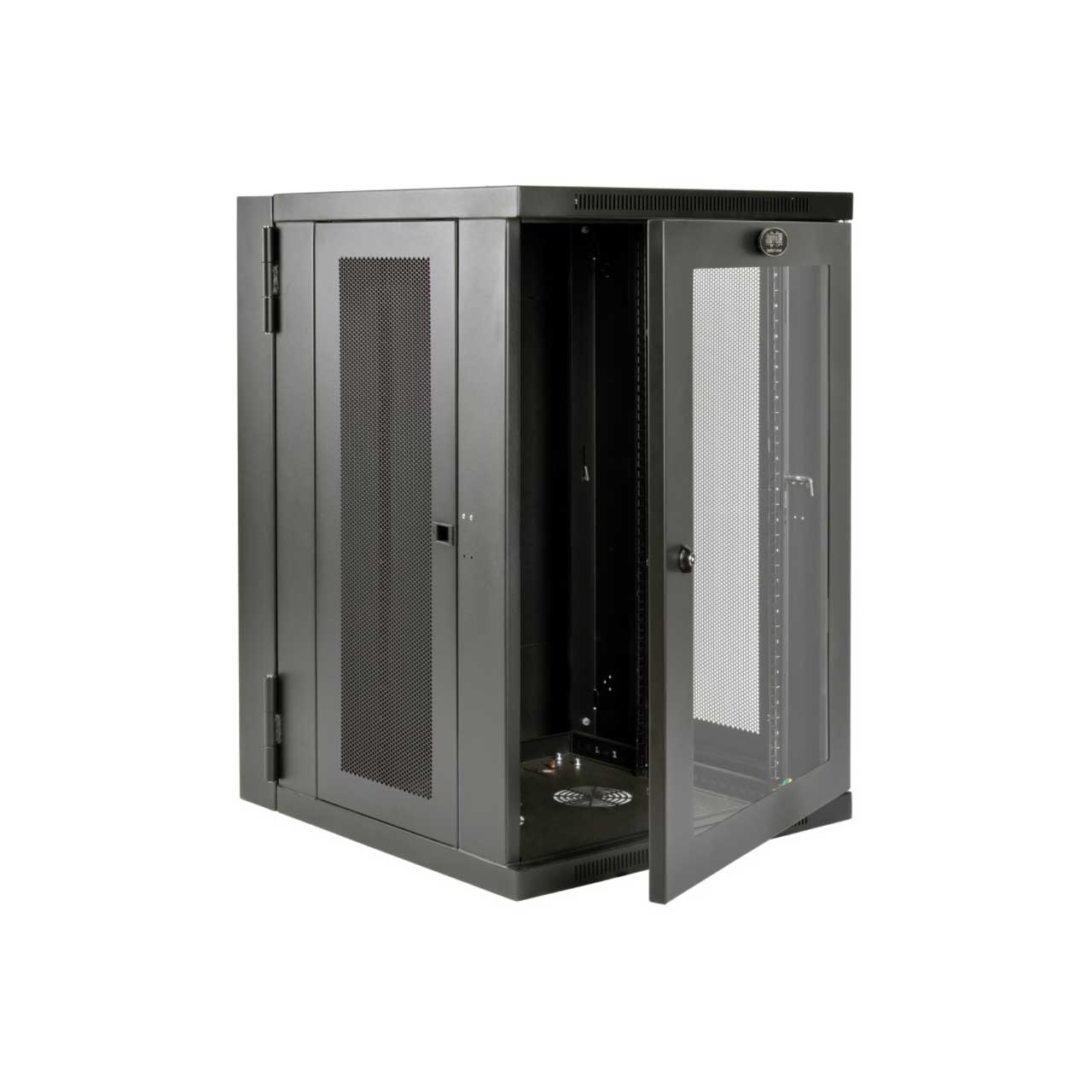

The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.

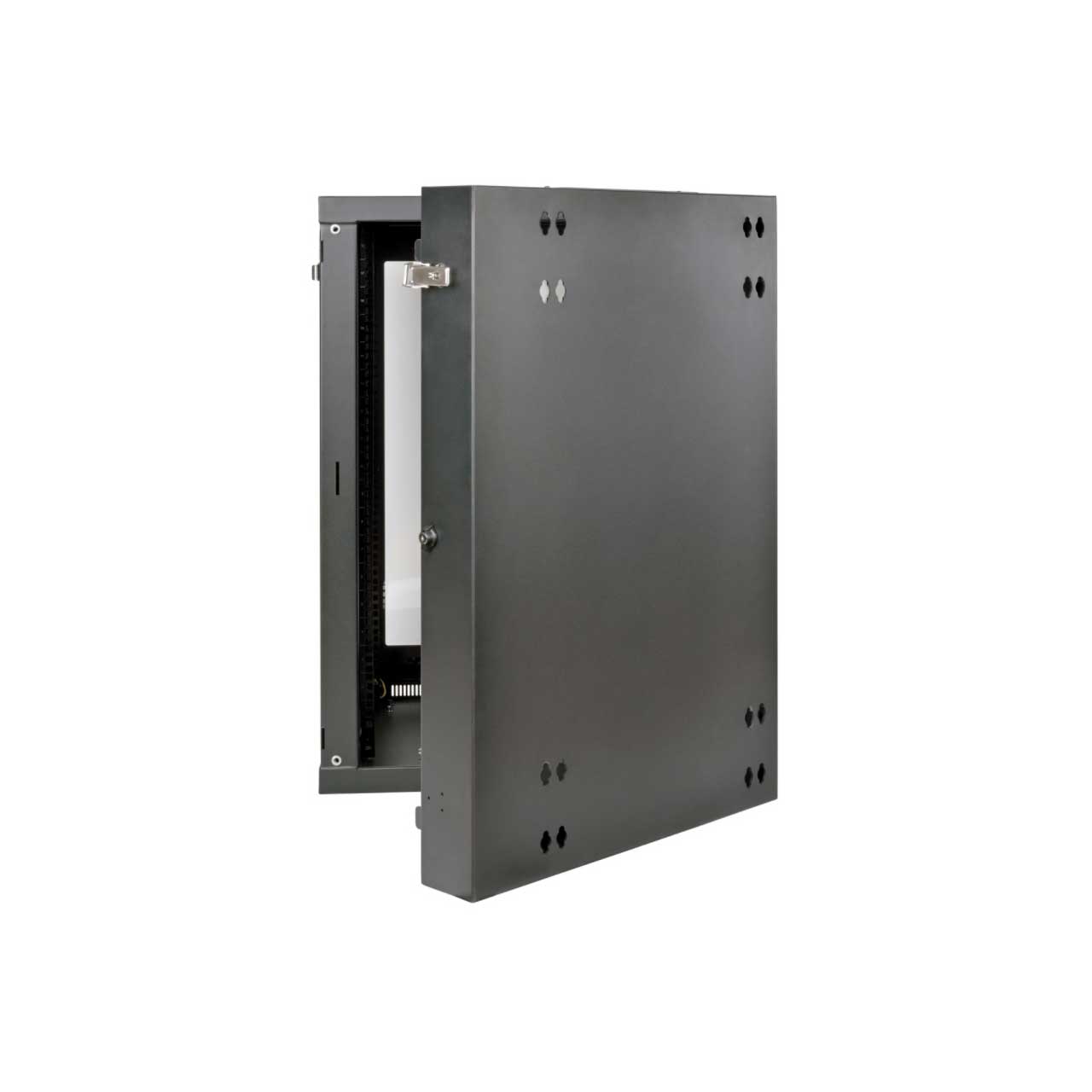

The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.

The SRW18USDPG comes fully assembled and ready to mount to the wall, or use Tripp Lite’s optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 24.5 inches deep, such as network switches, UPS systems and related battery packs and cabling.


  • Features

    • Saves Valuable Workspace
    • Perfect for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way
    • Houses EIA-standard 19 in. rack equipment in 18U of space
    • Maximum load capacity of 250 lb. Hinged Cabinet for Convenient Access
    • Swings away from the wall to allow easy back-door access to equipment and cabling during installation and maintenance
    • Rotate cabinet 180° before mounting to open reversible doors left or right Shatter-Resistant Clear Acrylic Front Window
    • Lets you monitor equipment without unlocking the enclosure
    • Prevents equipment tampering
    • Reduces acoustic noise
    • Provides extra visual flair Keeps Important Equipment Secure
    • Side panels and doors lock securely to help prevent damage, tampering or theft
    • Vented panels allow generous airflow that keeps equipment cool
    • Convenient ports with removable covers allow cable routing through top and bottom Easy Enclosure and Equipment Installation
    • Ships fully assembled for quick installation
    • Mounts to wall or rolls on floor with Tripp Lite’s optional SRCASTER caster kit

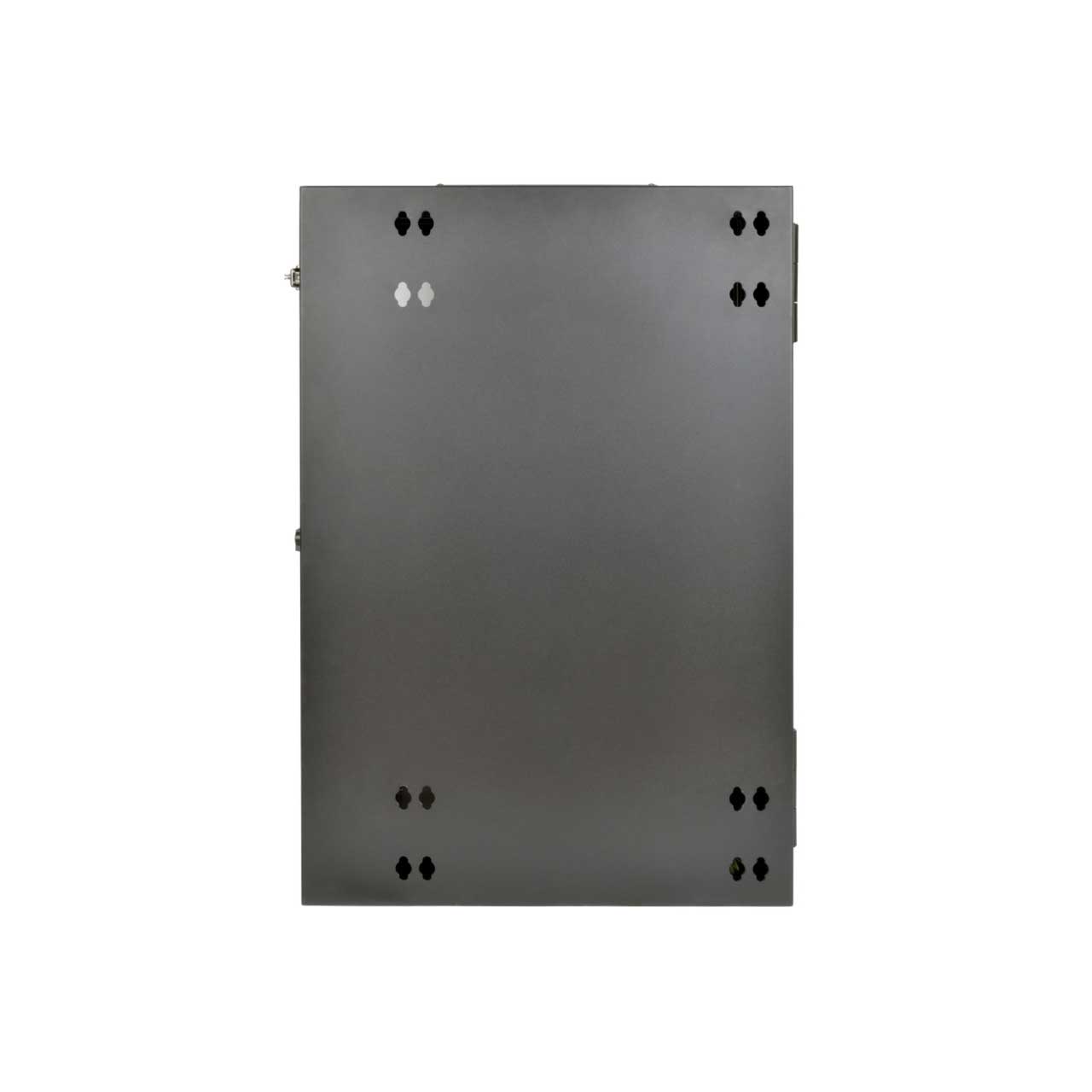

    • Wall-mounting holes spaced 16 in. apart for standard wall stud placement
    • Vertical mounting rails adjust in 7/8 in. increments to accommodate equipment up to 24.5 in. deep, such as network switches, UPS systems, battery packs and cabling
    • Rails adjust easily—unscrew them, slide them to desired depth, and screw them back in
    • Rails support square-hole or threaded-hole mounting
    • Rack spaces numbered for easy reference Meets Payment Card Industry Standards
    • Provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance

  • Specifications

    • Rack Height (U Spaces): 18
    • Maximum Device Depth (in.): 24.5
    • Maximum Device Depth (cm): 62.23
    • Minimum Device Depth (in.): 3
    • Minimum Device Depth (cm): 7.62
    • Shipping Dimensions (hwd / in.): 40.95 x 26.77 x 27.56
    • Shipping Dimensions (hwd / cm): 104.01 x 68.0 x 70.0
    • Unit Dimensions (hwd / in.): 35.61 x 23.50 x 25.98
    • Unit Dimensions (hwd / cm): 90.45 x 59.69 x 65.99
    • Unit Weight (lbs.): 99.6
    • Unit Weight (kg): 45.18
    • Color: Black
    • Weight Capacity - Stationary (lbs.): 250
    • Weight Capacity - Stationary (kg): 113
    • Factory Preset Rack Depth (in.): 10.42
    • Factory Preset Rack Depth (cm): 26.5
    • Factory Preset Rack Depth (mm): 265
    • Maximum Device Depth (mm): 622
    • Minimum Device Depth (mm): 76
    • Grounding Lug: Front and Back door frames
    • Approvals: EIA-310-D, IEC 60297-3-100, IP20 Protection, RoHS
    • Product Warranty Period (Worldwide): 5-year limited warranty

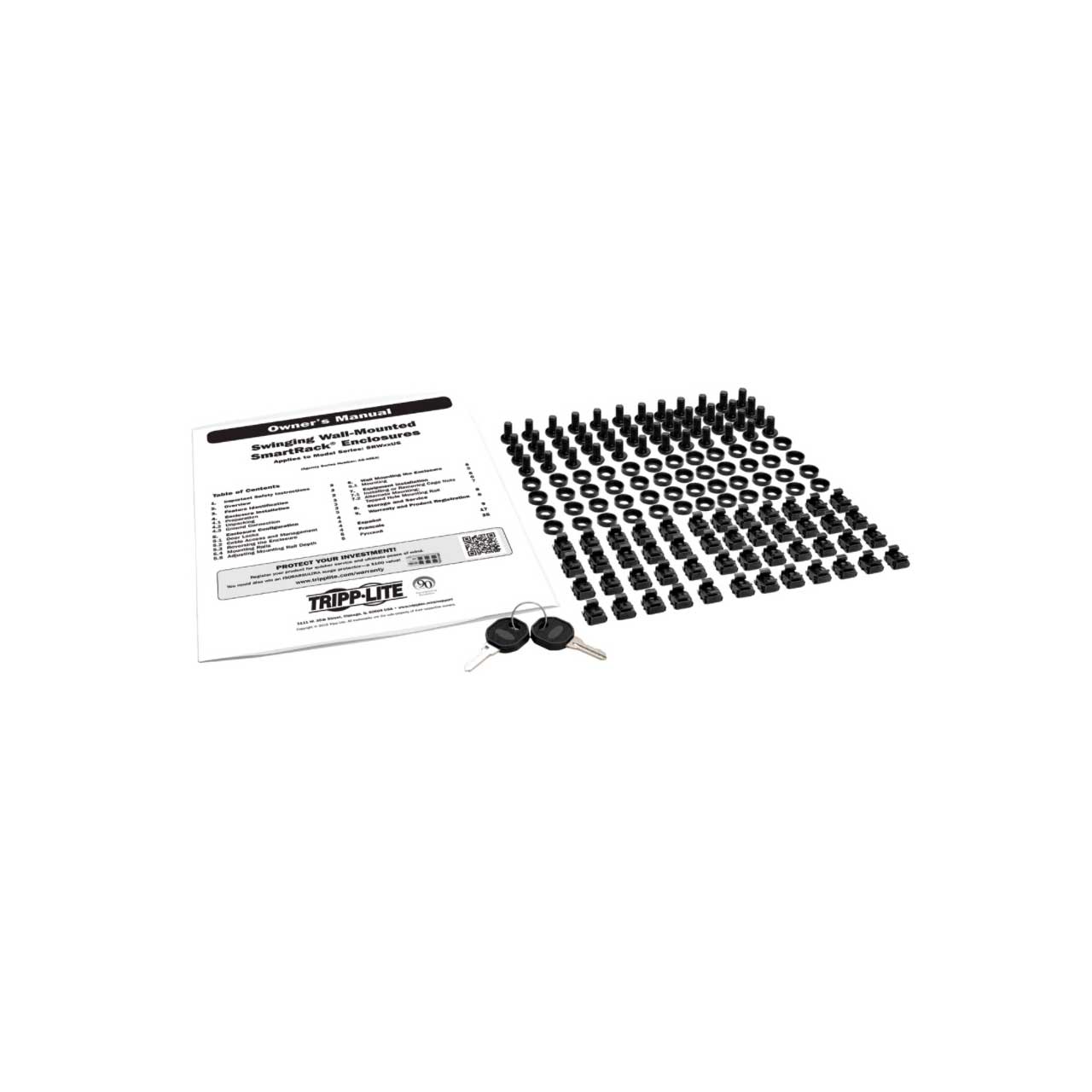

  • Item Includes

    • SRW18USDPG SmartRack 18U UPS-Depth Wall-Mount Rack Enclosure Cabinet
    • (42) M6 screws
    • (42) M6 cage nuts
    • (42) M6 washers
    • (42) 12-24 screws
    • (2) Keys
    • Owner’s manual

  • Warranty

    • 5 Year

  • GTIN:

    0037332189738
