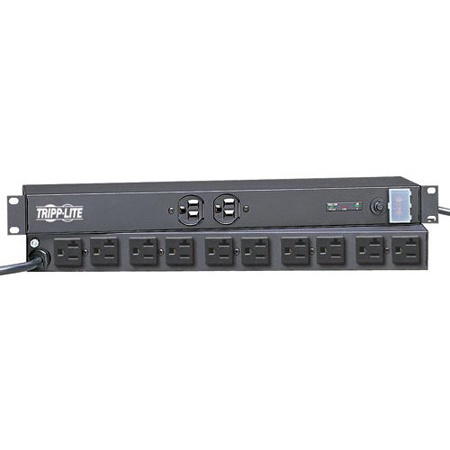

Tripp Lite IBAR12-20ULTRA 12 Outlet Rackmount Isobar Surge Suppressor

ITEM #: IBAR-12-UL20 MFG #: IBAR 12/20 ULTRA

Primary Image
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    IBAR 12/20 ULTRA - Overview

    Tripp Lite's IBAR12/20ULTRA offers network-grade surge and noise suppression in a versatile all-metal multi-mount cabinet with NEMA 5-20P input plug and 20 amp capacity. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation, using only 1 rack space (1U) when installed in any 19 inch EIA standard rack.

    Features network grade AC surge suppression with EMI/RFI noise filtering. Outlets are arranged in exclusive isolated filter banks to limit noise interaction among connected items. Includes 12 outlets (2 front mounted 15 amp / 10 rear mounted 20 amp), 15 ft AC power cord and guarded power switch to reduce the risk of accidental shutoff. Diagnostic LEDs indicate AC present, line fault and protection status. Lifetime warranty with $25,000 ultimate lifetime Insurance (USA & Canada Only) coverage .

    PLUG/OUTLETS: Input: NEMA 5-20P / Output: 2 NEMA5-15R (front) & 10 NEMA5-20R (rear)

    ELECTRICAL: 120V AC, 50/60Hz, 20A (Requires NEMA 5-20R wall receptacle)

    SUPPRESSION: AC: 140V RMS Clamping / 3840 joules / 60,000 amps

    FORMAT: Supports 19 in. rackmount (uses 1 rack space / 1U), wallmount, under-counter and more

    • Features:

      • 12 outlets (15- and 20-amp)/15 ft. cord
      • 3840 joule rating
      • All metal housing with LEDs
      • Adjustable rackmount hardware
      • $25,000 Ultimate Lifetime Insurance (USA, Puerto Rico & Canada only)
    • Item Includes:

      • IBAR12/20ULTRA Surge Suppressor
      • Warranty information
      • Instruction manual
    • Applications


      • Ideal for the protection of sensitive electronic equipment in 19 inch rackmount, wallmount and under-counter applications, such as internet working equipment, PC systems, telecommunications, audio / video, security, sound reinforcement and more
    • GTIN:


    IBAR 12/20 ULTRA - Required Accessories
