Tripp Lite SUPER-7 2160 Joule 7 Outlet Surge Suppressor - 7 Foot Cord with Right-Angle Plug

ITEM #: TRL-SUPER7 MFG #: SUPER7

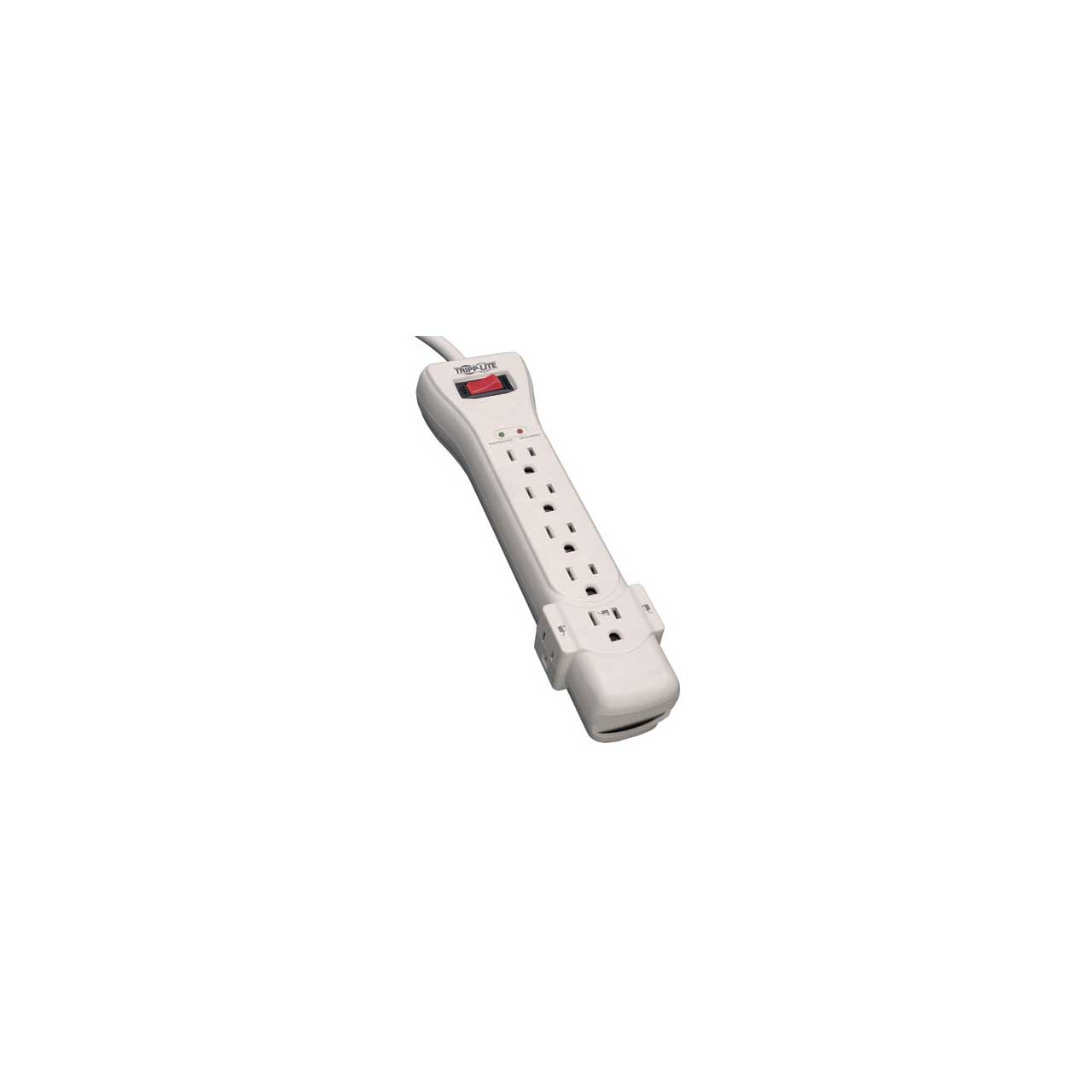

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$36.92

Our Price:

$27.38

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    SUPER7 - Overview

    Safeguard your computer, printer, scanner, router, modem and other small home electronics against dangerous surges, spikes and line noise. The Tripp Lite SUPER-7 is recommended for any desktop, network or home application requiring AC line protection.

    Perfect for your home or office workstation, the SUPER7® Protect It!® 7-Outlet Surge Protector features a surge suppression rating of 2160 joules to defend your sensitive electronic components against even the strongest surges and spikes. In fact, Tripp Lite will repair or replace any connected equipment damaged by surges, including direct lightning strikes, up to $75,000 for life (valid in the U.S., Canada and Puerto Rico only).

    Because residential power outlets have three wires--hot line (H), neutral (N) and ground (G)--the SUPER7 protects all three, covering the two protection modes: full normal mode (H-N) and common mode (N-G/H-G). It also filters out electromagnetic interference (EMI) and radio frequency interference (RFI) that can disrupt your electronics and inflict hardware damage or data loss.

    Your devices plug into seven NEMA 5-15R outlets. Two outlets are mounted on the side to allow connection of three bulky transformers without blocking adjacent outlets. An integrated 15A circuit breaker protects all outlets and shuts down connected equipment in case of overload. The on/off switch provides one-touch control over connected equipment. Diagnostic LEDs confirm grounding and protection status.

    The seven-foot AC power cord allows the SUPER7 to reach nearby outlets, while its right-angle NEMA 5-15P plug allows furniture and equipment to be placed flush against the wall to save space in your workstation. Keyhole slots incorporated into the bottom panel provide convenient wall or desk mounting options for the light gray plastic housing.

    • Features:

      • 7 NEMA 5-15R outlets, including 3 for bulky transformers
      • 2160-joule surge protection rating
      • Filters out threatening EMI/RFI line noise
      • 15A resettable circuit breaker foils dangerous overloads
      • 7 ft. AC power cord with right-angle NEMA 5-15P plug
      • This product is covered by a Lifetime Limited Warranty (coverage details)
      • $75,000 Ultimate Lifetime Insurance
      • Protects your computer, printer, scanner, router, modem and other small home electronics against even the strongest surges and spikes
      • Recommended for any desktop, network or home electronics application requiring AC line protection
      • Full normal mode (H-N) and common mode (N-G/H-G) line surge suppression
      • Filters out disruptive EMI/RFI line noise that can cause equipment damage or data loss
      • Exceeds IEEE 587 Category A and B surge suppression specifications

    • Specifications:

      • Input
      • Nominal Input Voltage(s) Supported: 120V AC
      • Recommended Electrical Service: 120V (110-125V)
      • Input Cord Gauge Type: 14 gauge; SJT
      • Voltage Compatibility (VAC): 120
      • Maximum Surge Amps: 144000
      • Input Plug Type: NEMA 5-15P
      • Input Cord Length (ft.): 7
      • Right-Angle Plug: Yes
      • Integrated Cord Clip: No

        Output
      • Frequency Compatibility: 50 / 60 Hz
      • Output (Watts): 1800
      • Output Receptacles: (7) 5-15R
      • Circuit Breaker (amps): 15
      • Transformer Accommodation: (4) Yes
      • Outlet Orientation: Single row of 5, plus 2 side mounted outlets
      • Right-Angle Outlets: No

        User Interface, Alerts & Controls
      • Diagnostic LED(s): Yes
      • Switches: Two position on/off power switch
      • Diagnostic LED Details: Built-in LEDs confirm suppressor "protection present" (green) and "grounded" (red) status

        Surge / Noise Suppression
      • AC Suppression Joule Rating: 2160
      • AC Suppression Response Time: < 1 ns
      • Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
      • Clamping Voltage (RMS): 150
      • UL1449 Let Through Rating: 330 L-G, 400 L-N, 400 N-G
      • EMI / RFI Filtering: Up to 20 dB
      • Automatic Shut-Off: Yes

        Dataline Surge Suppression
      • Telephone/DSL Protection: No
      • Cable (Coax) Protection: No
      • Network (Ethernet) Protection: No

        Physical
      • Anti-Microbial Protective Coating: No
      • Color: Light Gray
      • Color (AC Line Cord): Light Gray
      • Housing Color: Light gray
      • Integrated Keyhole Mounting Slots: Yes
      • Keyhole Slot Mounting Measurement (Center to Center): Distance Between Slots = 78mm; Distance Between Slot Height = 24mm
      • Material of Construction: Plastic
      • Outlets Measurement (Center to Center): Between Standard Outlets = 29mm; Between Transformer Outlets = 48mm
      • Receptacle Color: Light gray
      • Shipping Dimensions (hwd / in.): 12.60 x 1.90 x 5.90
      • Shipping Weight (lbs.): 1.55
      • Unit Dimensions (hwd / in.): 1.54 x 2.72 x 10.30
      • Unit Weight (lbs.): 1.39

        Special Features
      • Rotatable Outlets: No

        Standards & Compliance
      • Canada: cUL
      • Approvals: Exceeds IEEE 587 category A&B specifications
      • UL1449 3rd Edition (AC Suppression): UL1449 3RD EDITION
      • UL1363 (Power Tap): UL1363

    • Item Includes:

      • 1x SUPER7 Protect It! 7-Outlet Surge Protector, Light Gray Housing
      • 1x Owner's manual

    • GTIN:

      0037332095282
