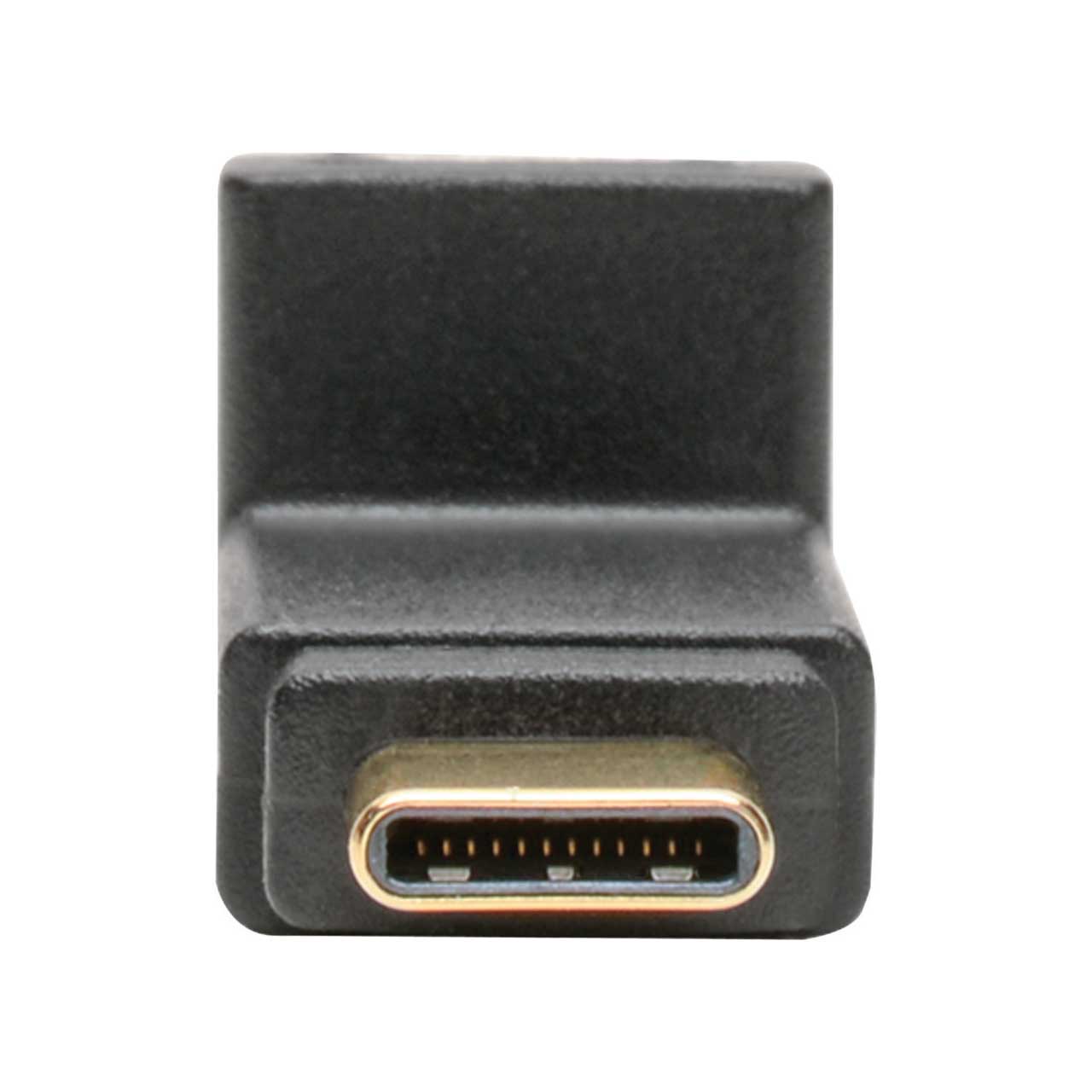

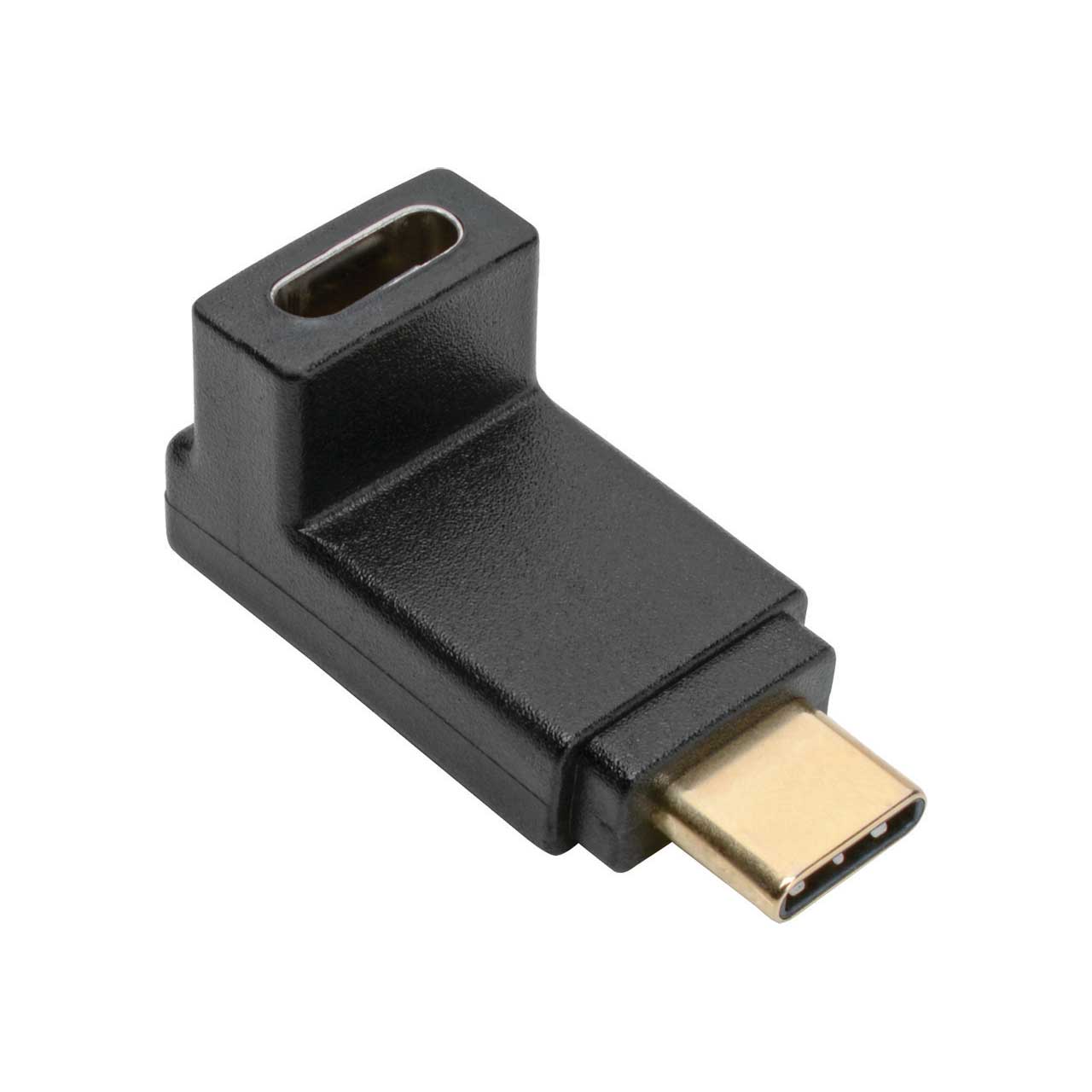

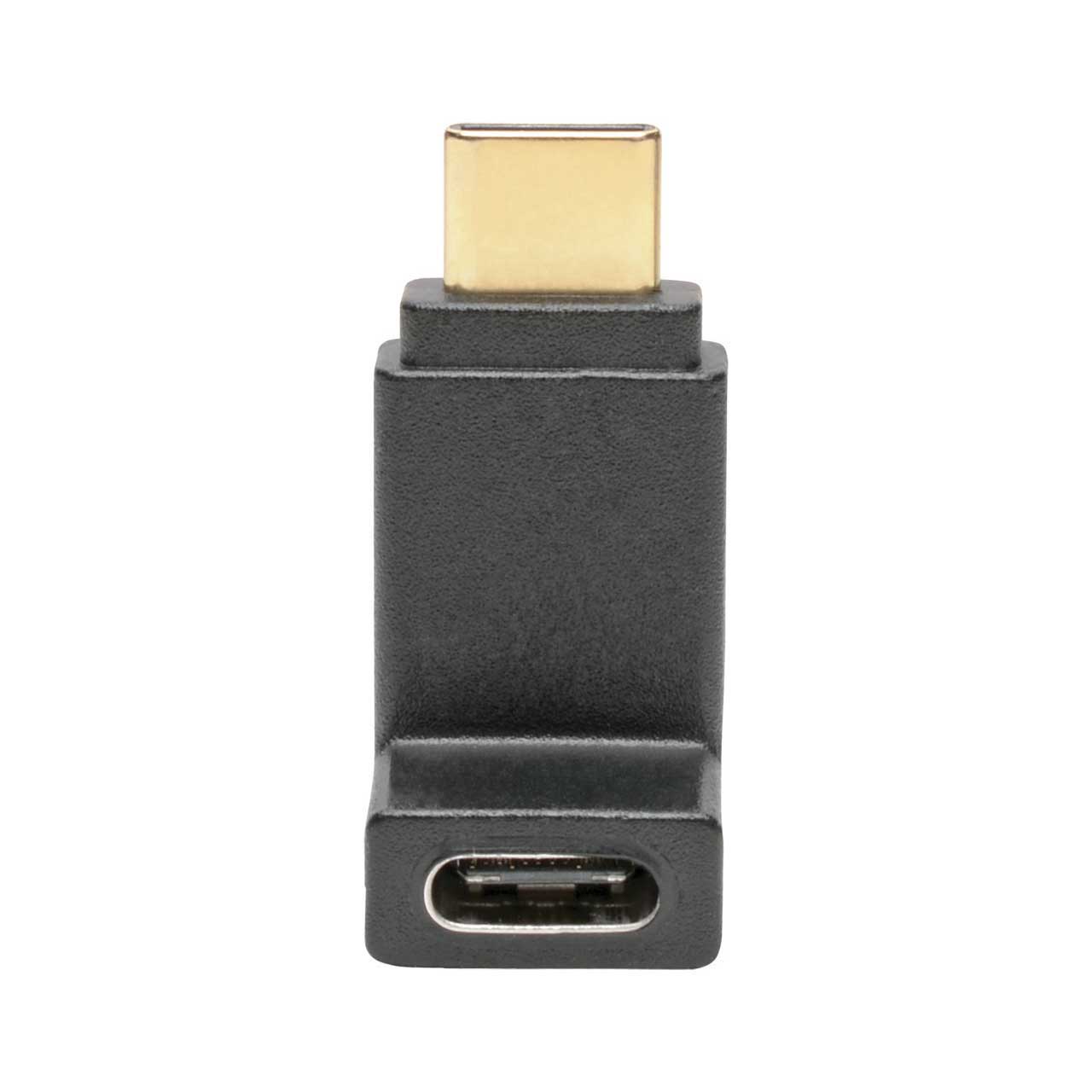

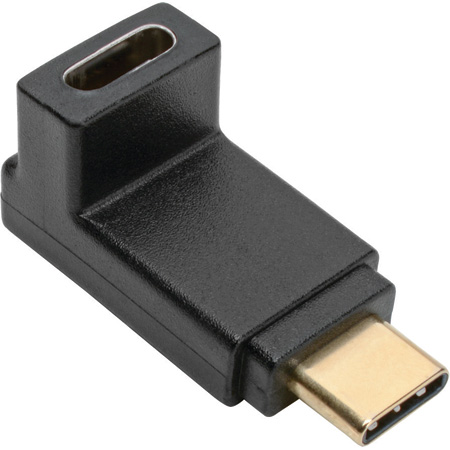

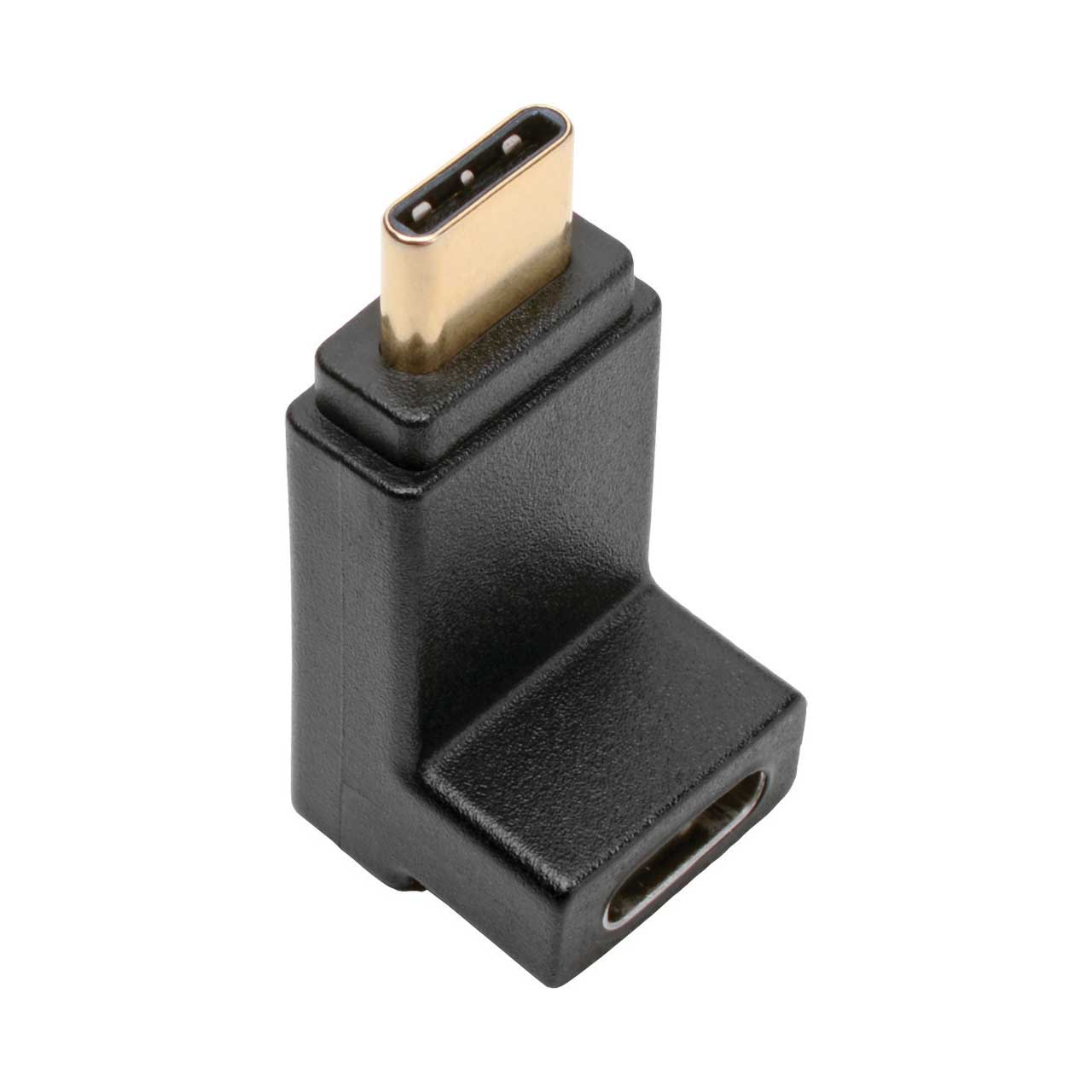

Tripp Lite U420-000-F-UD USB C to USB Type C Adapter Converter - Right Angle Male/Female - 10Gbps - 3A

ITEM #: TRL-U420-000FUD MFG #: U420-000-F-UD

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    U420-000-F-UD - Overview

    Tripp Lite U420-000-F-UD compact adapter allows you to connect USB-C devices to your smartphone, tablet, laptop, MacBook, Chromebook or Ultrabook's USB-C or Thunderbolt 3 port. External hard drives, hubs, wall chargers and other peripherals with USB-C ports will be able to communicate with your computer or other USB-C mobile device.

    Transfers Data and Charges Devices at Lightning-Fast USB 3.1 Gen 2 Speeds
    The adapter supports USB 3.1 Gen 2 data transfer rates up to 10 Gbps, which is twice as fast as USB 3.1 Gen 1. It also provides power output up to 3 amps (60 watts), which is sufficient for fast-charging, syncing and powering most devices.

    Reversible USB-C Connectors Attach in Either Direction
    Unlike traditional USB cables that connect in only one direction, the reversible USB-C male connectors plug into a USB-C or Thunderbolt 3 port in either direction for a fumble-free connection every time. The unit is backward compatible with USB 3.0 devices.

    Right-Angle USB-C Connector Makes Installation in Tight Spaces Easier
    The space-saving right-angle female connector is easy to install in confined spaces, such as behind your computer desk or workstation. You can install the unit facing either up or down to gain convenient vertical access to that USB-C connection.

    Typical Applications:
    Charge and sync a USB-C or Thunderbolt 3 mobile device from a USB-C wall charger located behind furniture or another hard-to-reach space
    Transfer data between an external hard drive and your laptop or computer
    Connect your laptop to a docking station or hub with a USB-C or Thunderbolt 3 port

    System Requirements
    Devices with USB-C or Thunderbolt 3 ports (USB 3.1 Gen 2 compatibility required to achieve USB 3.1 Gen 2 speeds).

    • Features:

      • Right-angle USB-C plug permits easier connection in confined or hard-to-reach spaces
      • Supports USB 3.1 Gen 2 speeds up to 10 Gbps to ensure lightning-fast data transfers
      • Provides 3A (60W) power output for charging, syncing and powering mobile devices
      • Reversible USB-C plugs connect in either direction for immediate no-fuss use
      • USB-C to USB-C adapter compatible with all USB-C and Thunderbolt 3 devices
      • This product is covered by a Lifetime Limited Warranty
    • Specifications:

      • Physical
      • Color: Black
      • Material of Construction: PVC
      • Shipping Dimensions (hwd / in.): 5.90 x 3.90 x 0.50
      • Shipping Weight (lbs.): 0.02
      • Unit Packaging Type: Polybag

      • Operating Temperature Range: 32 to 113 F (0 to 45 C)
      • Storage Temperature Range: 14 to 158 F (-10 to 70 C)
      • Operating Humidity Range: 10% to 85% RH, Non-Condensing
      • Storage Humidity Range: 5% to 90% RH, Non-Condensing

      • Side A - Connector 1: USB C (male)
      • Side B - Connector 1: USB C (female) - RIGHT ANGLE
      • Connector Plating: Gold
      • Contact Plating: Gold

        Features & Specifications
      • USB Specification: USB 3.1 Gen 2 (up to 10 Gbps)
      • Technology: USB; USB 3.1 (Gen 2)

        Standards & Compliance
      • Certifications: Tested to CE, FCC, RoHS and REACH
    • Item Includes:

      • 1x U420-000-F-UD USB-C to C Adapter (M/F)
    • Warranty:

      • Lifetime Limited
    • GTIN:
