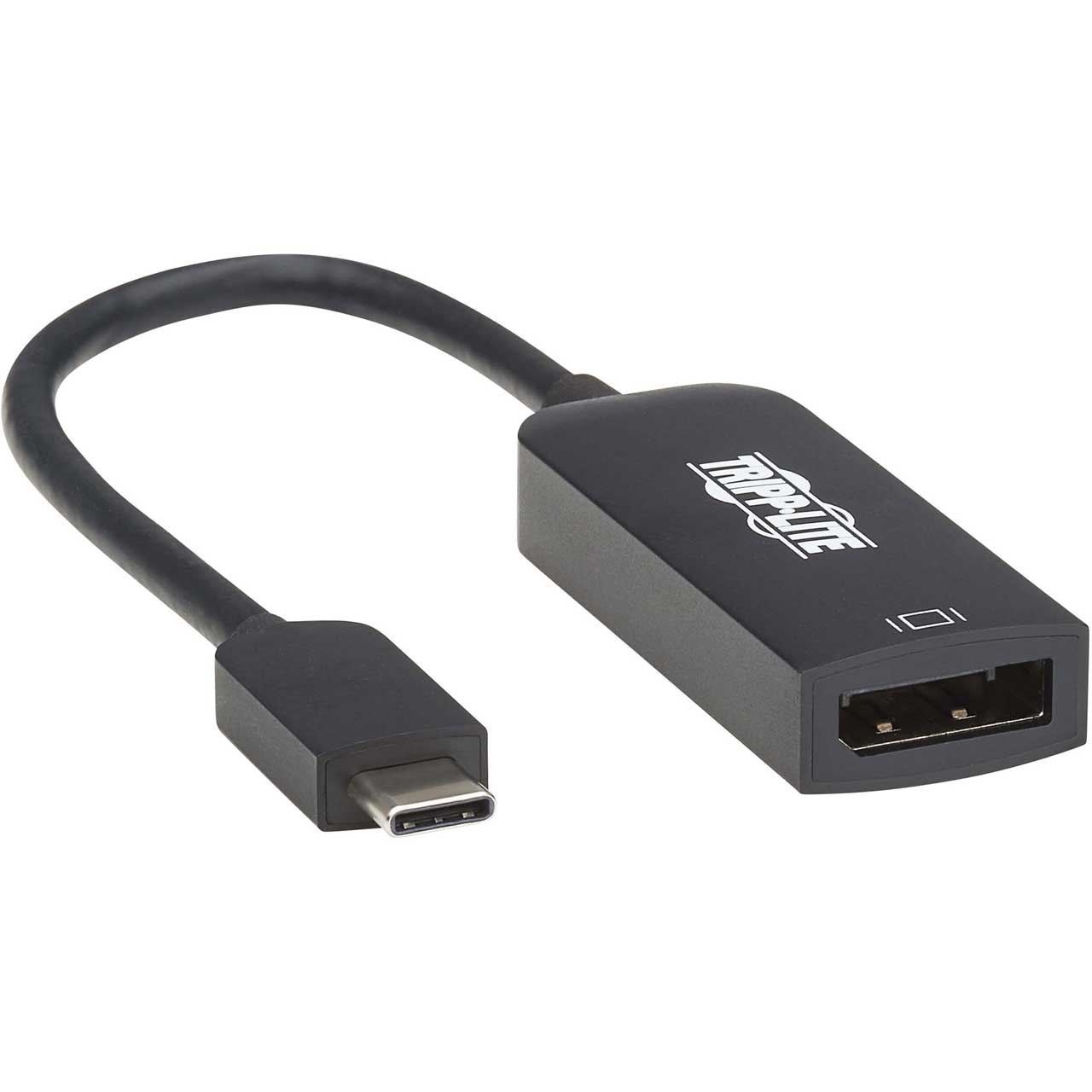

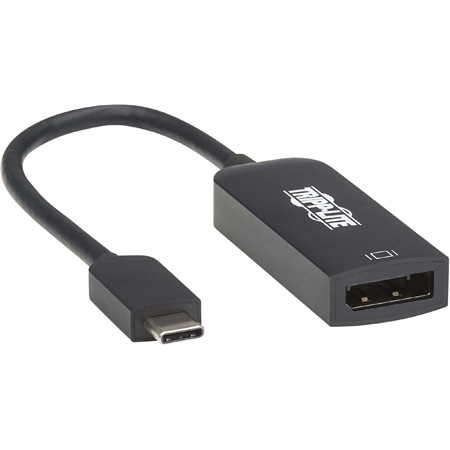

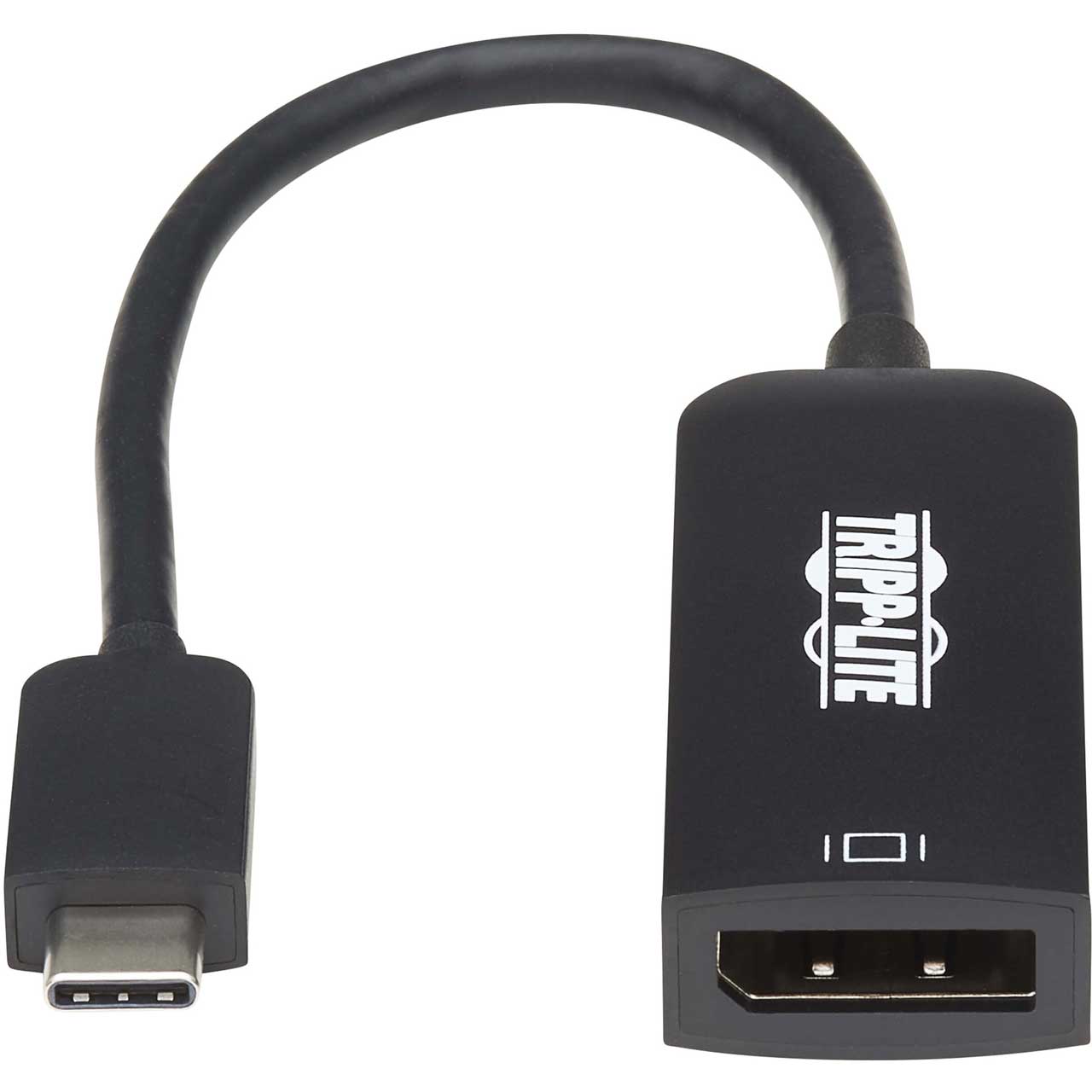

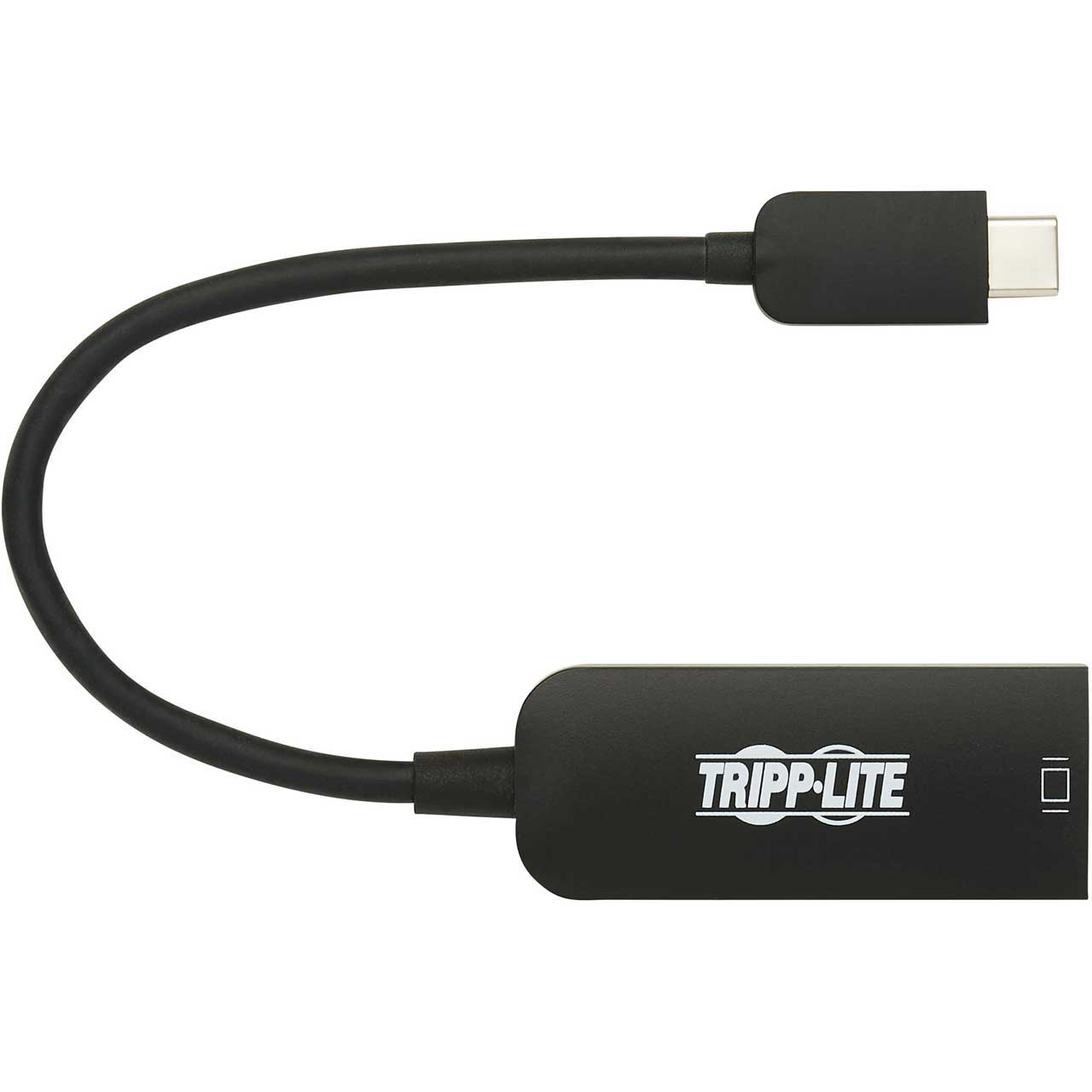

Tripp Lite U444-06N-DP8B USB-C to DisplayPort Adapter Cable with Equalizer 8K DP 1.4 - 6 Inch

ITEM #: TRL-U44406N-DP8B MFG #: U444-06N-DP8B

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$68.83

Our Price:

$29.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    U444-06N-DP8B - Overview

    USB-C to DP Converter Gets Your Gaming, Home Theater or Digital Signage Setup 8K-Ready
    This high-speed USB Type-C to DisplayPort adapter (M/F) connects a DisplayPort monitor, projector or television to the USB-C or Thunderbolt 3 port on your MacBook Pro, Windows laptop, tablet or media center. Backward compatible with all your existing USB-C sources and DisplayPort displays, the U444-06N-DP8B is ideal for future-proofing your 1080p or 4K audio/video application in anticipation of an 8K upgrade. It flawlessly handles data transfer speeds up to 32 Gbps.

    Supports USB-C DisplayPort 1.4 Alternate Mode for Converting Audio/Video Signals
    By connecting the USB-C cable to a source device that supports USB DisplayPort 1.4 Alt Mode, you can output 8K video and digital audio to a DisplayPort monitor, television or projector without installing special software drivers. The cable is backward compatible with DP 1.2 Alt Mode signals.

    Enjoy the Clarity of 4K/8K Video with Digital Audio, HDR and 4:4:4 Color
    The U444-06N-DP8B supports Ultra High Speed 8K video resolutions up to 7680 x 4320 at 30 Hz, as well as 48-bit Deep Color and HDR video, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This adapter supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. An equalizer built into the DisplayPort connector automatically adjusts the video image to perfect clarity.

    Reversible USB-C Connector Attaches in Either Direction
    Unlike traditional USB cables that connect in only one direction, the reversible USB-C male connector plugs into a USB-C or Thunderbolt 3 port in either direction for an instant connection every time.

    Ready to Use Right from the Package, So You Can Plug and Play Immediately
    The plug-and-play USB Type-C to DisplayPort adapter requires no software or external power. Just connect the USB-C plug to the USB-C or Thunderbolt 3 port on a source device that supports USB DisplayPort Alternate Mode, and connect the DisplayPort end to your monitor or HDTV with a DisplayPort cable (sold separately).

    • Features:

      • Converts audio/video signals from sources supporting USB DisplayPort Alt Mode
      • Supports UHD resolutions up to 8K @ 30 Hz (4:4:4) for enhanced video without latency
      • Supports High Dynamic Range (HDR) for richer contrast and expanded color accuracy
      • Reversible USB-C plug connects in either direction for immediate no-fuss use
      • Uni-directional plug-and-play cable directs A/V signals only from USB-C to DisplayPort

    • Specifications:

      • Video
      • Max Supported Video Resolution: 8K @ 30Hz (7680 x 4320)
      • Max Supported Color Depth: 48-bit Deep Color

        Battery
      • Battery Charging (5V/1.5A Port): No

        Physical
      • Color: Black
      • Cable Outer Diameter (OD): 4.2MM
      • Cable Jacket Material: TPE
      • Wire Gauge (AWG): 34/24
      • Cable Length (ft.): 0.5
      • Cable Length (in.): 6
      • Material of Construction: ABS
      • Shipping Dimensions (hwd / in.): 0.78 x 4.72 x 3.93
      • Shipping Weight (lbs.): 0.09
      • Unit Packaging Type: Box
      • Unit Weight (lbs.): 0.070

        Environmental
      • Operating Temperature Range: 32 to 113 °F (0 to 45 °C)
      • Storage Temperature Range: 14 to 158 °F (-10 to 70 °C)
      • Operating Humidity Range: 10 - 85% RH, NON-CONDENSING
      • Storage Humidity Range: 5 - 90% RH, NON-CONDENSING

        Connections
      • Ports: 1

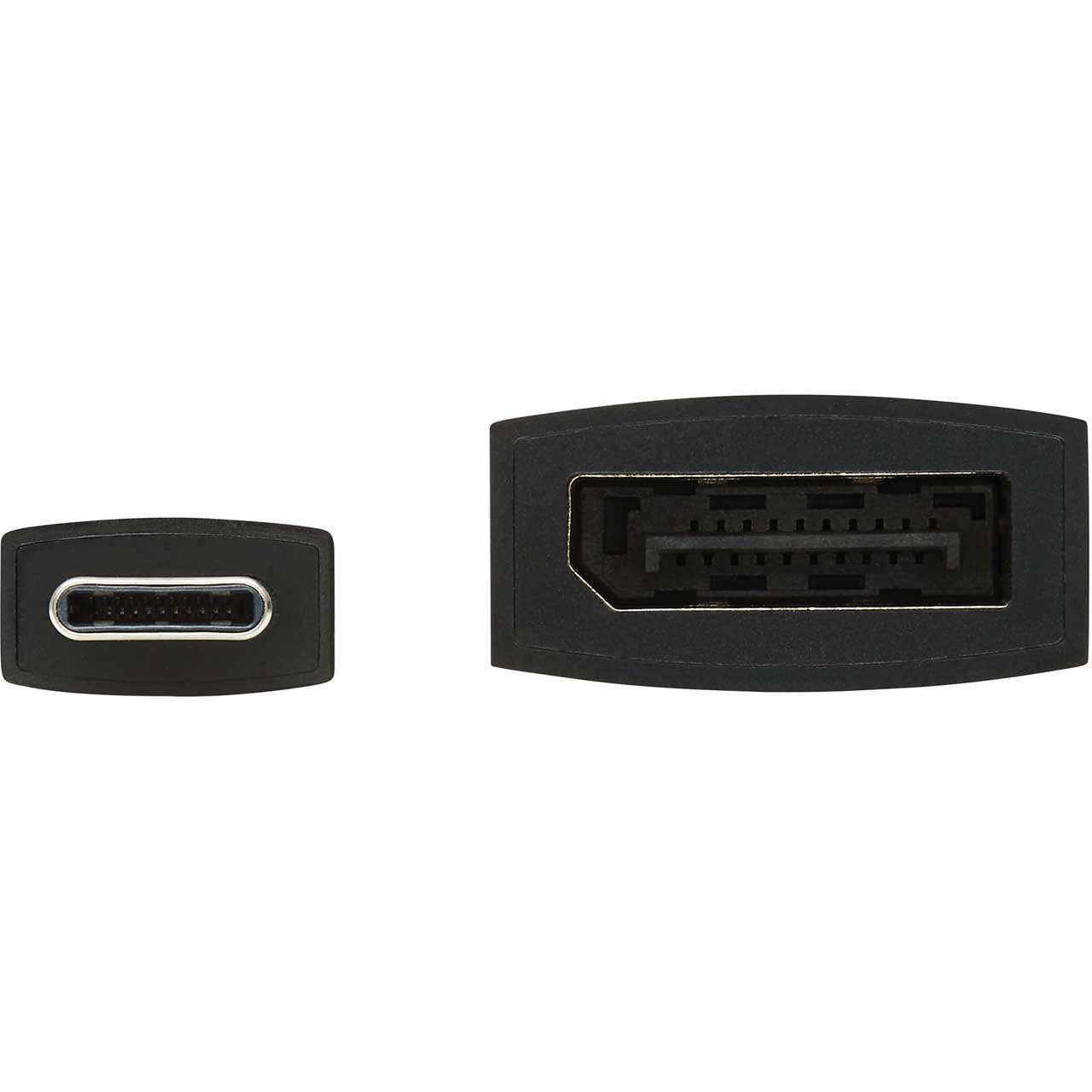

      • Side A - Connector 1: USB C (MALE)
      • Side B - Connector 1: DISPLAYPORT (FEMALE)
      • Connector Plating: Nickel
      • Contact Plating: Gold

        Features & Specifications
      • Displayport Specification: 1.2; 1.4
      • HDCP Specification: 1.4; 2.2
      • USB Specification: USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
      • Certifications: RoHS, REACH, CE, FCC, WEEE, ISO9001

    • Item Includes:

      • 1x U444-06N-DP8B USB-C to DisplayPort Adapter Cable, M/F, Black, 6 in.

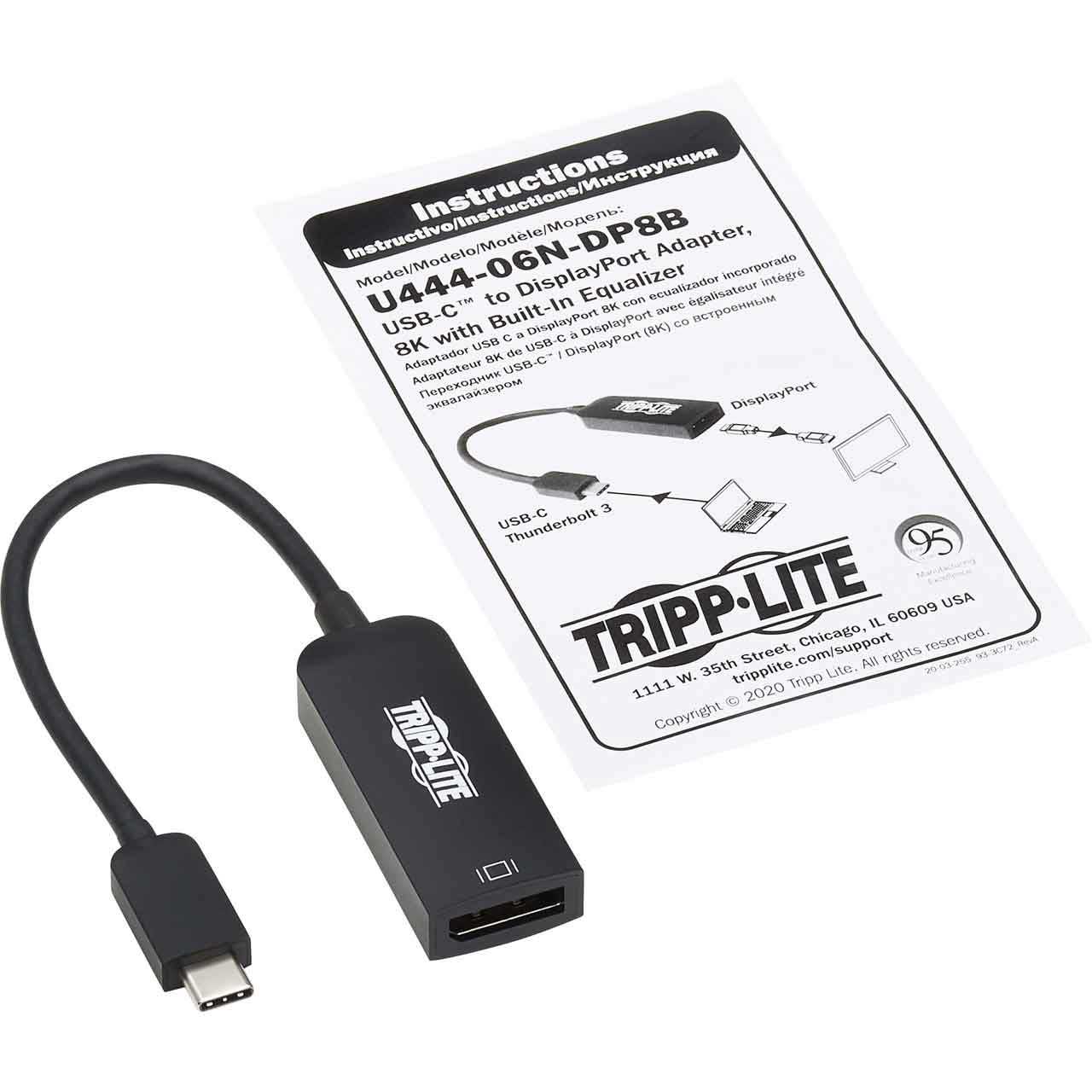

      • 1x Instruction sheet

    • Warranty:

      • 3 Year Limited Warranty

    • GTIN:

      0037332253934
