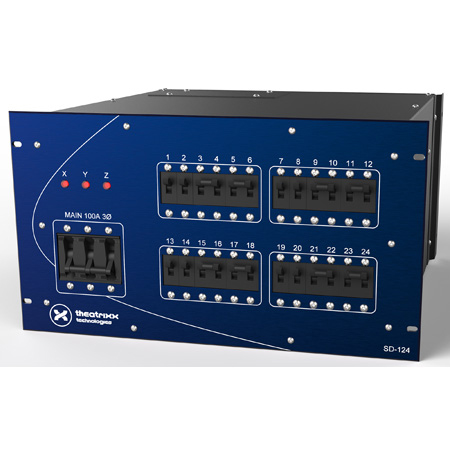

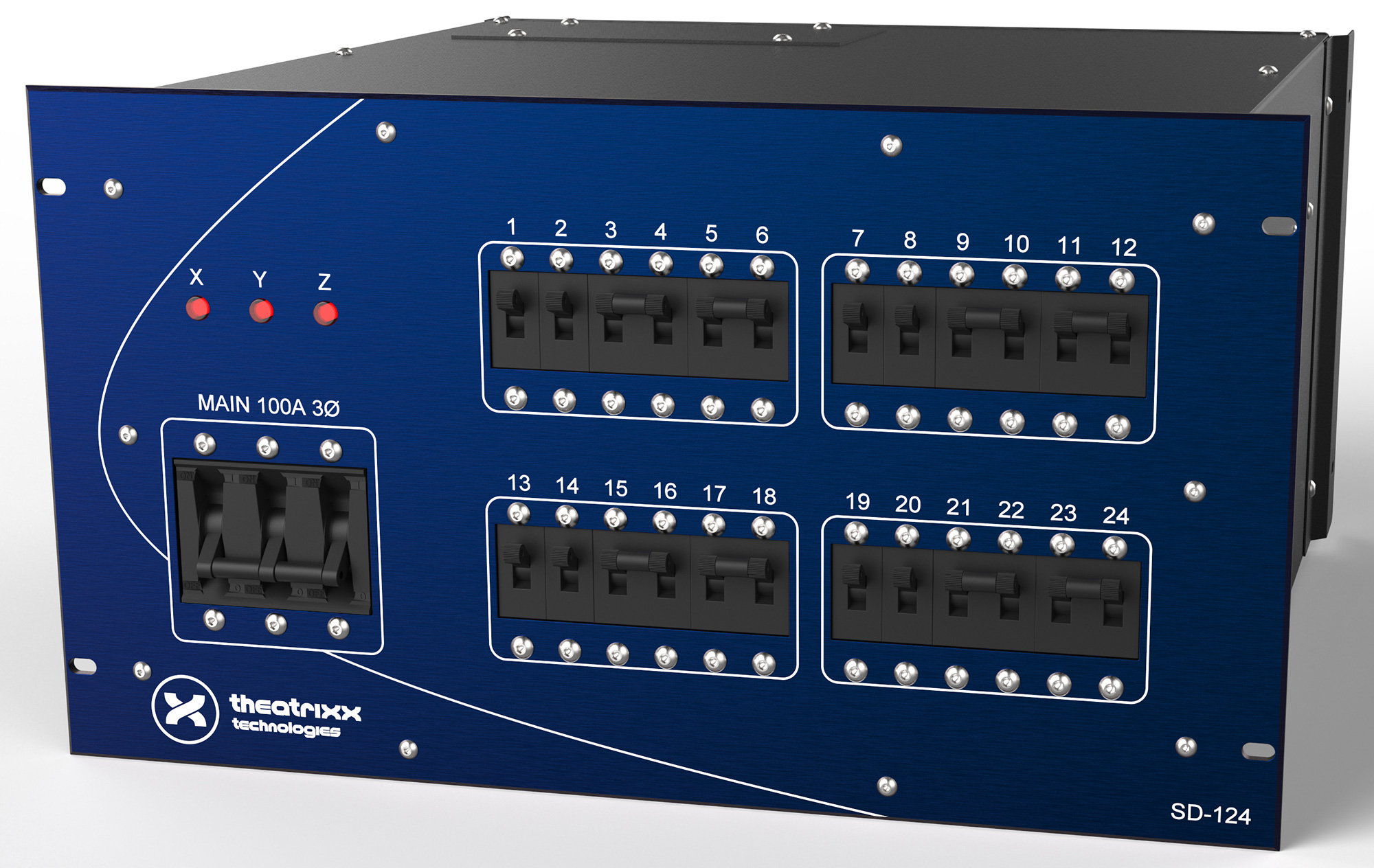

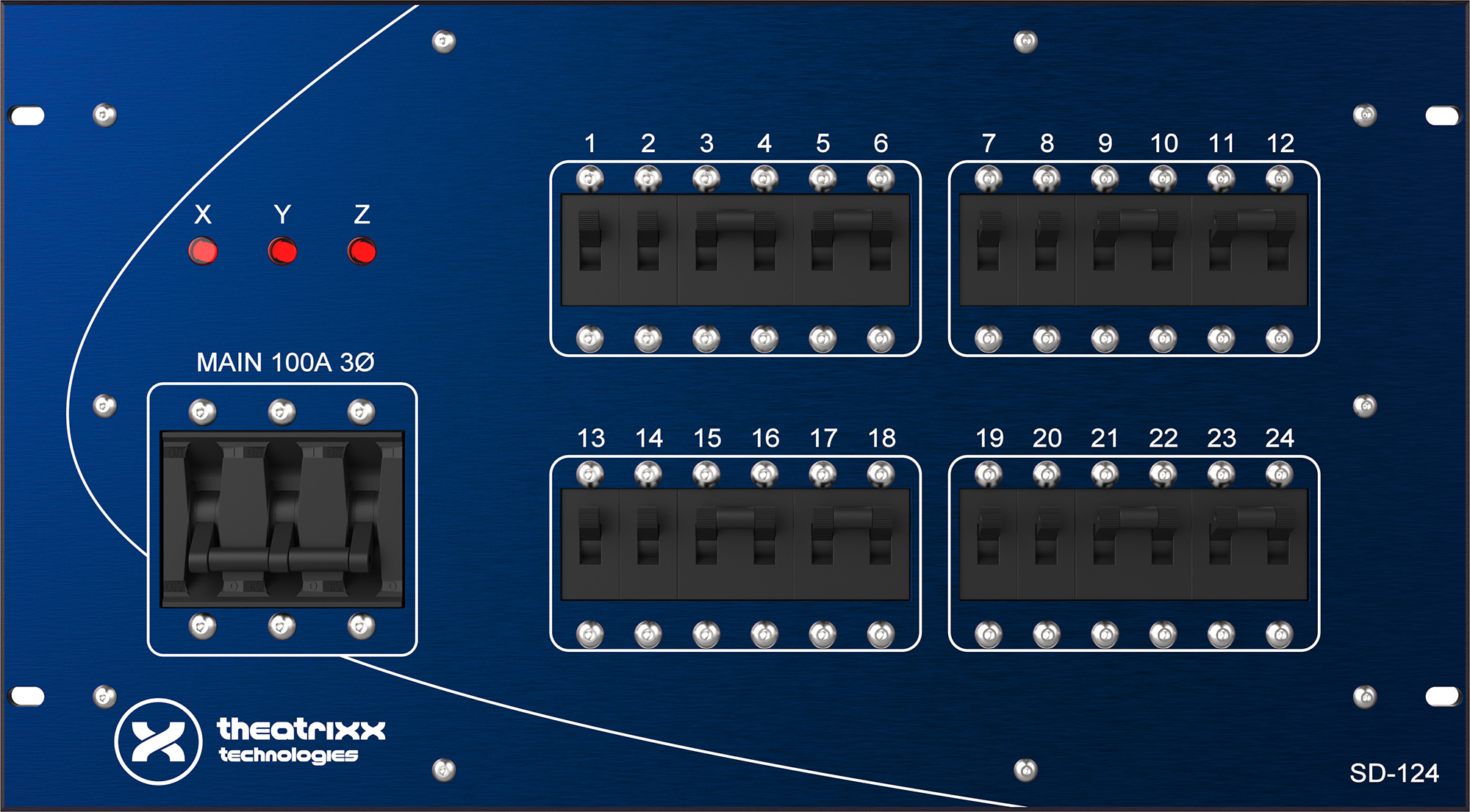

Built to withstand the daily hazards of touring, the SD-124-C-GNR Theatrixx electrical distribution features rack mount power distribution capabilities in only six rackmount units. The front panel is cut from a thick 3/16" aluminum sheet and is fixed to a robust steel chassis with rear support. All breakers can be installed behind the front plate with a spacer ensuring their protection by being recessed (optional).

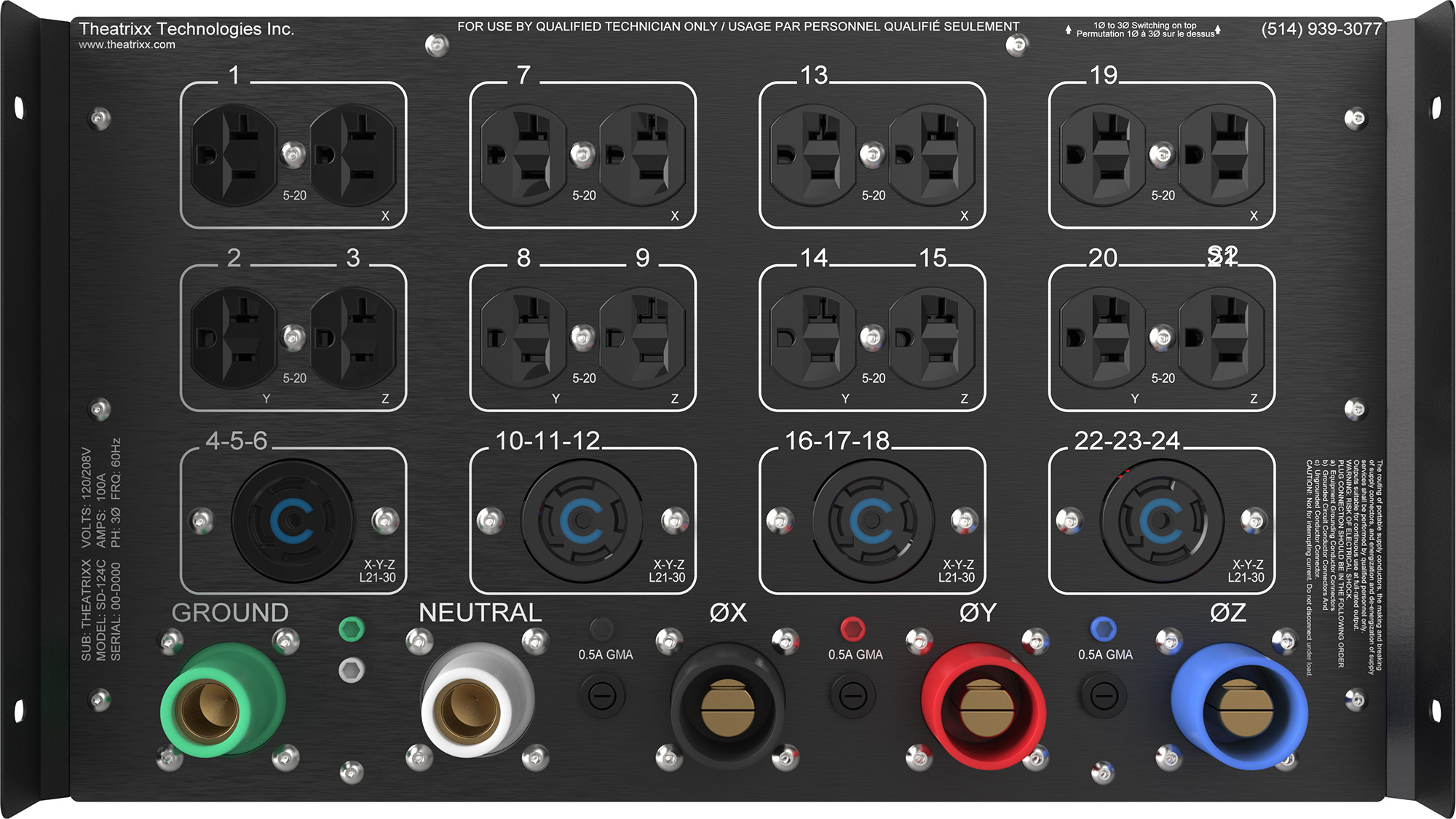

This power distribution system comes with a three phases 100A main circuit breaker on Camlock connectors input with Ground/Neutral reversed connection for maximum safety. The electricity is distributed on 16 circuits available on eight Edison duplexes (20A 125V) and four L21-30 (TL5 30A 120/208V 3 phases) receptacles. Panel mounted test terminals with neon indicators allow quick and easy voltage checks. In addition, you can easily switch from 1 to 3 phases operation through a small access door on the top of the unit.
This type of power distribution is designed for audio and stage power. All products are CSA (22,2 No 14) and UL (1640) certified.
All Theatrixx power and signal distribution products are configurable and can be customized to meet your project's specific needs. Please contact [email protected] for details.
