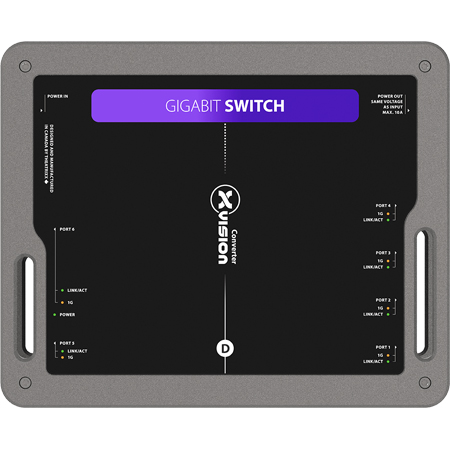

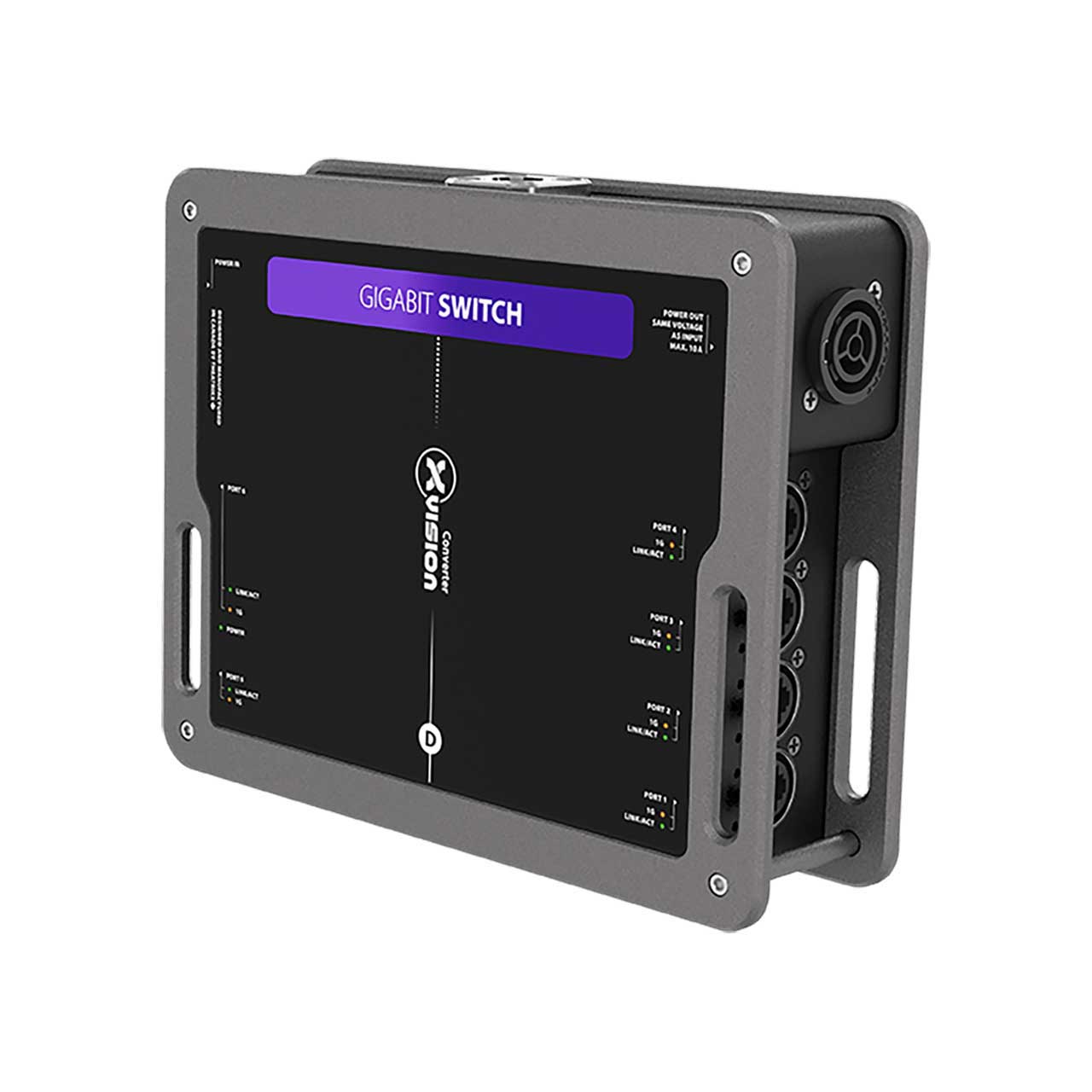

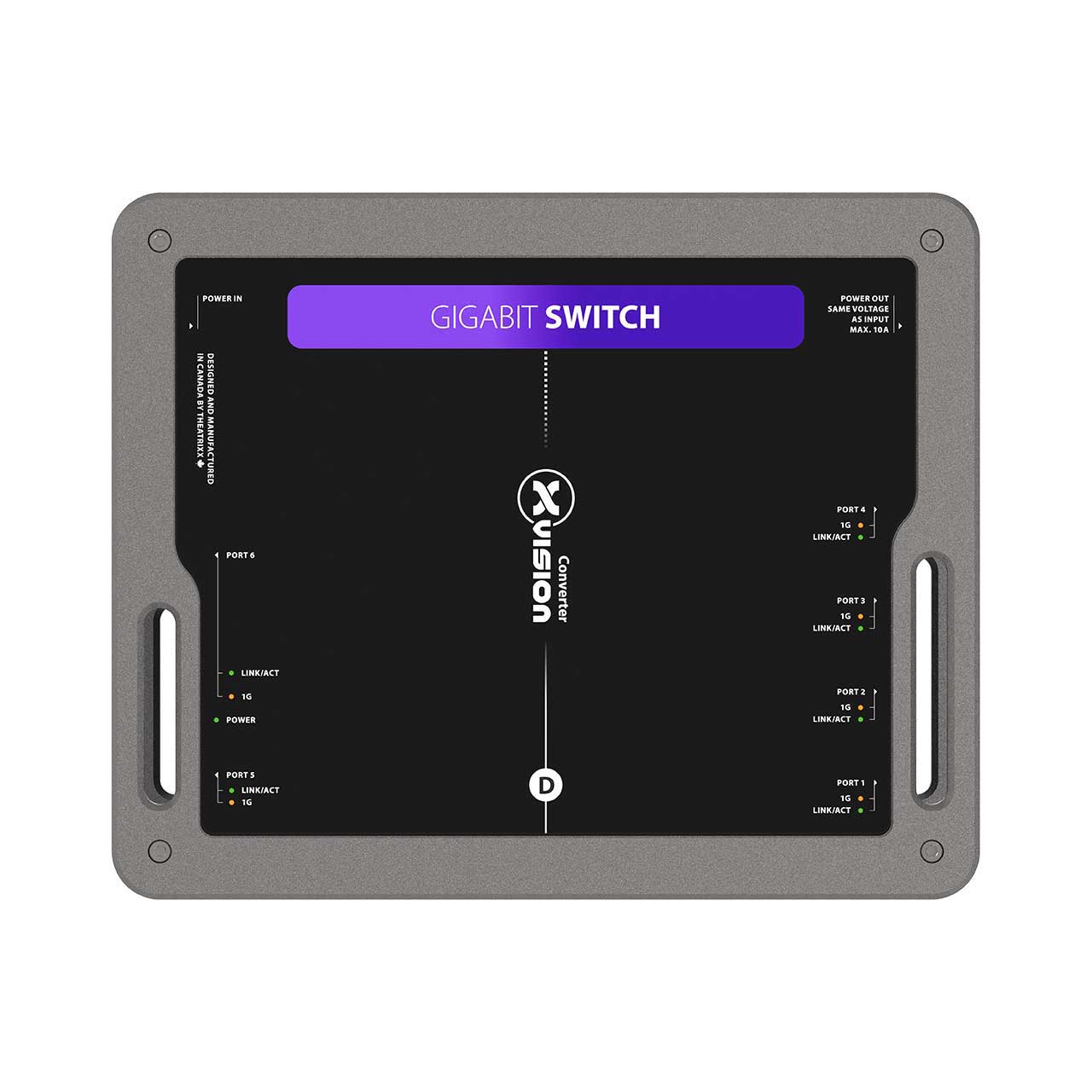

Theatrixx XVVNETSW-1GM2 xVision Converter 5-Port Gigabit Network Switch - PT1 In/Thru - Multimode - OpticalCON Duo

ITEM #: TTX-XVVNETSW1GM2 MFG #: XVVNETSW1G-M-2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,120.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    XVVNETSW1G-M-2 - Overview

    The Theatrixx XVVNETSW-1GM2 is an xVision 5-Port Gigabit Network Switch, Multimode, with a built-in power supply with PowerCon True1 input & loop thru.

    Professional equipment in mission-critical applications is all about reliability and confidence. So Theatrixx started with a clean sheet, and built what might soon become your most trustworthy piece of equipment. Introducing xVision, the world's first video converters truly designed for the road.

    Video converters nowadays are used everywhere on profesional A/V events, presentations, live shows and tours and often have a critical role, yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. Theatrixx wanted to change that, so they designed the XVVNETSW-1GM2 xVision Video Converter.

    • Features:

      • Integrated power supply with locking PowerCON connector - Never rely on a cluster of wall-warts again.
      • Built-in convenience 120V outlet to power nearby projector, TV, laptop, small video projector - Power bar to power both the converter and device not required anymore.
      • Magnetic stacking system and non-skid rubber pad - Saves at least 10 gaffer tape rolls a year.
      • Multiple mounting options - C-Clamp, wall-mount adapter, LCD mount adapter and belt adapter.
      • Rugged, Tour-ready and aesthetic enclosure - The sexiest widget in your tool box, that will keep looking good for years to come.
      • Plug-n-play operation - No dipswitches, buttons or menus to fumble with - It just works.
      • Clear and ample status LED indicators for quick troubleshooting - Easy on-the-field identification with unique color and alphabetic coding system.
      • Proudly designed and assembled in Canada.

    • Specifications:

      • Connections

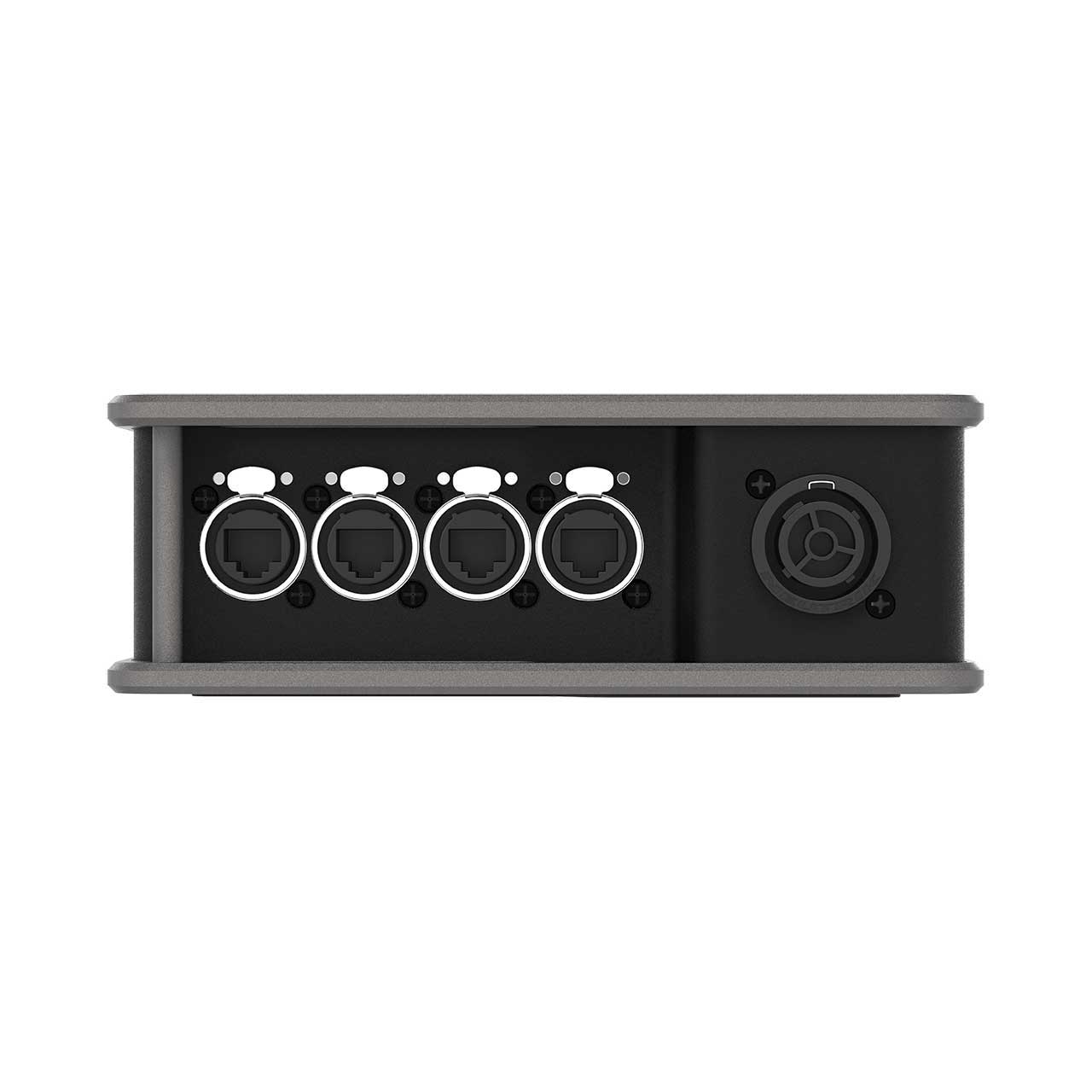

      • Ethernet Ports: 5 x 1Gbps Ethernet on Shielded Neutrik

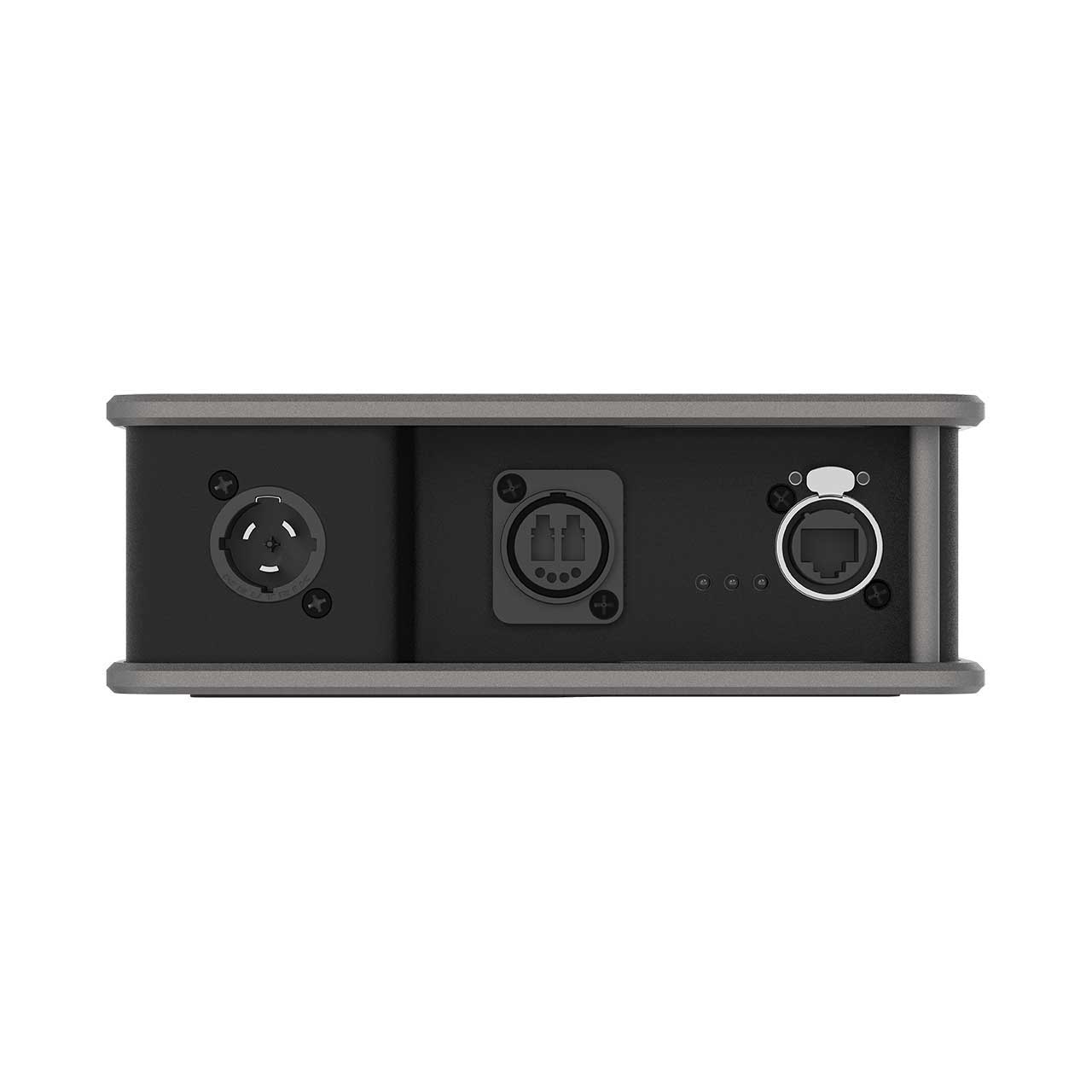

      • Fiber: 1 x 1Gbps or 2.5Gbps Optical Ethernet, SFP-based - Multimode - Neutrik OpticalCON DUO

      • Supported Signals & Supported Protocols
      • IEEE 802.3 / IEEE 802.3ab Gigabit Ethernet

      • Physical Specifications
      • Height: 62 mm (2.44 in)
      • Depth: 180 mm (7.08 in)
      • Width: 221 mm (8.7 in)
      • Weight: 2 kg (4.4 lbs)

      • Environmental Specifications
      • Operating Humidity: 0% to 90% non-condensing
      • Operating Temperature: 0-40 °C

      • Power requirements
      • Built-in power supply: PowerCON True1 input and PowerCON True1 output (loop-thru)
      • Power Consumption: 45W max.
      • Voltage Range: 100-240V, 50-60Hz
      • Courtesy Outlet: Max 10A, same voltage as input

    • Item Includes:

      • 1x xVision Gigabit Network Switch
      • 1x US AC Mains to PowerCON True1 cable (1.5m)

    • Warranty:

      • 5-Year Limited
