Theatrixx XVVSDIDA4T1 xVision Video Converter 3G-SDI Distribution Amplifier 1:4 - PowerCON True1

ITEM #: TTX-XVVSDIDA4T1 MFG #: XVVSDIDA4T1

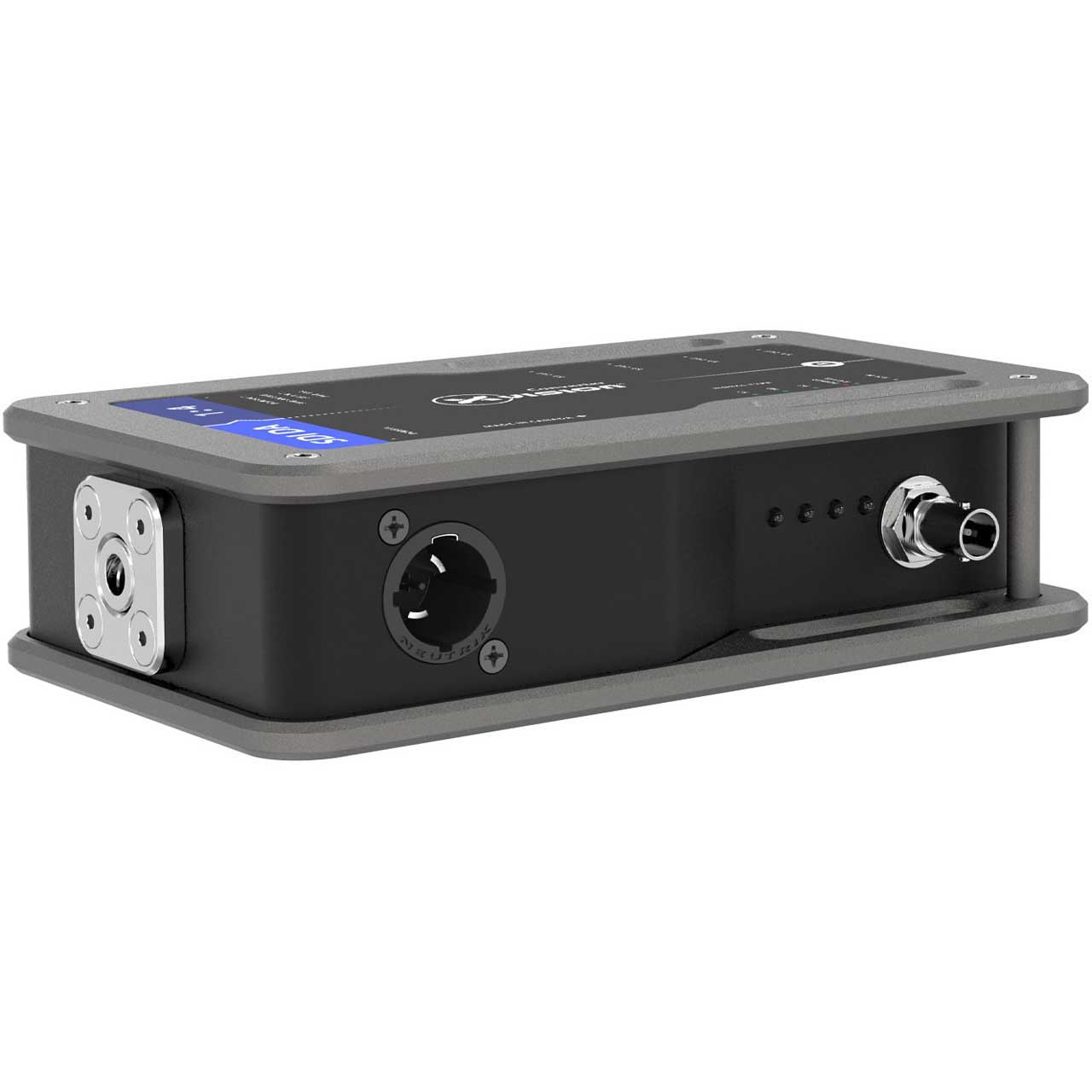

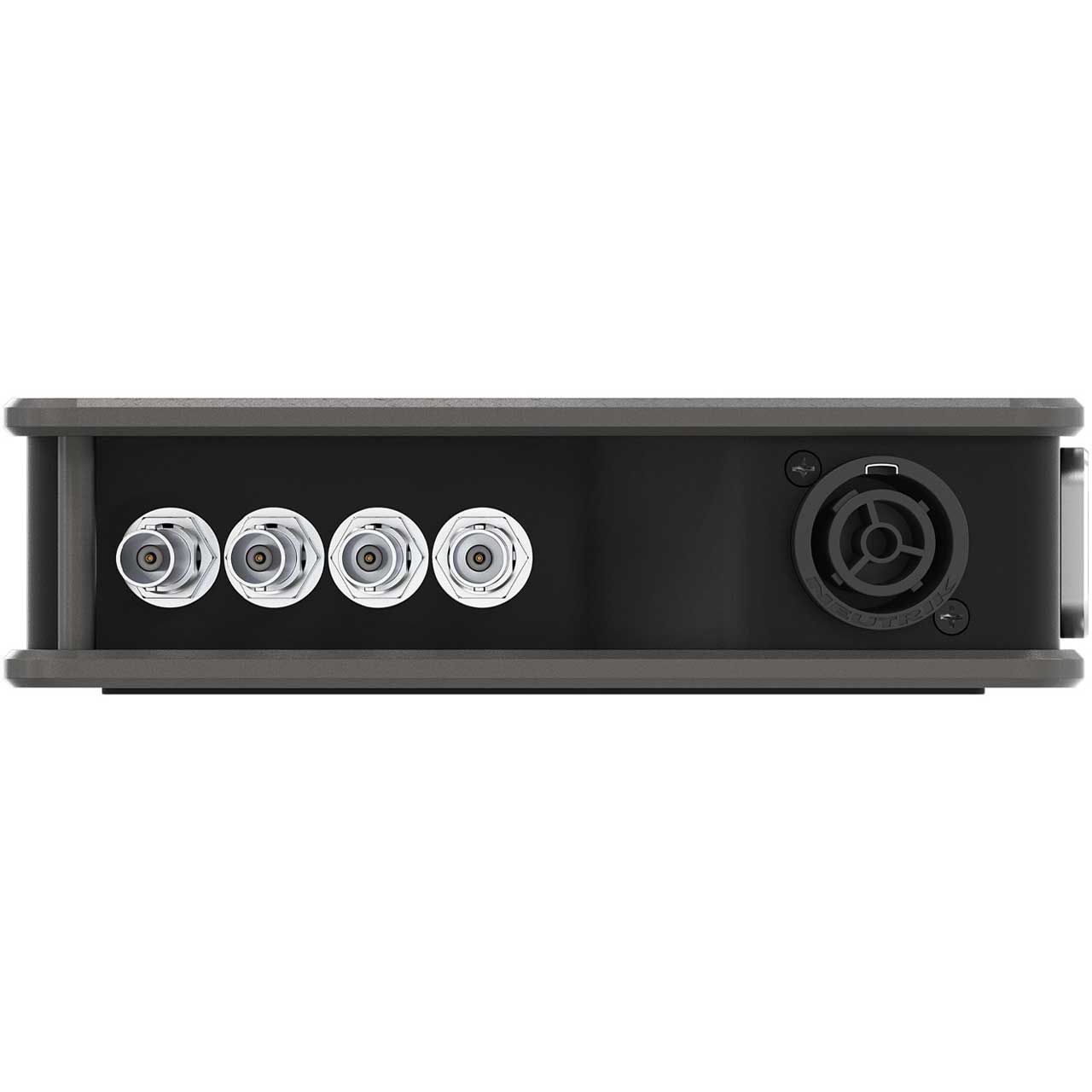

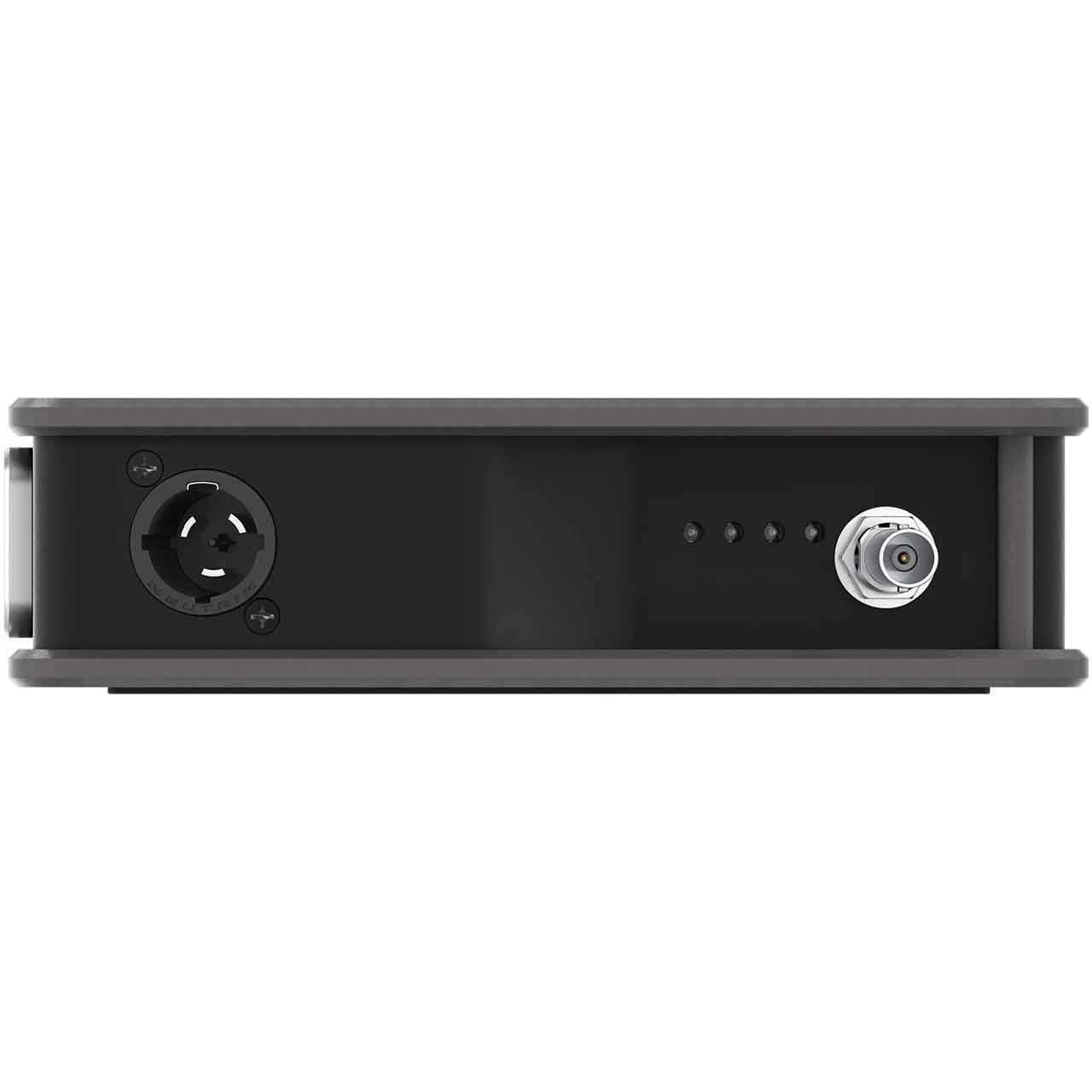

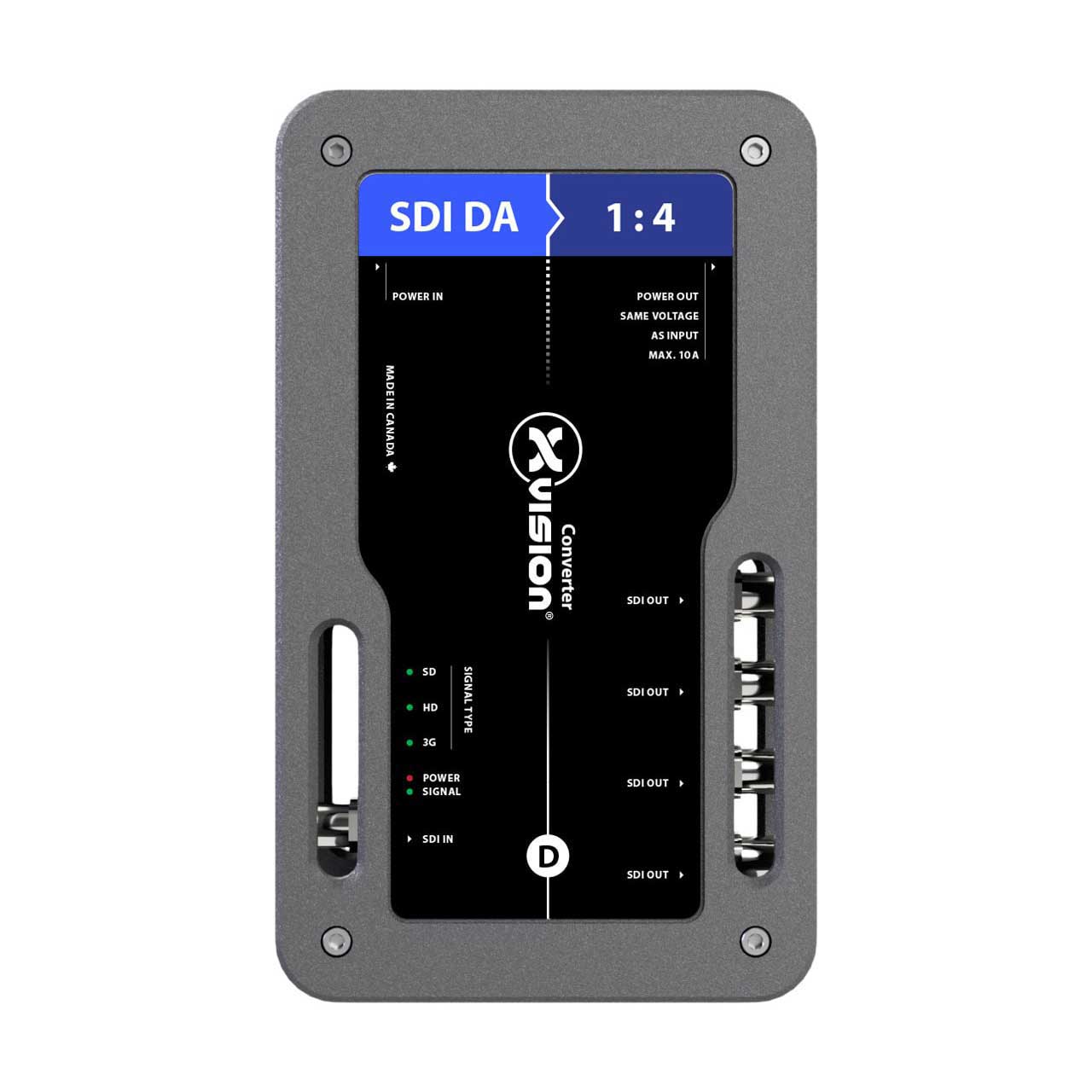

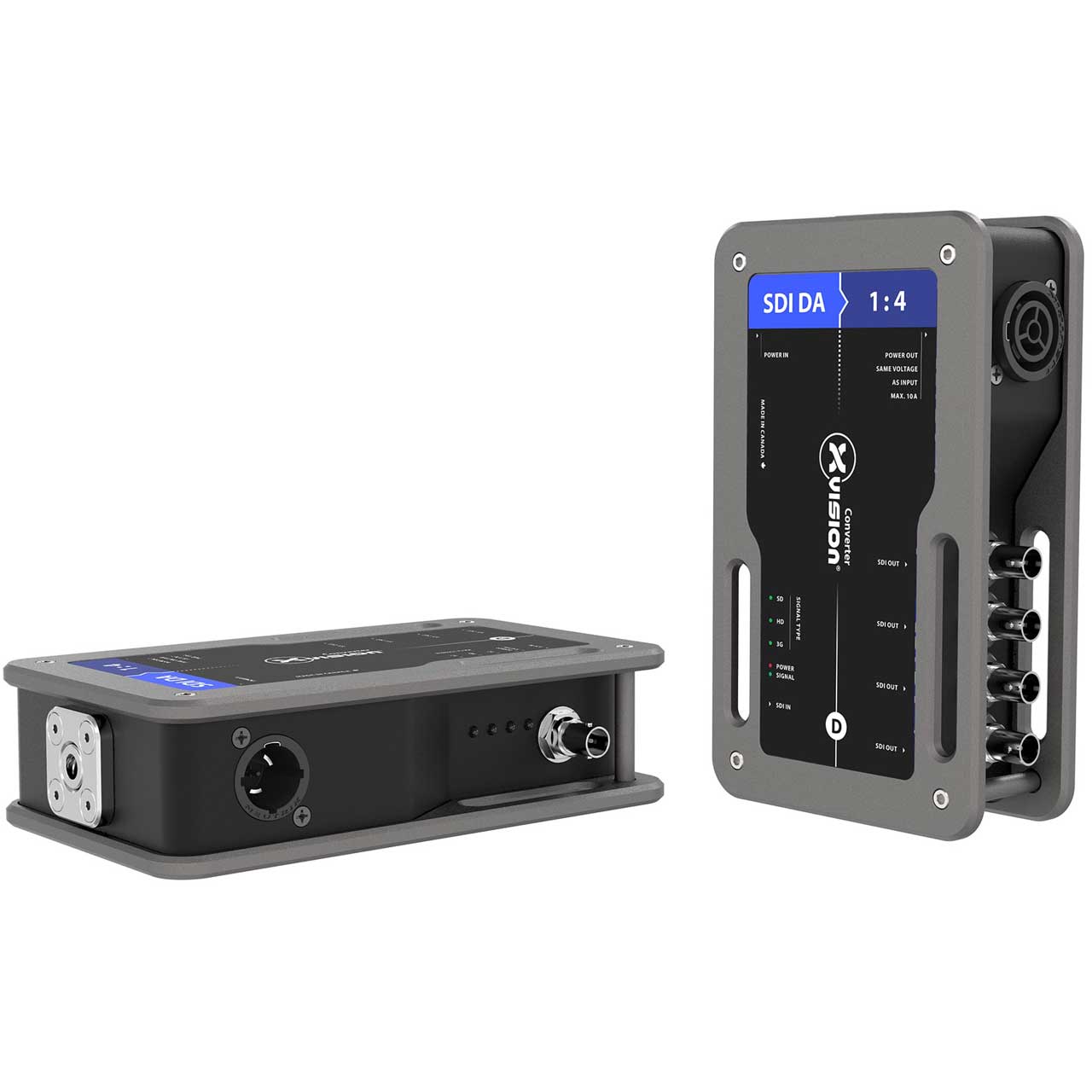

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$590.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    XVVSDIDA4T1 - Overview

    Pofessional equipment in mission-critical applications is all about reliability and confidence. So we started with a clean sheet, and built what might soon become your most trustwor- thy piece of equipment.

    Introducing the world's first video converters truly designed for the road. Video converters nowadays are used everywhere on profesionnal A/V events, presentations, live shows and tours and often have a critical role.

    Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. We wanted to change that, so we designed the xVision Video Converters.

    • Features:

      • Integrated power supply with locking PowerCON True1 connector. Never rely on a cluster of wall-warts again.
      • Built-in convenience 120 V outlet to power nearby projector, TV, laptop, small video projector. Power bar to power both the converter and device not required anymore.
      • Magnetic stacking system and non-skid rubber pad. Saves at least 10 gaffer tape rolls a year.
      • Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adaptor.
      • Rugged, Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.
      • Plug-n-play operation; No dipswitches, buttons or menus to fumble with: It just works.
      • Clear and ample status LED indicators for quick troubleshooting.
      • Easy on-the-field identification with unique color and alphabetic coding system.
      • All outputs fully reclocked and amplified.
      • Proudly designed and assembled in Canada.

    • Specifications:

      • Connections
      • Video Input: 1 x 3G/HD/SD SDI BNC
      • Video Output: 4 x 3G/HD/SD SDI BNC (reclocked and amplified)

        Supported Signals
      • 3G Format Support: 1080p50, 1080p59.94, 1080p60.
      • HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30
      • SD Format Support: 525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL
      • SDI Video Sampling: 4:2:2 and 4:4:4
      • SDI Audio Sampling: Sample rate of 48 kHz and 24 bit
      • SDI Color Space: YUV and RGB
      • SDI Auto Switching: Automatically detects incoming signal format
      • SMPTE Standards: 425 M Level A & B, 424 M, 292 M, 259 M

        Physical
      • Height: 50 mm (1.97 in)
      • Depth: 180 mm (7.08 in)
      • Width: 107 mm (4.21 in)
      • Weight: 1 kg (2.2 lbs)
      • Alternate Form Factor: Also available as a Reversible Module

        Environmental
      • Relative Humidity: 0% to 90% non-condensing
      • Operating Temperature: 0-40 °C

        Power Requirements
      • Power Supply: Built-in power supply
      • PowerCON input: Edison Nema 5-15 output (loop-thru)
      • Power Consumption: 15W
      • Voltage Range: 100-240V, 50-60Hz available with PowerCON True1
      • Courtesy Outlet: Max 10A, same voltage as input

    • Item Includes:

      • 1x xVision Converter SDI Distribution Amplifier 1:4
      • 1x AC Mains to PowerCON True1 cable (1.5m)
