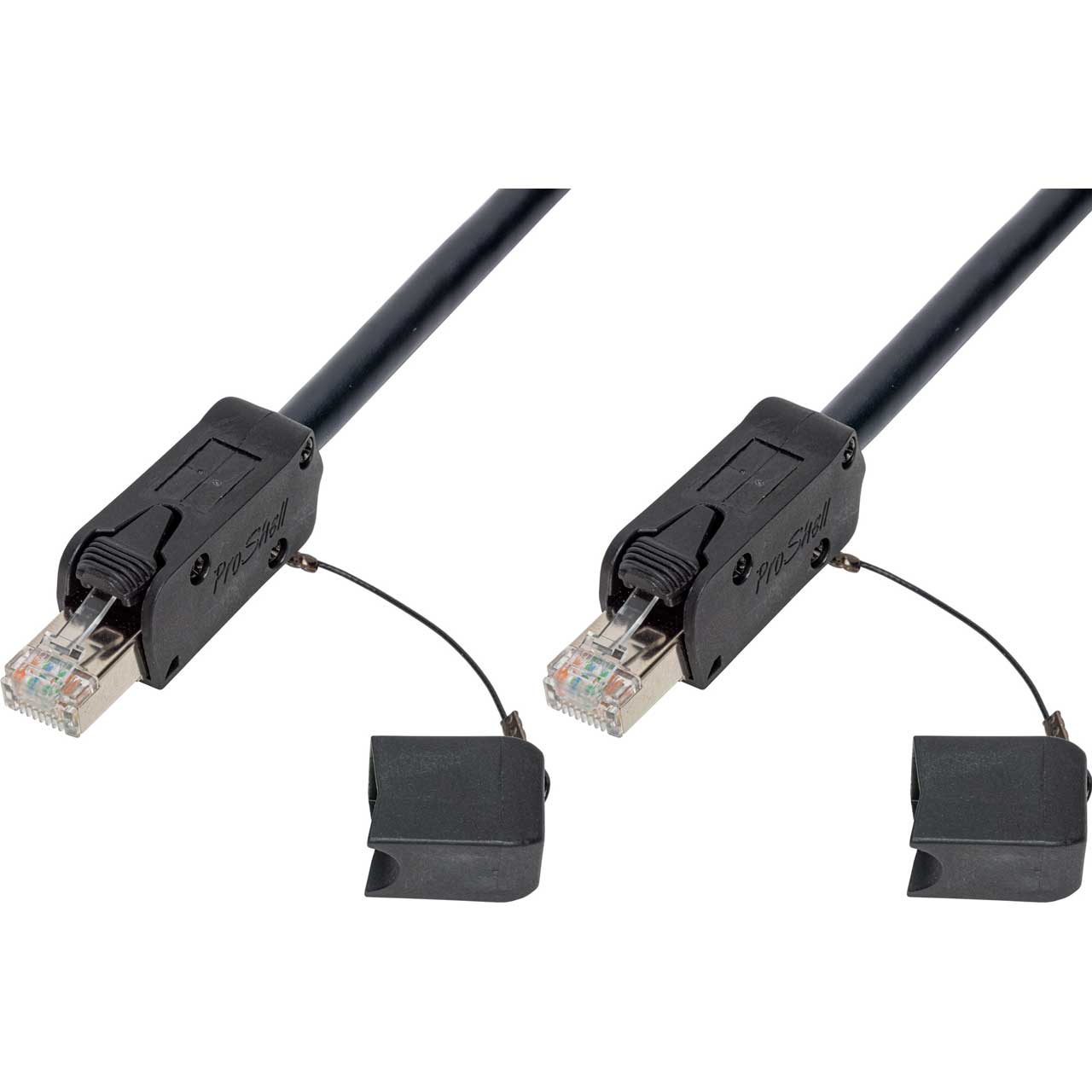

Laird TUFFCAT-S Canare Shielded CAT5e Cable w/ Shielded RJ45 Connectors and Proshell Connector Covers - 150 Foot

ITEM #: TUFFCAT-S-150PS MFG #: TUFFCAT-S-150PS

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$309.95

Our Price:

$280.49

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


TUFFCAT-S-150PS - Overview

The Laird TUFFCAT-S-PS series delivers a super rugged, flexible and shielded CAT5e cable for a field and on-location cable ruggedness you won't find anywhere else. Cables employ Canare’s RJC5ES-4P-BS flexible and durable CAT5e STP cable which features stranded conductors and an overall braided shield. This cable provides superior flexibility for easy routing and repeated bending. The cable is officially tested and approved for EtherSound ES-100 audio transport. The Laird TUFFCAT-S-PS is terminated with Platinum Tools Shielded RJ45 connectors which are built with a hi-lo stagger design to isolate each conductor at the point of termination making the end result a performance beyond enhanced Cat5e. Laird also includes the patented ProShell connector cover which turns a conventional RJ45 connector into a robust connector solution capable of repeated connections while maintaining mechanical and electrical integrity. The only solution available that doesn't require specialized connectors at both ends, the ProShell can be used with standard hardware. All in all, the Laird TUFFCAT-S shielded cable provides a solution designed to avoid alien crosstalk interference. This CAT5e Ethernet cable is designed for 10BASE_TX, 100BASE_TX, and 1000BASE_TX anbd is officially tested and approved for EtherSound ES-100 audio transport!

  • Features:

    • Superior Flexibility for Easy Routing & Repeated Bending
    • Ruggedized Cable & Connectors Designed for Repeated Connections
    • Shielded RJ45 Connectors with Strain Relief for Easy Handling
    • Integral Latch Protection & Optimal Protective Caps - PS Version

  • Specifications:

    • Canare RJC5ES-4P-BS CAT5e Cable
    • 24 AWG Twisted Pair Ethernet Cable
    • PVC Jacket
    • Shielded Twisted Pair Stranded Conductor, Overall Braided Shield
    • Insulation: Cross-Linked Polyethylene
    • Cond. D.C.R.: 9.5 Ohms
    • Characteristic Impedance: 100 Ohms
    • Max Attenuation @100MHz: 13.4dB/100ft
    • Dielectric Strength: 350V AC/min.
    • Nom O.D. 0.26 inch
    • UL and RoHS Compliant RJ45 Connectors

  • Warranty:

    • Limited Lifetime
