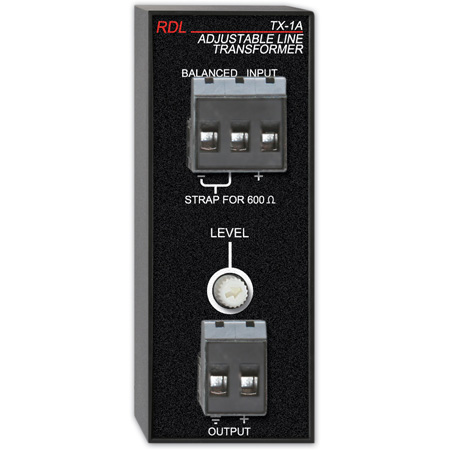

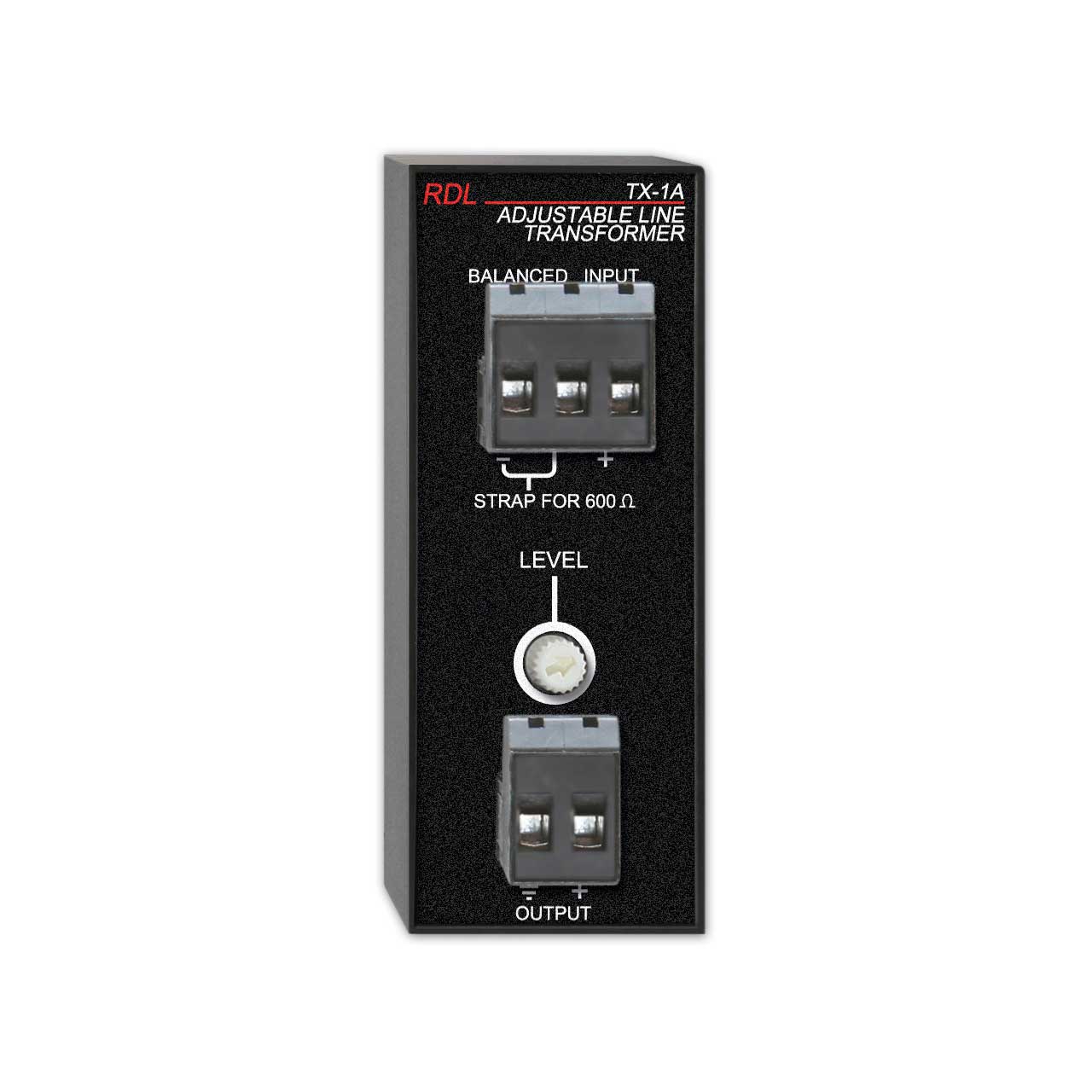

RDL TX-1A Balanced to Unbalanced Transformer - Adjustable

ITEM #: TX-1A MFG #: TX-1A

free ship

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    TX-1A - Overview

    The RDL TX-1A is used primarily for galvanic isolation and format conversion between equipment. Conversion from -10 dBV consumer level up to +4 dBu professional level requires voltage gain. The transformer in the TX-1A has a 1:1 ratio and uses an adjustable attenuator circuit at its output to lower the output signal to the level required. The module cannot provide voltage gain.

    RDL offers several premium quality conversion amplifiers to produce professional signals from consumer sources. RDL also offers a passive transformer based converter, the TX-AFC1M. This module provides level and format conversion from+4 dBu professional level to -10 dBV in exceptional quality.

    • Features:

      • Provides transformer isolation between balanced line and unbalanced input
      • Level trimpot adjusts output 4 to 24 dB below input level
      • Input may be 10 k Ohm bridging or 600 Ohm terminated
      • Frequency response 20 Hz to 20 kHz (+/- 0.5 dB)
      • THD: < 0.05% (1 kHz)
    • GTIN:


    TX-1A - Required Accessories

      TX-1A - Recommended Accessories
