    TX-A2D - Overview

    The RDL TX-A2D is the ideal choice in installations requiring passive isolation and level attenuation between a professional balanced line-level stereo source and consumer equipment unbalanced inputs.

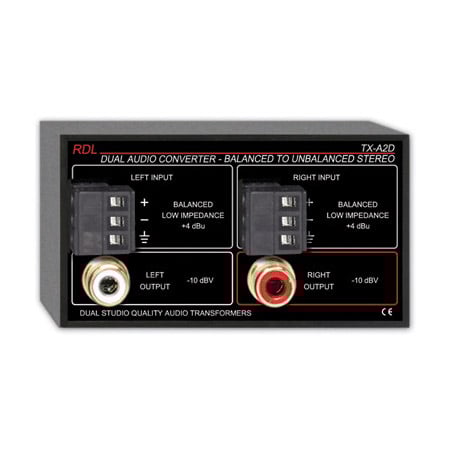

    The TX-A2D is a complete unbalanced stereo line-level audio output module. The front panel provides a detachable terminal block for connecting each channel of a balanced +4 dBu audio source. The input signals are coupled to two front-panel gold plated phono jacks through studio-quality isolation transformers. Each output is coupled through an attenuation network that produces a nominal -10 dBV level. Shielding is provided by the TX-A2D's heavy duty aluminum enclosure.

    Wherever professional format audio signals need to be converted to an unbalanced line level, the TX-A2 and TX-A2D are an ideal choice. Use them individually or in conjunction with other RDL products as part of a complete audio/video system.

    • Features:

      • Unbalanced Audio Outputs from a Stereo Balanced Line
      • Balanced to Unbalanced Conversion
      • Stereo Input to Stereo Output
      • +4 dBu Input Level to -10 dBV Output Level
      • Studio-Quality Transformer Isolation
      • Passive Converter with Output Jacks
    • Specifications:

      • Input connector 2: Detachable terminal block
      • Input level: +4 dBu nominal; +22 dBu max
      • Output connectors (2): Gold plated phono jacks
      • Output level: -10 dBV nominal
      • Frequency response (line level): 20 Hz to 20 kHz (±0.5 dB)
      • Crosstalk: <-80 dB (20 to 20 kHz, ref. -10 dBV); <-90 dB (1 kHz)
      • Total Harmonic Distortion: <0.05% (20 Hz to 20 kHz, +4 dBu input); <0.01% (1 kHz)
      • Dimensions: Height: 2.4 in. 6.1 cm; Length: 3.0 in. 7.6 cm; Width: 1.6 in. 4.04 cm
      • Package Type: Cardboard Box
      • Package Dimensions: 3.625 x 4.625 x 2.125 in.
      • Shipping Weight: 0.89 lbs.
      • WEEE weight: 0.737 lbs.
      • Tariff code: 8543.70.9960
      • Ambient Operating Environment: 0° C to 55° C
    • Item Includes:

      • 1x RDL TX-A2D Dual Audio Converter - Balanced to Unbalanced
    • GTIN:
