UNiKA NBB-04R Cascadable 4-Channel Analog Audio DANTE Receiver with Dual RJ45 and 4 Combo XLR 1/4-Inch Jacks

Item #: UPA-NBB-04R MFG #: NBB-04R

close - X

UNiKA NBB-04R Cascadable 4-Channel Analog Audio DANTE Receiver with Dual RJ45 and 4 Combo XLR 1/4-Inch Jacks
  • Product Image Thumbnail
  • Product Image Thumbnail
free ship

Our Price: $499.00

Availability: More on the way, usually ships in 3-10 business days

This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.

    The UNiKA NBB-04R and NBB-04T adopt Audinate Dante networking technology for audio transceiving, and are very network friendly with unlimited flexibility in topology of deployment. They support up to Layer 3 of IEEE 802.3 network standard, enabling you to organize your audio network with the on the-shelf Ethernet switches or to immediately transport streaming audio by taking advantage of your existing installed network facility with no hassle. Even better, every NBB-04R/NBB-04T comes with two Ethernet ports which allow you to physically cascade several NBB-04Rs/NBB-04Ts in the same network link. Accompanying with Ethernet switches, this capability helps NBB-04R/NBB-04T gaining flexibility and expanding territory in device deployment in audio networking.

    Audio routing among NBB-04Rs/NBB-04Ts and all the other Dante-enabled devices is configured via computer with dedicated Dante Controller software which is available free from Audinate website. With Dante Virtual Soundcard software, you are even able to have your DAW software direct record/play multitrack streaming audio from/to NBB-04R/NBB-04T.

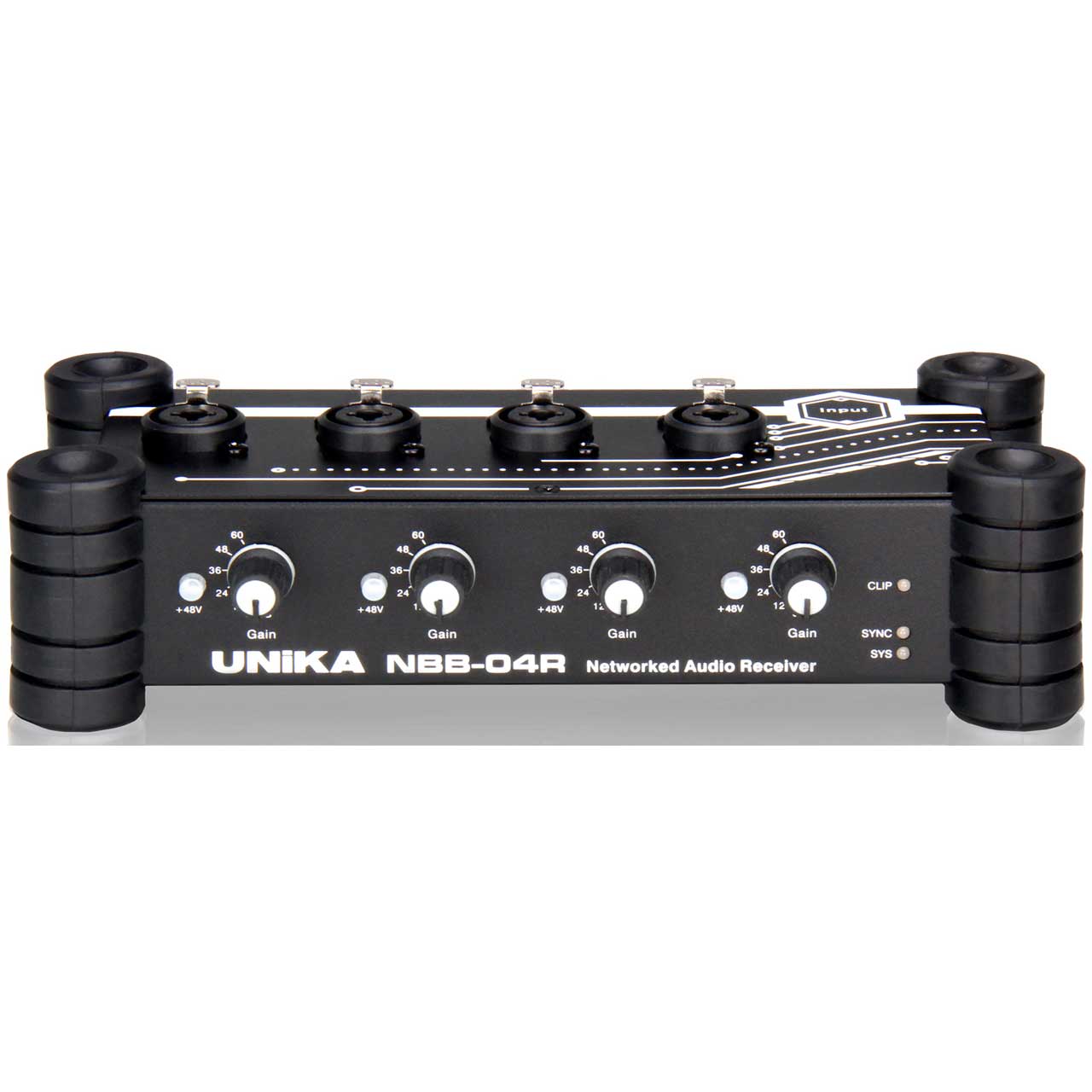

    The audio input/output interfaces of NBB-04R/NBB-04T are fully met the requirement of professional audio industrial. Audio is encoded/decoded with the latest and uncompressed 24-bit PCM encoder/decoder with sample rate in 44.1KHz, 48KHz, or 96KHz. The NBB-04T outputs are peculiarly buffered with amplifiers of high-rail-voltage which can drive the lines up to 24dBu. Besides the high-level of drive capability, the output of NBB-04T can also be attenuated to meet the narrower reception range of inputs of some semi-professional devices. All inputs of NBB-04R accept signal of level from mic to line with individual gain and phantom power control. The NBB-04R is also equipped with a clip indicator for all the inputs to warn audio technician any signal overload on inputs.

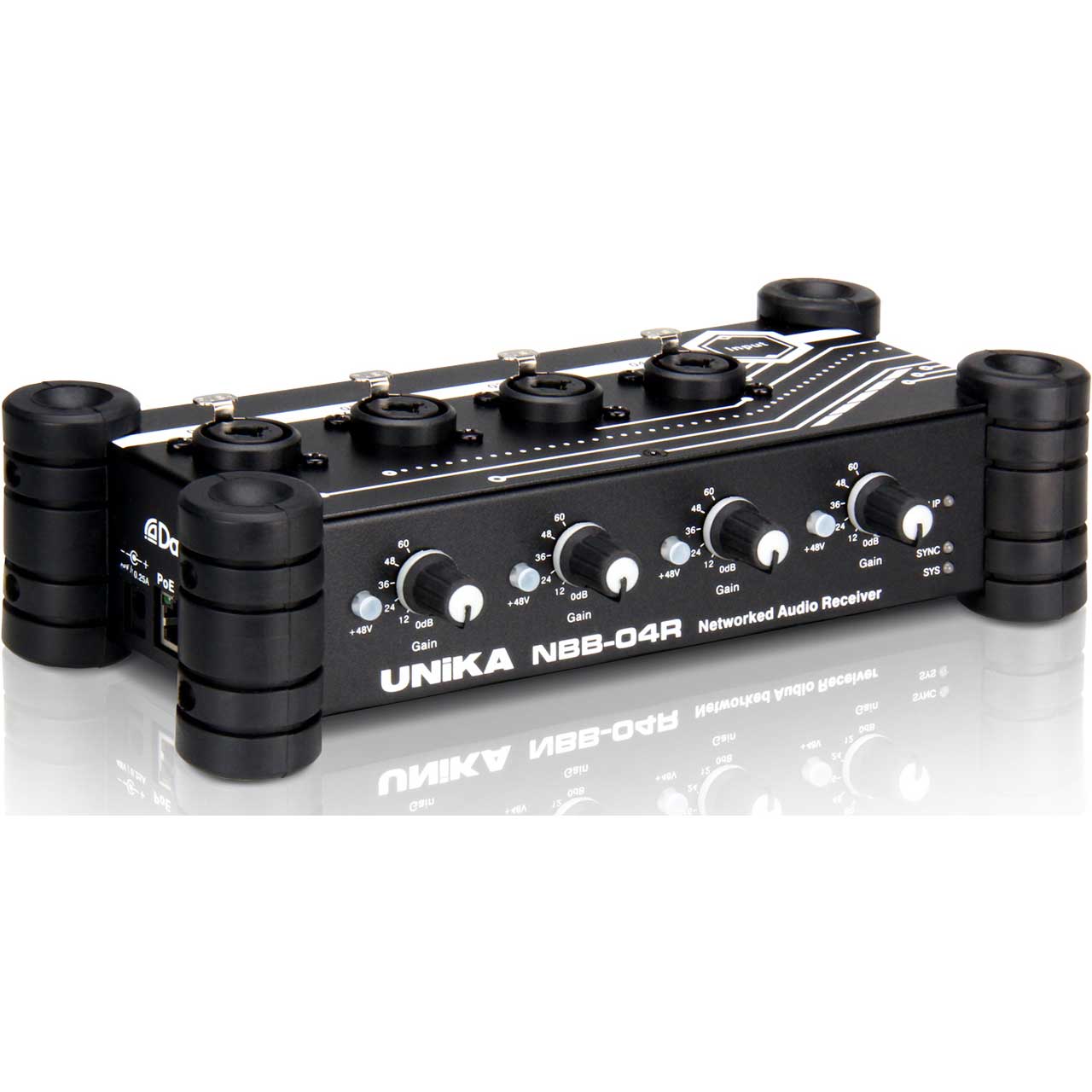

    The NBB-04R/NBB-04T is assembled in a sturdy metal chassis with four bumpers on the edges. This we think is very important for you to damp the NBB-04R/NBB-04T from accidental smash during field installation.
