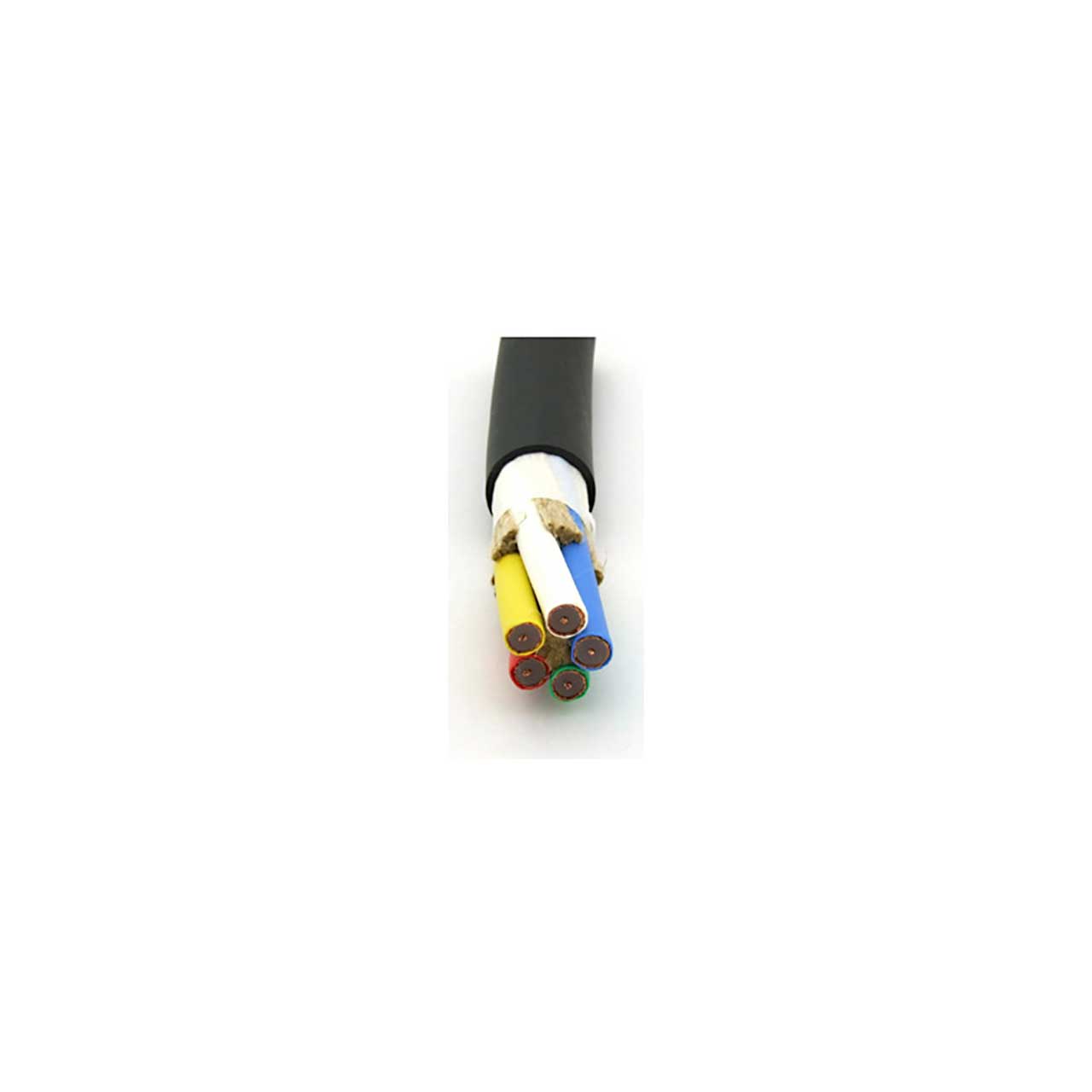

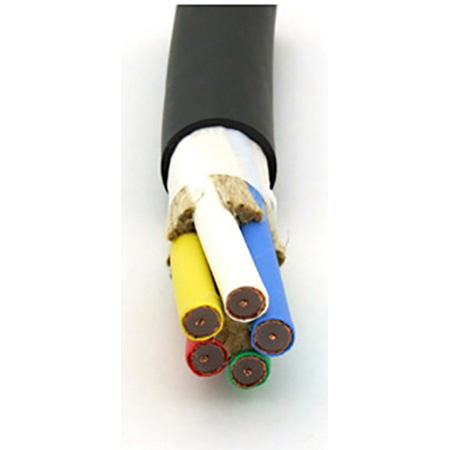

Canare V5-4CFB cable is a 5-channel RG59/20AWG coaxial cable designed for 3G-SDI HDTV facilities. Bundled thinner jacket type of Canare L-xCFB: solid conductor and foamed PE insulation wrapped with aluminum foil. Excellent low attenuation performance in fixed installations. Distinguishable color-coded channels for fast identification. Each coaxial channel includes a Foam Core PE dielectric, Solid Bare Copper Center Conductor and double Foil/Braid Shield.
<2.2 nano second channel-to-channel differential delay time, reduces phase errors in component video setup alignments. Bundled cable helps keep work site neat and clean. Can be used with confidence for Super Hi-Res CG workstation interconnects and Digital Video installations.
