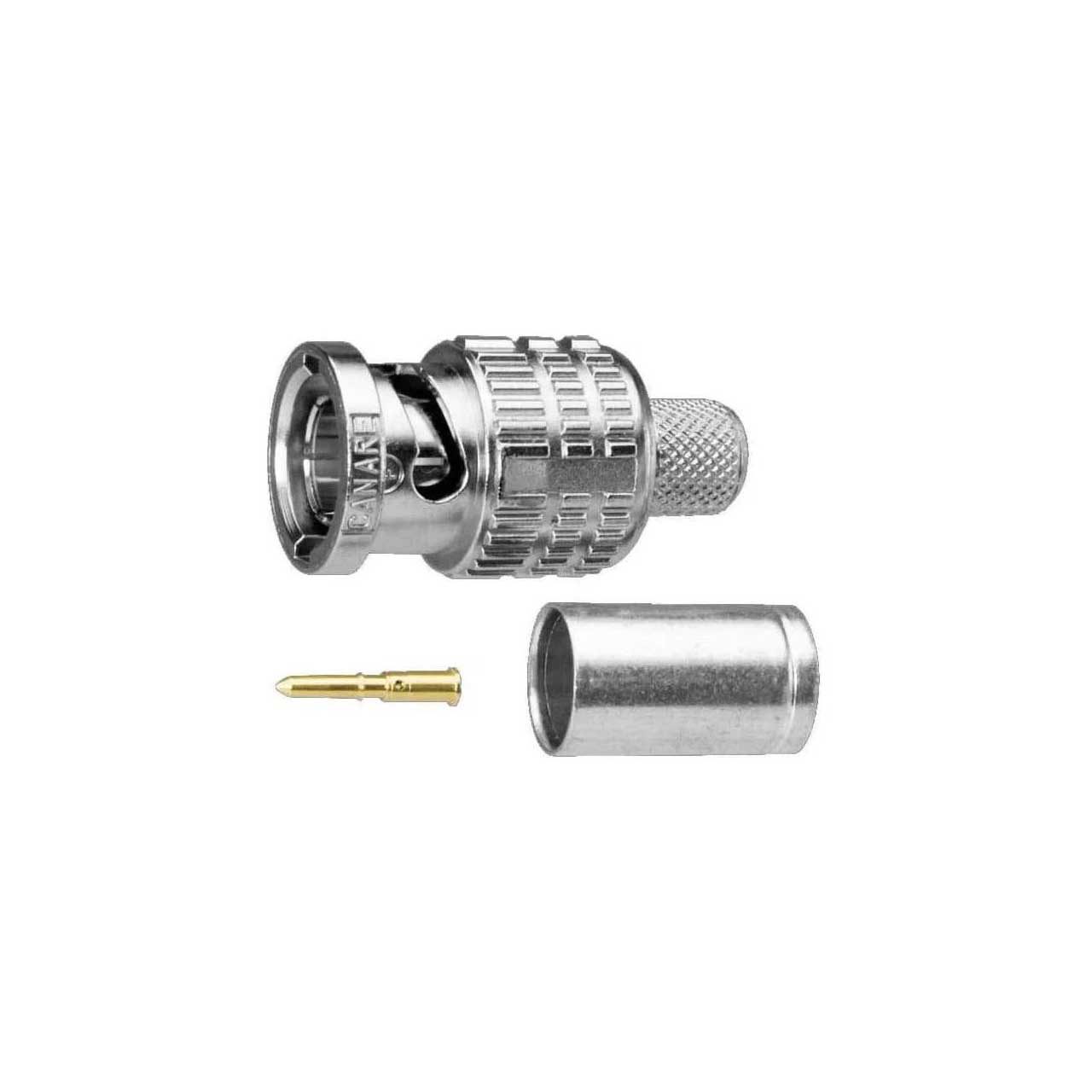

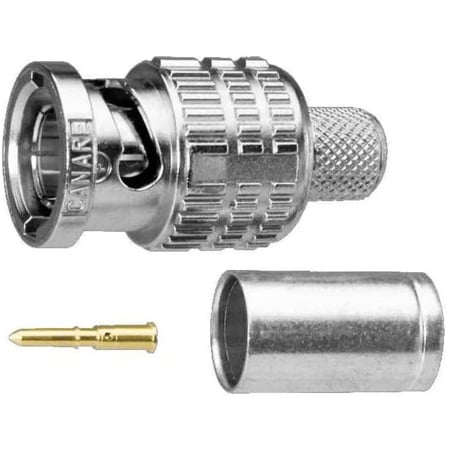

Canare BCP-B4F 75 Ohm 3 Piece BNC Crimp Plug (for L-4CFB/ L-4CHD/ 1505A)


Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    BCP-B4F - Overview

    Part of the Canare BCP Series of high quality 75 Ohm BNC crimp plug connectors, the Canare BCP-B4F is rated for all SMPTE 424M & 292M applications to confidently transmit 3G-SDI bit-rates in 1080p video production. Canare BCP BNC connectors feature an elongated body for better finger grip and a unique position mark on the body allows the connector bayonet fit to be checked easily.

    The BCP-B4F BNC connector is designed for Canare L-4CFB / L-4CHD and Belden 1505A coaxial to deliver a combination of superior cable pull strength you won't find with other connectors. Its gold plated center pins 'snaps' into place to ensure perfect alignment with connected video gear and patch panels.

    BCP-B4F Fits Canare Cable: L-4CHD, L-4CFB, V*-4CFB,
    Non Canare Cable: 1505A, 1505ANH, VPM2000, HD PRO 0.8/3.7 AF
    Center Pin: B11016E
    Sleeve: BN7015A
    Boot: CB04
    Die Set: TCD-4C, TCD-451CA

    • Features:

      • True 75 ohm construction Crimp Pin & Sleeve
      • High performance of 1.1 or less VSWR up to 3GHz.
      • Elongated Body for better finger grip
      • Position mark on body allows the connector fit to be check easily.
      • Superior cable pull strength
      • Gold plated center pins 'snap' into place
      • Connector Body has been die-cast, achieving a lower price with higher performace
      • Easy Assembly using Canare Strip & Crimp Tools
    • Item Includes:

      • 1x Canare BCP-B4F 75 Ohm BNC Crimp Plug
