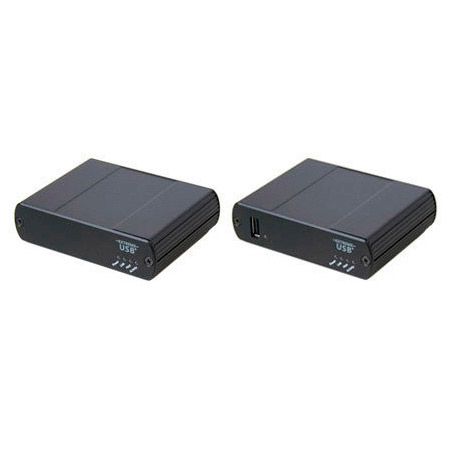

Vaddio 999-1005-022 Extreme USB Extenders - 328 Foot USB 2.0 Extension over CAT5e or Better
  • Vaddio 999-1005-022 Extreme USB Extenders - 328 Foot USB 2.0 Extension over CAT5e or Better
  • Vaddio 999-1005-022 Extreme USB Extenders - 328 Foot USB 2.0 Extension over CAT5e or Better
  • Vaddio 999-1005-022 Extreme USB Extenders - 328 Foot USB 2.0 Extension over CAT5e or Better

Questions? Ask a Markertek Expert:
800-522-2025 Email

Vaddio 999-1005-022 Extreme USB Extenders - 328 Foot USB 2.0 Extension over CAT5e or Better

Manufacturer: Vaddio

Item #: VAD-999-1005-022   •   MFG #: 999-1005-022



List Price:$536.00
Our Price:$482.40

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The Vaddio 999-1005-022 Extreme USB 2.0 Extenders provide a complete plenum extension solution for situations where your high-bandwidth USB 2.0 device (like a camera or other av source) cannot be installed near the computer it needs to connect to. The system includes a transmit (TX) or remote device side and a receive (RX) or Host PC side and extends full-bandwidth USB 2.0 high speed and USB 1.1 devices up to 328 ft. (100m) over Cat-5e or better cable.


    • Features

      • 328' (100m) USB 2.0 extension over Cat-5 or better
      • Plenum-rated cabling solution
      • Supports USB 2.0 & 1.1

    • Specifications

      • Range: 100m (330ft) over Cat-5e (or better) cable
      • USB device support High-speed devices (480 Mb/s) (USB 2.0) Full speed devices (12 Mb/s) (USB 2.0 & 1.1) Low speed devices (1.5 Mb/s)
      • USB host support: EHCI (USB 2.0) and OHCI/UHCI (USB 1.1)
      • AC adapter(s) Input: 100/240 V AC, 50 - 60 Hz, 600 mA maximum; Output: 5 VDC, 3 A
      • AC adapter connector 1.7 mm center-positive jack
      • Current available to USB device at RX unit: 500 mA
      • RX unit USB connector: x USB Type-B
      • TX unit Link connector: x RJ45
      • TX unit Link connector: x RJ45
      • TX unit USB connector: x USB Type-A
      • RX unit dimensions: 3.94" x 2.99" x:.02" (100 mm x 76 mm x 26 mm)
      • TX unit dimensions: 3.94" x 2.99" x:.02" (100 mm x 76 mm x 26 mm)
      • TX power consumption: 500 mA maximum
      • RX power consumption: Approx. 500 mA (No Load).:.5A (Full load)
      • System shipping: weight 2.0 lbs. (0.9 kg)
      • Operating temperature range: 0°C to 50°C
      • Storage temperature range: -20°C to 70°C
      • Operating humidity 20% to 80% relative humidity, non-condensing
      • Storage humidity:0% to 90% relative humidity, non-condensing
      • Regulatory testing FCC (Class B), IC (Class B), CE (Class B)
      • ESD rating EMC EN-61000-4-2 8kV Contact, 6kV Air

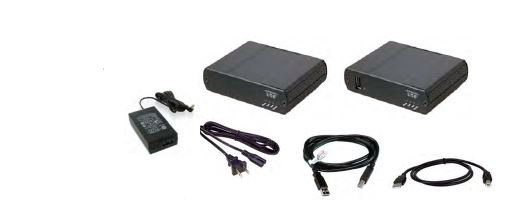

    • Item Includes

      • One (1) Extreme USB Extender TX
      • One (1) Extreme USB Extender RX
      • One (1) 5 VDC Switching Power Supply
      • One (1) North American Power Cord
      • One (1) 6' (1.83m) USB 2.0 Cable Type-A Male to Type-B Male
      • One (1) 1' (305mm) USB 2.0 Cable Type-A Male to Type-B Male
      • Documentation
