The Vigilink G112 is a curved screen edge blending processor. It was designed for edge blending as well as image warping, rotation and stacking. Multiple units of G112 can execute big scale edge blending system.

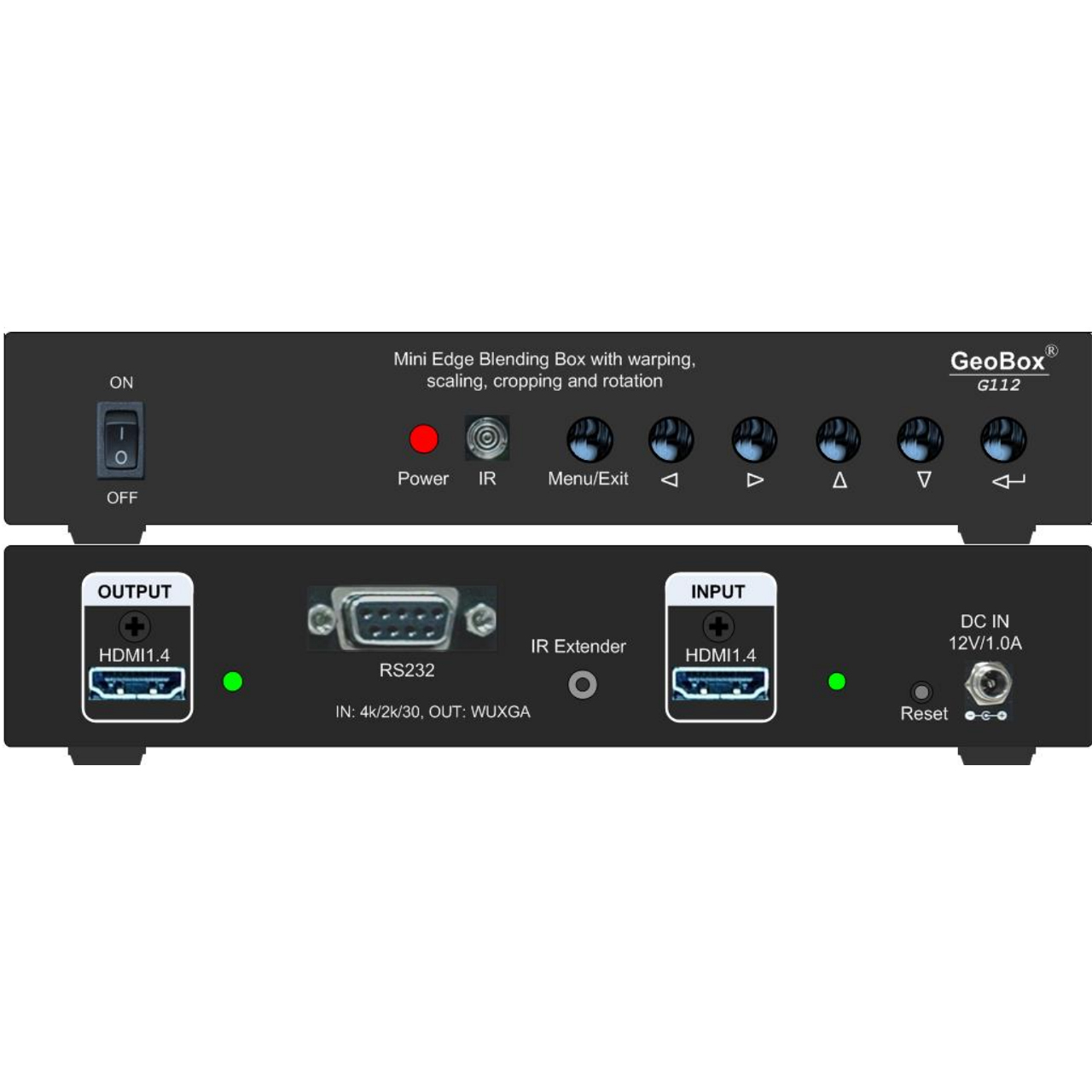

One HDMI 1.4 input port and 1x HDMI1.4 output port are designed in each box. Max. input resolution is up to 3840*2160 @30Hz with 4:4:4 full color sampling. Output supports up to 1920*1200 @60Hz. It is integrated with 10-bit high end processor, motion adaptive de-interlace, low angle smooth algorithm, 3:2/2:2 pull-down and supports non-VESA standard input timing. Programmable EDID can optimize input timing to get the best video result.
Advanced warp technology is embedded in G112. User can use IR controller or front panel keypad to perform edge blending and sophisticated geometry alignment up to 17x9 control points. Linearity Grid Line Adjustment and Corner Wall image adjustment for mapping image at 90 degrees corner is embedded in geometry alignment. Separate R, G, B gamma correction for edge blending region color fine-tune is also standard functions in G112.

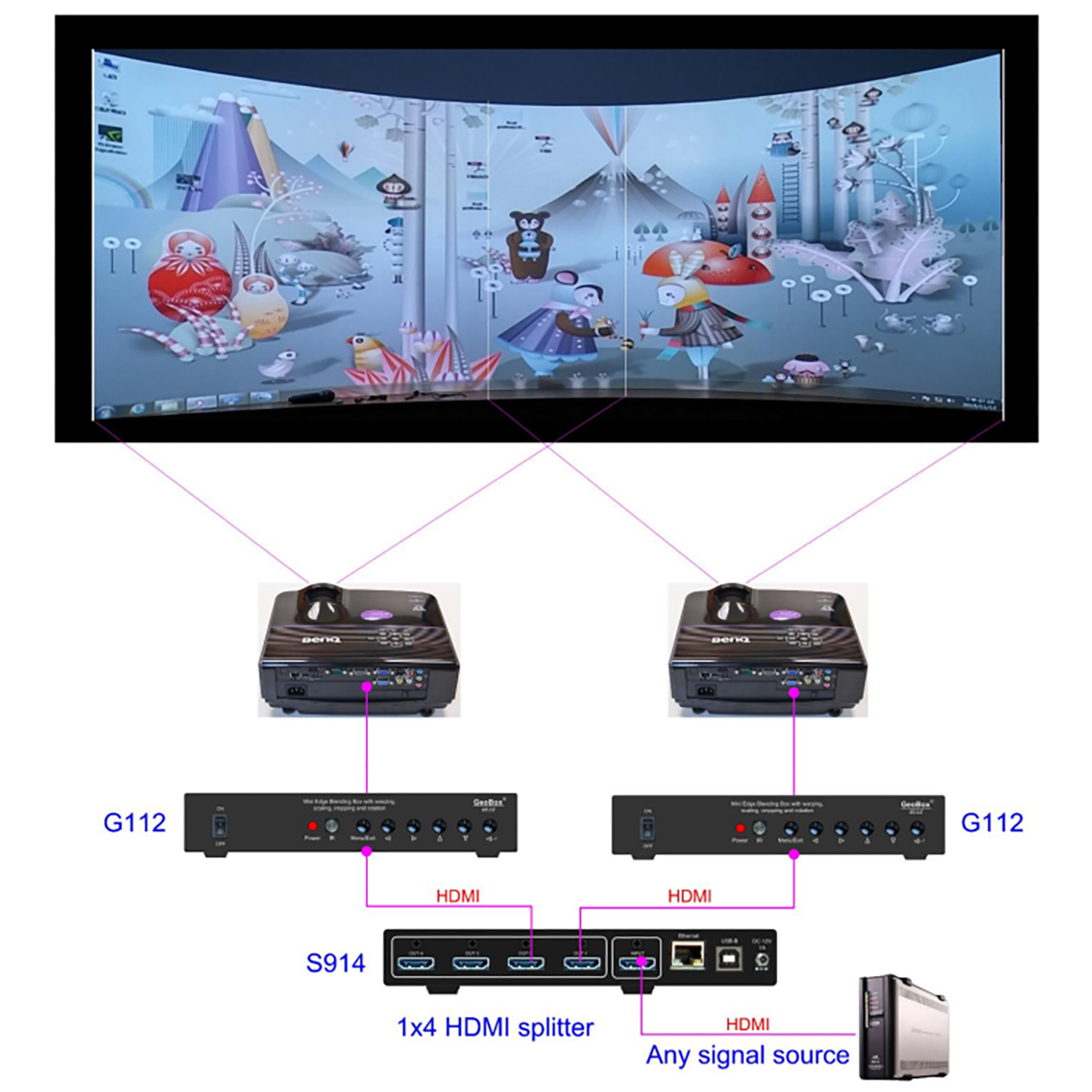

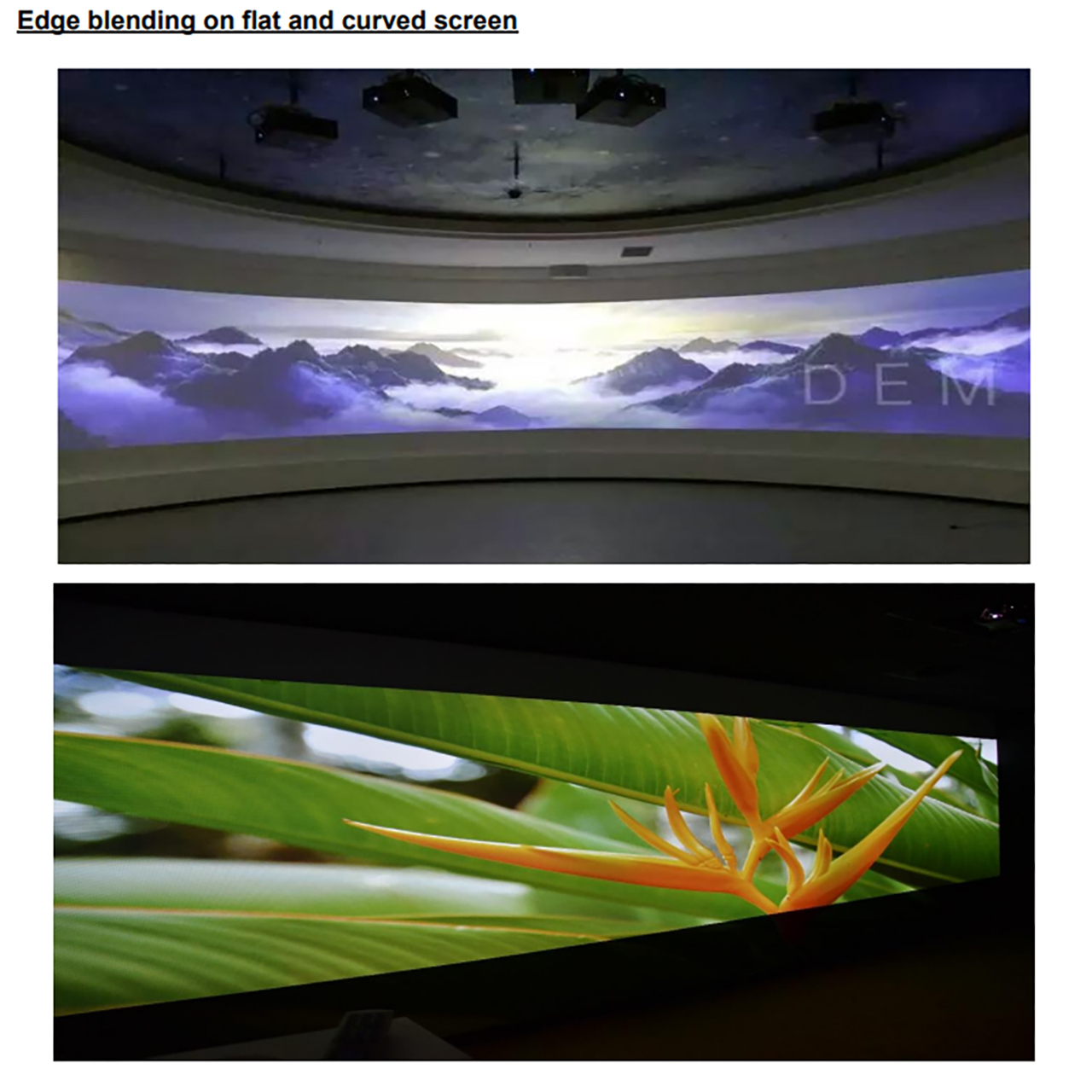

Video wall function is to crop and allocate source image for each projector and set overlap pixels for edge blending. User can add one HDMI splitter and multiple units of G112 to implement flat and curved screen edge blending through remote controller and IR controller.
Edge mask function is for user to execute further image edge mask to cut off unnecessary image without change the image scaling factor.
User can also execute edge blending with projector at portrait position without rotating source image to increase image height. It is a good fit with laser projector without the limitation in installation angle.
G112 provides easy configuration, low entry barrier, cost effective, reliable and flexible edge blending solution.
