VigilLink VLDT-AP1010 1RU 10x10 Dante Digital Audio Processor with Mic/Linear Inputs and Balanced Linear Outputs

ITEM #: VGL-VLDT-AP1010 MFG #: VLDT-AP1010

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$3,380.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


VLDT-AP1010 - Overview

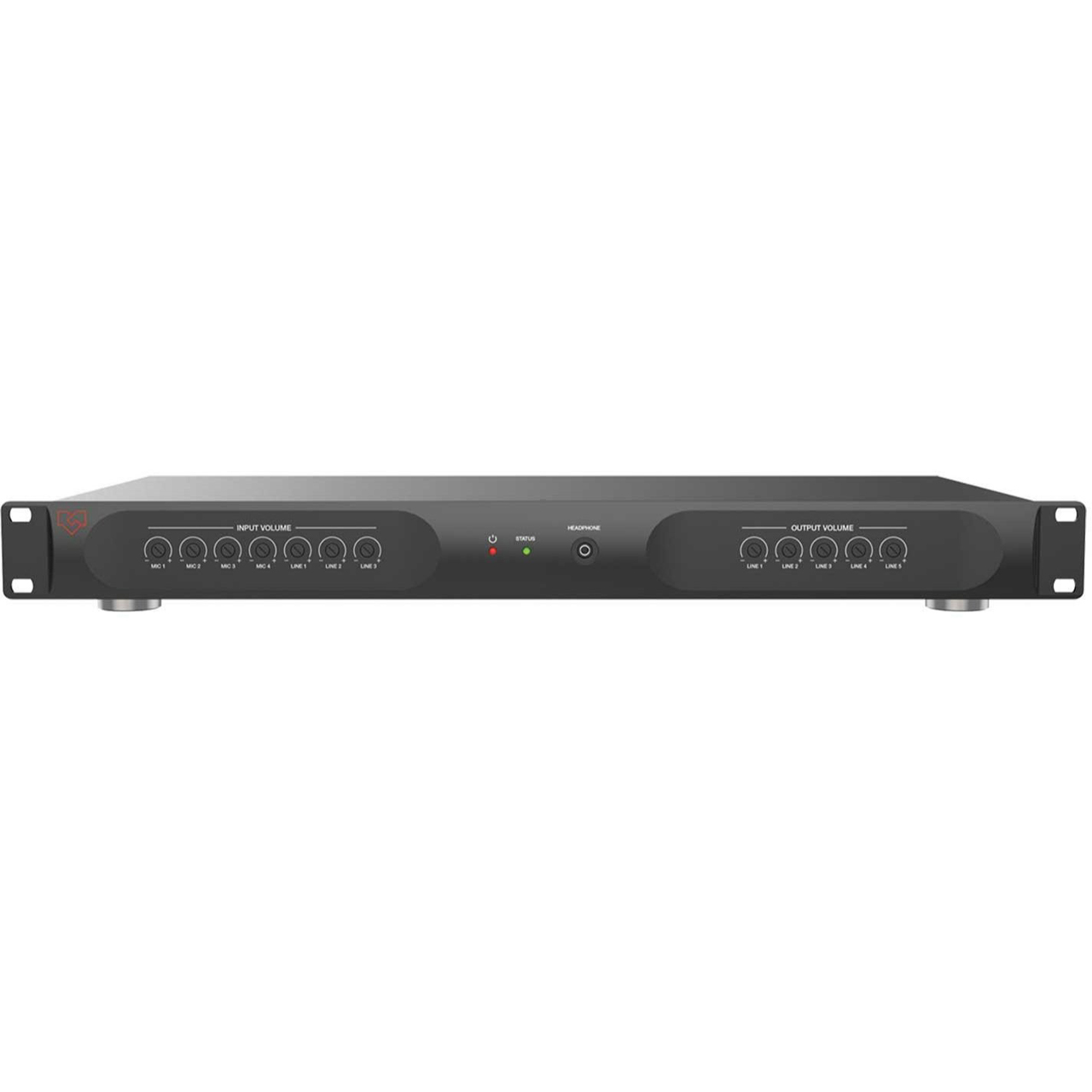

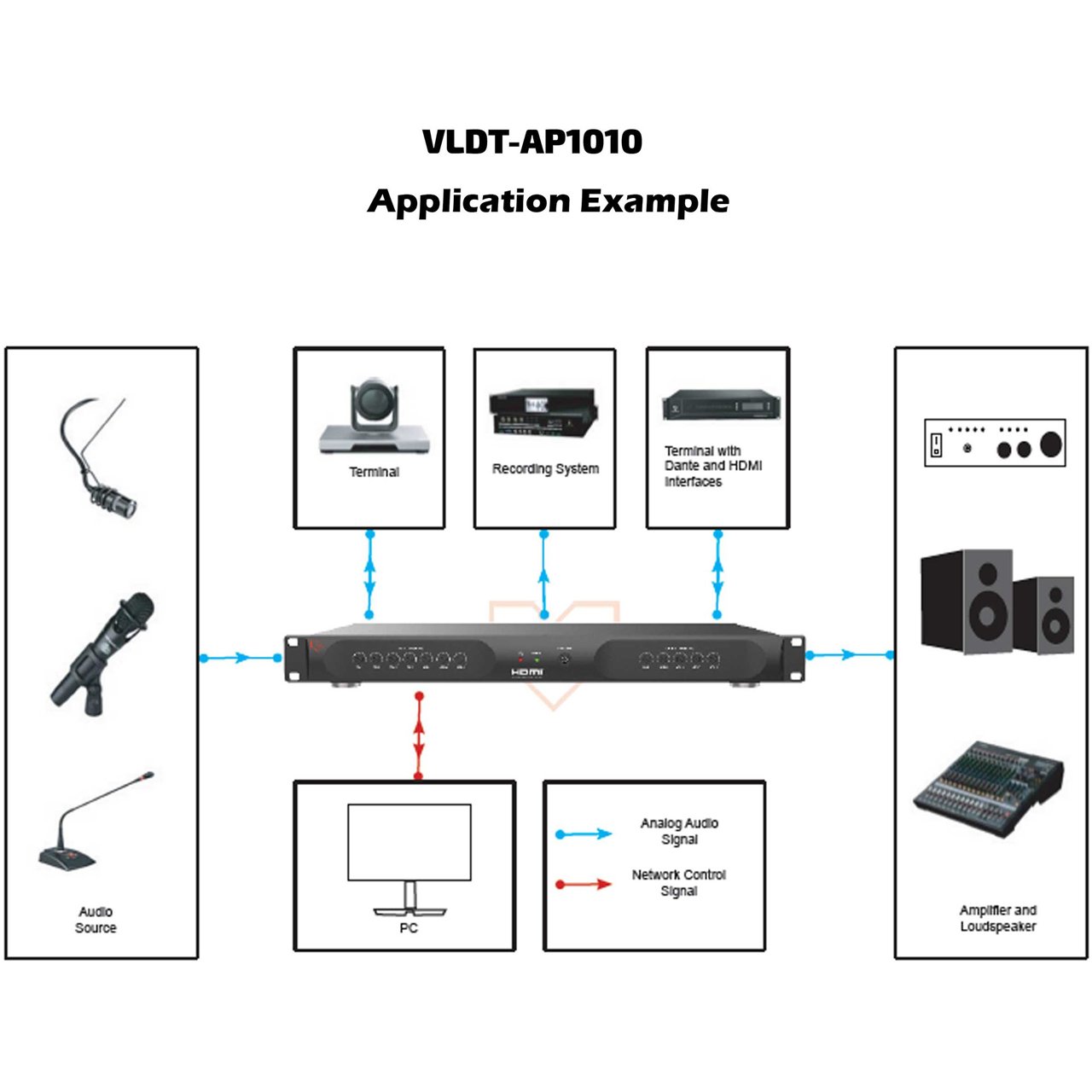

This VigilLink VLDT-AP1010 Dante 10x10 digital audio processor is typically used for video conferencing, distance learning, and telemedicine. It features a 4 channel MIC inputs, 6 channel linear inputs, and 10 channel linear outputs. Each analog I/O channel has a knob to control the volume.

A Dante port is also provided to ensure low latency in the audio process. Apart from HDMI audio embedding and de-embedding, it can also process audio signals with algorithms, such as:

- Full-band Adaptive Echo Cancellation (AEC)
- Adaptive Noise Suppression (ANS)
- Automatic Gain Control (AGC); and Auto Mixer; to output a clear, clean, and resonant sound with a high signal-to-noise ratio.

Concise but intelligent, the processor is designed for configurations without additional software debugging assistance.

  • Features:

    • 4x Mic, 6x Stereo balanced or unbalanced audio inputs
    • 10x Balanced or unbalanced variable audio outputs
    • 2x2 Dante in/out, HDMI streaming audio and ARC audio inputs
    • Built-in 16x16 audio DSP
    • 10-band graphic equalization and fully-adjustable limiting
    • Volume, bass, treble, and mute controls
    • Up to 18dB adaptive noise reduction
    • RS-232, TCP/IP, and PC program control
    • Standard 1RU rack size

  • Specifications:

      Technical
    • HDMI Compliance: HDMI 2.0b
    • Amplitude-frequency (20Hz - 20kHz @ +4dBu): MIC input: -0.5/-0.5dB
    • Linear input: -0.2/-0.2dB
    • THD+N (1kHz @ +4dB): ≤ 0.01%
    • EIN (MIC input): ≤ -125dBu
    • SNR (linear input): ≥ 90dB
    • Dynamic Range: ≥ 100dB
    • Channel Level Difference: -0.5/-0.5dB
    • Channel Isolation: ≥ 80dB
    • Channel Phase Difference: ≤ 0.5°
    • Max Input Level: 20dBu
    • Max MIC Gain: 40dB
    • Input Impedance: 20KΩ
    • Output Impedance: 300Ω
    • Sampling Frequency: 48KHZ
    • A/D and D/A Conversion: 24Bit
    • Phantom Power: +48 VDC

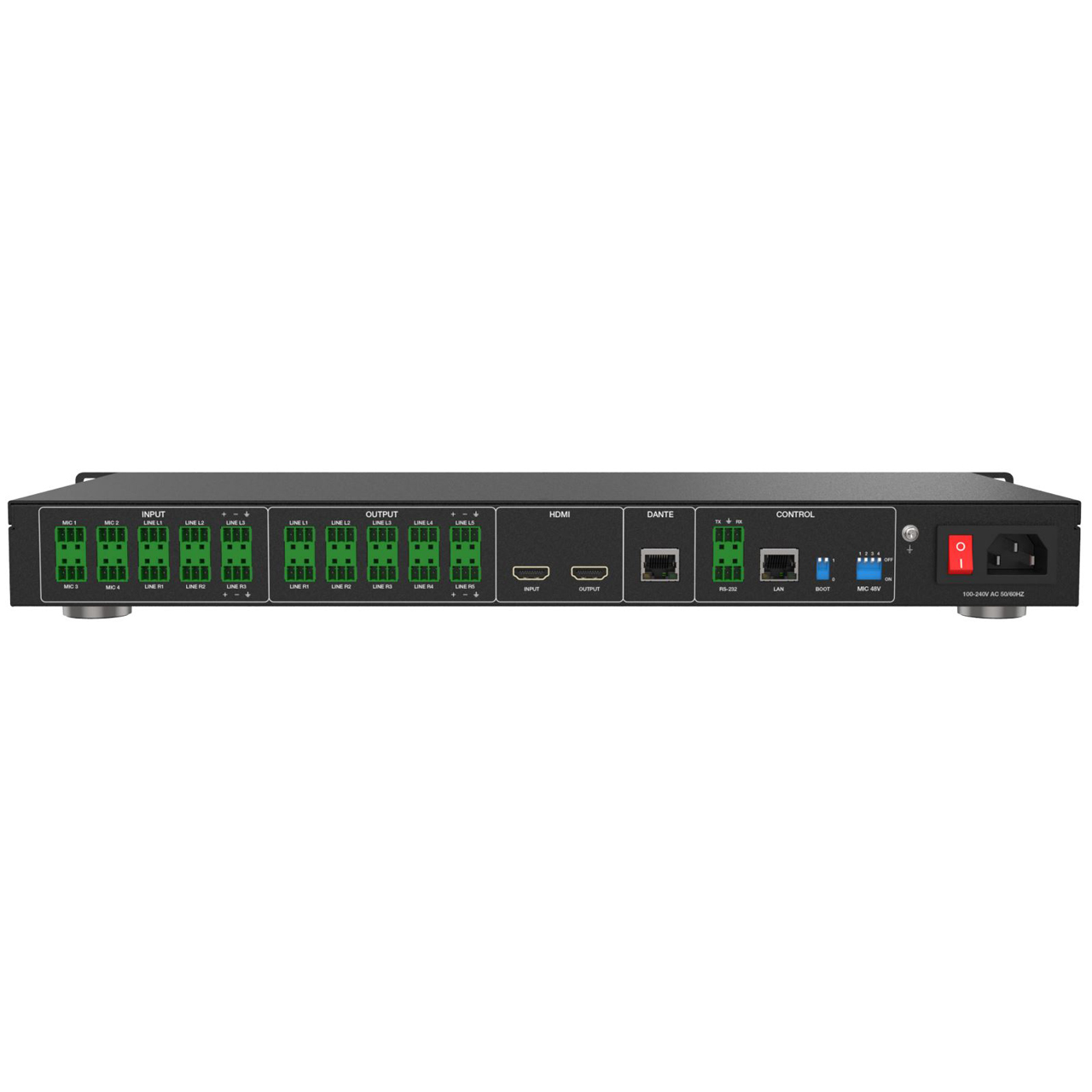

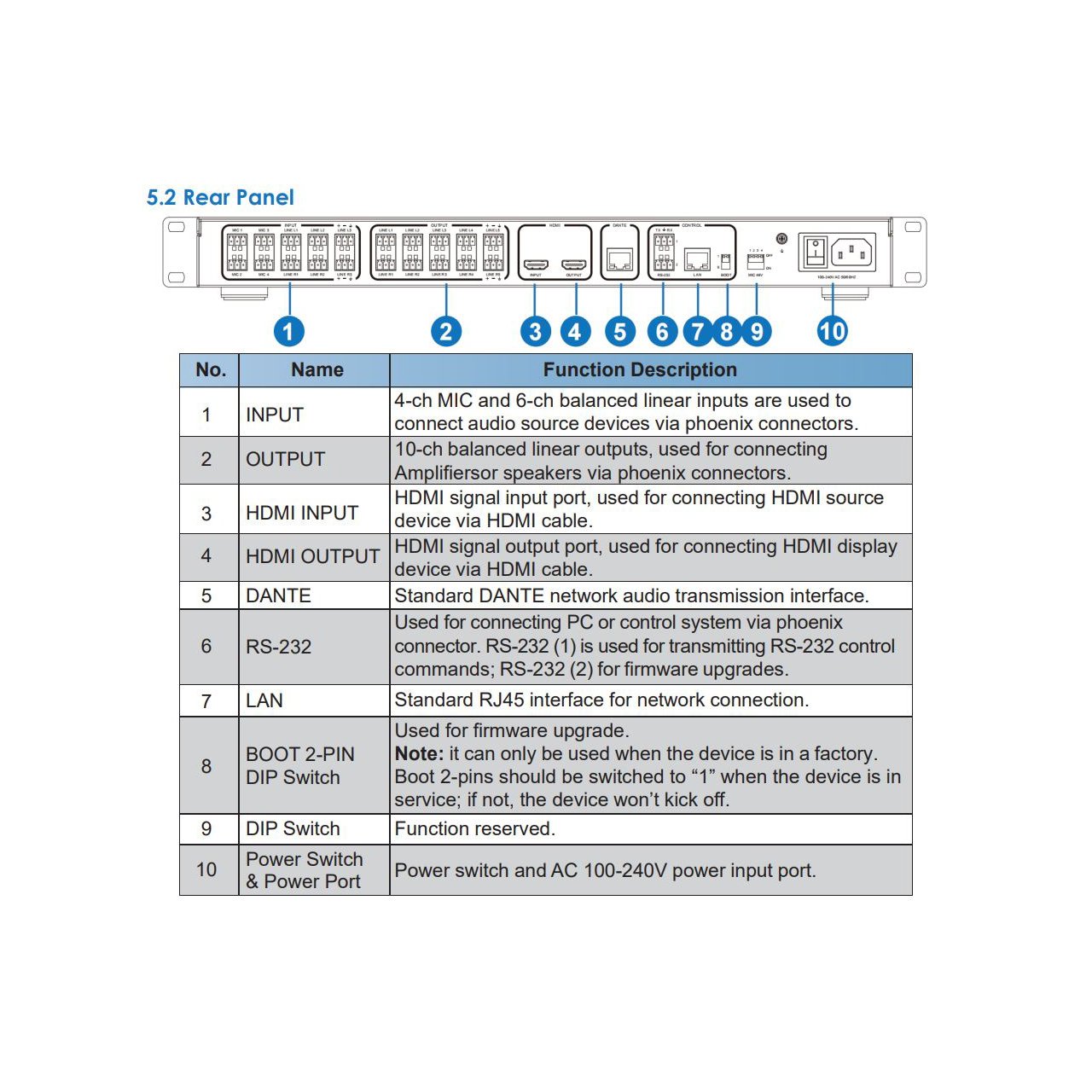

      Connection
    • Inputs:
      - 4x Balanced MIC [3-pin phoenix connector]
      - 6x Balanced LINE [3-pin phoenix connector]
      - 3x Stereo Audio [3-pin phoenix connector]
    • Outputs:
      - 10x Balanced LINE [3-pin phoenix connector]
      - 5x Stereo audio [3-pin phoenix connector]
      - 1x Stereo audio [3.5mm L/R]
    • Controls:
      - 1x LAN [RJ45]
      - 1x RS-232 [3-pin phoenix connector]
    • Digital Audio Interfaces:
      - 1x HDMI IN [Type A 19-pin female]
      - 1x HDMI OUT [Type A 19-pin female]
      - 1x Dante [RJ45]

      Mechanical
    • Housing: Metal Enclosure
    • Color: Black
    • Dimensions: 17.32" x 9.84" x 1.77" (482mm x 250mm x 45mm)
    • Weight: 9.56lbs (2.9kg)
    • Power Supply: AC 100 - 240V 50/60Hz
    • Power Consumption: 11W (Max)
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Relative Humidity: 20% - 90% RH (No condensation)

  • Item Includes:

    • 1x Digital Audio Processor
    • 1x AC 100~240V 50/60Hz Power Cord
    • 22x Phoenix Connector (3-pin, 3.81mm)
    • 1x User Manual
