Studio Technologies Model 214A Dante Audio-over-Ethernet Announcers Console with 1x Talkback Outputs

ITEM #: STCH-M214A MFG #: M214A

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:

$1,045.00

Our Price:

$919.00

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup


    M214A - Overview

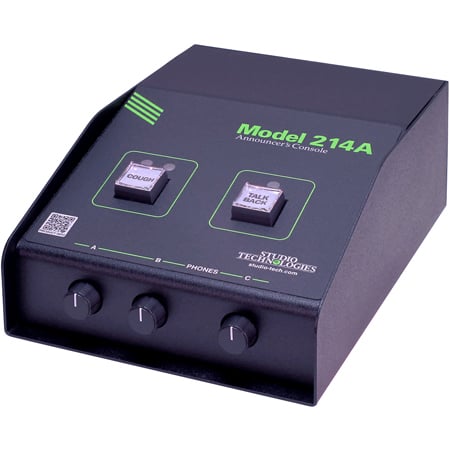

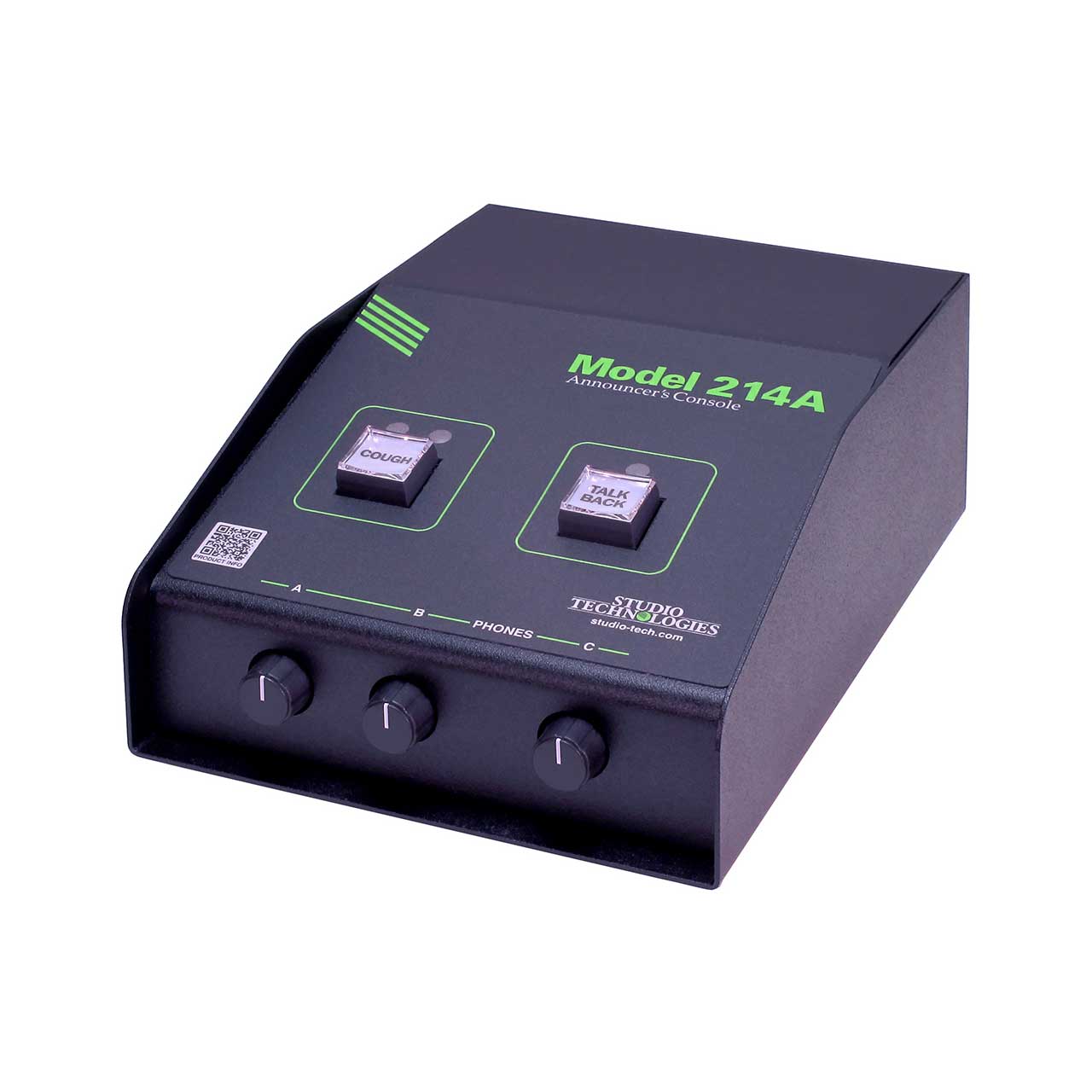

    The Model 214A Announcer's Console is designed to serve as the audio control center for announcers, commentators, and production personnel. This tabletop unit supports applications utilizing the Dante® audio-over-Ethernet media networking technology. The Model 214A is suitable for numerous applications including on-air television sports broadcasting, stadium announcement, and corporate AV. Two pushbutton switches allow the user to control the main and talkback audio output channels. Ease of use, configuration flexibility, and sonic excellence are some of the unit's highlights.

    The Model 214A is compatible with broadcast and audio system environments that use Dante technology. An Ethernet connection with Power-over-Ethernet (PoE) power is all that's required to make the unit part of a sophisticated, networked audio system. Add a microphone and pair of headphones (or a broadcast headset) and the installation is complete. Whether it's the on-air audio, the talkback audio, or the headphone cue feed, superior audio quality is always maintained. Using the STcontroller software application, a range of configuration choices allow the desired operating parameters to be easily selected.

    User Controls and Status Indicators
    Two pushbutton switches, three LED indicators, and three rotary controls provide the user with a clear, easy-to-use interface. One pushbutton switch controls the status of the Dante main transmitter (output) channel. This is the audio channel intended for on-air, announcement, or other primary uses. Two LEDs display the on/off status of the main output channel. A second pushbutton switch controls the status of the talkback Dante transmitter (output) channel. This is the audio signal used to communicate with producers, directors, spotters, or other behind-the-scenes production personnel. A status LED is associated with the talkback pushbutton switch. The two pushbutton switches utilize gold-plated contacts for reliable long-term operation and include backlighting using white LEDs. Three rotary controls allow the user to adjust the content and level of the headphone output channels.

    Microphone Input
    A microphone signal is connected to the Model 214A by way of a standard 3-pin female XLR connector. The unit incorporates a high-performance microphone preamplifier which offers low-noise, low-distortion, and high-headroom amplification over a 19 to 64 dB range. The gain is adjustable in 3-dB steps. The microphone input is compatible with balanced dynamic or condenser microphones. Phantom power is provided and meets the worldwide P48 standard. A dual-color LED indicator serves as an optimization aid when setting the gain of the microphone preamplifier.

    • Features:

      • Dante audio-over-Ethernet technology
      • Excellent audio quality
      • One main, one talkback, and one auxiliary Dante audio output
      • Four Dante headphone audio input channels
      • Headphone output with sidetone function
      • PoE and 12 Vdc powering
      • Rugged, compact enclosure
      • Configured using STcontroller application

    • Specifications:

      • Power Sources
      • Power-over-Ethernet (PoE): class 2 (low power, =6.49 watts) per IEEE 802.3af
      • DC Input: 10 to 18 volts DC, 270 mA maximum at 12 volts DC (or optional PS-DC-02)

        Network Audio
      • Type: Dante audio-over-Ethernet
      • AES67-2018 Support: yes, on/off selectable
      • Dante Domain Manager (DDM) Support: yes
      • Bit Depth: up to 24
      • Sample Rates: 44.1 or 48 kHz
      • Pull Up/Down Support: none
      • Dante Transmitter (Output) Channels: 3 (Main, Talkback, Aux)
      • Dante Receiver (Input) Channels: 4
      • Dante Audio Flows: 4; 2 transmitter, 2 receiver
      • Analog to Dante Equivalent: an analog input signal at a level of -36 dBu and microphone preamplifier gain configured for 40 dB will result in a Dante transmitter (output) level of -20 dBFS

        Network Interface
      • Type: 100BASE-TX, Fast Ethernet per IEEEr 802.3u (10BASE-T and 1000BASE-T (GigE) not supported)
      • Data Rate: 100 Mb/s (10 Mb/s and 1000 Mb/s Ethernet not supported)

        Mic Input
      • Compatibility: dynamic or phantom-powered microphones
      • Type: balanced, capacitive coupled
      • Impedance: 3.7 k ohms, nominal
      • CMRR: >76 dB, 20 Hz to 20 kHz, 40 dB microphone preamplifier gain
      • Gain Range: 19 to 64 dB, adjustable in 3-dB steps
      • Frequency Response: 20 Hz to 20 kHz, +0/-1 dB, microphone input to Dante output
      • Distortion (THD+N): 0.004%, measured at 1 kHz, -36 dBu mic input, 40 dB microphone preamplifier gain
      • Dynamic Range: >109 dB, 40 dB microphone preamplifier gain, A-weighted
      • EIN: -123 dBu, 22 kHz bandwidth, 64 dB microphone preamplifier gain, 150 ohms source resistance
      • Phantom Power: P48 per IEC 61938 P48 standard, on/off selectable, 45 volts DC nominal

        Headphone Output
      • Type: 2-channel
      • Compatibility: intended for connection to stereo (dual-channel) or monaural (single-channel) headphones, headsets, or earpieces with nominal impedance of 50 ohms or greater
      • Maximum Output Voltage: 3.0 Vrms, 1 kHz, 150 ohm load
      • Frequency Response: 20 Hz to 20 kHz, ±1 dB
      • Distortion (THD+N): <0.025%, measured at 1 kHz, 0 dBu output
      • Dynamic Range: >109 dB, A-weighted

        Tone
      • Use: provides support for tone operated (TOX) IFB function on devices such as Studio Technologies' Model 5422A Dante Intercom Audio Engine
      • Type: sine wave
      • Frequency: 18 kHz ± 0.1 Hz
      • Level: -20 dBFS
      • Distortion: <0.01% THD+N

        Remote Control Inputs: 2
      • Functions: mimics the action of the main and talkback button functions
      • Type: active low, 1 mA maximum, input pulled up to 3.3 volts DC via 3.4 k ohm resistors
      • Access: requires user-implemented connector scheme

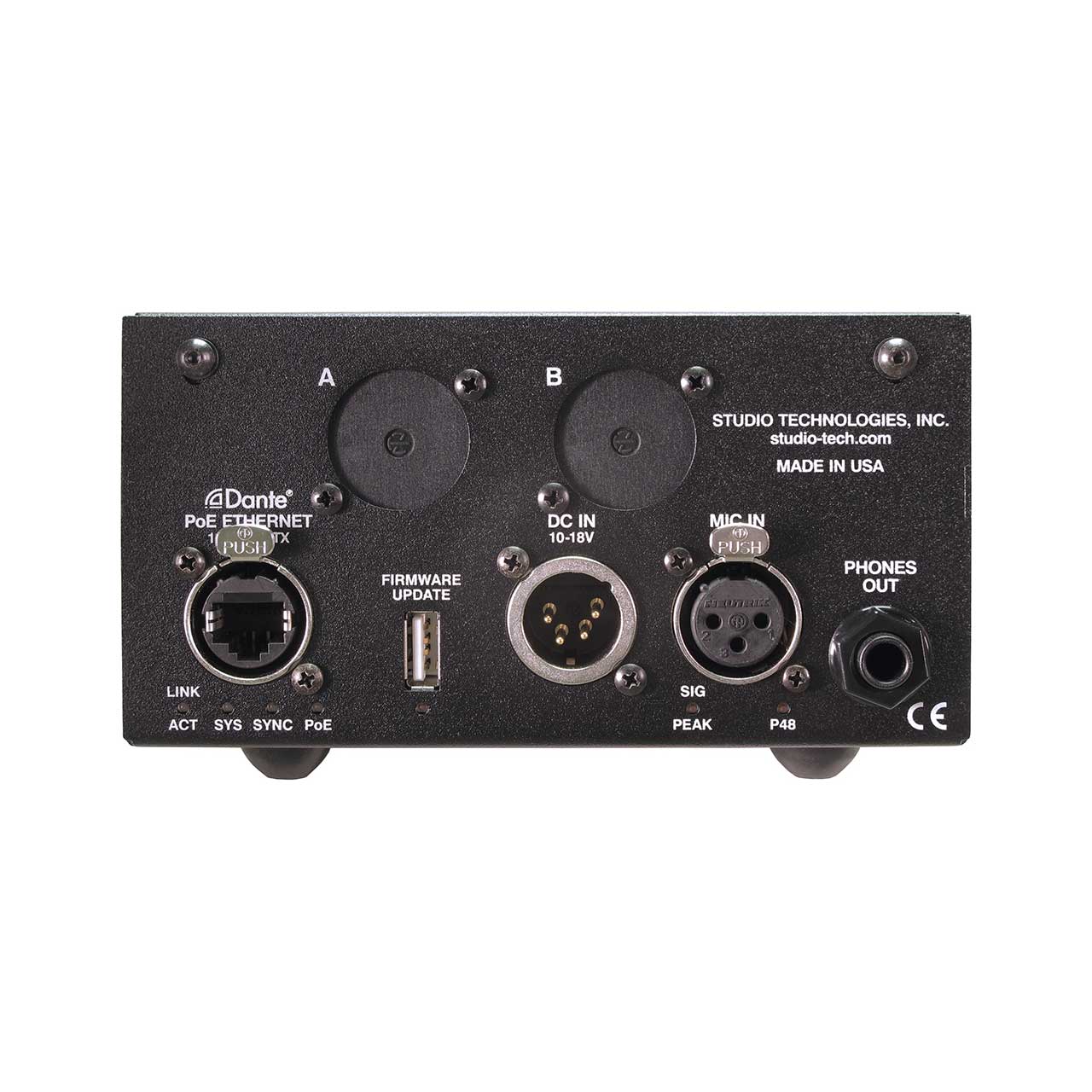

        Connectors
      • Microphone Input: 3-pin female XLR
      • Headphone Output: 1/4-inch 3-conductor jack
      • Ethernet: Neutrik NE8FBH etherCON RJ45 receptacle
      • DC Input: 4-pin male XLR (pin 1 negative, pin 4 positive)
      • USB: type A receptacle (used only for updating firmware)

        Physical
      • Operating Temperature: 32 - 122 deg F
      • Storage Temperature: -22 - 158 deg F
      • Humidity: 25 to 85%, non-condensing
      • Altitude: not characterized
      • Dims: 5.6 x 3.3 x 8.5"
      • Deployment: intended for tabletop applications
      • Weight: 2.4 pounds

    • Item Includes:

      • 1x Studio Technologies Model 214A Dante Announcers Console


    M214A - Required Accessories

      M214A - Recommended Accessories
