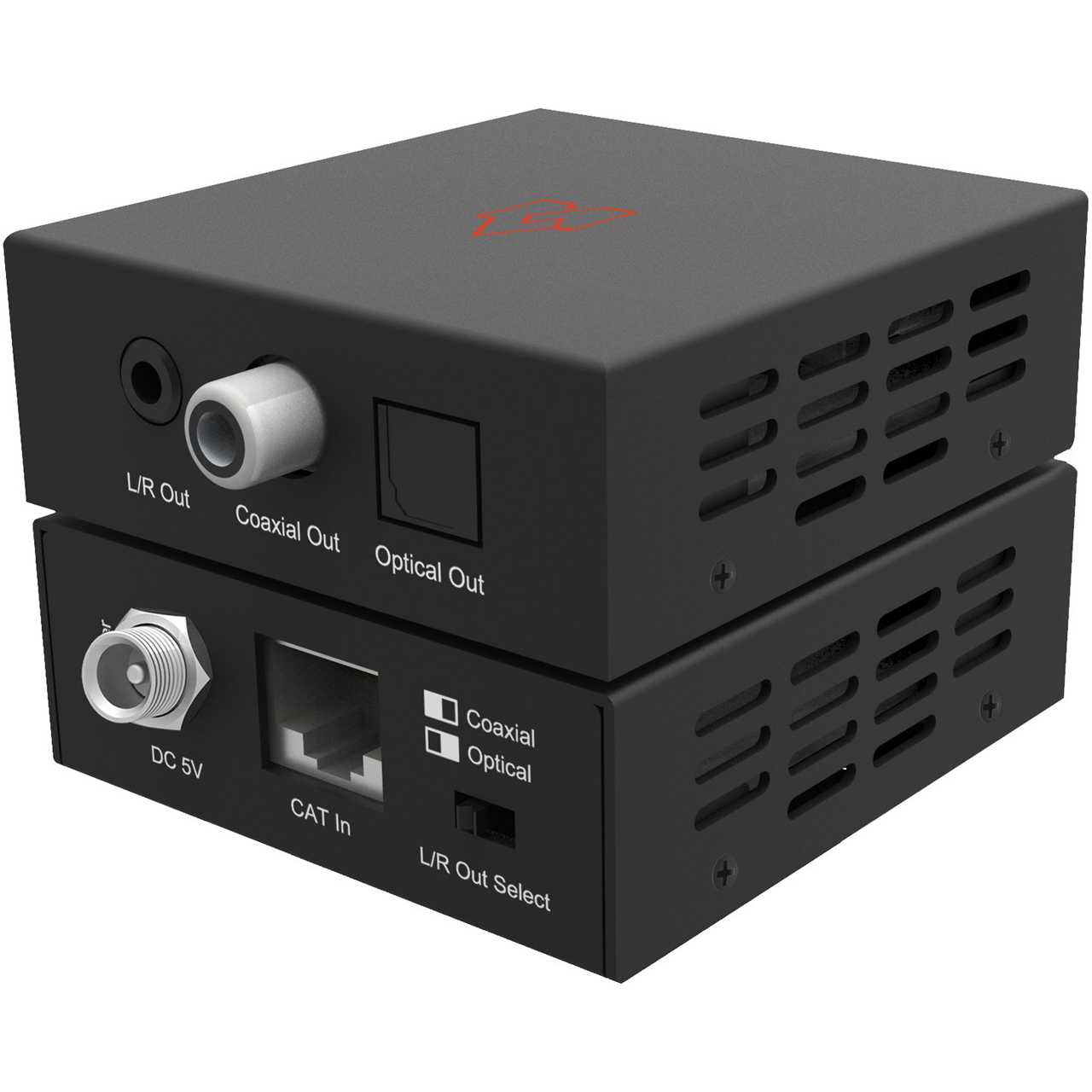

VigilLink VLEX-ACT300-TR CAT5e/6 Digital Audio Extender - 984 Foot/300m

Name: VigilLink VLEX-ACT300-TR CAT5e/6 Digital Audio Extender - 984 Foot/300m
Brand: VigilLink
SKU: VGL-VLEXACT300TR
Price: 251.00 USD
Availability: InStock

ITEM #: VGL-VLEXACT300TR MFG #: VLEX-ACT300-TR

VigilLink

Our Price:

$251.00

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

VLEX-ACT300-TR - Overview

This VigilLink VLEX-ACT300-TR Audio over CAT 5e/6 Extender can transmit digital optical and coaxial signals concurrently up to a distance of 300m (48kHz), 150m (96kHz), or 100m (192kHZ). The receiver's built-in DAC converts either of the digital (coax/toslink optical) signals to a 2CH analog stereo audio output. Support one-way POC function (the receiver will power the transmitter over the CAT cable).

This is a fantastic plug-and-play solution for sending optical audio from an HDTV back to an amplifier, AVR, or multi-room audio system which requires an analog stereo audio input signal.

Features:
- Extend optical and coaxial digital audio signals up to a distance of 300m (48kHz), 150m (96kHz) or 100m (192kHZ) over a single CAT cable
- The optical and coaxial digital signals can be distributed at the same time
- Built-in DAC (Digital to Analog Converter) converts either optical or coaxial digital (selectable) to analog stereo left/right audio output (PCM only)
- Supports sample rates 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, and 192 kHz up to a 24-bit resolution
- Supports LPCM, DTS, Dolby Digital, and Dolby Digital Plus when used as a straight digital in/digital out extender
- Supports one-way POC function. The transmitter is powered by the receiver through the CAT cable.
- Plug-and-play
- Small compact size
- Ultra-low jitter and high-fidelity design
- Related
Specifications:
- Bitrate over Distance: 192kHz - 100m, 96kHz - 150m, 48kHz - 300m
- Supported Audio Formats: LPCM, DTS, Dolby Digital, and Dolby Digital Plus when used as a straight digital in/digital out extender
- Sample Rates: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz and 192 kHz up to 24-bit resolution
- ESD Protection: Human-body Model: ±8kV (Air-gap discharge), ±4KV (Contact discharge)

  Connection
- Transmitter Input Ports:
  - 1x Optical (Toslink)
  - 1x Coaxial SPDIF RCA
- Transmitter Output Port: 1x RJ45
- Receiver Input Port: 1x RJ45
- Receiver Output Ports:
  - 1x Optical (Toslink)
  - 1x Coaxial SPDIF RCA
  - 1x Analog Stereo 3.5mm Audio jack

  Mechanical
- Housing: Metal Enclosure
- Color: Black
- Dimensions: 2.99" x 2.52" x 0.94" / 76mm x 64mm x 28mm
- Weight: 0.88lb / 0.4Kg
- Power Supply: 5V/1A DC
- Power Consumption: 3.36 W (max)
- Operating Temperature: 32°F ~ 104°F / 0°C ~ 40°C
- Storage Temperature: -4°F ~ 140°F / -20°C ~ 60°C
- Relative Humidity: 20 - 90% RH (No condensation)
Item Includes:
- 1x Audio over Cat 5e/6 Extender (Transmitter)
- 1x Audio over Cat 5e/6 Extender (Receiver)
- 1x 5V/1A Power Supply
- 4x Mounting Ears
- 1x User Manual
Warranty:
- 6 Years
