VLHA-H21DEM - Overview

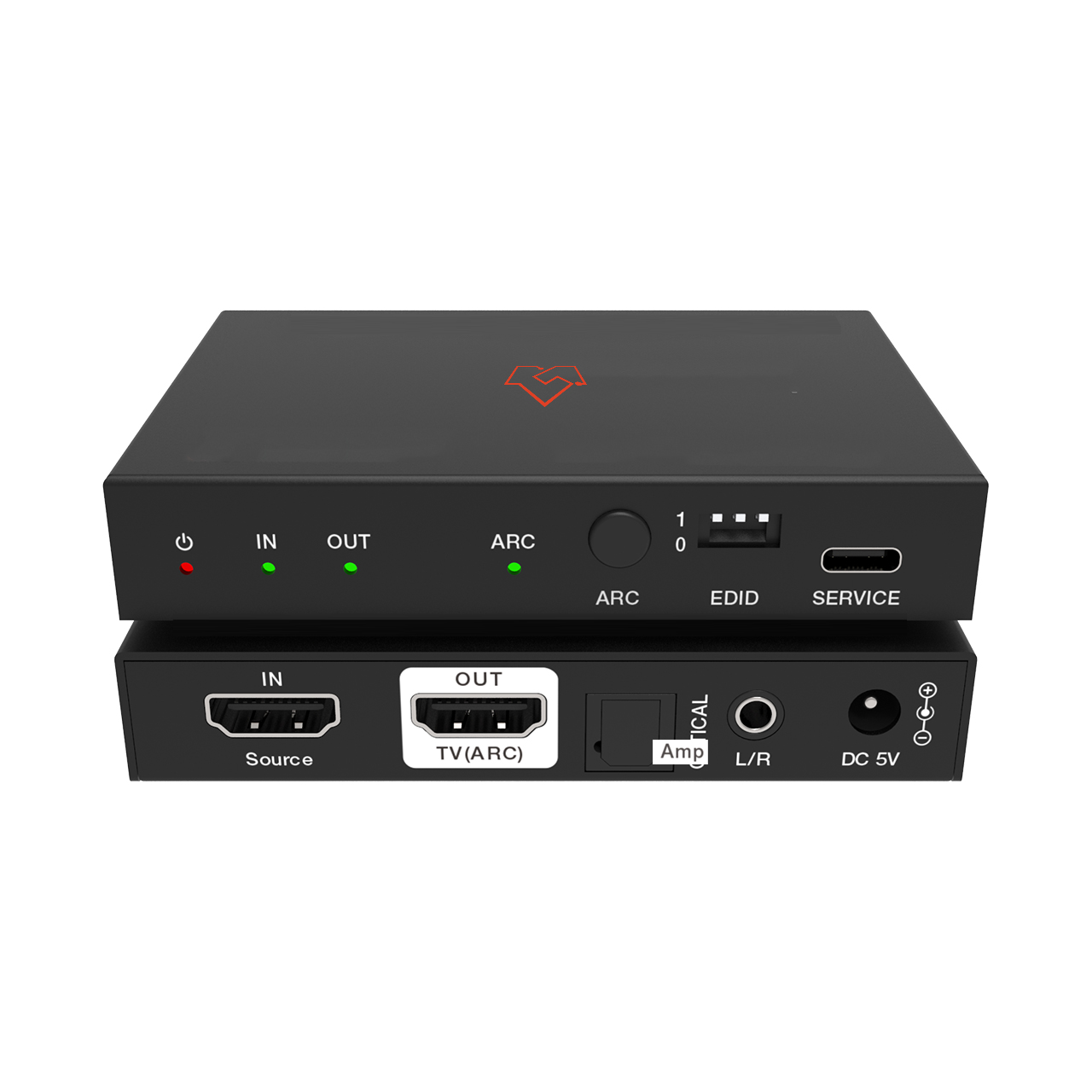

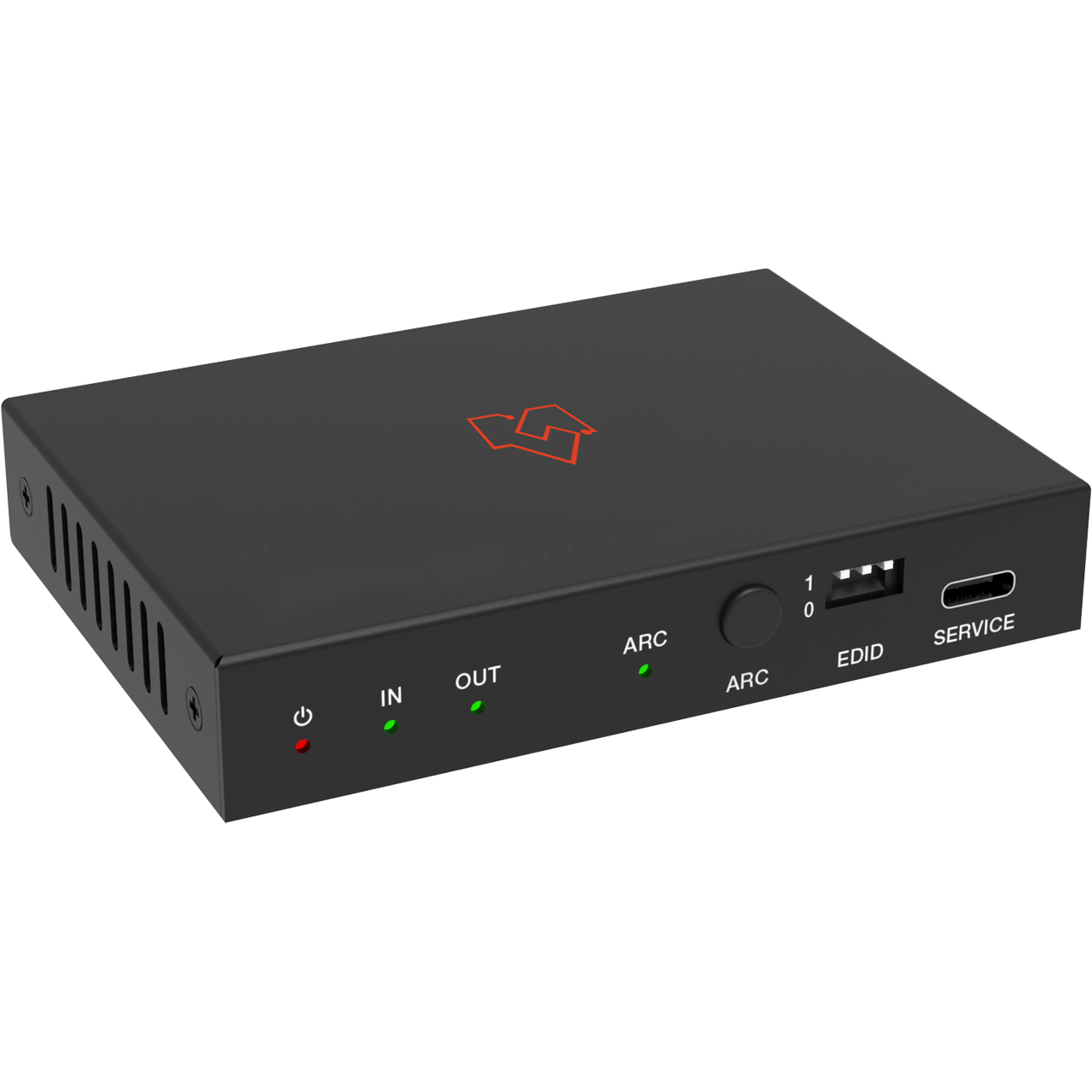

The VigilLink VLHA-H21DEM 48Gbps HDMI audio de-embedder is designed to extract audio signals from an HDMI source or ARC-compatible TV. It outputs analog stereo and digital S/PDIF audio and a buffered HDMI video output. With support for data rates up to 48Gbps, it meets HDMI 2.1 and HDCP 2.3 standards and is compatible with UHDTV 8K@60Hz. Featuring EDID management and cable equalization, it offers seamless integration into HDMI setups. This device provides a simple solution for HDMI installations, allowing audio signals to be sent to stereo audio or surround sound systems.

Features:
- HDMI 2.1 and HDCP 2.3 compliant
- Supports 48Gbps FRL and 18Gbps TMDS video bandwidth
- Supports video resolution up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
- HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, and SBTM are supported
- HDR, HDR 10, HDR 10+, Dolby Vision, HLG pass-through
- LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through
- HDMI input audio or TV ARC audio de-embedded to S/PDIF and L/R audio output
- Supports CEC control from output devices to input sources
- Advanced EDID management
- Compact design for easy and flexible installation
Specifications:
- HDMI Compliance: HDMI 2.1
- HDCP Compliance: HDCP 2.3
- Video Bandwidth: 48Gbps FRL and 18Gbps TMDS
- Video Resolution: Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
- Color Depth: 8/10/12bit
- Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:0
- Audio Formats:
  - HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
  - Audio Breakout: OPTICAL OUT: PCM 2.0CH, Dolby, DTS - L/R OUT: PCM 2.0CH
- HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
- ESD Protection: Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

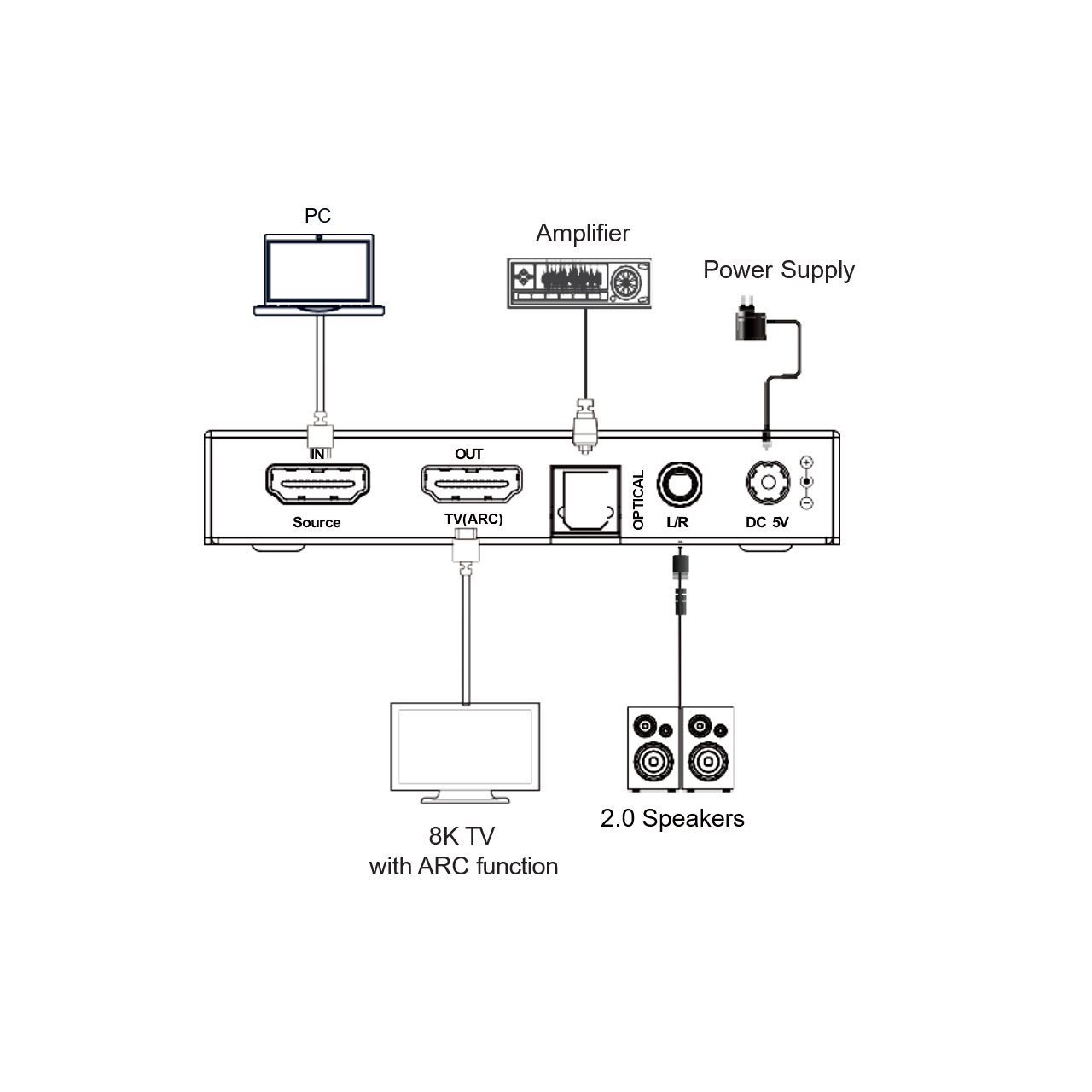

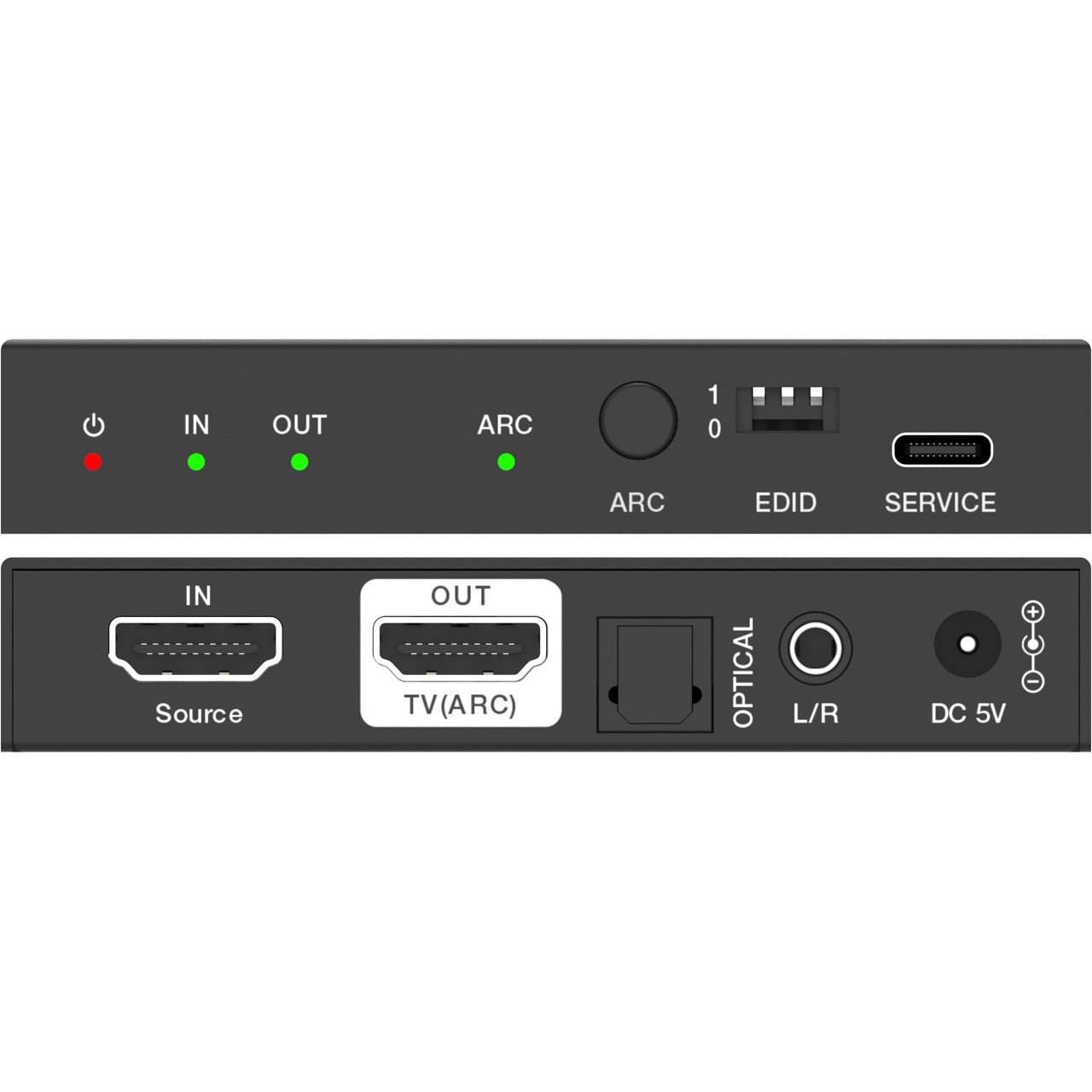

  Connection
- Inputs: 1x Source IN [HDMI Type A, 19-pin female]
- Outputs:
  1x TV(ARC) OUT [HDMI Type A, 19-pin female]
  1x L/R [3.5mm Stereo mini-jack]
  1x OPTICAL [S/PDIF, female]
- Control: 1x SERVICE [USB Type C, Update port]

  Mechanical
- Housing: Metal Enclosure
- Color: Black
- Dimensions: 3.74" x 2.67" x 0.70" / 95mm x 68mm x 18mm
- Weight: 0.39 lbs / 178g
- Power Supply:
  - Input: AC 100-240V 50/60Hz
  - Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
- Power Consumption: 4W (Max)
- Operating Temperature: 32°F ~ 104°F / 0°C ~ 40°C
- Storage Temperature: -4°F ~ 140°F / -20°C ~ 60°C
- Relative Humidity: 20 - 90% RH (No condensation)
Item Includes:
- 1x 48Gbps HDMI Audio De-embedder
- 1x 5V/1A Multinational Power Supply
- 1x User Manual
Warranty:
- 6 Years
