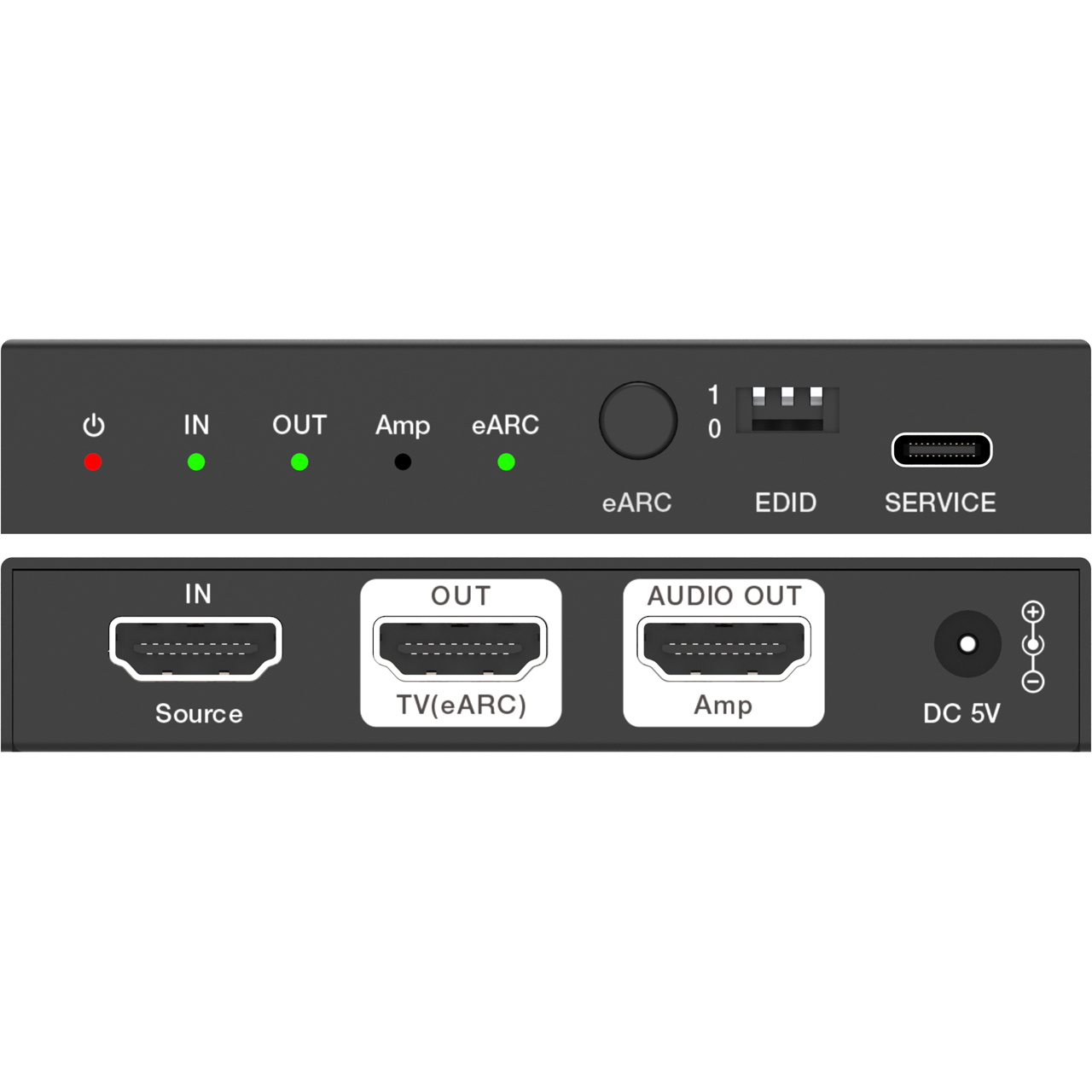

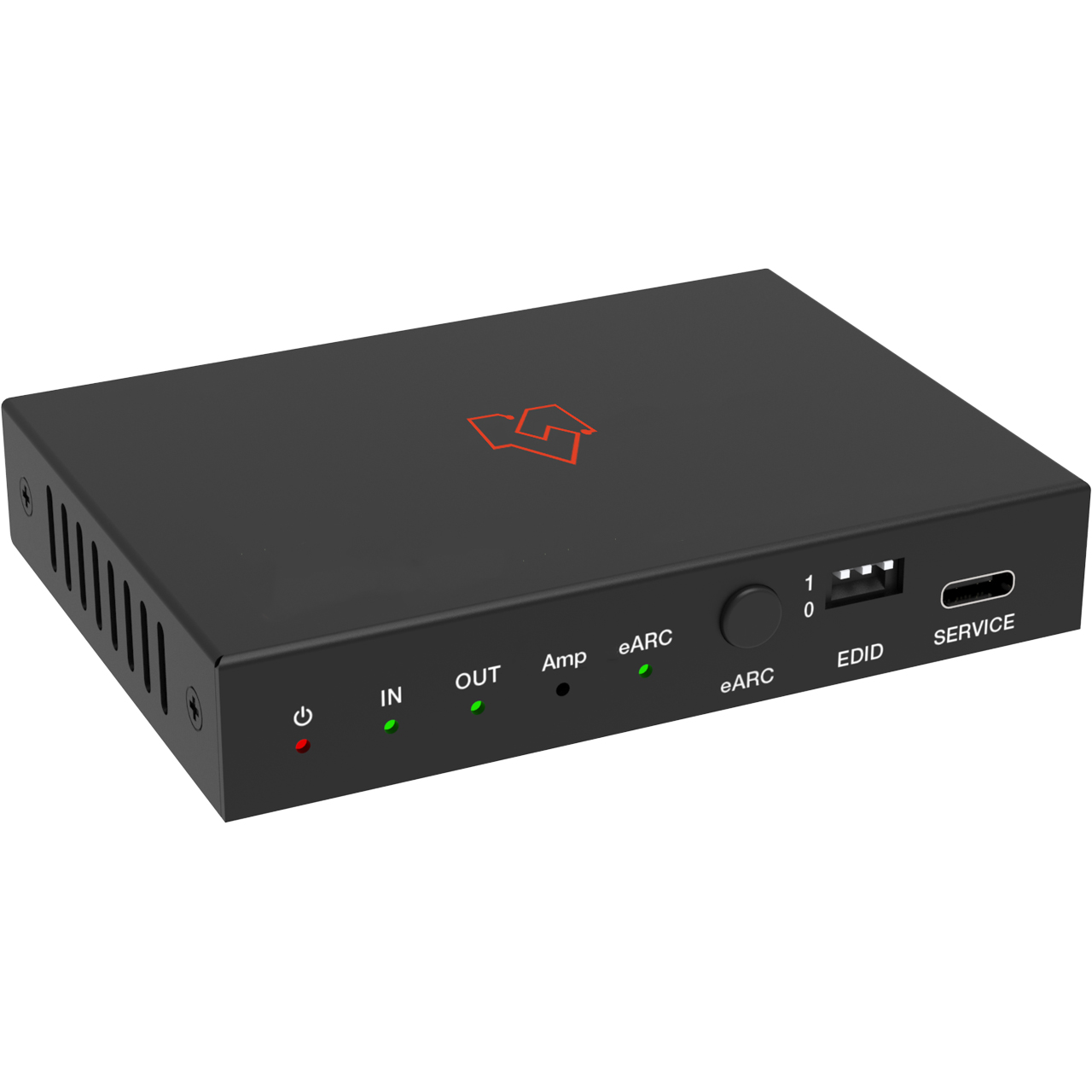

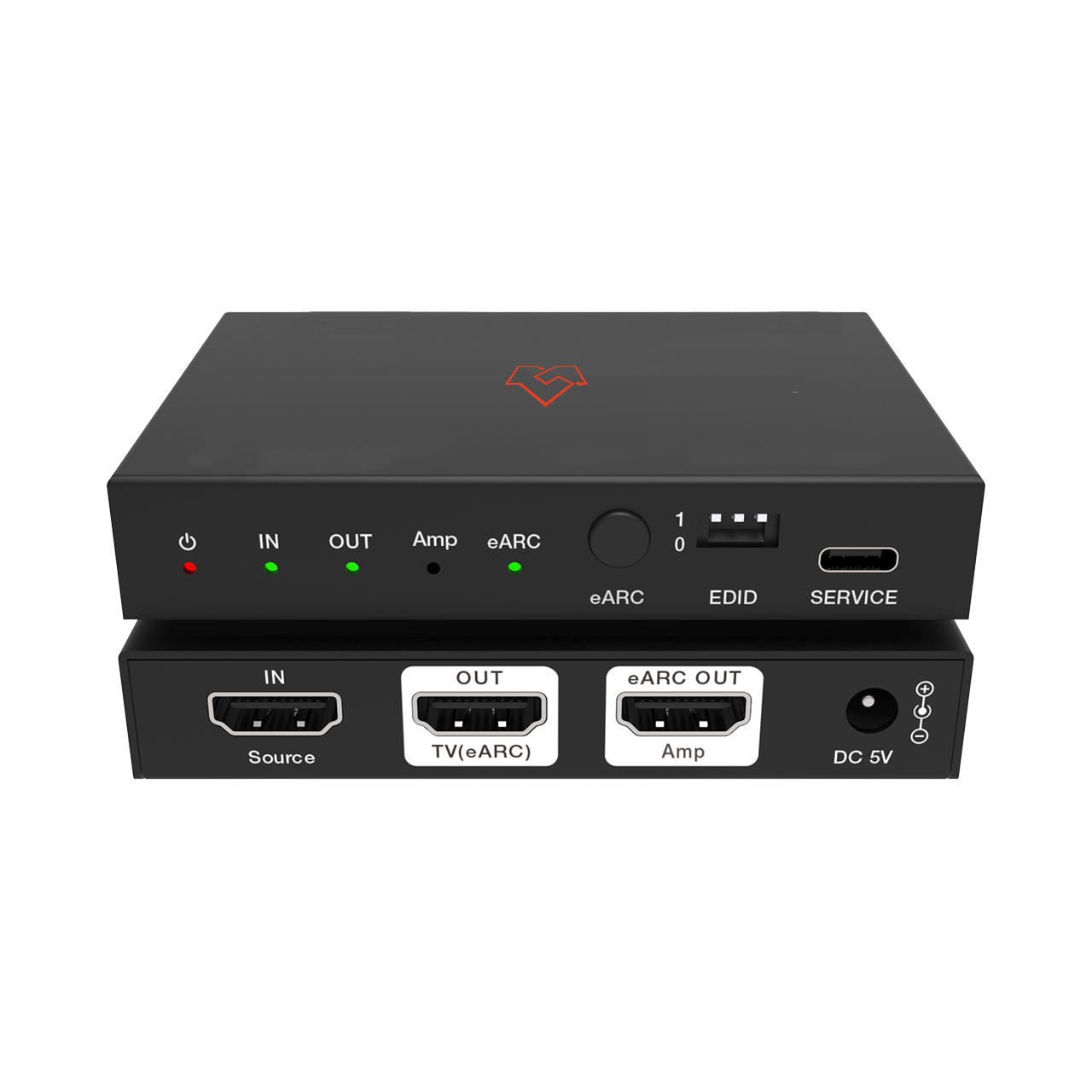

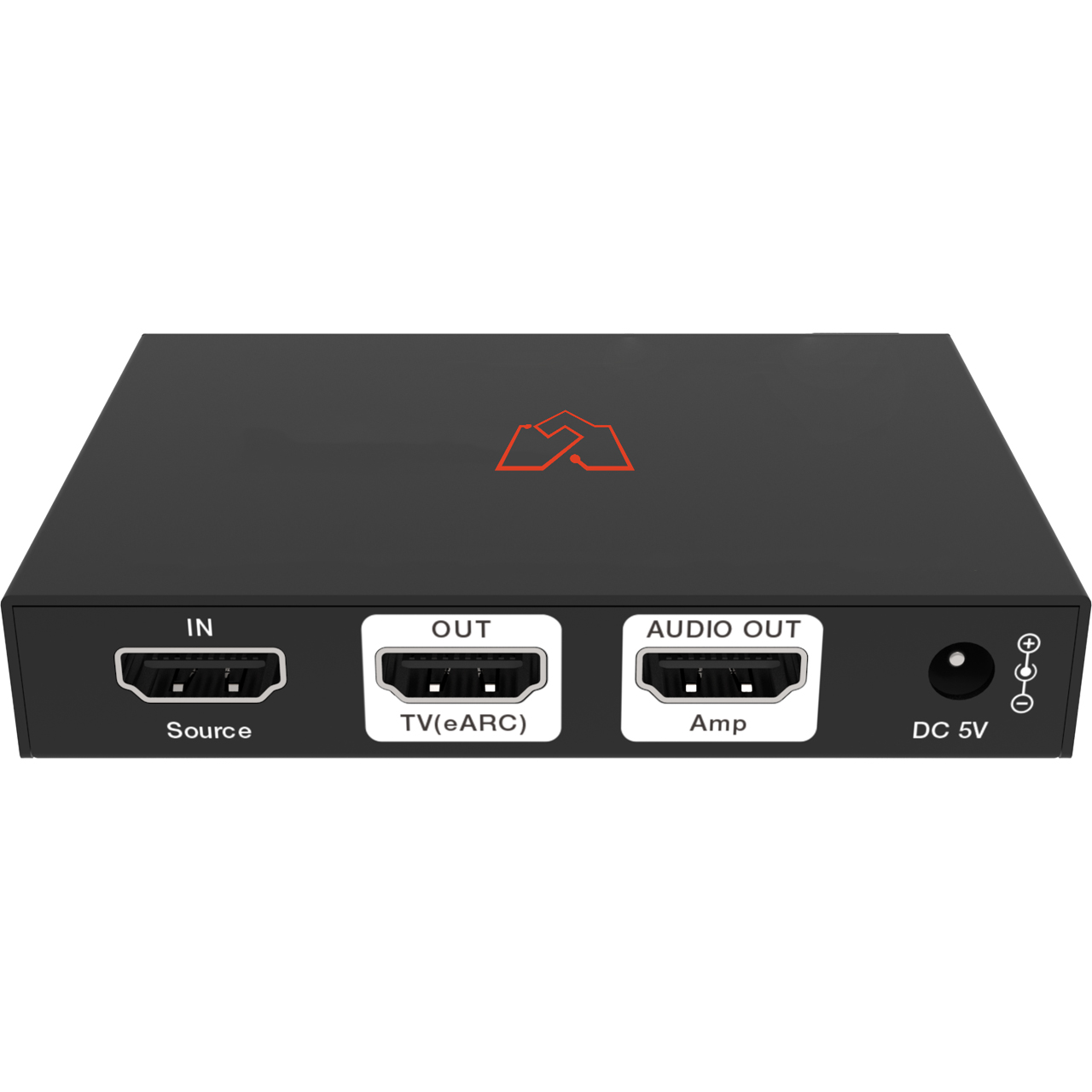

VigilLink VLHA-H21DWM HDMI 2.1 40Gbps 8K/4K Audio Downmix Decoder - HDCP 2.3 Compliant

Name: VigilLink VLHA-H21DWM HDMI 2.1 40Gbps 8K/4K Audio Downmix Decoder - HDCP 2.3 Compliant
Brand: VigilLink
SKU: VGL-VLHA-H21DWM
Price: 181.00 USD
Availability: InStock

ITEM #: VGL-VLHA-H21DWM MFG #: VLHA-H21DWM

VigilLink

Our Price:

$181.00

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

VLHA-H21DWM - Overview

Introducing the VigilLink VLHA-H21DWM 48Gbps HDMI eARC Audio to Amplifier Adapter, meticulously crafted to extract audio signals from HDMI sources or ARC/eARC-enabled TVs for seamless HDMI audio transmission to your AV Receiver. With support for data rates up to 48Gbps, compliant with HDMI 2.1 and HDCP 2.3 standards, it effortlessly handles UHDTV 8K@60Hz resolutions.

Packed with convenient features like EDID management and cable equalization, this adapter ensures effortless integration into your HDMI setup. It offers a straightforward solution for routing audio signals to your old audio amplifier, simplifying HDMI installations. Plus, enjoy seamless CEC control from your TV to both the source and amplifier, enhancing your overall audiovisual experience.

Features:
- HDCP 2.3 compliant
- Supports 48Gbps FRL and 18Gbps TMDS video bandwidth
- Supports video resolution up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
- Supports VRR, ALLM, QMS, QFT, SBTM, as specified in HDMI 2.1
- HDR, HDR 10, HDR 10+, Dolby Vision, HLG pass-through
- LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through
- HDMI input audio or TV ARC/eARC audio de-embedded to HDMI audio output
- Supports CEC control from TV to the source and amplifier
- Supports CEC volume control from TV to the amplifier sound system
- Advanced EDID management
- Compact design for easy and flexible installation
Specifications:
- HDMI Compliance: HDMI 2.0
- HDCP Compliance: HDCP 2.3
- Video Bandwidth: 18Gbps
- Video Resolution: Up to 4K@60Hz, 2K@60Hz/144Hz
- Audio Latency: No Latency
- Video Latency: No Latency
- Color Depth: 8/10/12bit
- Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:0
- Audio Formats:
  - HDMI In/Out: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD
  - L/R OUT: PCM 2.0CH
- HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
- ESD Protection: Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

  Connection
- Inputs: 2x HDMI input [Type A, 19-pin female]
- Outputs:
  - 1x HDMI output [Type A, 19-pin female]
  - 1x L/R audio output [3.5mm Stereo Mini-jack]
- Control:
  - 1x RS-232 [3pin-3.81mm phoenix connector]
  - 1x IR EXT [3.5mm Stereo Mini-jack]
  - 2x USB HOST [USB Type B]
  - 4x USB DEVICES [USB Type A]

  Mechanical
- Housing: Metal Enclosure
- Color: Black
- Dimensions: 6.89" x 3.94" x 1.18" / 175mm x 100mm x 30mm
- Weight: 1.12 lbs / 506g
- Power Supply:
  - Input: AC 100 - 240V 50/60Hz DC 12
  - Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified)
- Power Consumption:
  - Typical value: 5.16W
  - Standby mode: 0.6W
- Operating Temperature: 32°F ~ 104°F / 0°C ~ 40°C
- Storage Temperature: -4°F ~ 140°F / -20°C ~ 60°C
- Relative Humidity: 20 - 90% RH (No condensation)
Item Includes:
- 1x 48Gbps HDMI eARC Audio to Amplifier Adapter
- 1x 5V/2A Multinational Power Supply
- 1x User Manual
Warranty:
- 6 Years
