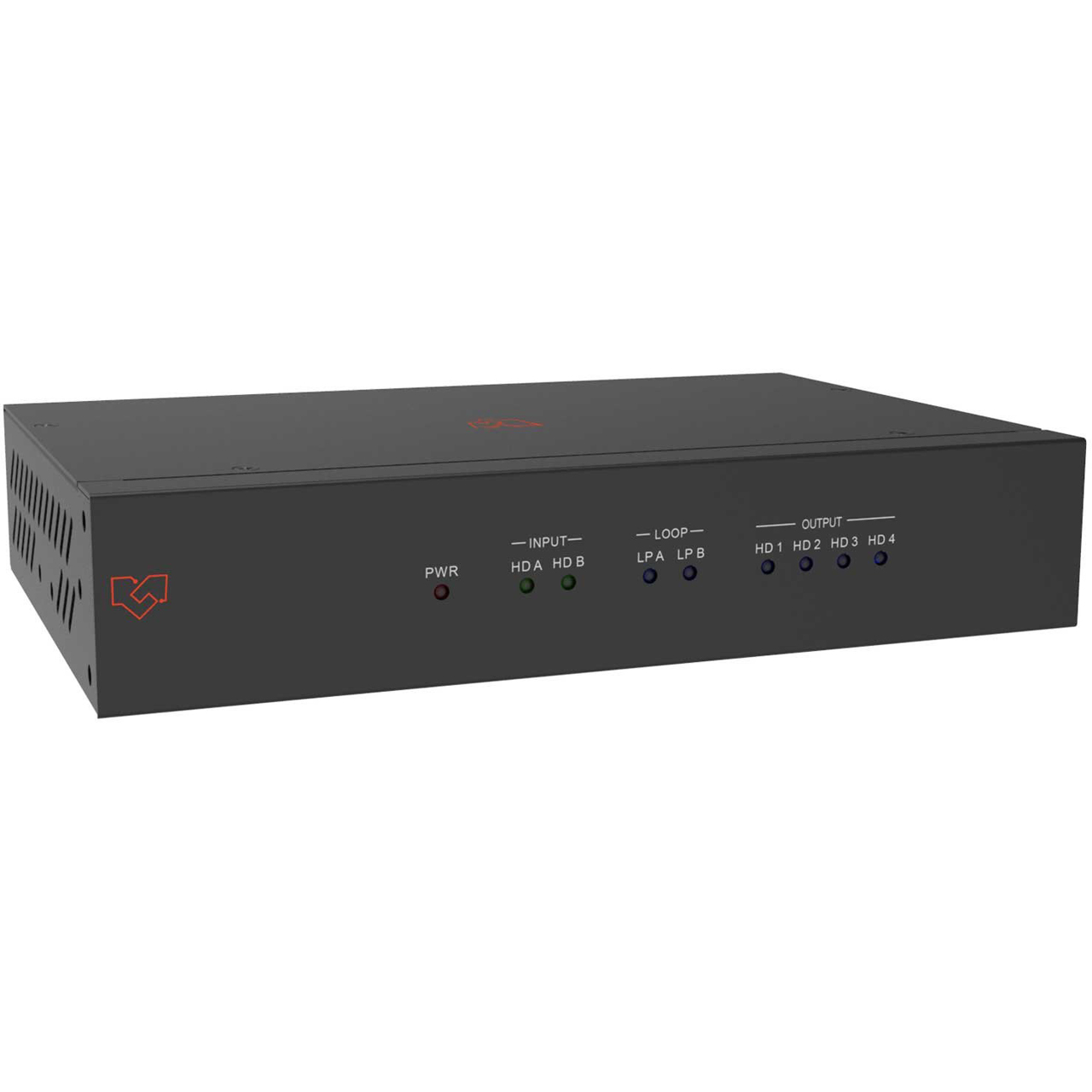

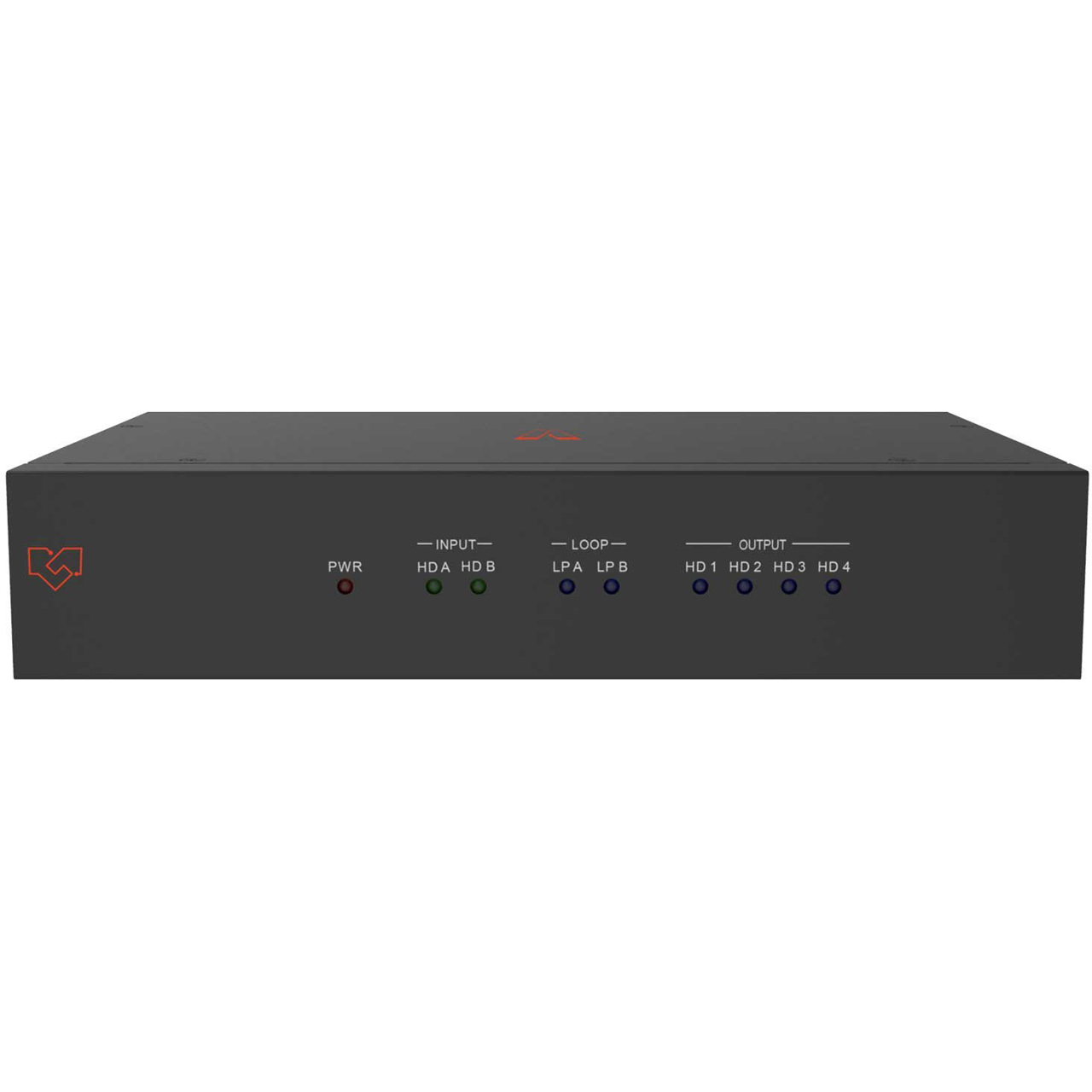

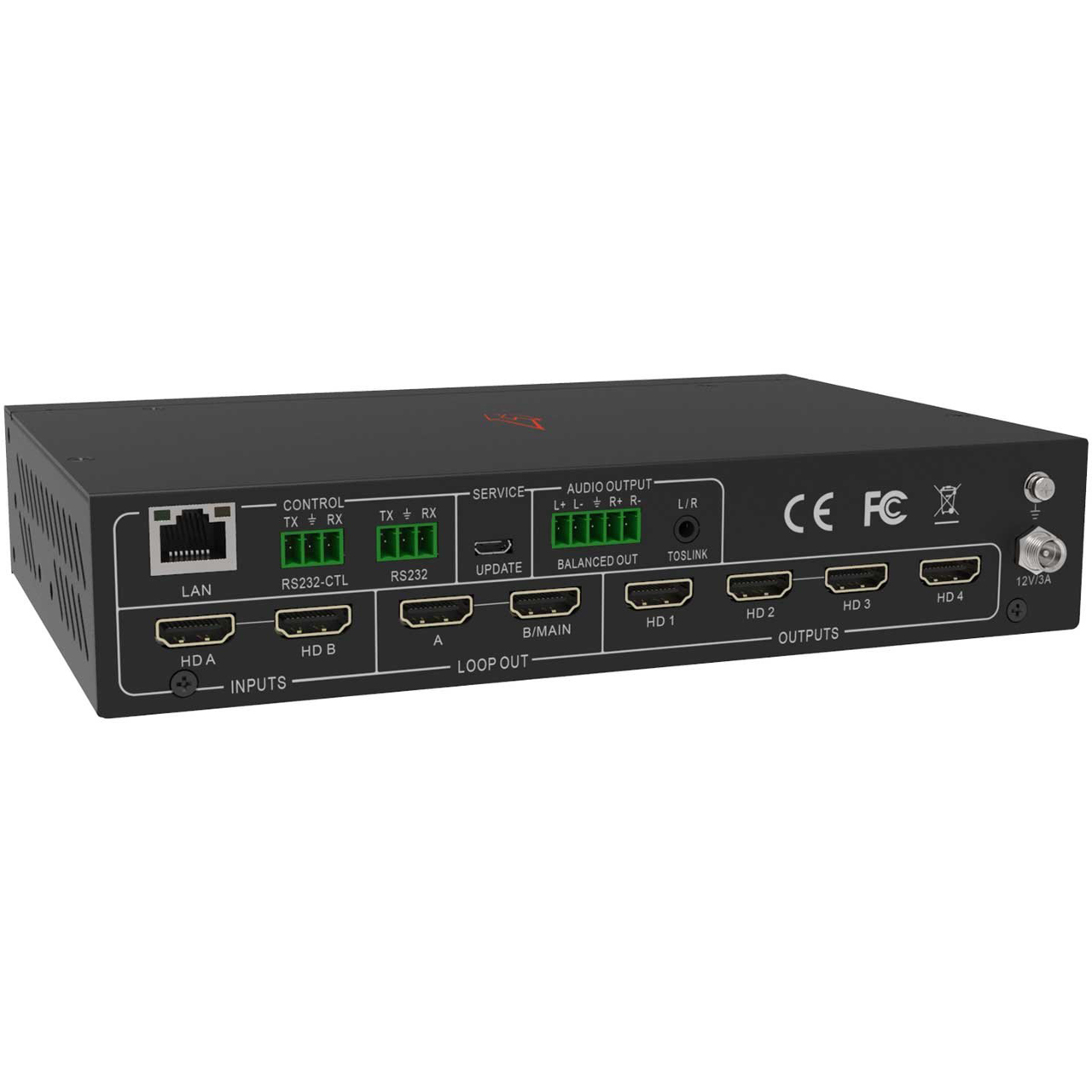

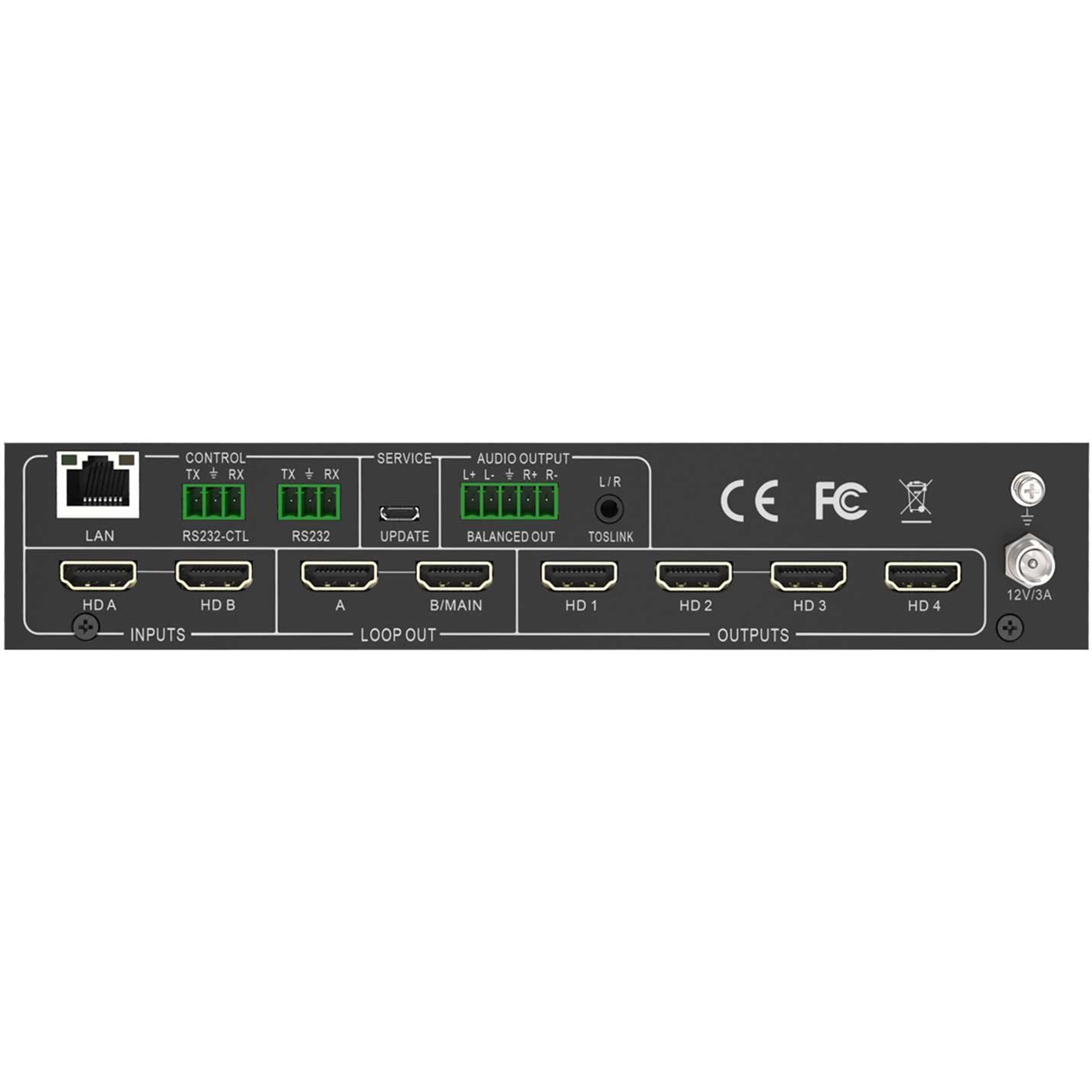

VigilLink VLVW-MX24P 2x4 18Gbps HDMI 2.0 4K2K Videowall Processor - HDMI 2.0b and HDCP 2.2 Compliant

VLVW-MX24P - Overview

• Features:

  • HDMI 2.0b, HDCP 2.2 compliant
  • Up to 4K/2K @ 60Hz with 24bit RGB/YCbCr (4:4:4)
  • 2x4/2x9 video wall processor with cascading up to 16x16 displays
  • Supports PIP mode on a video wall
  • Two inputs with two independent loop outs
  • Bezel Compensation and 180-degree rotation
  • Digital and analog audio de-embedded
  • RS-232 cascading and TCP/IP control
  • CEC control display by PC Tool or commands


• Specifications:

  Technical
  • HDMI Compliance: HDMI 2.0
  • HDCP Compliance: HDCP 2.2/1.4
  • RS-232: Baud rate: 57600, Data bit: 8, Stop bit: 1, no parity
  • Input Video Formats:
    - 4096x2160p 24/25/30/50/60Hz
    - 1400x1050 60Hz
    - 3840x2160p 24/25/30/50/60Hz
    - 1366x768 60Hz
    - 1080p 24/25/30/50/60Hz
    - 1360x768 60Hz
    - 1080i 50/60Hz
    - 1280x960 60Hz
    - 1680x1050 60Hz
    - 1280x800 60Hz
    - 1600x1200 60Hz
    - 1024x768 60Hz
    - 1440x900 60Hz
    - 1280x720p50/60Hz
  • Audio Format: 2.0 channel, 5.1 channel, LPCM, Dolby, AC3, DTS
  • ESD Protection: Human-Body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

    Mechanical
  • Housing: Metal Enclosure
  • Color: Black
  • Dimensions: 8.58" x 5.75" x 1.69" (218mm x 146mm x 43mm)
  • Weight: 4.41lbs (2kg)
  • Supply Voltage: +12V/3A
  • Power Consumption: 25W (Max)
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 90% RH (No condensation)


• Item Includes:

  • 1x Ultra HD Video Wall Processor
  • 1x 12V/3A Power Adapter
  • 1x 5-pin Phoenix Connector
  • 2x 3-pin Phoenix Connector
  • 1x RS232 to Phoenix Cable
  • 1x CAT6 cable
  • 1x USB to RS232 Cable
  • 1x User Manual


• Warranty:

  • 6 Years
