VigilLink VLEX-UB32CTBB-EXT 5Gbit/s USB 3.2 and USB 3.0 Extender - Transmission Up to 328 Feet

ITEM #: VGL-VUB32CTBBEXT MFG #: VLEX-UB32CTBB-EXT

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
VigilLink
Free Shipping with $49 Minimum Order

Our Price:

$770.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

VLEX-UB32CTBB-EXT - Overview

The VigilLink VLEX-UB32CTBB-TRX represents the latest USB 3.2 & USB 3.0 extender technology, compliant with USB 3.2 Gen 1 standards and supporting a 5Gbit/s USB data transfer rate. It ensures backward compatibility with USB 3.0, USB 2.0, and USB 1.1 specifications.

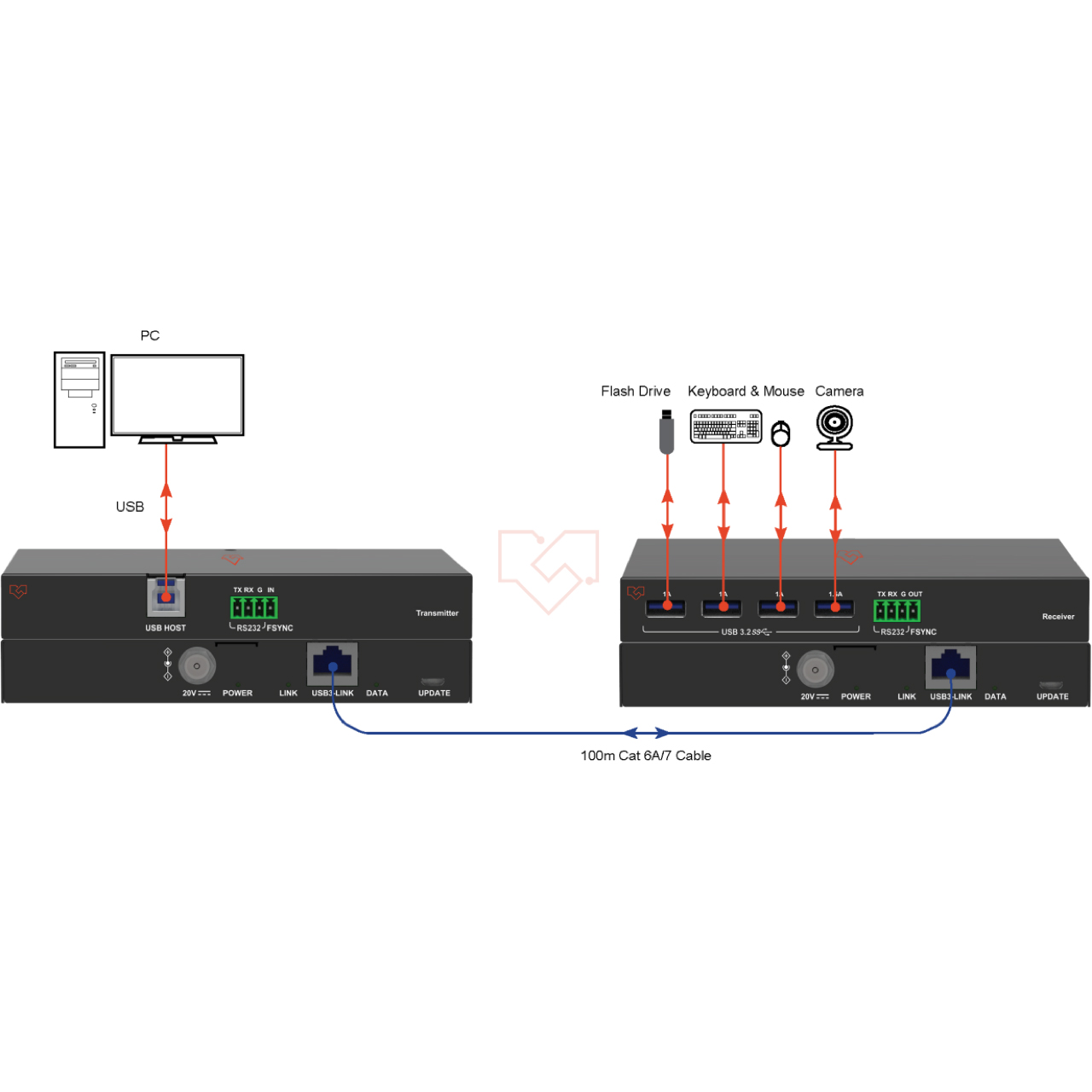

This extender can stretch USB 3.2 & USB 3.0 data up to 328ft (100m) through a single category cable, featuring a built-in 4-port USB hub in the RX. This hub enables the connection of multiple USB devices, utilizing advanced data transmission technology while occupying only one USB tier. Additionally, for scenarios requiring multiple USB devices, this extender can be paired with an external USB 3.2 & 3.0 hub.

Equipped with a built-in two-way PoH+ module, this extender simplifies power connectivity by requiring only one power adapter at either end. This feature is particularly advantageous in situations where the RX cannot access a power supply, such as outdoor monitoring setups.

Applications:
• Consumer: Personal, USB extension, VR
• Commercial: Surveillance, industrial cameras, data neutral
• Conference and Education: Conference room or classroom

  • Features:

    • Slim profile, easy to install anywhere
    • Support USB 3.2 Gen 1 standard, and backward compatible with USB 3.0, USB 2.0, and USB1.1 standard
    • Supports up to 5Gbit/s data transfer rate
    • Support up to 328ft (100m) transmission via Cat6A/7F/FTP or U/UFTP cable
    • Pure hardware architecture is compatible with Control/Bulk/Interrupt/Isochronous transmission protocols
    • Provide 4x USB 3.2 & 3.0 device ports on RX, include one 1.5A port for connecting high-power USB devices
    • This extender only occupies one USB hub port and supports connecting additional USB hub devices.
    • Supports RS232 and FSYNC GPIO pass-through for industry camera control
    • Plug and play, no driver required, compatible with multiple operating systems
    • Support FW update via micro-USB
    • Two-way PoH + module, only needs to connect one power adapter at either end


  • Specifications:

    • USB Standard: USB 3.2 Gen 1 backward compatible with USB 3.0, USB 2.0, and USB 1.1 standards
    • Data Rate: Up to 5Gbit/s.
    • Transmission Distance: 32kHz, 44.1kHz, 48kHz, 96kHz and 192kHz up to 24-bit resolution
    • ESD Protection: Human-body Model: ±8kV (Air-gap discharge)/±4kV (Contact discharge)
    • Power Supply: DC 20V/3A
    • Power Consumption: 55W (Pair, no load)
    • Device Dimensions (WxHxD): 5.9" x 4" x 3.6" (150mm x 100mm x 21mm)


  • Item Includes:

    • 1x USB 3.2 & 3.0 Extender


  • Warranty:

    • 6 Year Limited Warranty


  • GTIN:

    0810119592118
