Gepco VPM2000 RG59 High Definition 4.5GHz SDI Coax Cable 1000 Ft. Gray
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

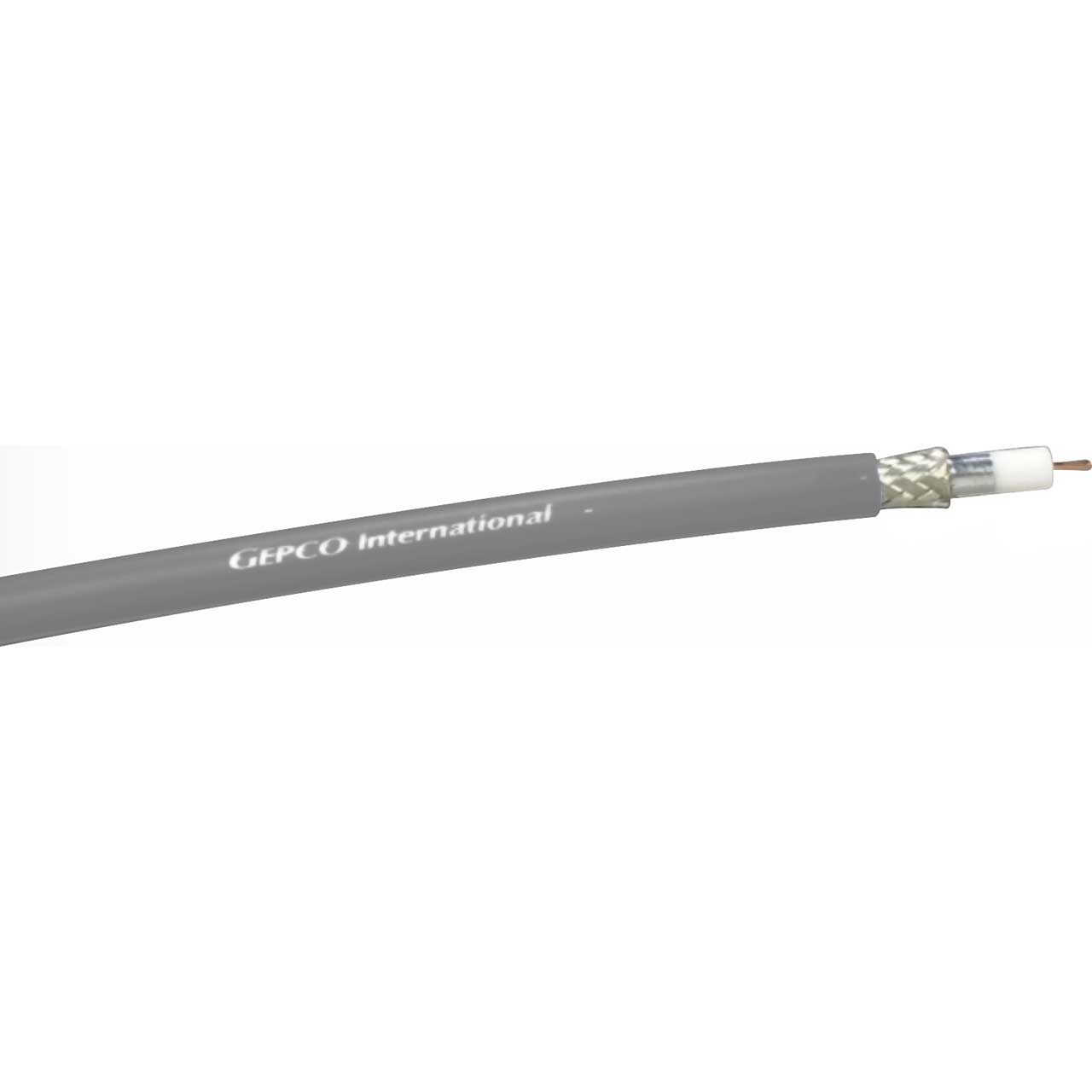

    Gepco VPM2000 RG59 High Definition 4.5GHz SDI Coax Cable 1000 Ft. Gray

    Manufacturer: Gepco

    Item #: VPM2000-1000 GY   •   MFG #: VPM2000-1000 GY







    The Gepco Brand high-definition video coax series has been engineered to feature a 4.5 GHz bandwidth (for HDTV transmission), a gas-injected foam dielectric, lower attenuation, more RG types, excellent crush resistance, easy termination and a flexible jacket. The gas-injected dielectric and precision process control are critical factors in achieving superior electrical performance including faster velocity of propagation, tight impedance tolerance, low attenuation and low structural return loss across the entire 4.5 GHz bandwidth.

    Conductive elements consist of a stranded or precision-drawn solid copper center conductor and either a 92% or 95% braid with 100% foil shield for complete broadband shielding. The series contains a wide range of sizes to accommodate short-distance rack wiring or extended-distance point-to-point interconnect.

    • Features

      • Ultra-low Attenuation & Return Loss
      • Precision 75 Ohm Impedance
      • 4.5GHz Bandwidth for HDTV
      • High Velocity of Propagation
      • Gas-Injected Foam Dielectric
      • 100% Sweep Tested
      • Full Copper Braid & Foil Shield
    • Specifications

      • Conductor: 20 AWG Solid Bare Copper
      • RG Standard: RG59
      • Nominal O.D.: 0.242"
      • Insulation: Gas-inected Foam EP .146"
      • Shield: 95% TC Braid, 100% Foil
      • Jacket: PVC
      • UL Type: CMR
      • Return Loss (100kHz-1GHz) / (1GHz-4.5GHz): >23dB, >21dB
      • Capacitnce: 16.2 pF/ft
      • Weight/Mft.: 35 Lbs.
