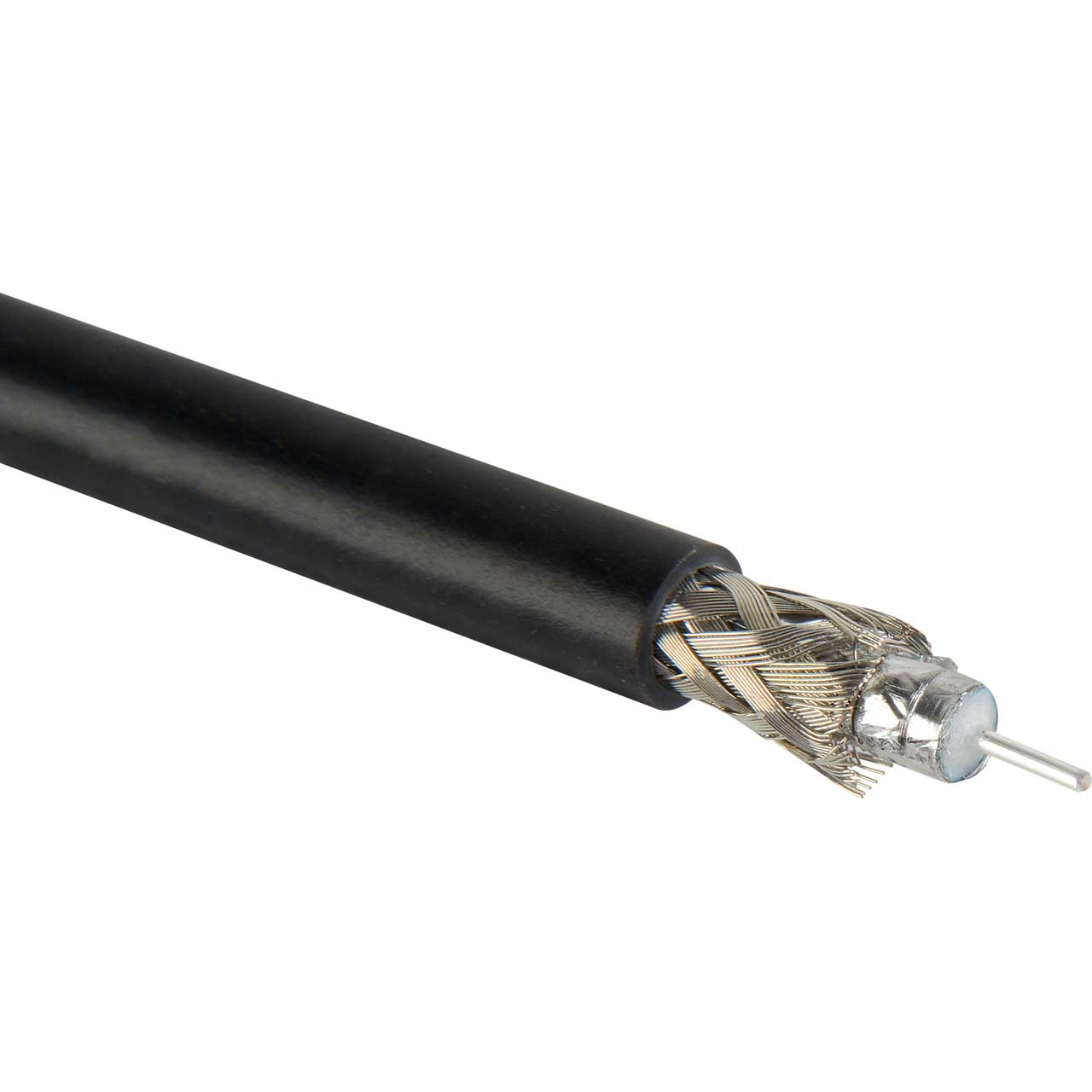

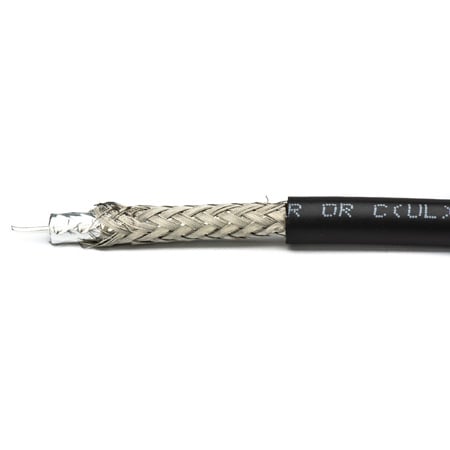

Belden 4505R 0101000 CMR Rated 12G-SDI 4K UHD RG59 75 Ohm Video Coax Cable 20 AWG - Black - Per Foot

ITEM #: BL-4505R-FT-BK MFG #: 4505R 0101000-FT

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1.30

Our Price:

$1.20

Availability: In Stock
iAvailability Description Popup


    4505R 0101000-FT - Overview

    Belden 4505R is an RG-59, 75 Ohm, 12G-SDI Precision Video Coax with a 20 AWG Solid Silvered Copper Conductor, PE Insulation, Foil plus 95% Tinned Copper Braid Shield in a PVC Jacket, CMR rated.

    Belden 4K UHD Coax Cables for 12G-SDI maximize 4K signal transmission distance over a single coax, minimizing weight and space utilization compared to multi-link solutions. This solution provides significant headroom and guarantees -15 dB return loss from 4.5 to 12 GHz.

    Applications
    Ultra-High Definition Digital Video
    4K Single-link 12 Gb/s UHDTV
    4K D-Cinema
    8K Quad-link UHDTV
    HD-SDI 1080p
    SMPTE 2082-1 12 Gb/s UHDTV
    SMPTE 2081-1 6 Gb/s UHDTV
    SMPTE 424M 3 Gb/s

    • Features:

      • Faster Installation: Using Belden's single-link solution saves time and is significantly lighter than dual or quad-link configurations
      • Optimized Design: On Belden 4K UHD Coax Cables for 12G-SDI, the inner foil is bonded to the core to eliminate bunching when installing 1-piece connectors. The outer foil is bonded to the jacket for a quicker, one-step stripping process
      • Superior Performance: The 4K UHD coax cable for 12G-SDI are superior in performance and engineered to optimize transmission distance, the cables exceed the SMPTE Return Loss (RL) specifications for UHDTV
      • Supports 12 GHz: Belden 4K UHD Coax Cables for 12G-SDI are capable of supporting 12 GHz bandwidth and enable a single-link configuration to transmit 4K

    • Specifications:

      • Physical Characteristics
      • # Coax: 1
      • RG Type: 6
      • Conductor AWG: 20
      • Conductor Stranding: Solid
      • Conductor Nom. Diameter: 0.032 inches
      • Conductor Material: Silver Plated Copper
      • Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
      • Nom. Insulation Diameter: .145
      • Outer Jacket Material: PVC - Polyvinyl Chloride
      • Overall Nominal Cable Diameter: 0.233 in.

      • Mechanical Characteristics
      • Operating Temperature Range: -30°C To +75°C
      • Bulk Cable Weight: 31 lbs/1000 ft.
      • Max. Recommended Pulling Tension: 52 lbs.
      • Min. Bend Radius/Minor Axis: 2.500 in.

      • Electrical Characteristics
      • Impedance (Ohm): 75
      • Inductance (µH/ft): 0.107
      • Capacitance (pF/ft): 16.100
      • Nominal Velocity of Propagation (%): 83.000
      • Nominal Delay (ns/ft): 1.220
      • Nom. Conductor DCR @ 20°C (Ohm/1000 ft): 10.200
      • Nominal Outer Shield DCR @ 20°C (Ohm/1000 ft): 3.400
      • Max. Operating Voltage - UL: 300 V RMS

    • Item Includes:

      • 4505R 0101000 Video Coax 20 AWG - Black - Per Foot

    • Warranty:

      • Limited 10 Year Warranty
