Mogami W2921 4-Conductor High Definition Superflexible Studio Speaker Cable - 500 Foot - Black

ITEM #: W-2921-500 MFG #: W2921-00-D-500

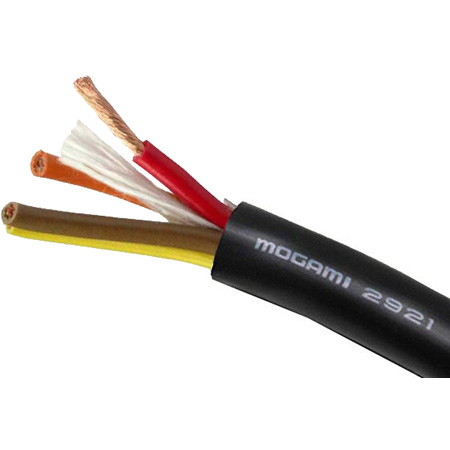

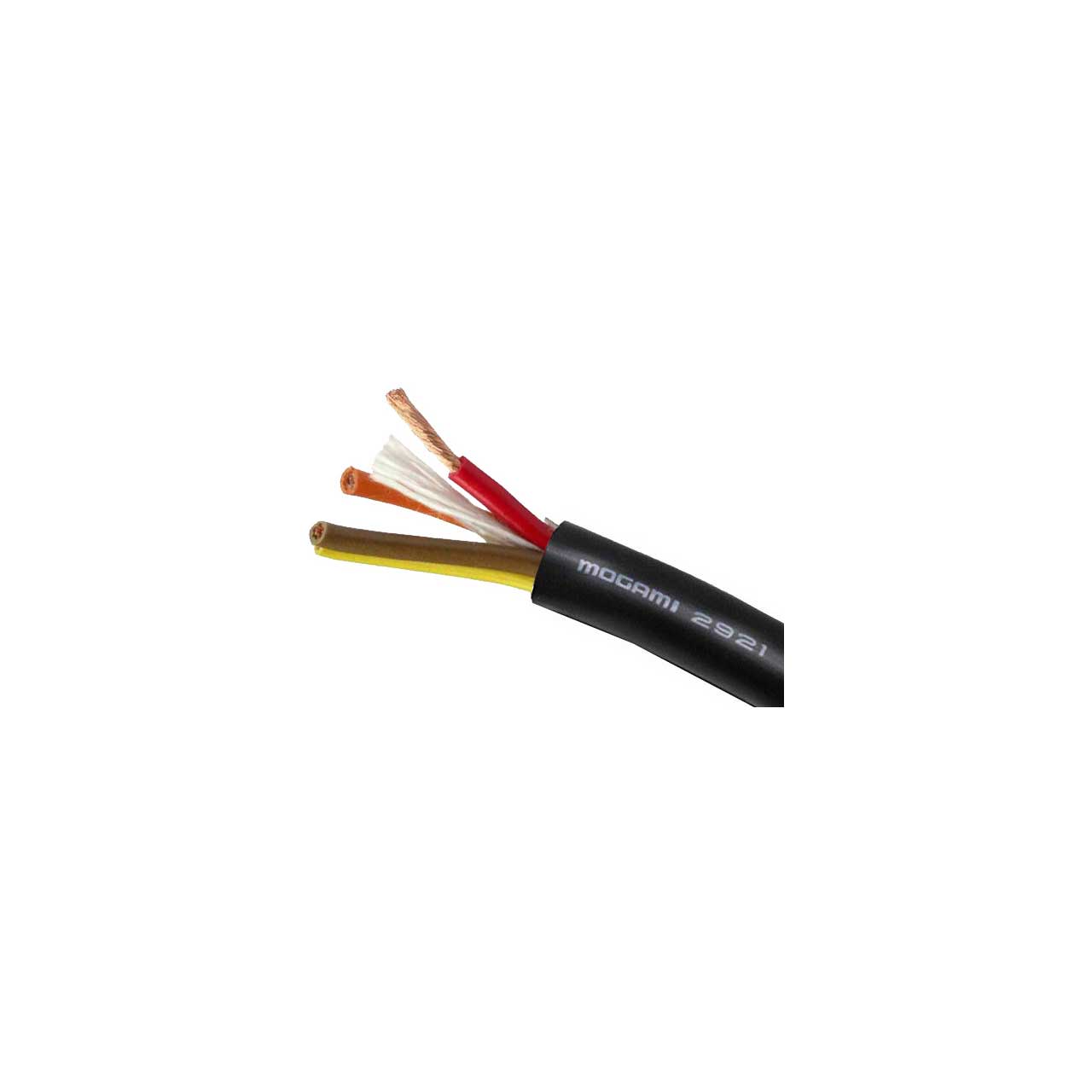

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$2,400.00

Our Price:

$1,795.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


W2921-00-D-500 - Overview

The Mogami W2921 professional speaker cables are originally designed to deliver maximum performance from state-of-the-art Tri-Amp Systems. They offer true audiophile performance for accurate sound transmission with clear transparent response, yet possess a rugged superflexibility for the most demanding professional applications. Each conductor features many strands in rope-lay of famous MOGAMI 'NEGLEX' Oxygen-Free-Copper within color-coded PVC insulation. A tough, low profile matte black superflexible PVC jacket protects the cables.

  • Specifications:

    • No. of Conductors: 4
    • Conductor:
      - Details: 7/32/0.12 NEGLEX OFC (bare)
      - Size: 2.53mm² (#14AWG)
    • Insulation Ov. Dia. (mm): 3.4∅ (0.134"∅) PVC
    • Jacket:
      - Ov. Dia. (mm): 11.3∅ (0.445"∅)
      - Material: Flexible PVC, Matte Black
    • DC Resistance 68°F (20°C): 0.008Ω/m Typ. (0.0024Ω/ft)
    • Inductance (1kHz, 68°F (20°C)):
      - 1-2: 0.7µH/m (0.21µH/ft)
      - 1-3: 0.3µH/m (0.09µH/ft)
    • Capacitance Frequency 1-2 68°F (20°C):
      - 100Hz: 127pF/m (38.7pF/ft)
      - 1kHz: 110pF/m (33.6pF/ft)
      - 10kHz: 101pF/m (30.8pF/ft)
      - 50kHz: 92pF/m (28.1pF/ft)
      - 100kHz: 90pF/m (27.5pF/ft)
    • Capacitance Frequency 1-3 68°F (20°C):
      - 100Hz: 102pF/m (31.1pF/ft)
      - 1kHz: 89pF/m (27.1pF/ft)
      - 10kHz: 89pF/m (27.1pF/ft)
      - 50kHz: 74pF/m (22.6pF/ft)
      - 100kHz: 71pF/m (21.7pF/ft)
    • Voltage Breakdown: Must withstand at DC 500V/15 sec
    • Insulation Resistance: 10000MΩ x m Min. at DC 125V, 68°F (20°C)
    • Emigration of Jacket Material: Non-Emigrant to ABS resin
    • Applicable Temperature: -4°F - 158°F (-20°C - 70°C)

  • GTIN:

    0801813012903
