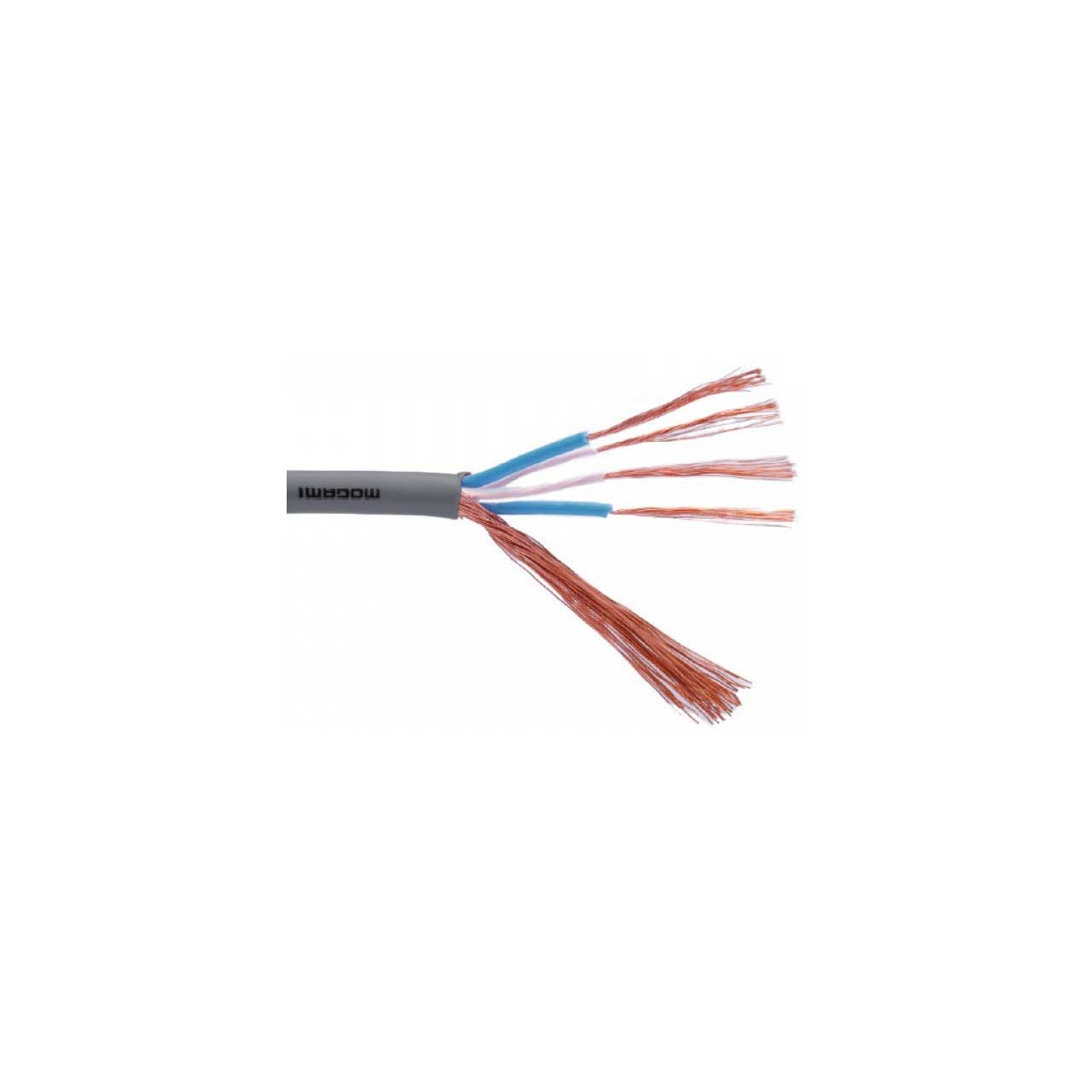

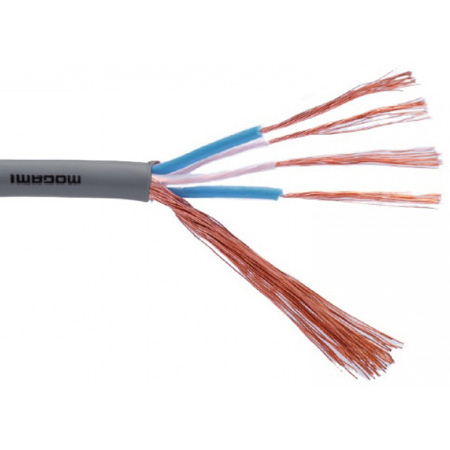

Mogami W2820 4-Conductor Standard Internal/External Neglex Console Wiring Cable - 328 Foot - Gray

Name: Mogami W2820 4-Conductor Standard Internal/External Neglex Console Wiring Cable - 328 Foot - Gray
Brand: Mogami Wire & Cable Corp.
SKU: W2820-328GY
Price: 257.49 USD
Availability: PreSale

ITEM #: W2820-328GY MFG #: W2820 08 C

Mogami Wire & Cable Corp.

Lengths:

Lengths

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$328.00

Our Price:

$257.49

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

W2820 08 C - Overview

The Mogami W2820 is ideal for the highest quality wiring of mixing consoles, rack panels, and studio equipment. It features XLPE (Cross-Linked Polyethylene) which has excellent electrical characteristics and prevents shrink-back during soldering. The served (spiral) shield provides easier cable termination and better sound quality than braided shield.

Features:
- #24AWG conductor version technically similar to #W2534 NEGLEX quad Mic. Cable except for smaller and slippery outer jacket.
- This item is designed for permanent installation and where larger conductor size is required such as long runs

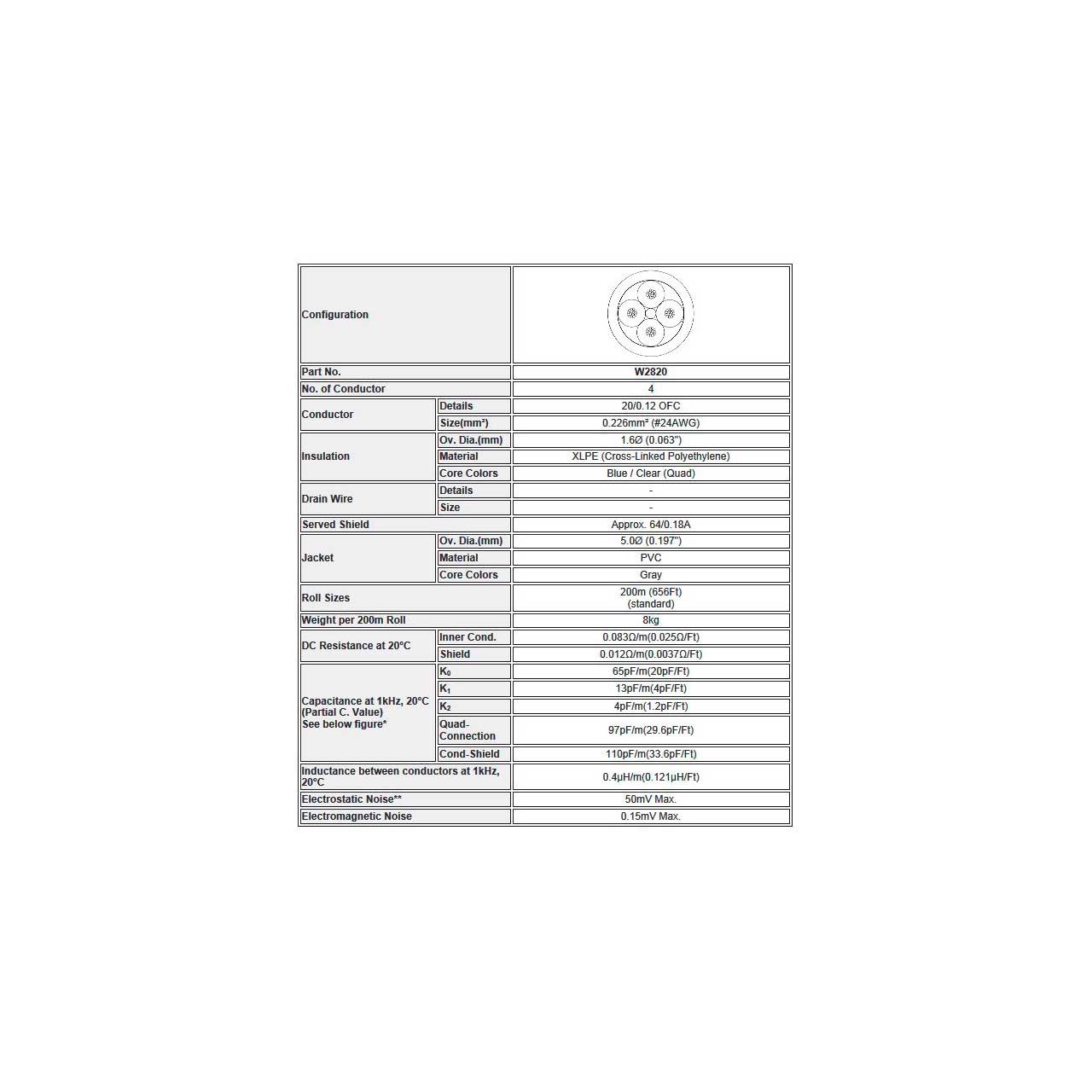

Specifications:
- No. of Conductors: 4
- Conductor:
  - Details: 20/0.12 OFC
  - Size (mm²): 0.226mm² (#24AWG)
- Insulation:
  - Ov. Dia.(mm): 1.6∅ (0.063")
  - Material: XLPE (Cross-Linked Polyethylene)
- Served Shield: Approx. 64/0.18A
- Jacket:
- - Ov. Dia.(mm): 5.0∅ (0.197")
  - Material: PVC
- DC Resistance at 68°F (20°C):
  - Inner Cond.: 0.083Ω/m(0.025Ω/ft)
  - Shield: 0.012Ω/m (0.0037Ω/ft)
- Capacitance at 1kHz, 68°F (20°C):
  - K₀: 65pF/m (20pF/ft)
  - K₁: 13pF/m (4pF/ft)
  - K₂: 4pF/m (1.2pF/ft)
- Inductance Between Conductors at 1kHz, 68°F (20°C): 0.4µH/m (0.121µH/ft)
- Electrostatic Noise: 50mV Max
- Electromagnetic Noise: 0.15mV Max
- Voltage Breakdown: Must withstand at DC 500V/15 sec
- Insulation Resistance: 100000MΩ/ x m Min. at DC 125V, 68°F (20°C)
GTIN:
0801813200836
