Ward-Beck AA6201A plus RM openGear Universal 1x8/ Dual 1x4 Analog Audio Distribution Amplifier with T6303A Rear Module

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Ward-Beck AA6201A plus RM openGear Universal 1x8/ Dual 1x4 Analog Audio Distribution Amplifier with T6303A Rear Module

    Manufacturer: Ward-Beck Systems Ltd.

    Item #: WARD-AA6201A-RM   •   MFG #: AA6201ARM




    Our Price:$389.00

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov

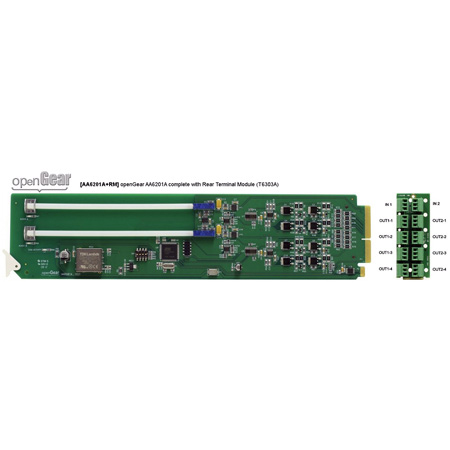

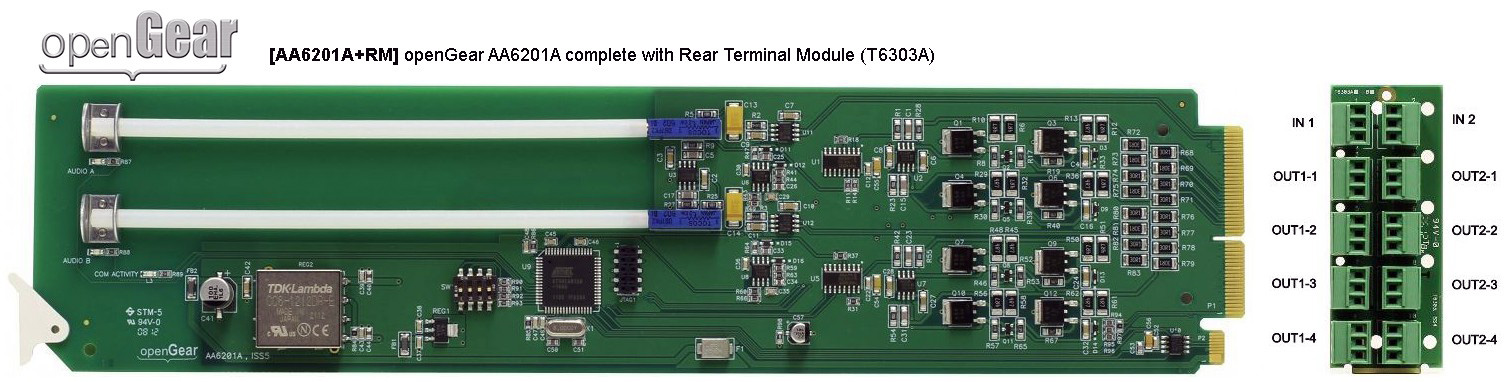

      AA6201A+RM is a combination package comprising an AA6201A audio distribution amplifier and a T6303A rear termination module. This combination allows the AA6201A to be used as a 1 x 8 distribution amplifier or a dual 1 x 4 distribution amplifier

      The AA6201A is an analog audio distribution amplifier housed in openGear series frames. It can be used as a mono or two channel (stereo) audio DA. As a mono DA it can provide eight copies of the single (mono) input signal. As a two channel (stereo) DA it can provide four copies of the stereo inputs. For maximum output capability the T6303A rear termination modules are used.


      • Features

        • Analog audio distribution amplifier
        • used as either a mono or two channel (stereo) audio DA. Mono DA provides eight copies of the single (mono) input ,
        • stereo mode provides four copies of the two (stereo) inputs.
        • Maximum output capability requires T6303A rear assemblies
        • . High density installations can use the T6403A rear assembly to provide up to 20 1 x 4 mono audio DAs in the OG3-FR-C frame. Ultra high stereo capacity can use the T6406 rear assembly to provide two 1 x 3 stereo audio DAs per slot
        • can be addressed through Dashboard to report card status.

      • Specifications

        • Input
        • Maximum Input Level - +26 dBu
        • Input Impedance - Greater then 20K Ohm balanced
        • CMMR - Greater than 70dB, 20Hz to 20kHz
        • Output
        • Maximum Output Level - +26 dBu
        • Output Impedance - 60 Ohm balanced
        • Output Isolation - Greater than 60dB
        • Performance
        • Harmonic Distortion - Less than 0.01%
        • Frequency Response - Ý 0.1dB from 20Hz to 20kHz
        • Gain - -14dB to +18dB continuously variable
        • Noise - Better than 95 dBu, 20Hz to 20kHz at unity gain
        • General
        • Dimensions 3.025" high x 12.800" deep
        • Power requirement’s +12 [email protected] 215 mA
        • Weight approx.0.115 kg (0.252 lbs)

      • Item Includes

        • AA6201A
        • T6303A
        • Mounting Screw
        • 10 three pin male plugs
